VTSYIQI Ultrasonic Thickness Gauge Tester Meter 0.75 to 300mm 0.03inch 11.8inch in Steel 0.1/0.01mm for Metal Aluminum Copper

VTSYIQI Ultrasonic Thickness Gauge Tester Meter 0.75 to 300mm 0.03inch 11.8inch in Steel 0.1/0.01mm for Metal Aluminum Copper

Regular price $330.00 USD
Regular price Sale price $330.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Product Description

  • ★ With EL backlight function, easy to use in dim light environment
  • ★ The remaining battery indicating function can display the remaining battery power in real time
  • ★ With automatic sleep, automatic shutdown and power-saving functions
  • ★ It has the function of probe zero calibration and two point calibration. It can correct the system error automatically
  • ★ Compact, portable, high reliability, suitable for harsh operating environment, anti vibration, impact and electromagnetic interference

Product Description

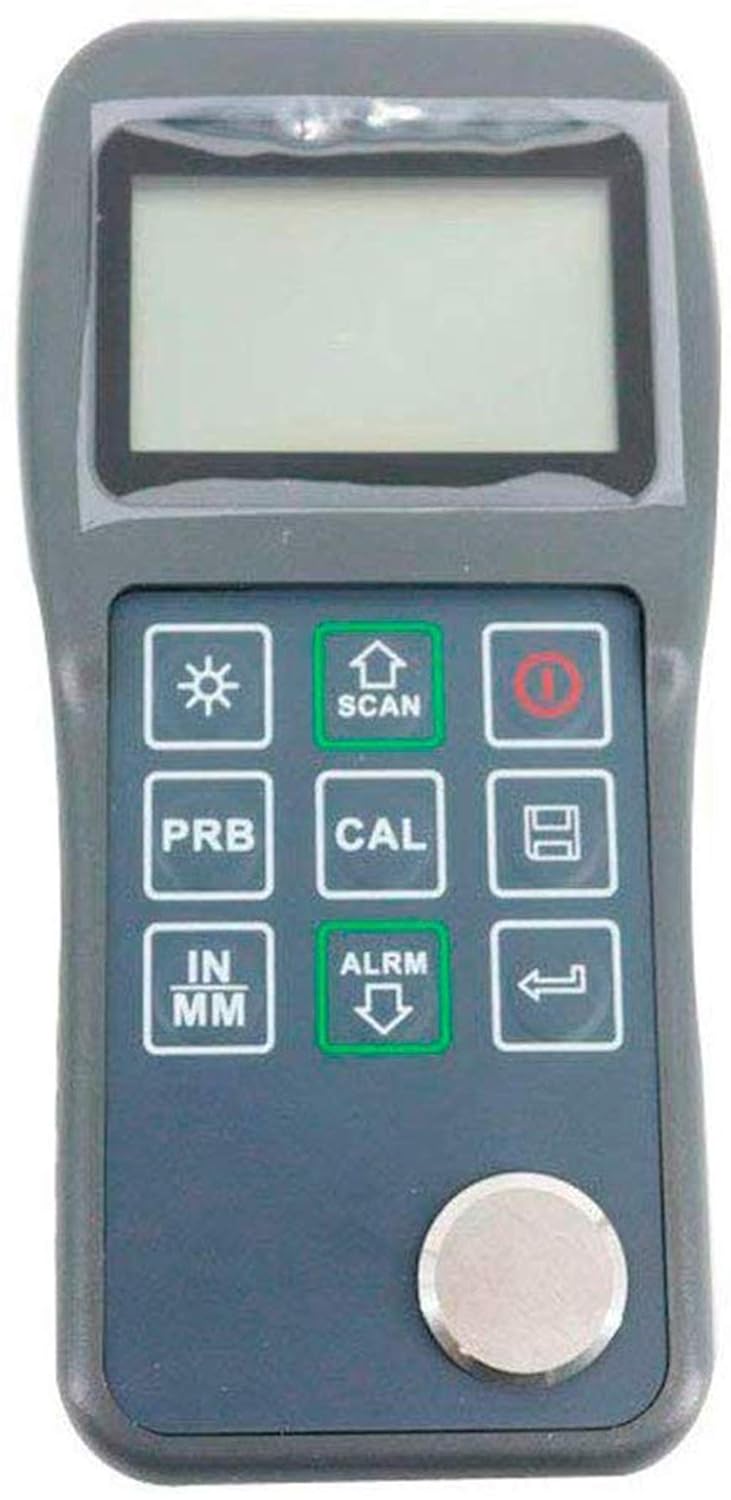

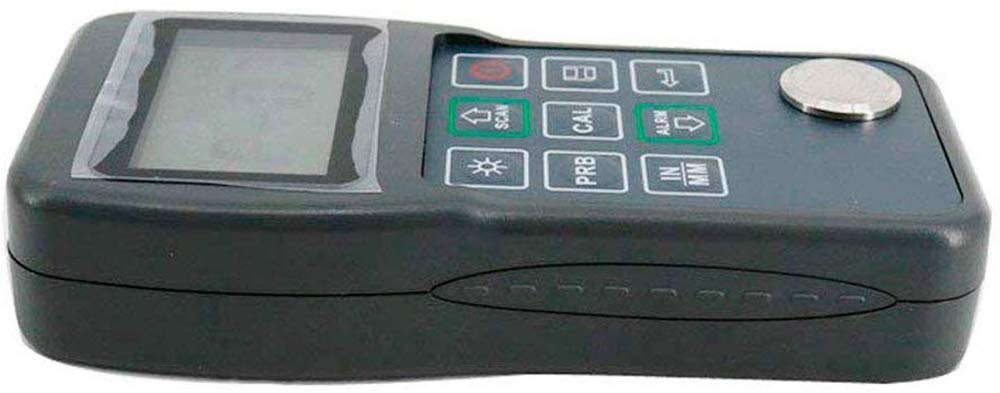

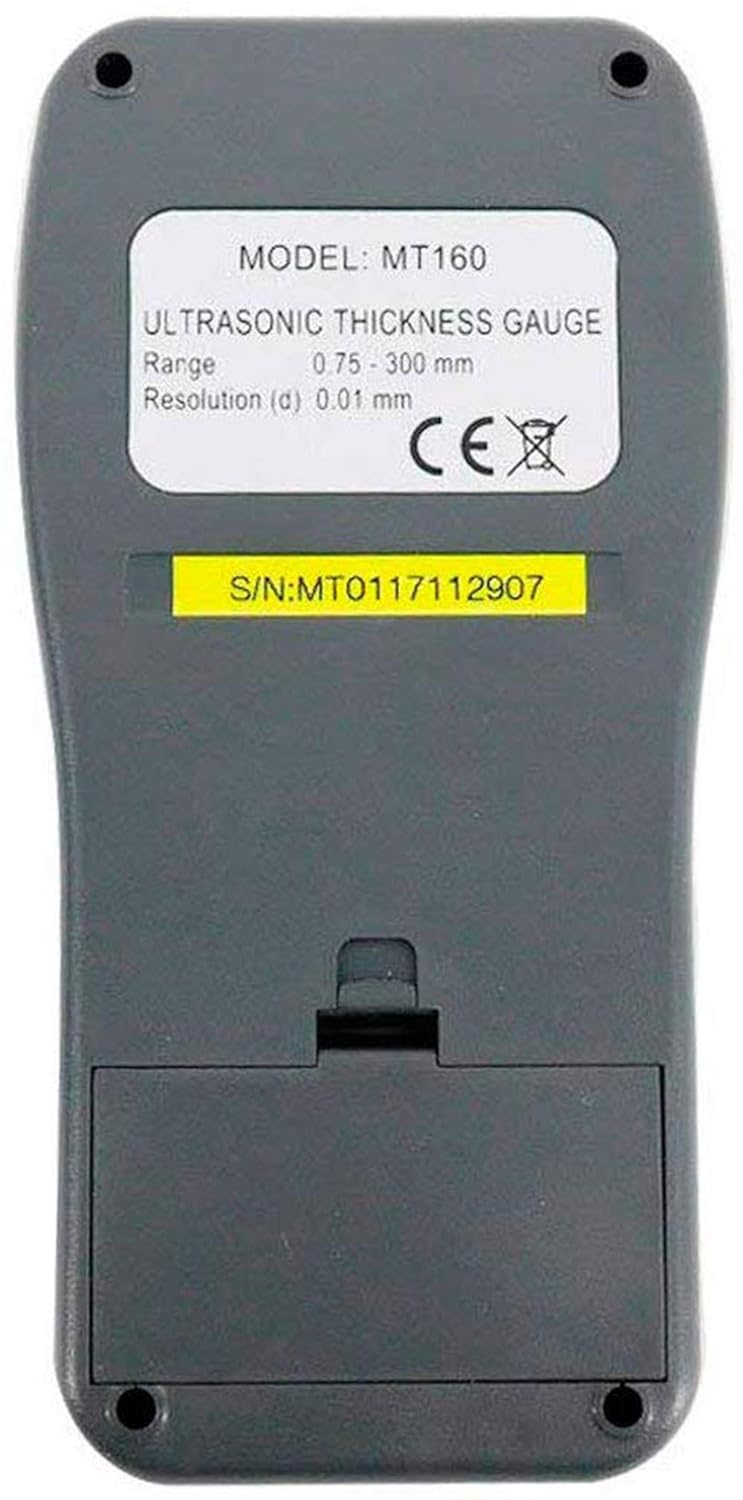

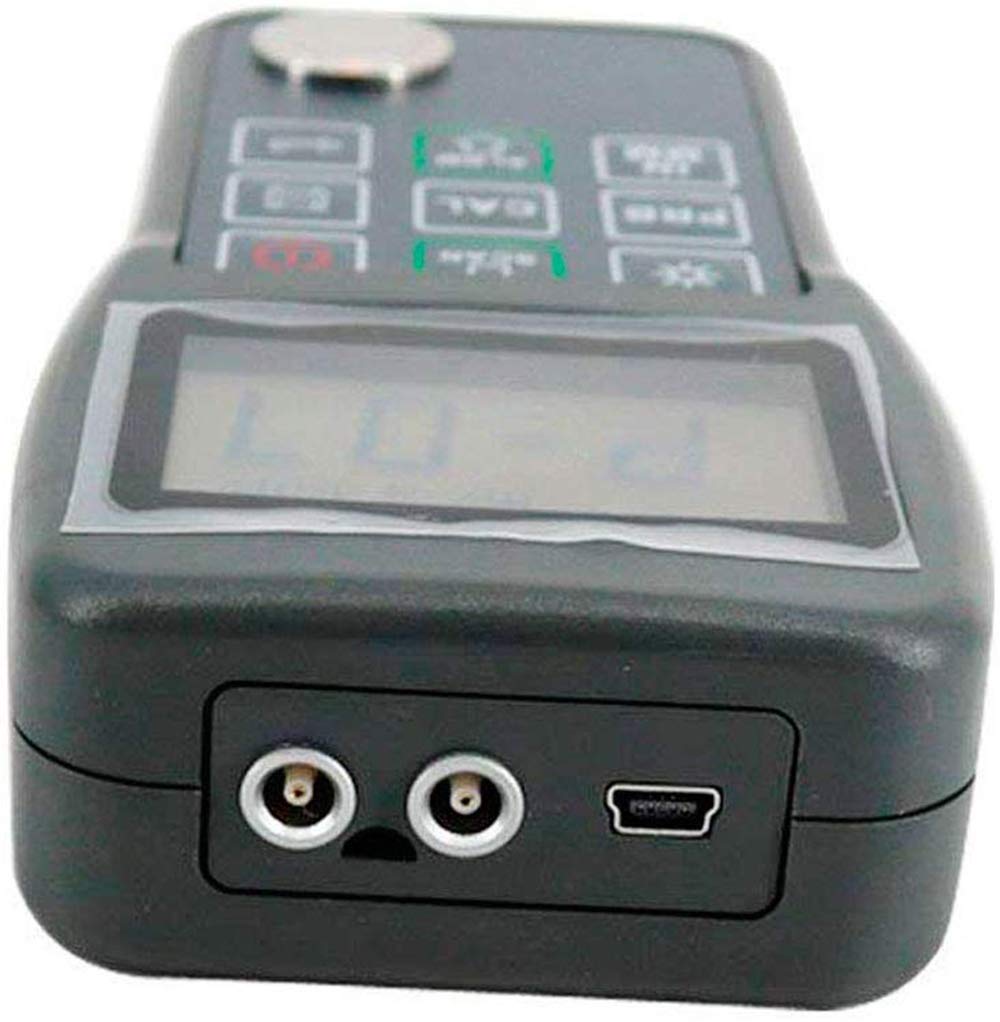

The model MT160 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields of production equipment, but also can be used for accurate measurement of various materials and various kinds of machining parts.
Function & application
Capable of performing measurements on a wide range of m aterial, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.
Technical Specifications
*Measuring range:0.75-300mm (Depends on probes)
*Resolution:0.1/0.01mm
*Accuracy:±0.05mm(≤10mm);(±0.5%H+0.01)mm(>10mm); H refer to the thickness of workpiece
*Working time:100h (EL backlight off).
*Sound Velocity:1000~9999 m/s
*Main unit weight:345g
*Dimensions:150mm×74mm×32 mm
*Power supply: two 5 (AA size) alkaline batteries(Battery not included in the package)
*Communication storage:USB( USB communication cable is Optional Accessories)
Working Conditions
*Operating Temperature: -20℃~+50℃
*Storage Temperature:-30℃~+70℃
*Relative Humidity ≤90%
*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

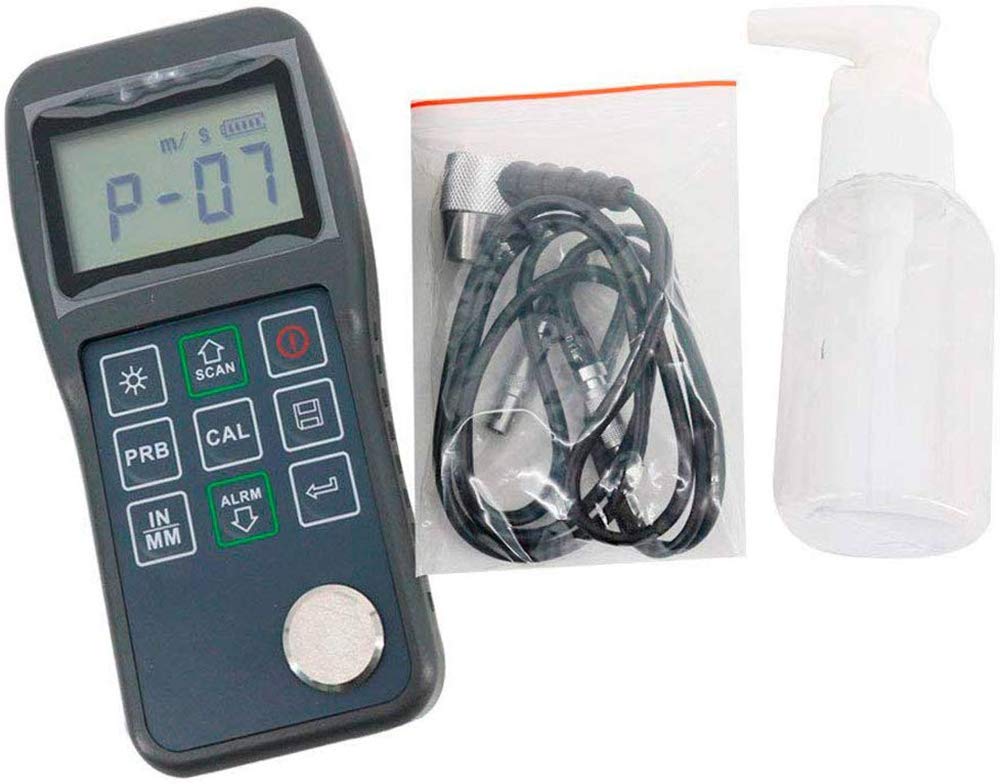

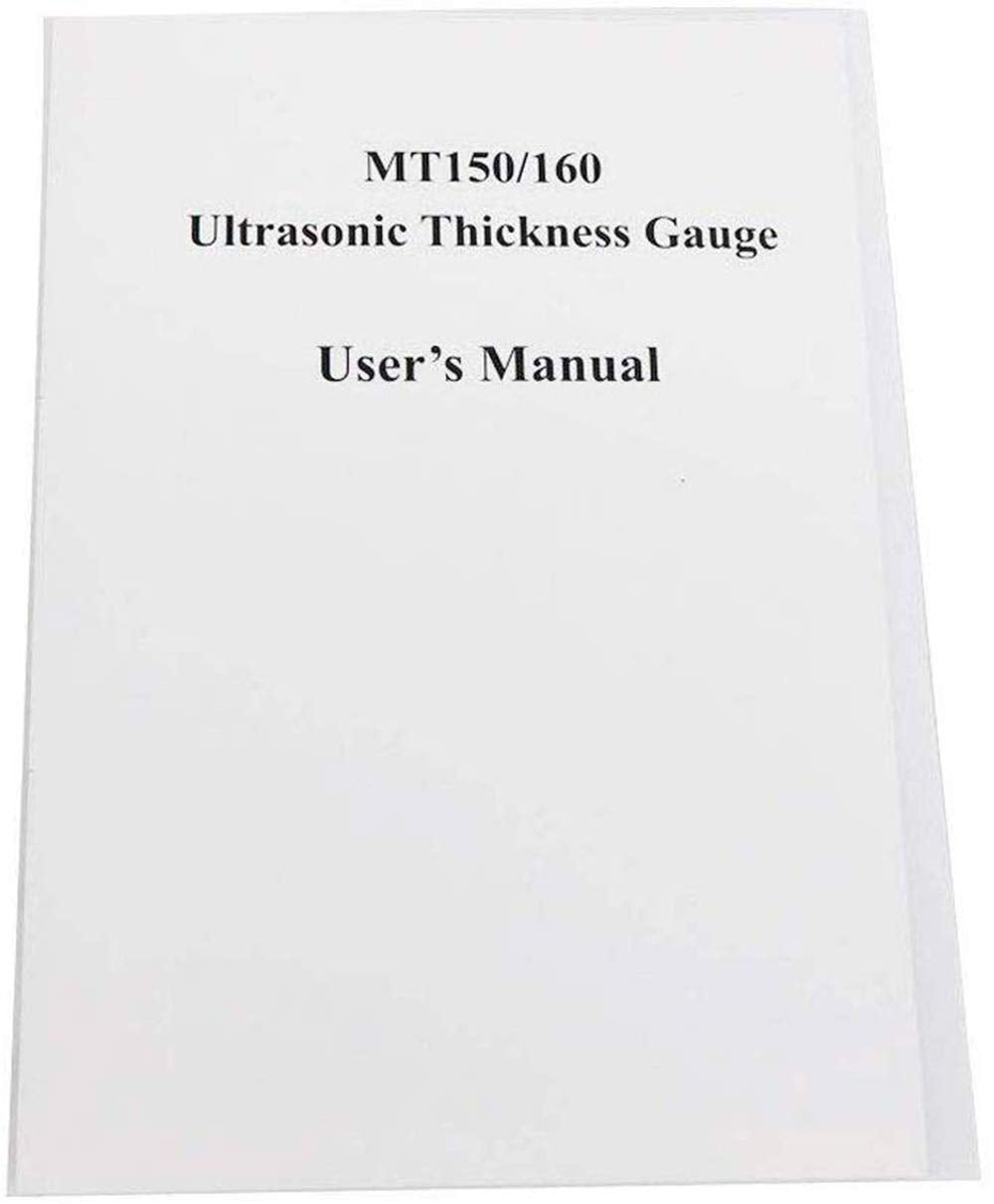

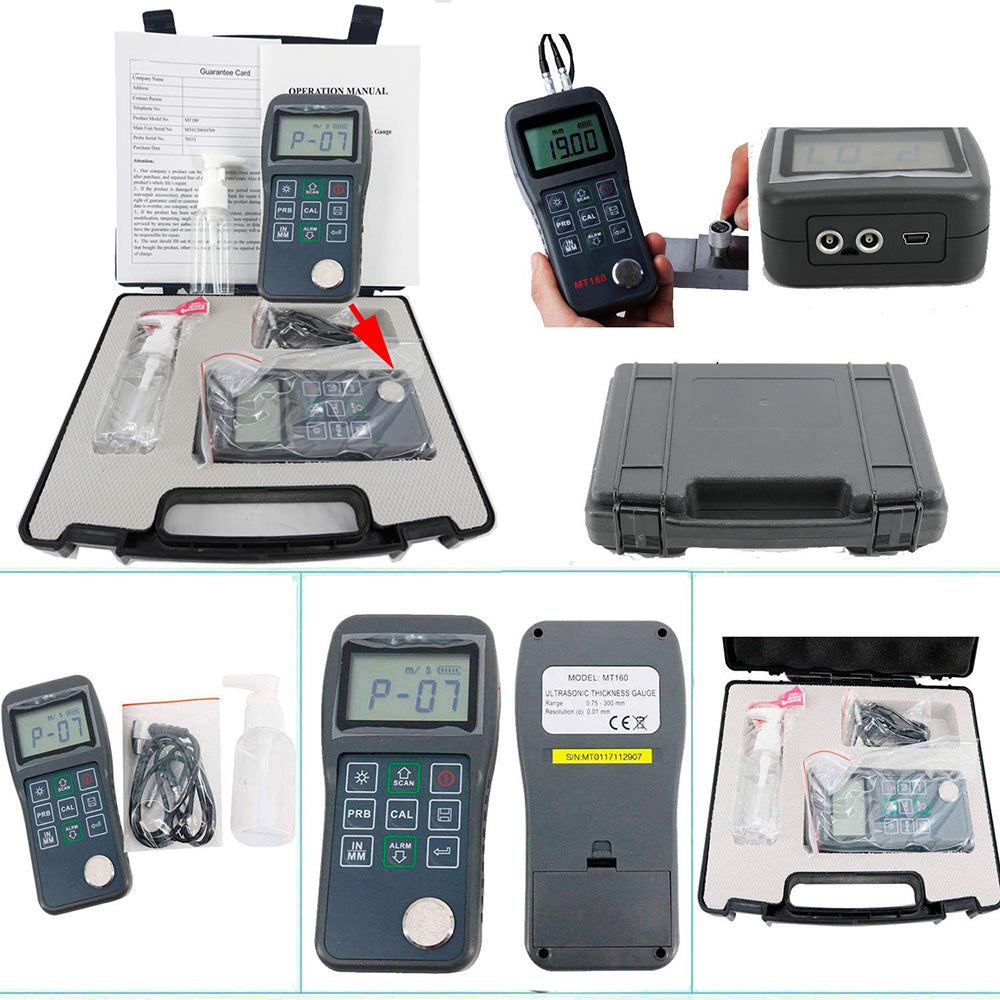

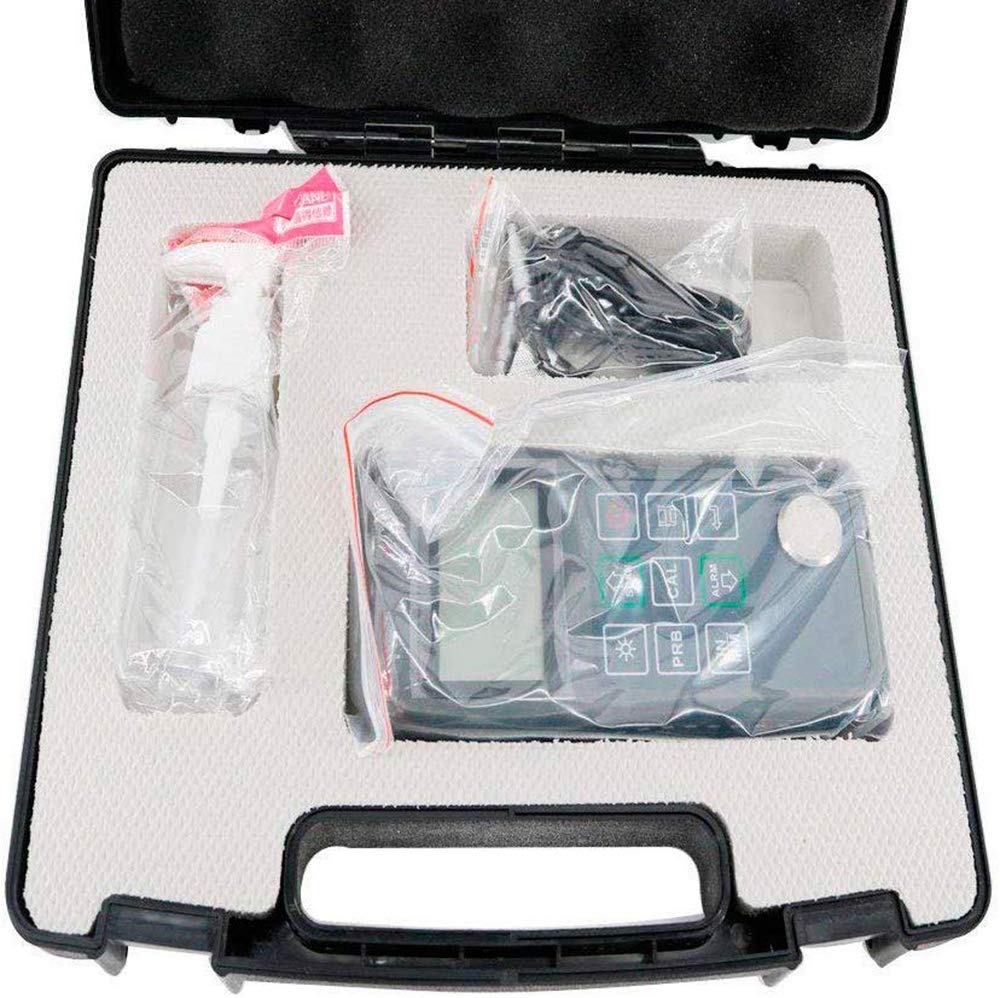

*Standard Accessories: Host, Standard ultrasonic thickness probe N05,ABS instrument case,Attached files
