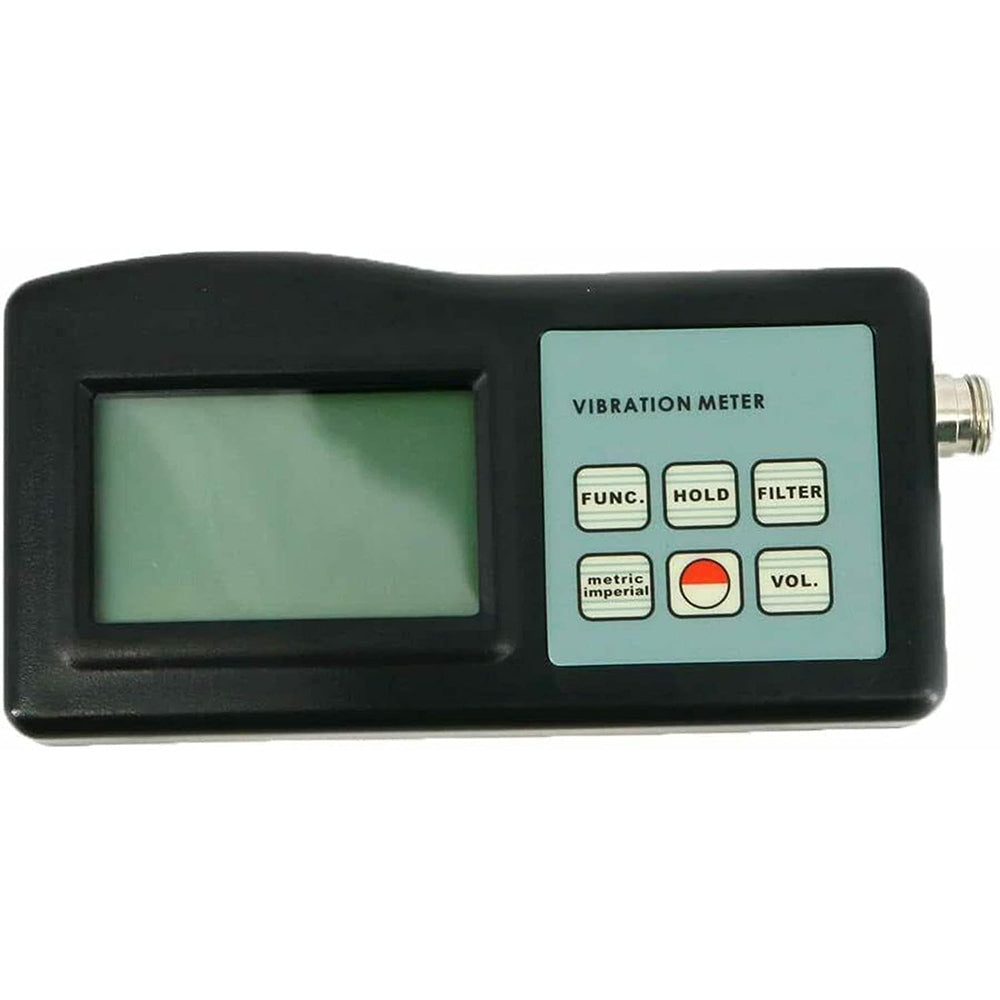

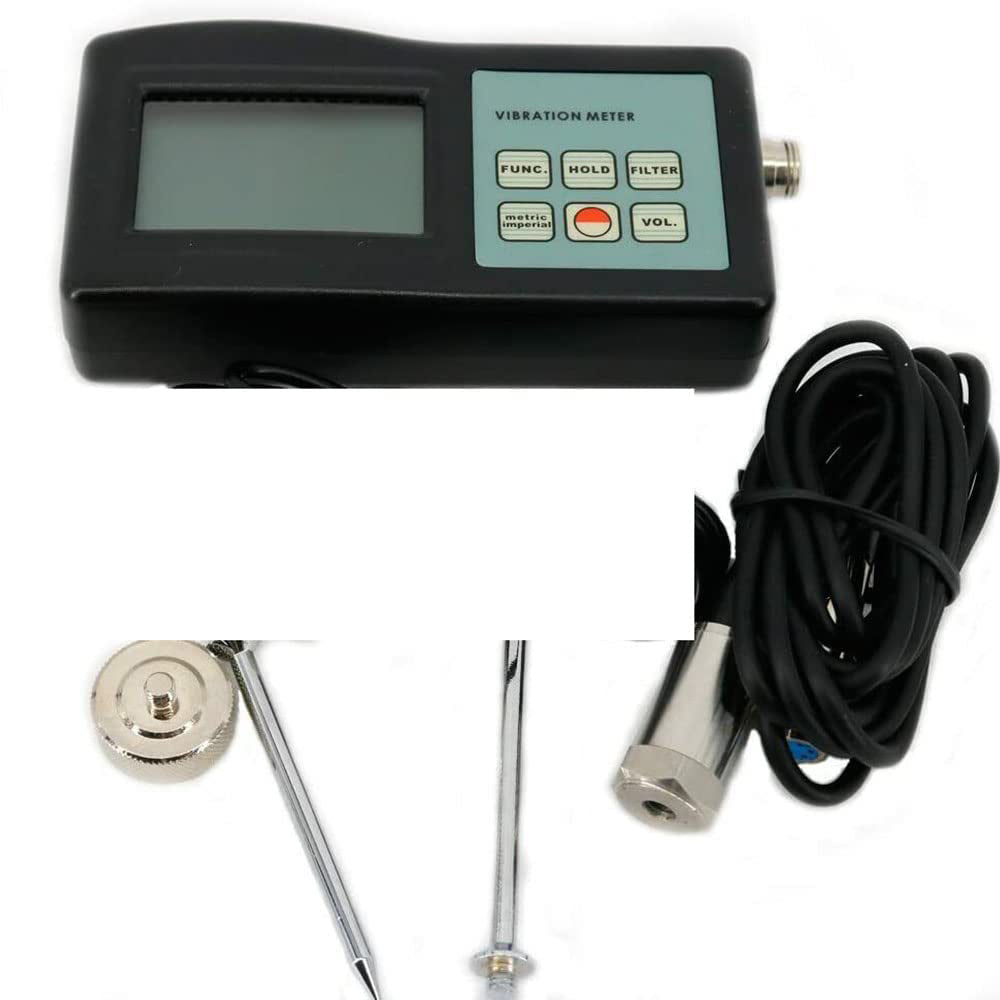

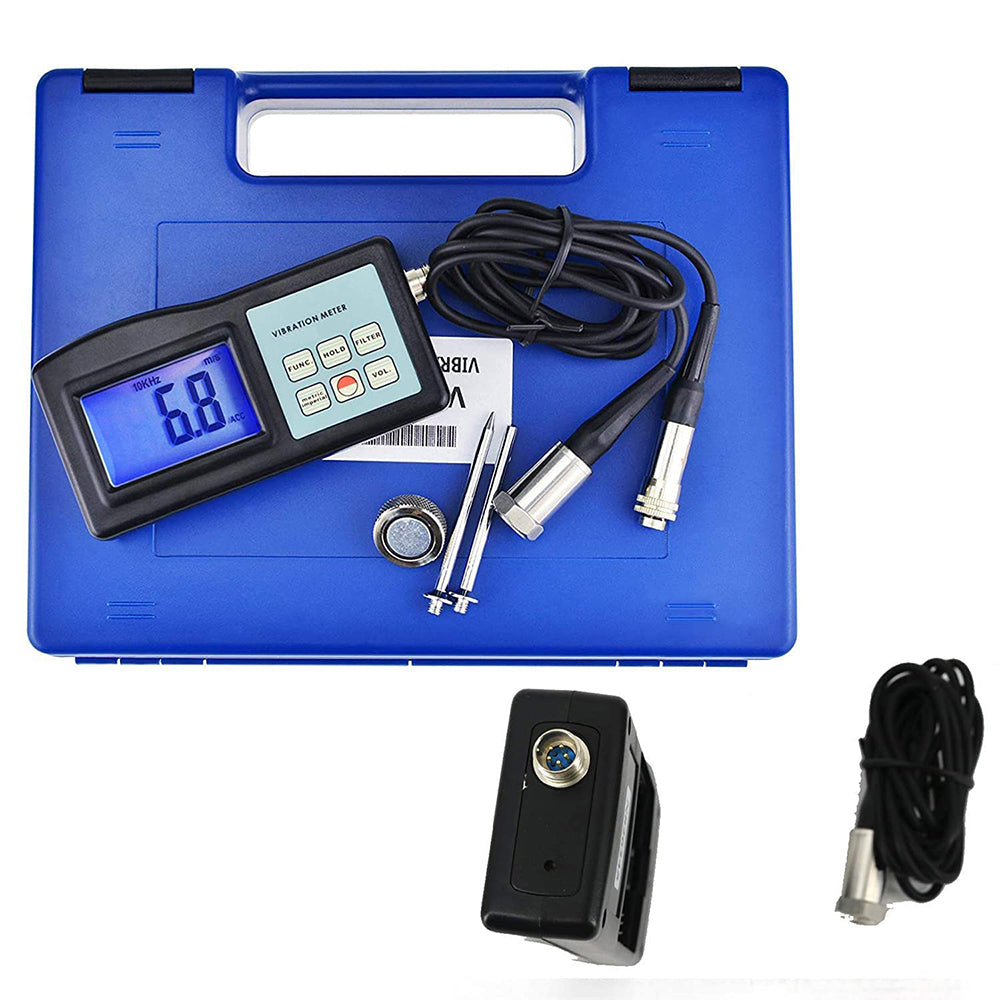

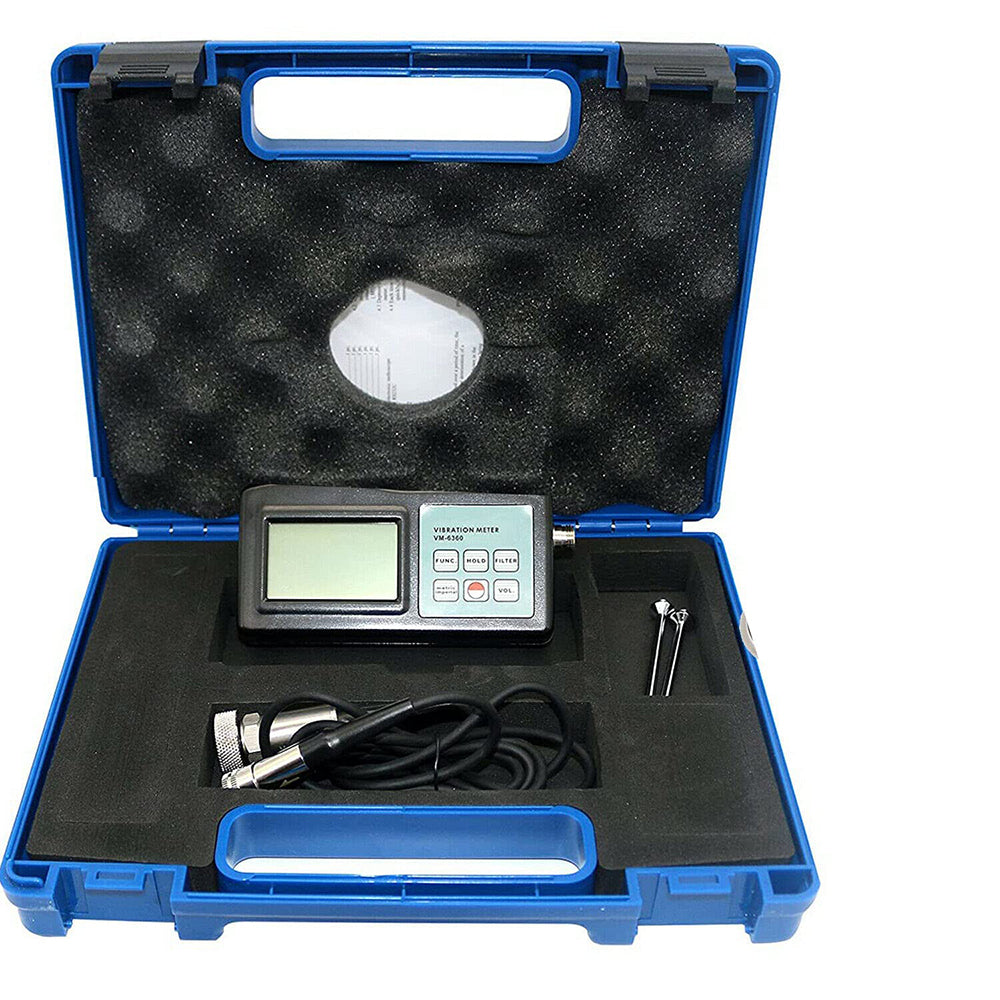

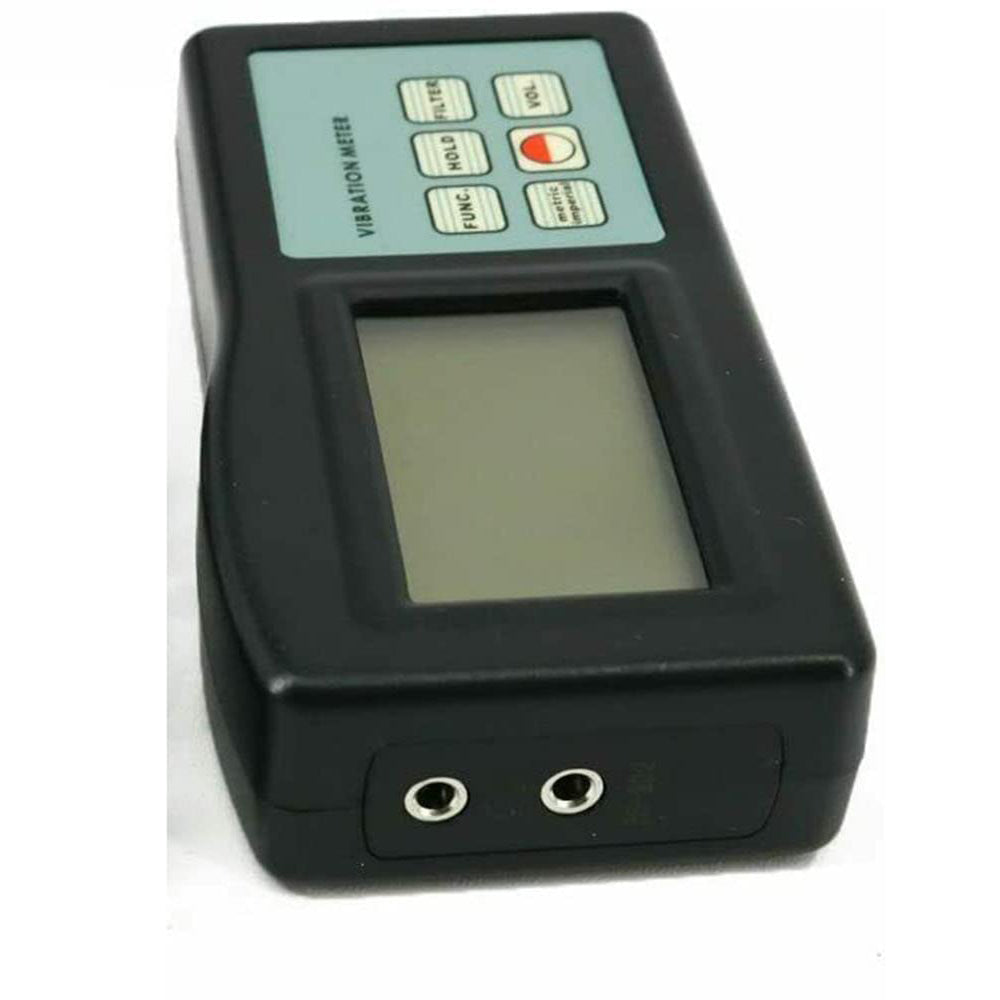

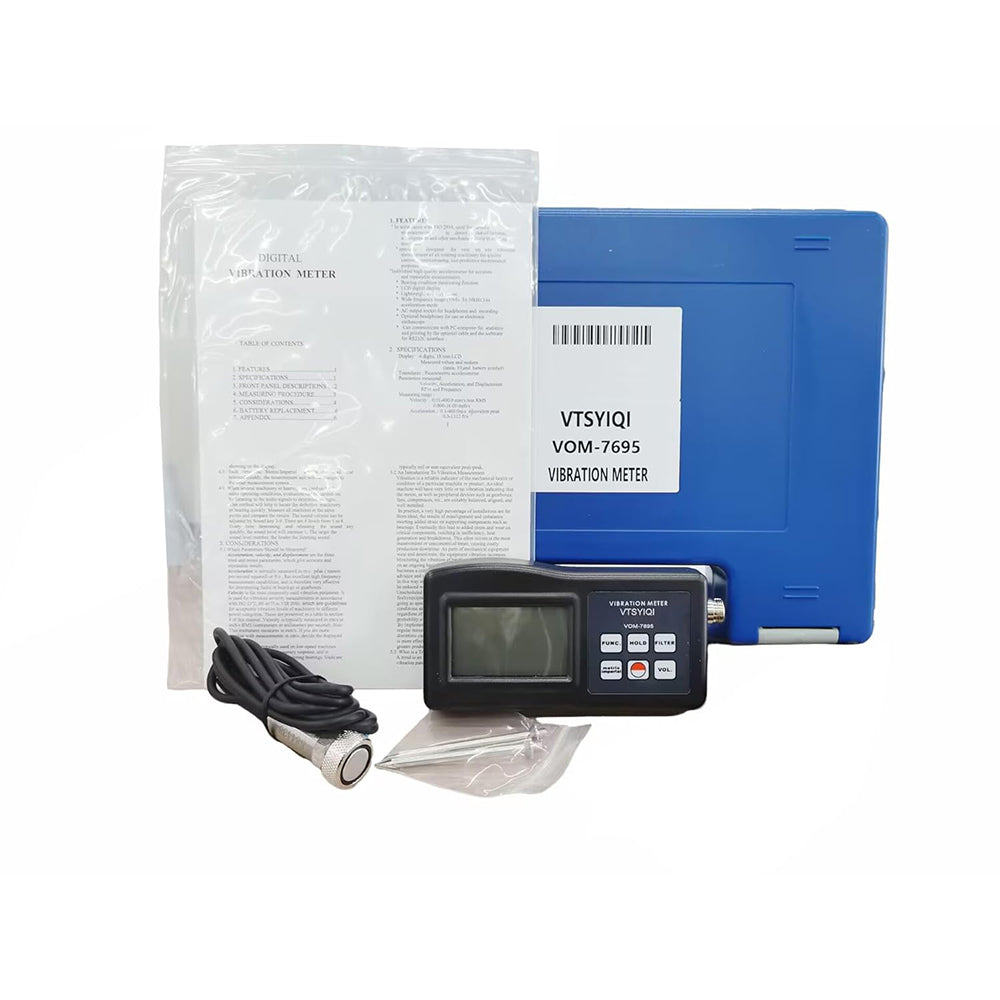

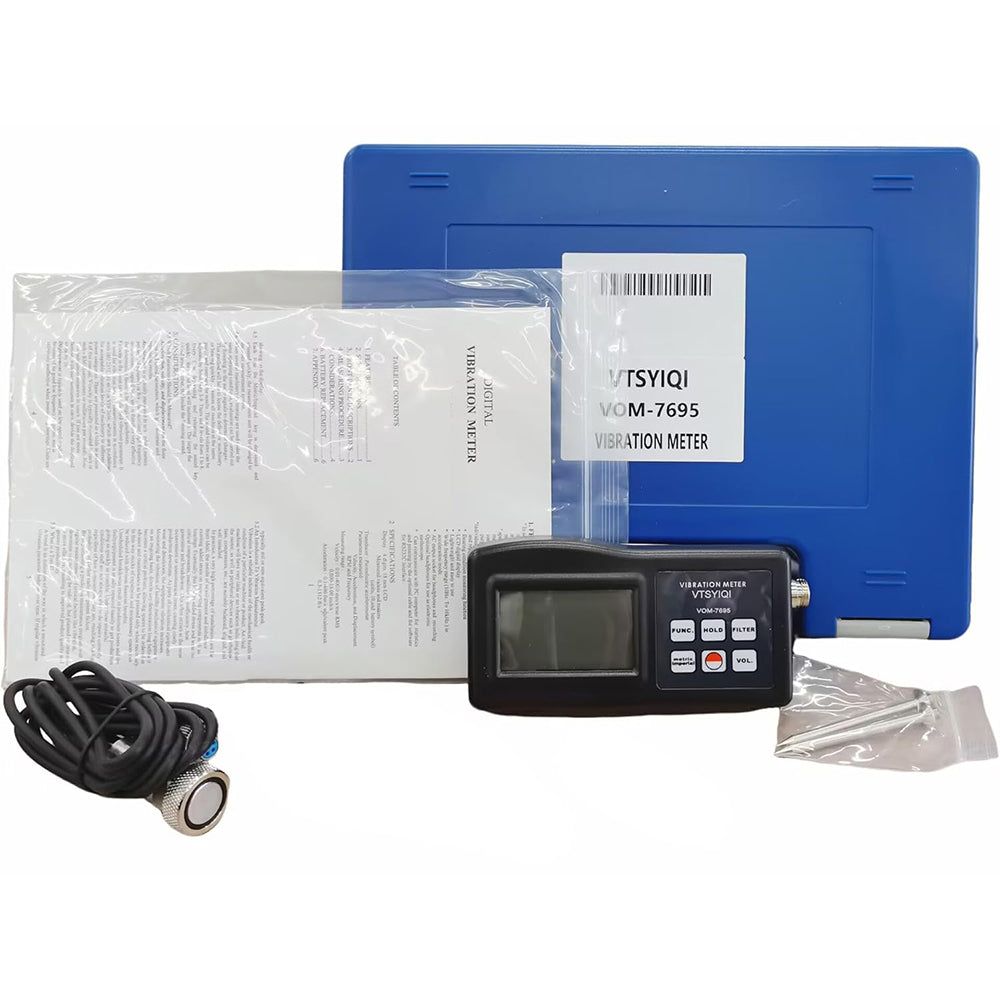

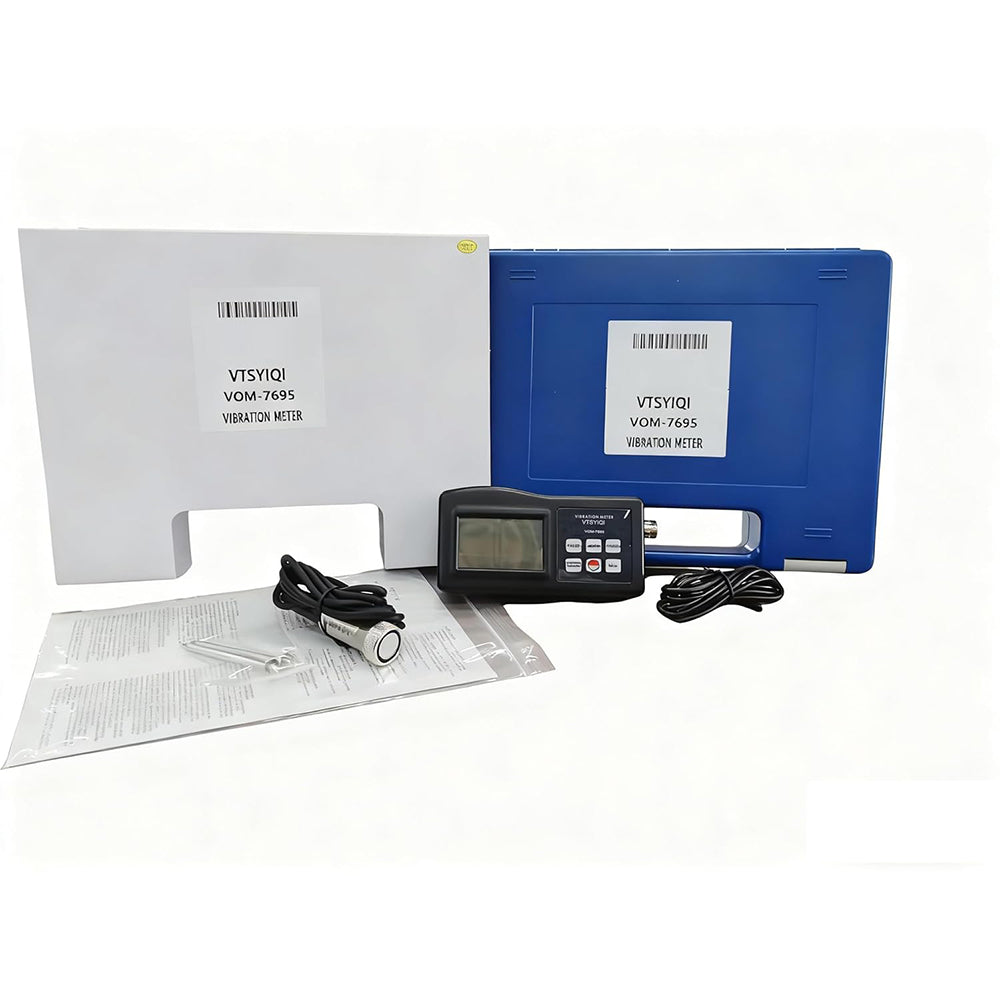

VTSYIQI Vibration Meter Vibrometer Vibrate Testing Gauge for Machinery 0.01 to 400 mm/s

Vibration metern is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

Features:

1. In accordance with ISO 2372, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

2. Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

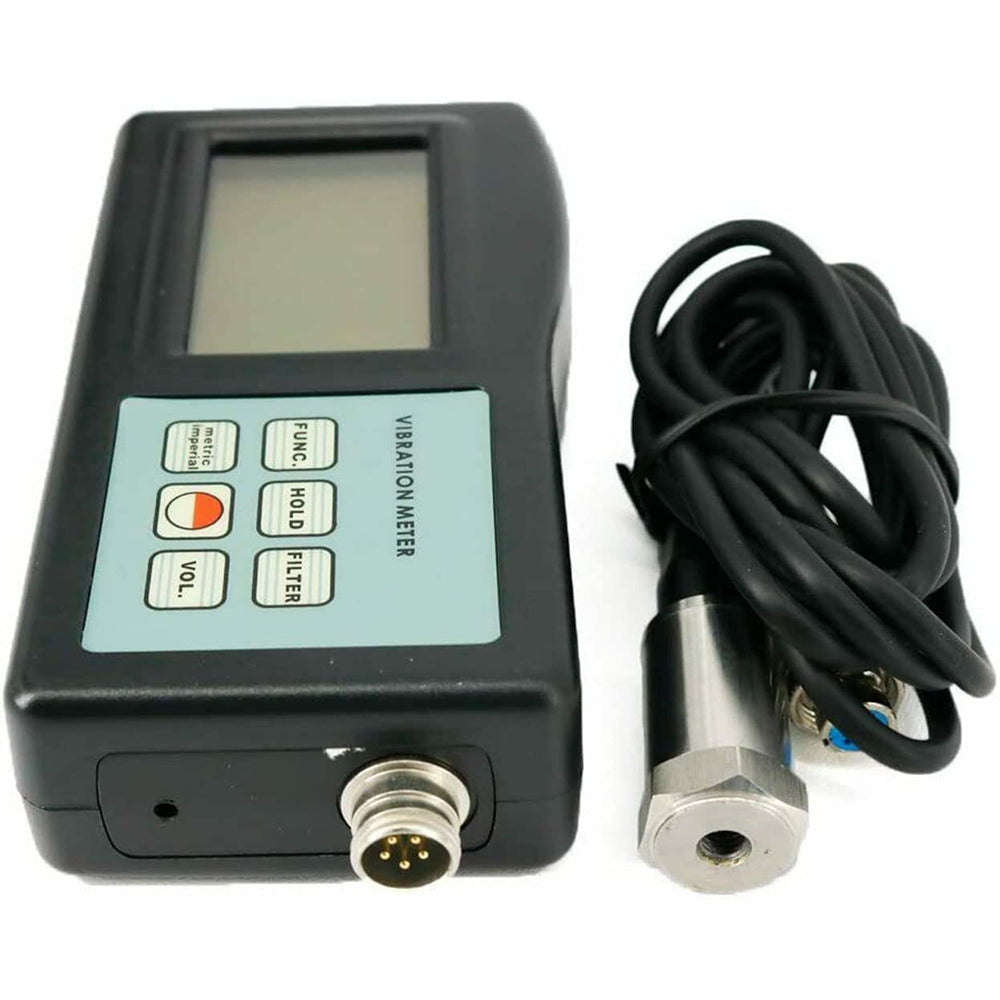

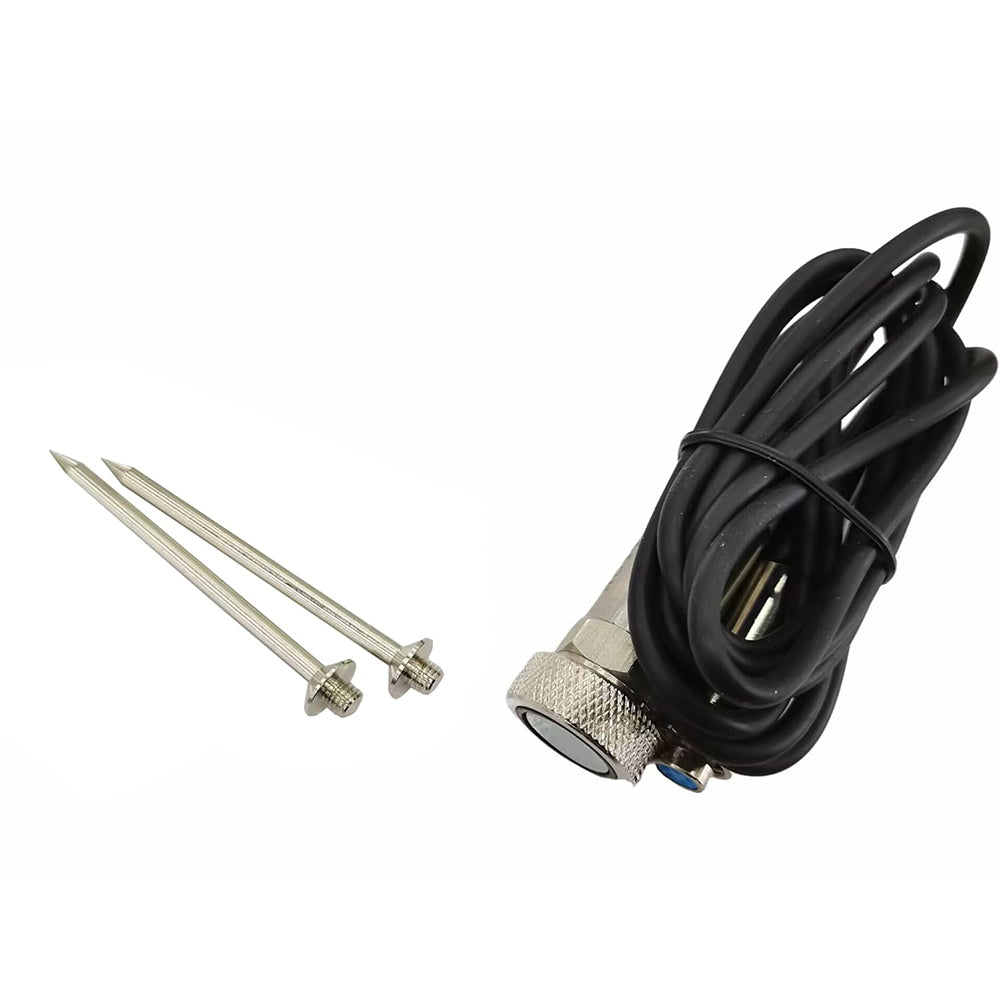

3. Individual high quality accelerometer for accurate and repeatable measurements.

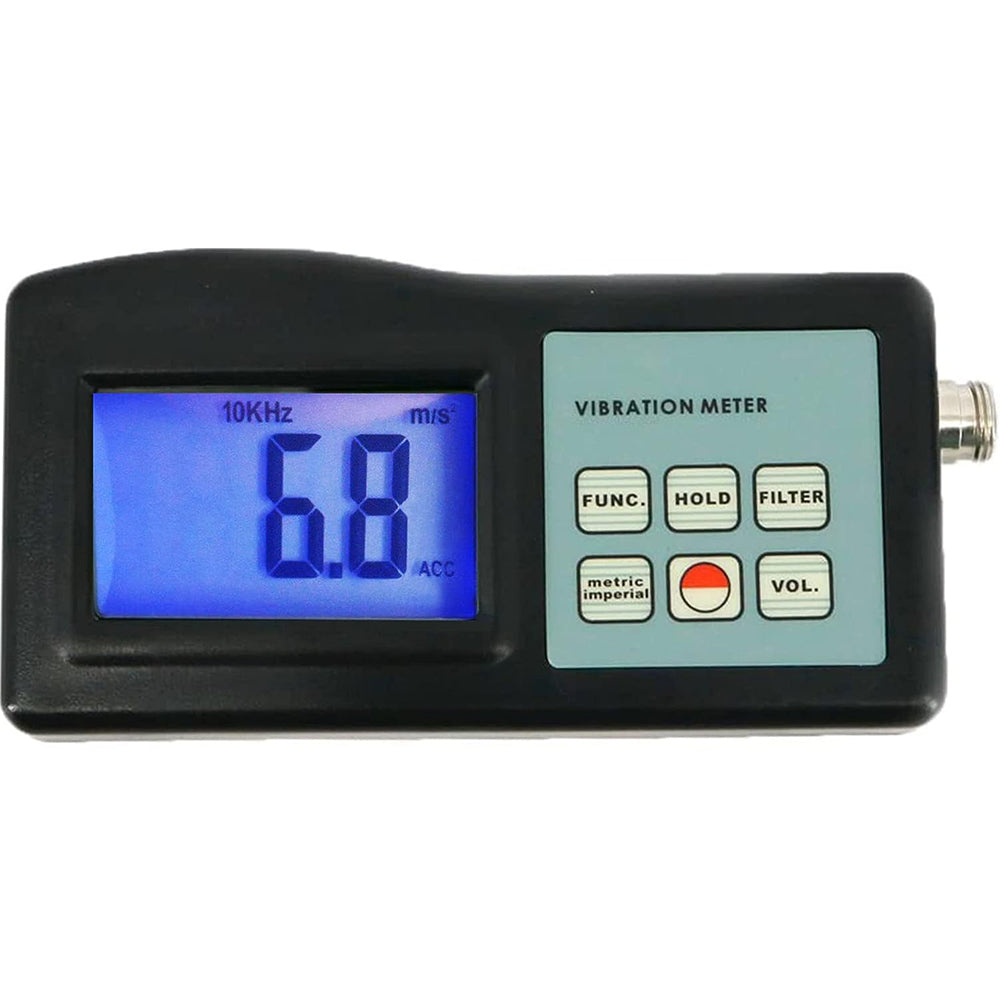

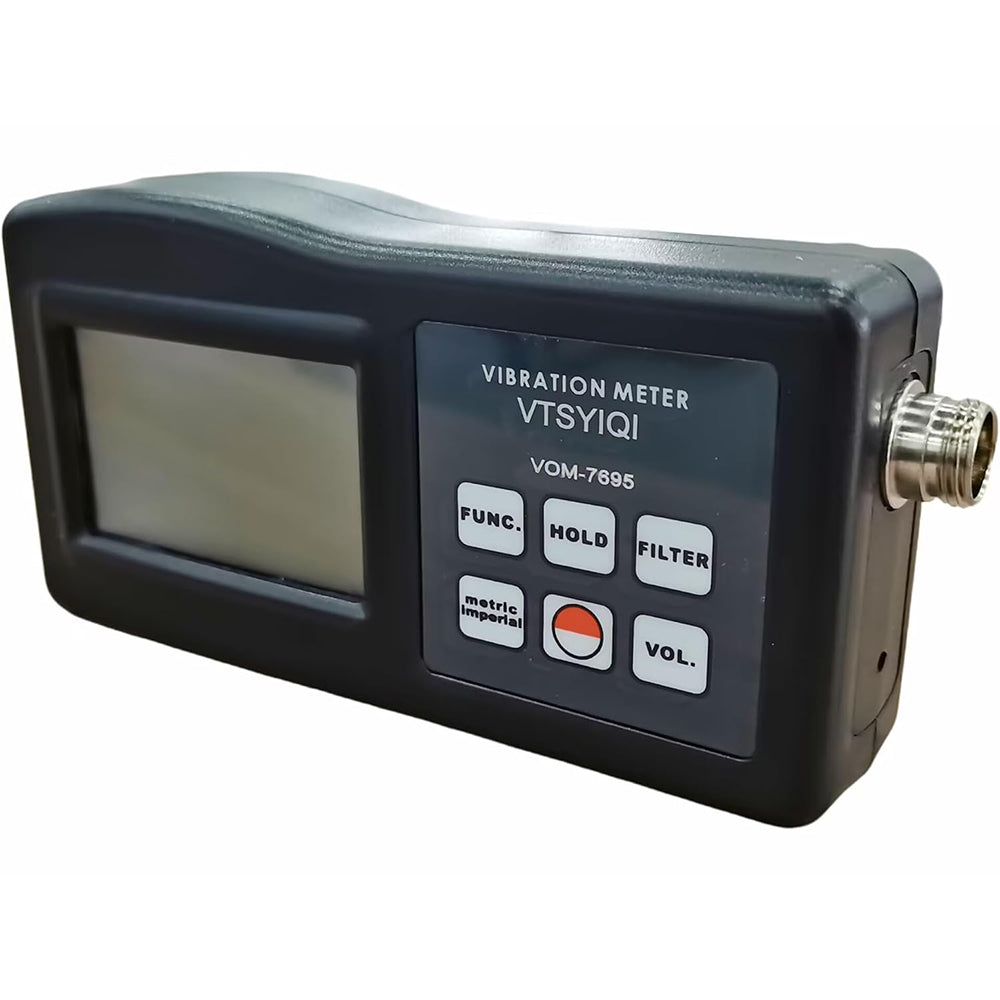

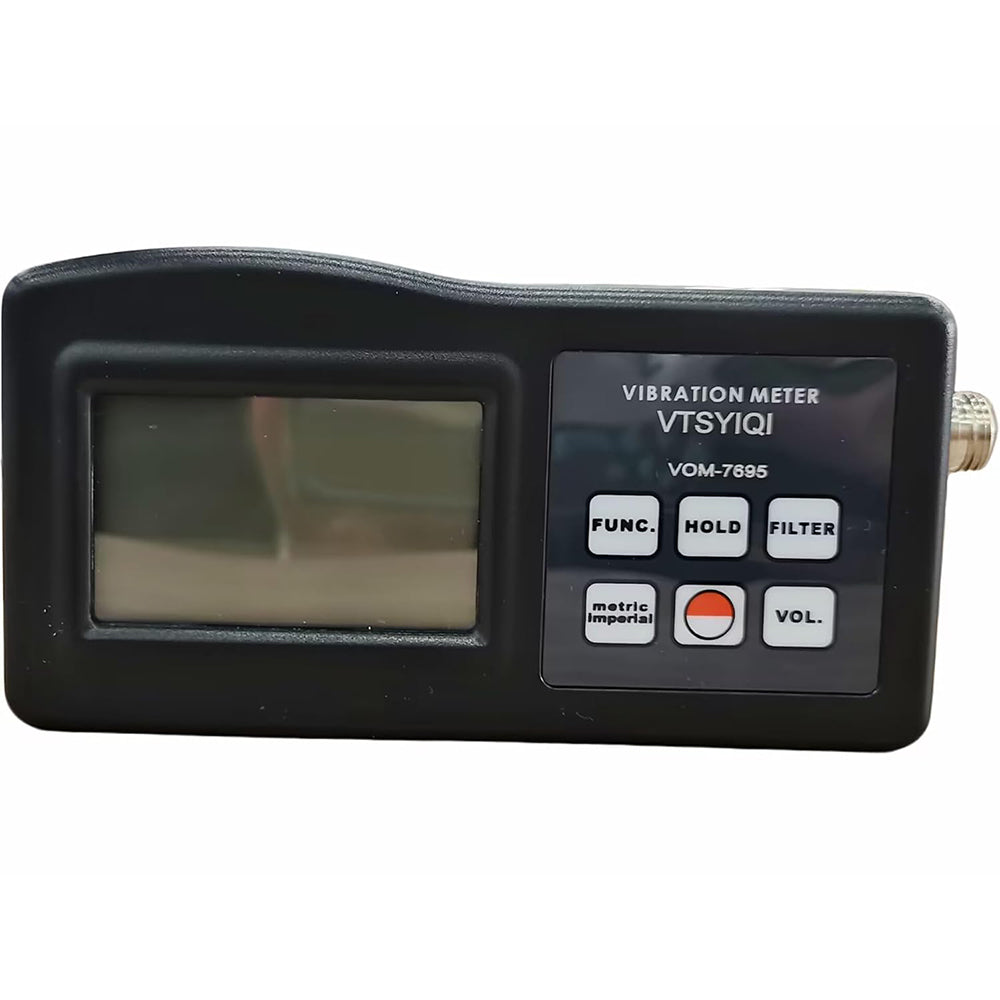

4. LCD digital display.

5. Lightweight and easy to use

6. Automatic power shut off to conserve power.

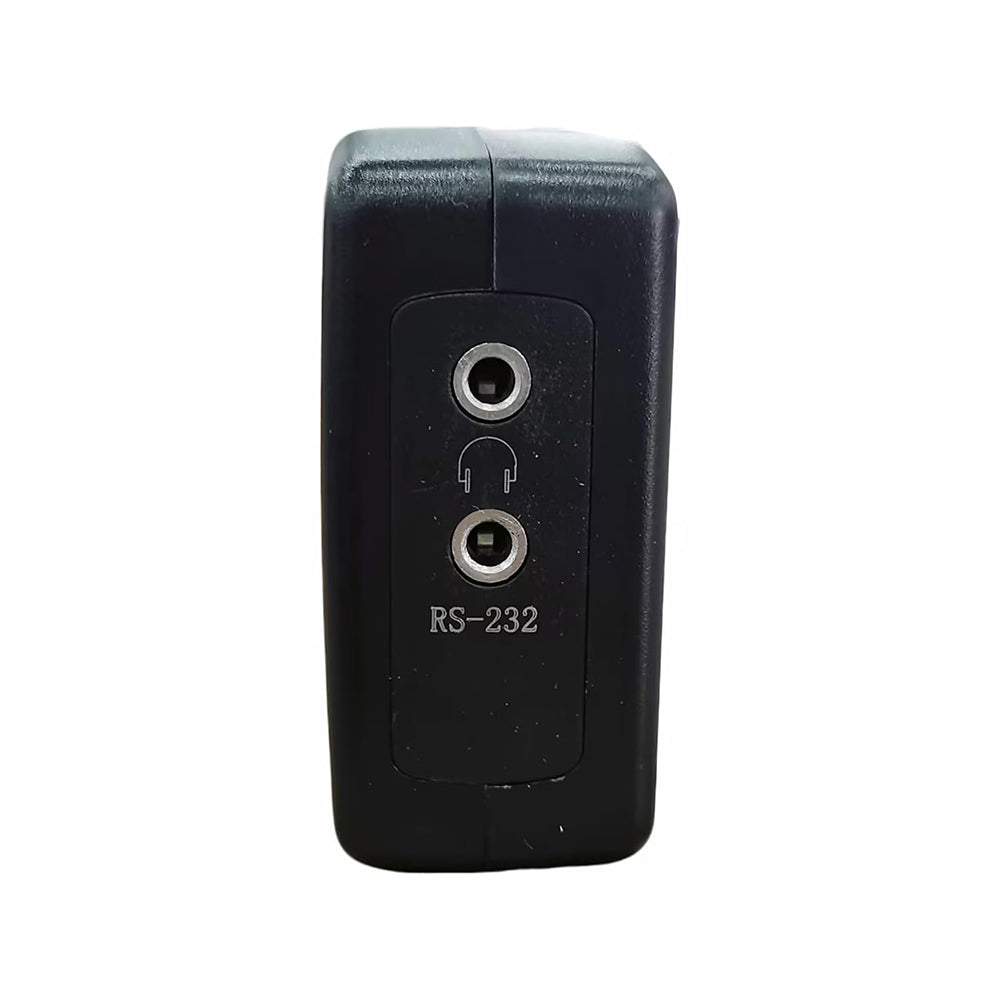

7. Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface.

Specifications:

Filter baud: D P

Acceleration: 10Hz-1KHz 0.1-200m/s² 20.1-400m/s²

10Hz-10KHz 0.3-200ft/s² 0.3-1312ft/s²

Velocity: 10Hz-1KHz 0.1-8.0inch/s 0.1-400mm/s, 0.004-16.0inch

Displacement 10Hz-1KHz 0.001-2.0mm/0.04-80mil 0.001-4.0mm /0.04-160 mil

Accuracy: <5%

Auto power off

RPM (revolution): 5-100000r/min

Frequency: 0.1 to 10KHz

Metric/imperial conversion

Max hold

Operating conditions: 0-+45C(32F-104F), =90%RH

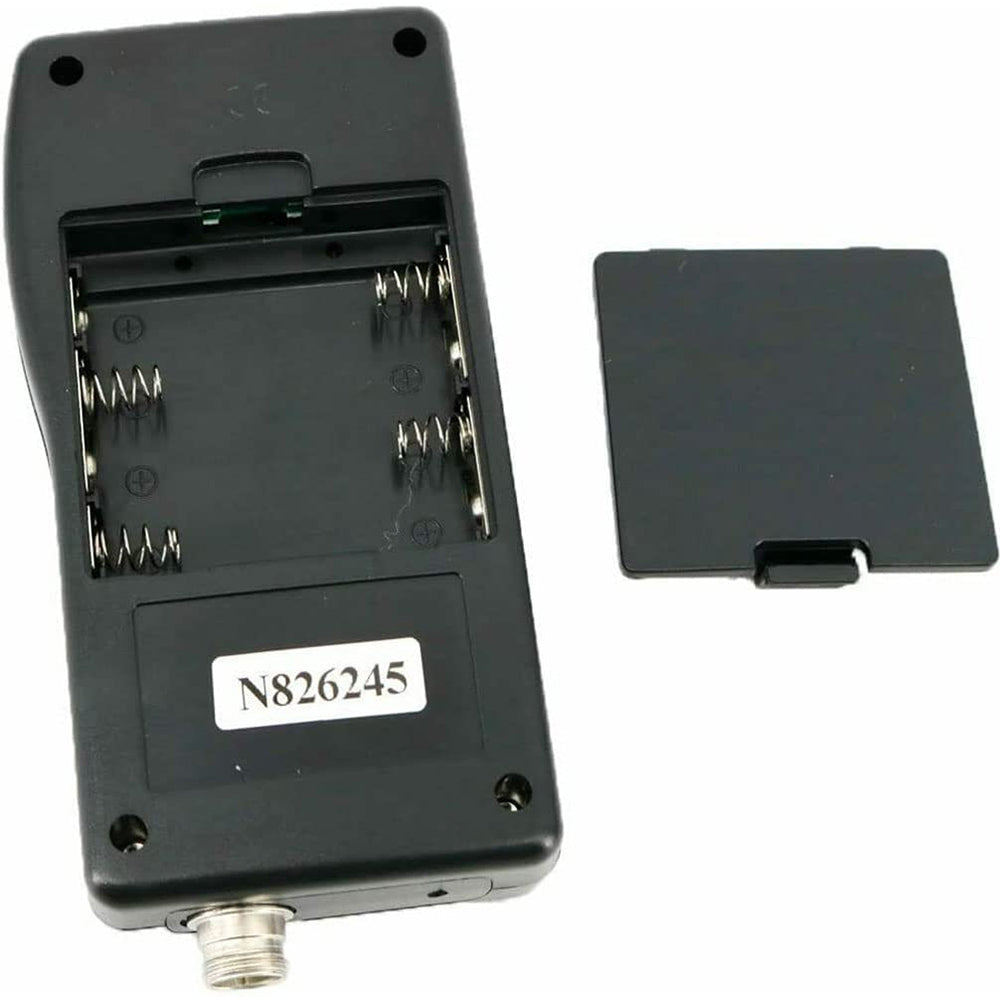

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Dimensions: 124x62x30mm (4.88x2.44x1.18 inch)

Weight: 120g / 0.26lb (not including battery)
