VTSYIQI Wire Rope Tensiometer Cable Tension Meter Gauge Handheld Wire Rope Tensiometer with Range 250-2500N Steel Cable Size 1/8(3.5mm) 5/32(4mm) 3/16(4.5mm) 7/32(5.5mm) 1/4(6mm) for Steel Cable

About this item

Tension Range 250-2500N

LCD digital display, convenient for fast and clear read data.

Real-time, peak, the two working modes of arbitrary switch

With OZ, Kgf, N, lbf four units can be set.

You can store five different wire sizes for easy testing in different scenarios.

Widely used in the electric power industry, communication industry, ropeway transportation industry, construction industry, testing institutions and other industries. Can accurately measure the tension and process the data systematically.

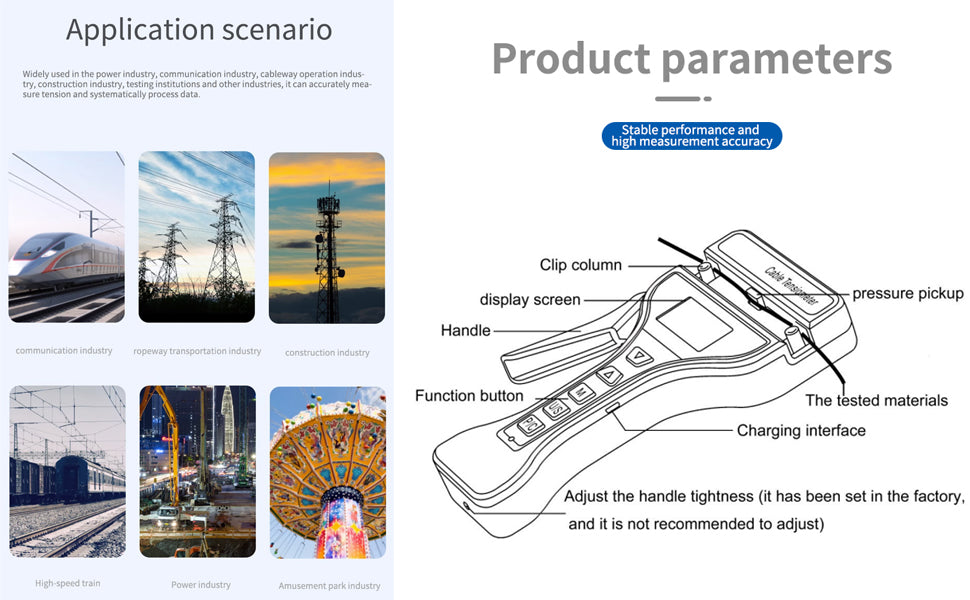

Main uses and scope of application

Hand held wire rope tensiometer. It is a hand-held electronic digital graphic measurement instrument. Can measure the tension of the steel cable, widely used in the electric power industry, communication industry, ropeway transportation industry, construction industry, testing institutions and other industries. Can accurately measure the tension and process the data systematically.

Product characteristics

LCD digital display, convenient for fast and clear read data.

Real-time, peak, the two working modes of arbitrary switch.

With OZ, Kgf, N, lbf four units can be set.

You can store five different wire sizes for easy testing in different scenarios.

Product model specification

Tension Range (N):250-2500

Steel cable size:1/8(3.5mm)、5/32(4mm)、3/16(4.5mm)、7/32(5.5mm)、1/4(6mm)

size (mm):138×215

Net weight (g):930

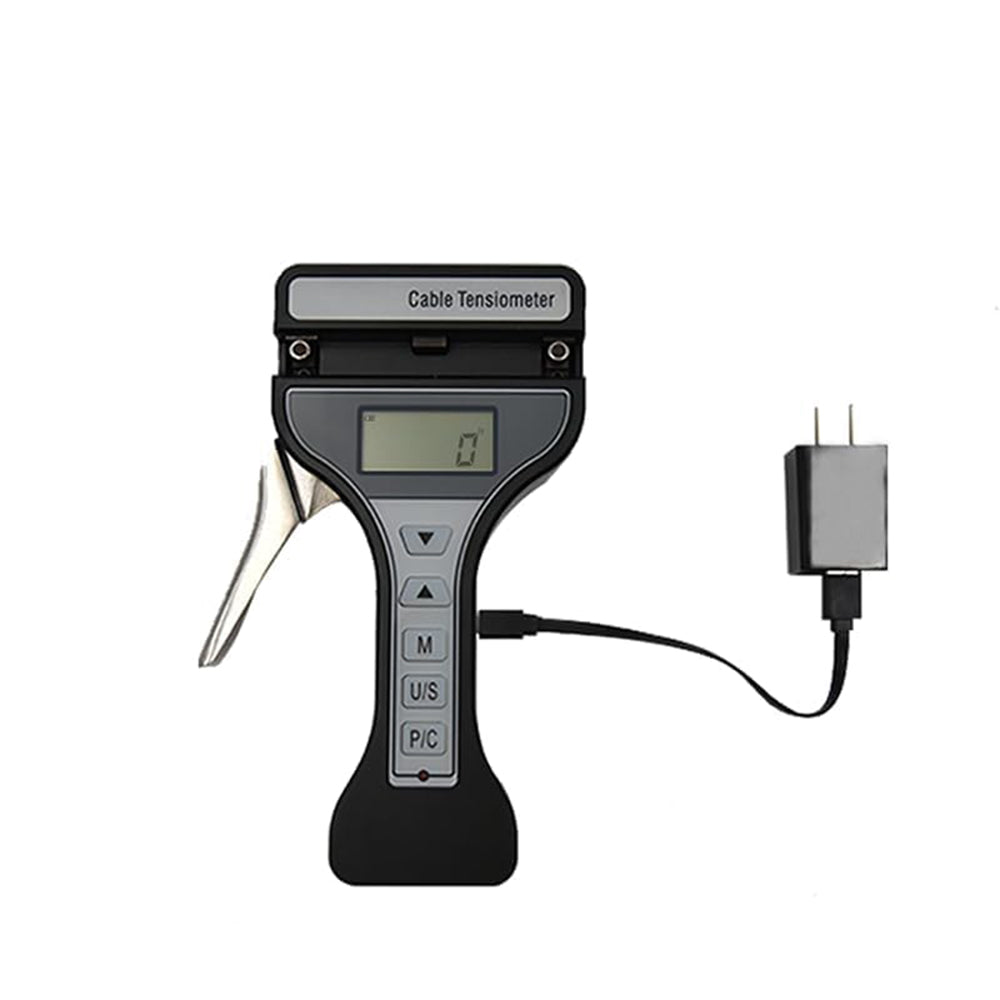

power supply:A 3.7V lithium battery
