VTSYIYQI Permanent Magnet Gauss meter Digital Tesla Meter Ultra High Precision Gaussmeter Fluxmeter Surface Magnetic Field Tester With 1% Accuracy 0 to 2400mT 0 to 24000Gs

VTSYIYQI Permanent Magnet Gauss meter Digital Tesla Meter Ultra High Precision Gaussmeter Fluxmeter Surface Magnetic Field Tester With 1% Accuracy 0 to 2400mT 0 to 24000Gs

Feature

◆ The product consists of three measurement accuracies, +/-1%, +/-2%, +/-5%, with different grades for different prices. (The product for this order 's accuracy is +/-5% )
◆ Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT
◆ The value can be switched by one button: mT (mite) or G (gauss)
◆ With automatic zero and auto range, and maximum hold function
◆With backlight adjustment, power display and automatic shutdown function Light weight and low power consumption

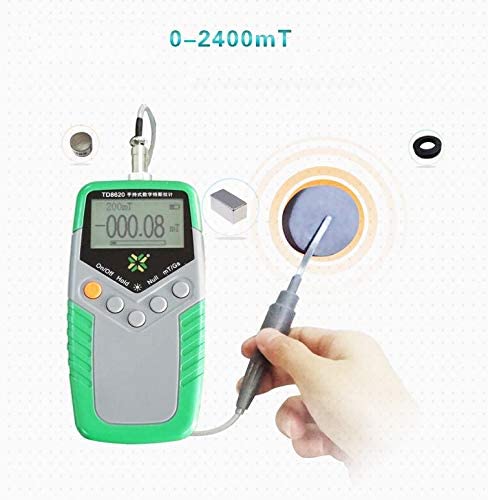

The Hand-held digital gauss meter is used for measuring magnetic flux density, range: 0~2400mT, 0 to 24000Gs , users can switch the units G or mT by on key.

Feature:

●The product consists of three measurement accuracies, +/-1%, +/-2%, +/-5%, with different grades for different prices. (The product for this order 's accuracy is +/-1% )

● Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT

● The value can be switched by one button: mT (mite) or G (gauss).

● With automatic zero and auto range, and maximum hold function.

● With backlight adjustment, power display and automatic shutdown function.

● Light weight and low power consumption.

Introduction:

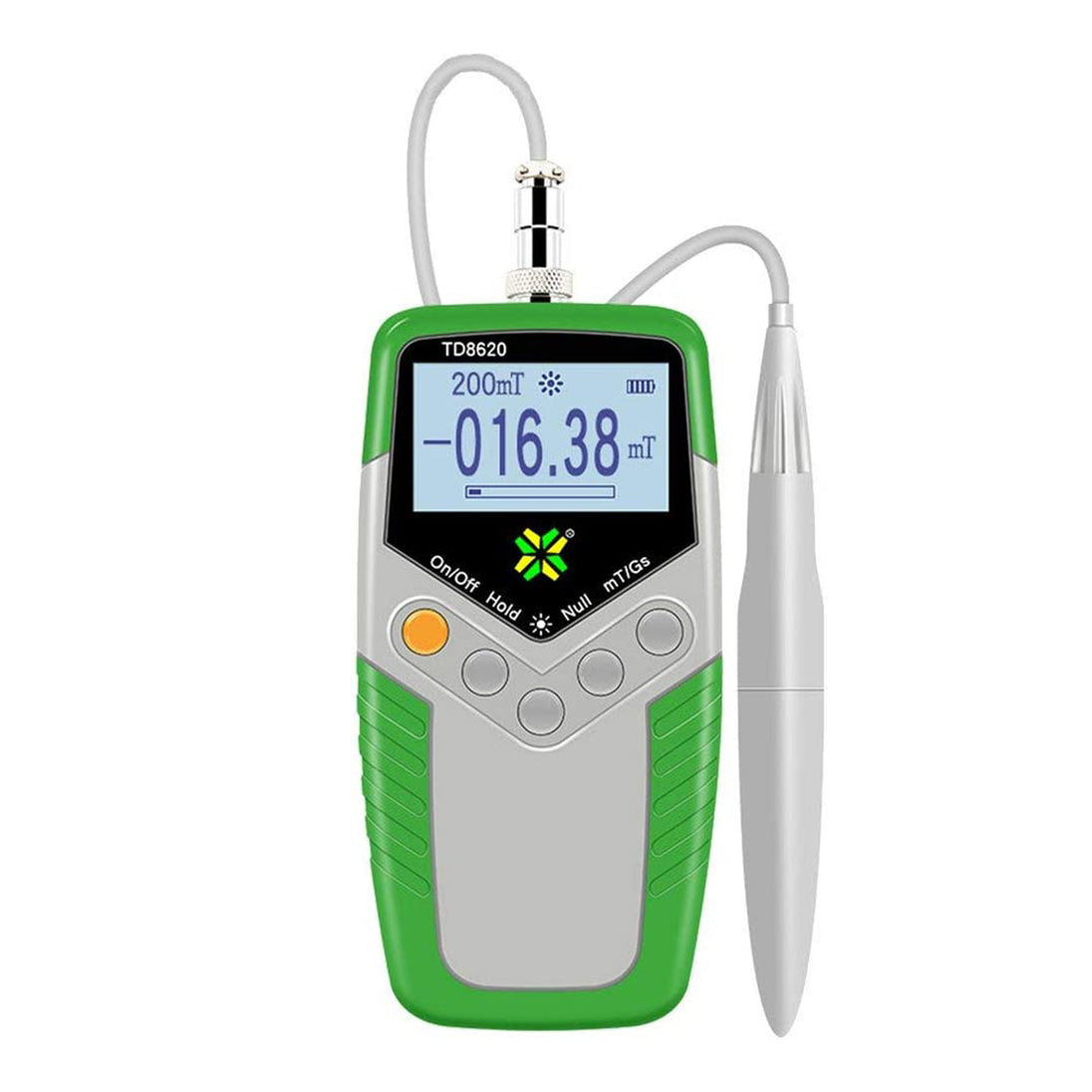

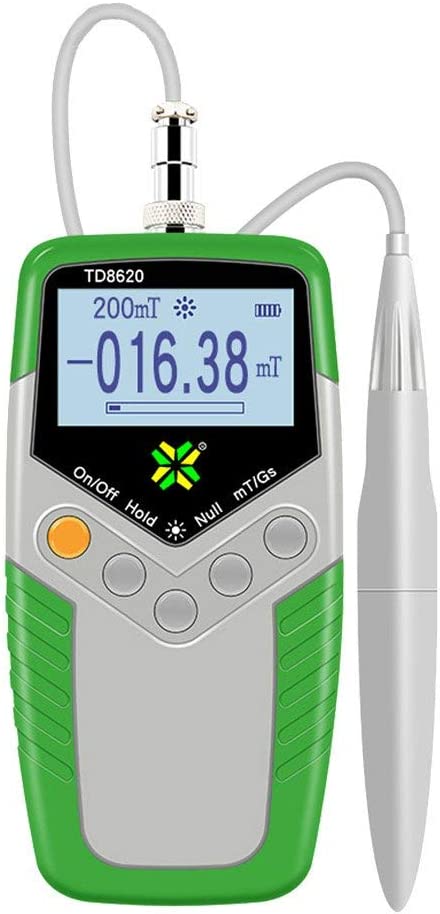

The design of TD8620 hand-held digital Tesla meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 Tesla meter. TD8620 hand-held digital Tesla meter adopts not only the high-sensitivity Hall sensor and high-resolution A / D conversion chip, but also the popular single-chip computer technology and digital filtering technology . It has the advantages of high sensitivity, stable reading, low power consumption , and light weight. The measurement range is 0-2000 Mt, and the basic accuracy is ±1%. It has the characteristics of automatic zero, automatic measurement range, keeping of maximum / minimum values, etc.

Specification:

Level 1 technical specifications

Range :200 mT 2000 mT (Full automatic range switching)

Measurement range: 0 ~ 2400mT 0 to 24000Gs （1mT=10Gs）

Range of measurements:0 ~ 120%

Minimum resolution :10uT 4 digits display （0.1Gs 0.01mT 10uT）

Basic accuracy :±1% (Full range meets)

Number of digits displayed :4 bits (Decimal)

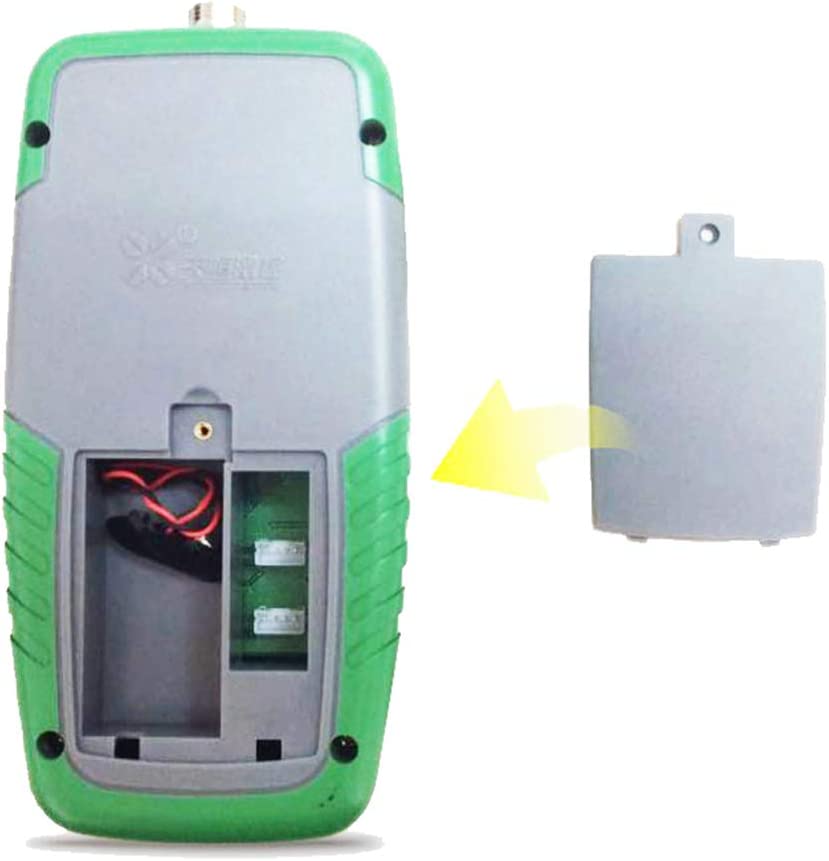

Power supply :one 9 V battery(battery not included)

Working temperature :0℃ ~ 50℃

Storage temperature :-20℃ ~ 50℃

Shape size :160 mm × 80 mm × 32 mm

Device weight :260 g (including batteries and wires)

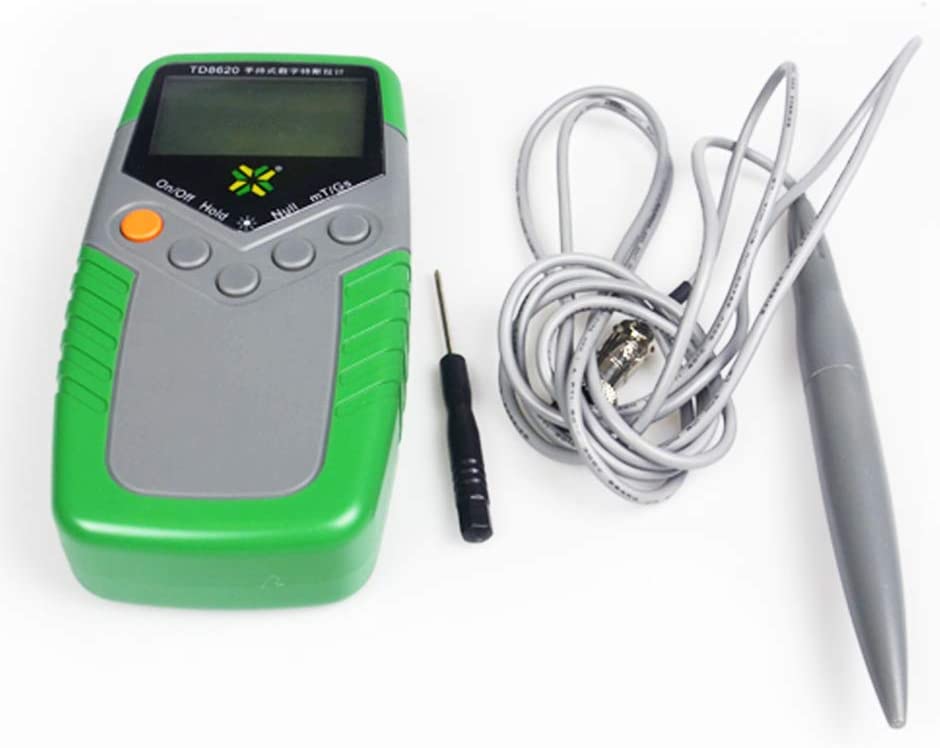

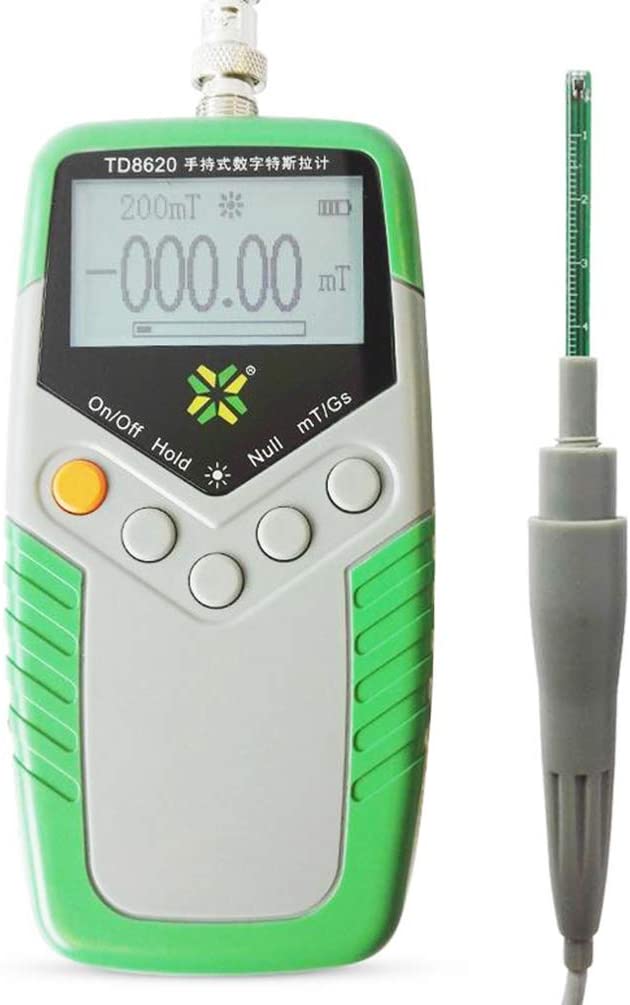

Hall probe Longitudinal Hall probe, wire length is about 2 meter
