  • VTSYIQI Ultrasonic Hardness Tester Meter Gauge Measurement with Force 20N 2kgf Probe 150mm Length Maximum Roughness Ra<5um 600 Groups Data Storage for Flanges Gear Groove Rotors etc

VTSYIQI

VTSYIQI Ultrasonic Hardness Tester Meter Gauge Measurement with Force 20N 2kgf Probe 150mm Length Maximum Roughness Ra<5um 600 Groups Data Storage for Flanges Gear Groove Rotors etc

$2,34000
有货
$2,34000

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI Ultrasonic Hardness Tester Meter Gauge Measurement with Force 20N 2kgf Probe 150mm Length Maximum Roughness Ra<5um 600 Groups Data Storage for Flanges Gear Groove Rotors etc

About this item

The ultrasonic hardness tester is using ultrasonic contact impedance method to compare and test patterns, this is an innovative design, of auto-calibration of probe, presents advantages of high precision, fast speed, easy operation, etc. The hardness measurement covers most ferrous metals, non-ferrous metals and for their alloys in industrial production.

It is applicable in hardness test of flange edges, root of gear groove, stamping parts, thin plates, for surface-hardened gear grooves and it's taper parts, as well as shafts, thin-walled pipes, turbines.etc.

Accord to the Standard GB/T 34205-2017, DIN50159-1 and ASTM -A1038

For materials with different elastic modulus. multi-point calibration function

Support hot-swap and self calibration: automatically + by manual identifies the probe

The material function include 3 new material settings to facilitate hardness testing of special materials

3.5-inch IPS (In-Plane Switching) full digital LCD display with wide viewing angle, and the back light can be adjusted arbitrarily. Display resolution 480×320.

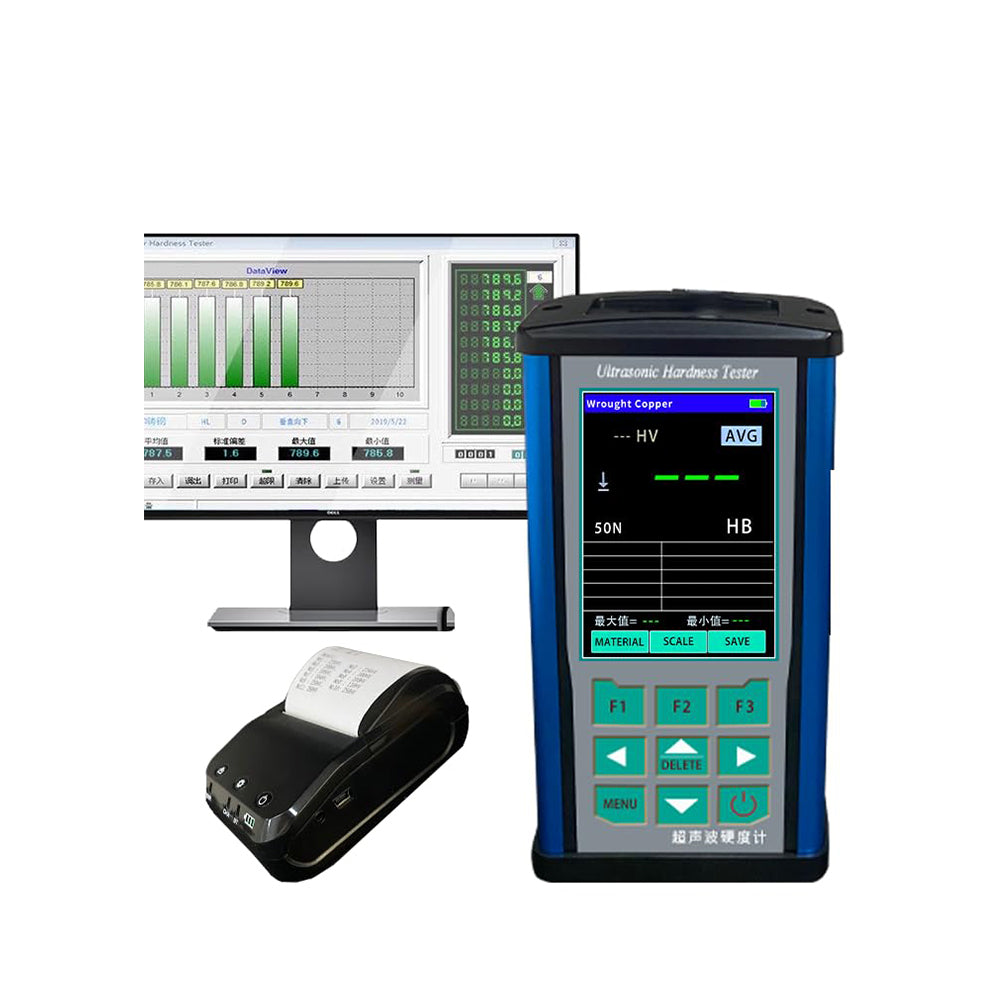

USB communication interface allows for data exchange with PC and settings on PC. 600 sets of hardness measurement data each includes measurement date, sensor type, material, number of times, single measurement value, average value, maximum value, minimum value, hardness scale and other information

The upper and lower limits of the hardness value can be pre-set, and an automatic alarm will be issued if the range is exceeded, which is convenient for users to meet the needs of batch testing

Description

The ultrasonic hardness tester is using ultrasonic contact impedance method to compare and test patterns, this is an innovative design, of auto-calibration of probe, presents advantages of high precision, fast speed, easy operation, etc. The hardness measurement covers most ferrous metals, non-ferrous metals and for their alloys in industrial production. It is applicable in hardness test of flange edges, root of gear groove, stamping parts, thin plates, for surface-hardened gear grooves and it's taper parts, as well as shafts, thin-walled pipes, turbines.etc.

Features

Measurementdirection perpendiculartotestingsurface

Hardnessscale HV10-1900,HB76-618,HRB41-105,HRC20.3-68,HRA60.7-85.6

TestError HRC:±2HRC;HB:±3%HB;HV:±4%HV,pleaserefertothetablebelow

DisplayMeasurement Vickers(HV)+selectedhardnessscale

Measuringmaterials steelandcaststeel,castaluminumalloy,purecopper

Proberecognition automaticrecognition+manualsetting,supportshotswapping

Datastorage maximum600measurement

Workingvoltage 3.7Vlithium-ionbatterypack

Continuousworkingtime about10hours

Chargingpowersupply 5V/1000mA;

Communicationinterface USB2.0

test forceofProbe 2kgf
