Description

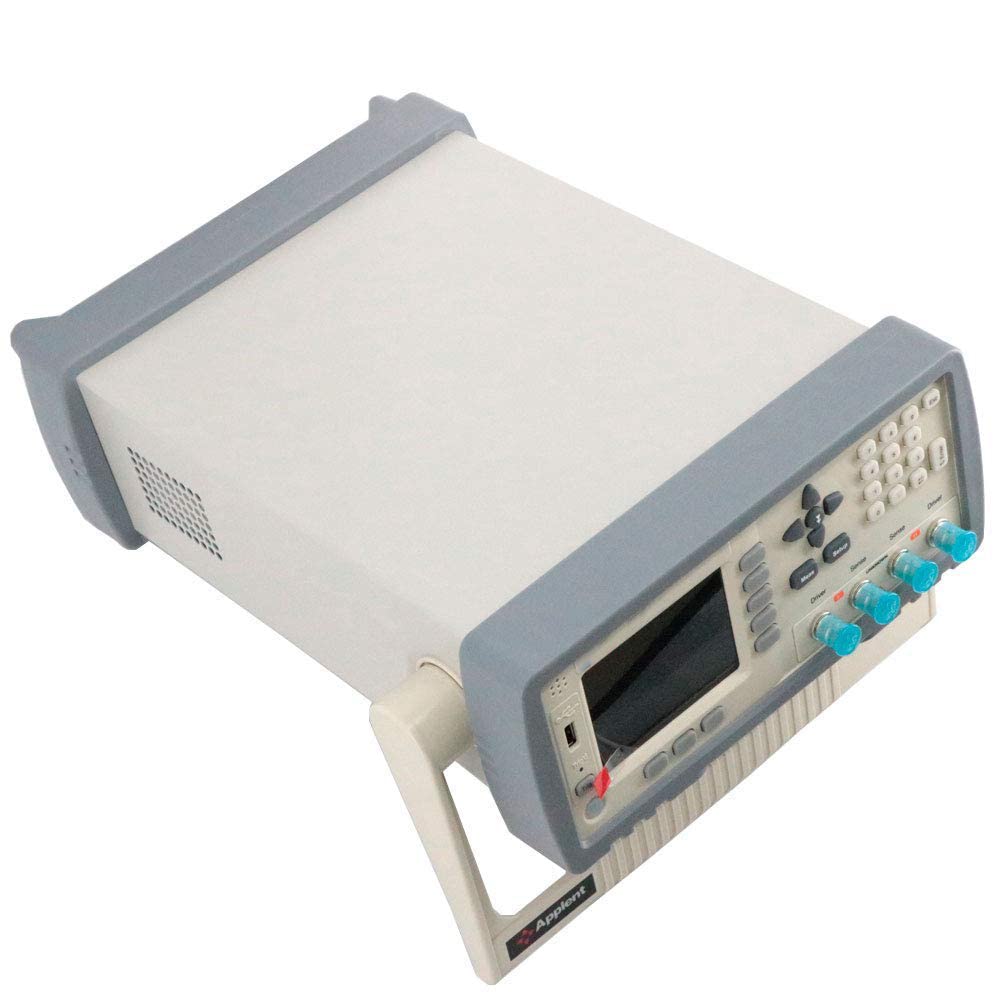

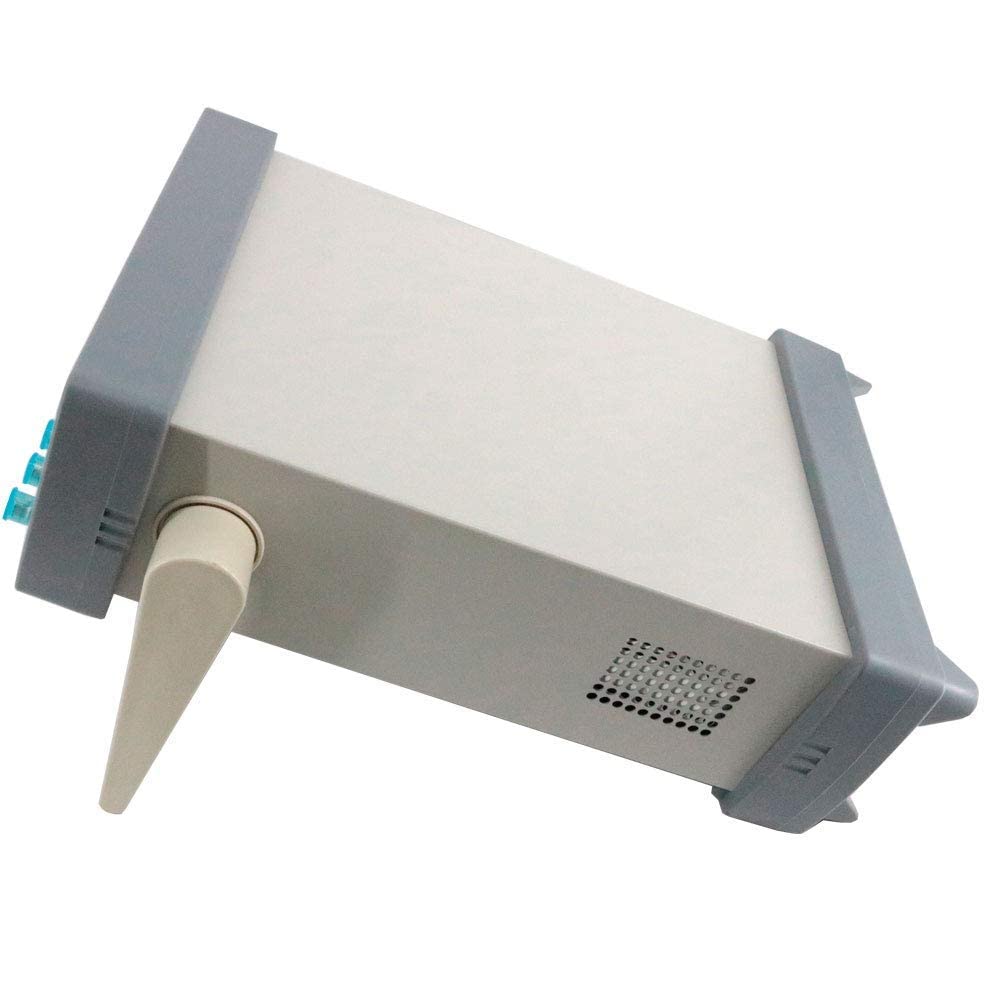

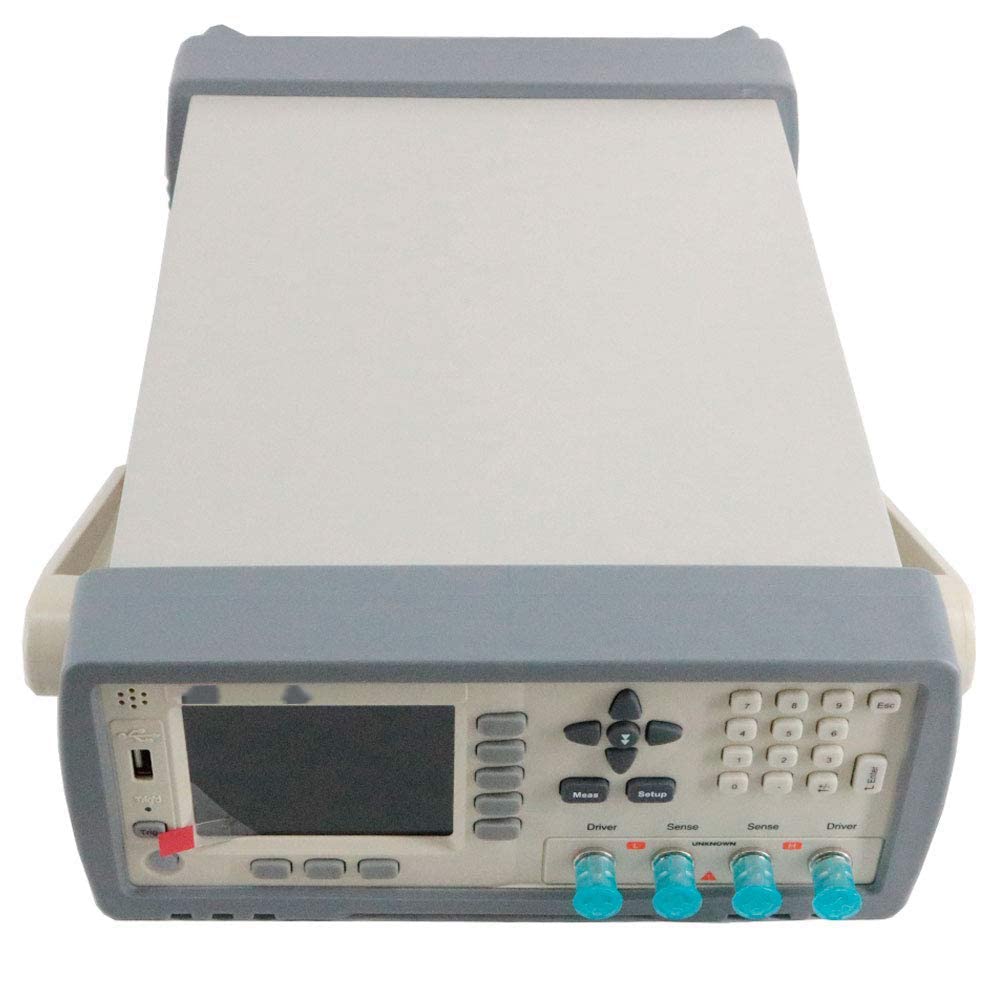

DC Resistance Meter features a high-performance ARM microprocessor control and high-density SMD placement process with 0.1% accuracy and a measurement range of 1μΩ to 30KΩ. The resistance value is displayed in 5 digits with 30000 readings. It is suitable for relay contact resistance, connector plug resistance, wire resistance, printed circuit board wiring and soldering hole resistance. AT516L comes standard with RS232 communication interface and supports SCPI protocol and Modbus protocol. Modbus has become the national standard GB/T19582-2008) applied to the automatic sorting system to complete the automatic pipeline test. It can be conveniently used for PLC communication control to realize automatic operation on the production line.

Feature
Beep alarm
Comparator sorting
Compatible with SCPI command set
Keyboard lock function
Data hold function

Specification
Parameter:DC resistance
Accuracy:0.1%
Measurement Range:1μΩ～30KΩ
Measurement current:I-max:<1A
Range :7 Automatic or Manual
Speed :12 times/second，2 times/second
Display :Direct reading, ΔABS, Δ% and sorting results
Display Max :30,000
Adjustment :Short-circuit Zero-Adjust for each range
Comparator :1 group comparator
Trigger :Internal ,Manual, Remote
Interface :RS232C Interface
Temperature compensation :Accuracy: 0.2℃ Temperature range: 0 ~ 80℃
Method :
4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section
Voltage: 198VAC~240VAC Frequency: 50/60Hz Max Power: 15VA
Outside (mm）：264 (width)x107(height)x350 (depth) Inside (mm)：216(width)x88(height)x323(depth) 4kg

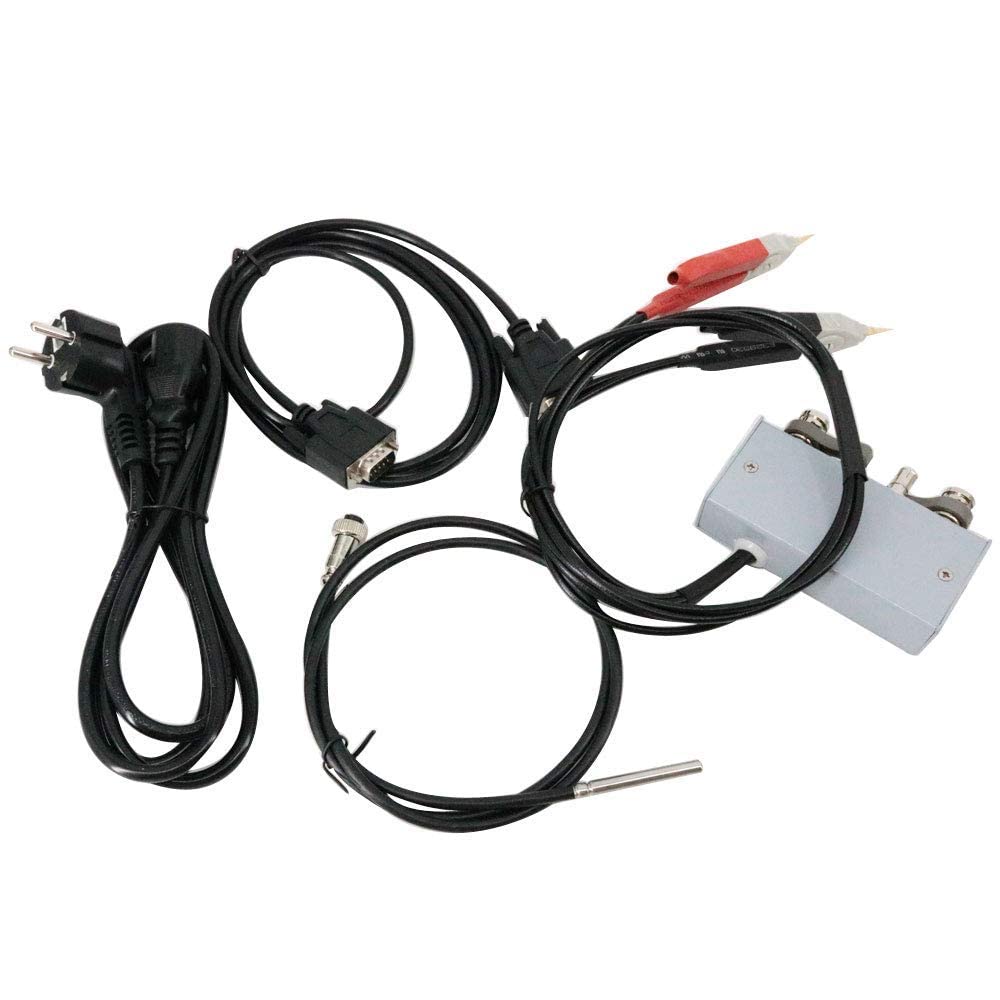

ATL501A Kelvin clip ATL108: 232 communication cable
ATL620: Meter Resistance Four-terminal Clamp Fixture
True color TFT-LCD display Data hold function Chinese and English menu
