VTSYIQI Digital Force Gauge Meter Tester Push Pull Gauge Dynamometer with Capacity 50KN External Sensor

VTSYIQI Digital Force Gauge Meter Tester Push Pull Gauge Dynamometer with Capacity 50KN External Sensor

常规价格 $765.00 USD
常规价格 促销价 $765.00 USD
销售额 售罄
结账时计算的运费

About this item

  • Max Load:50KN
  • Accuracy:±0.5% +/-1%<
  • Warranty: 1 year
  • Peak value maintenance and load capacity real-time display can be flexibley shifted
  • Reliable quality and fine package make the force gauge easy to keep and maintain

Product Description

Features:
High precision and high resolution.

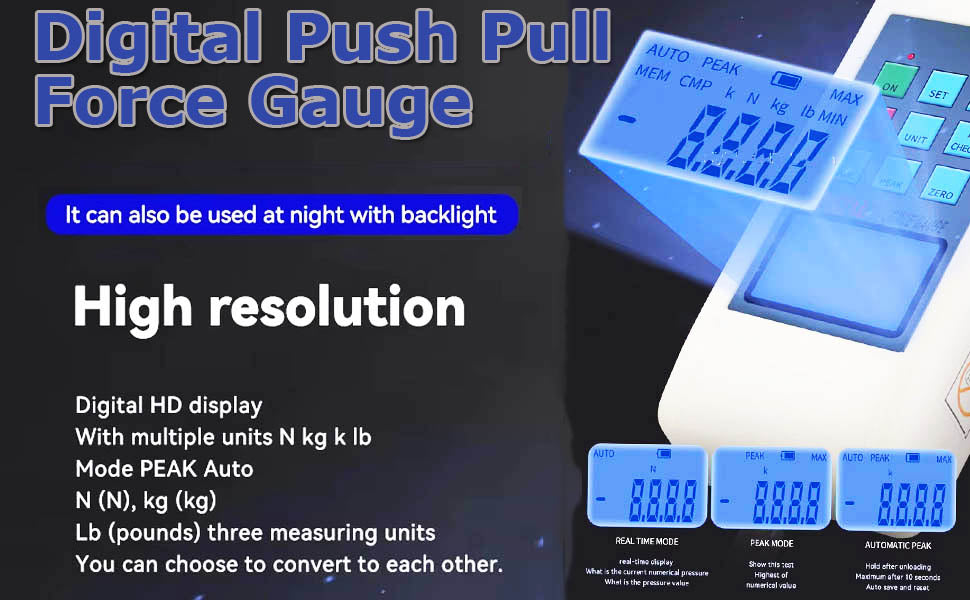

Five testing modes and three display methods for selection N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.

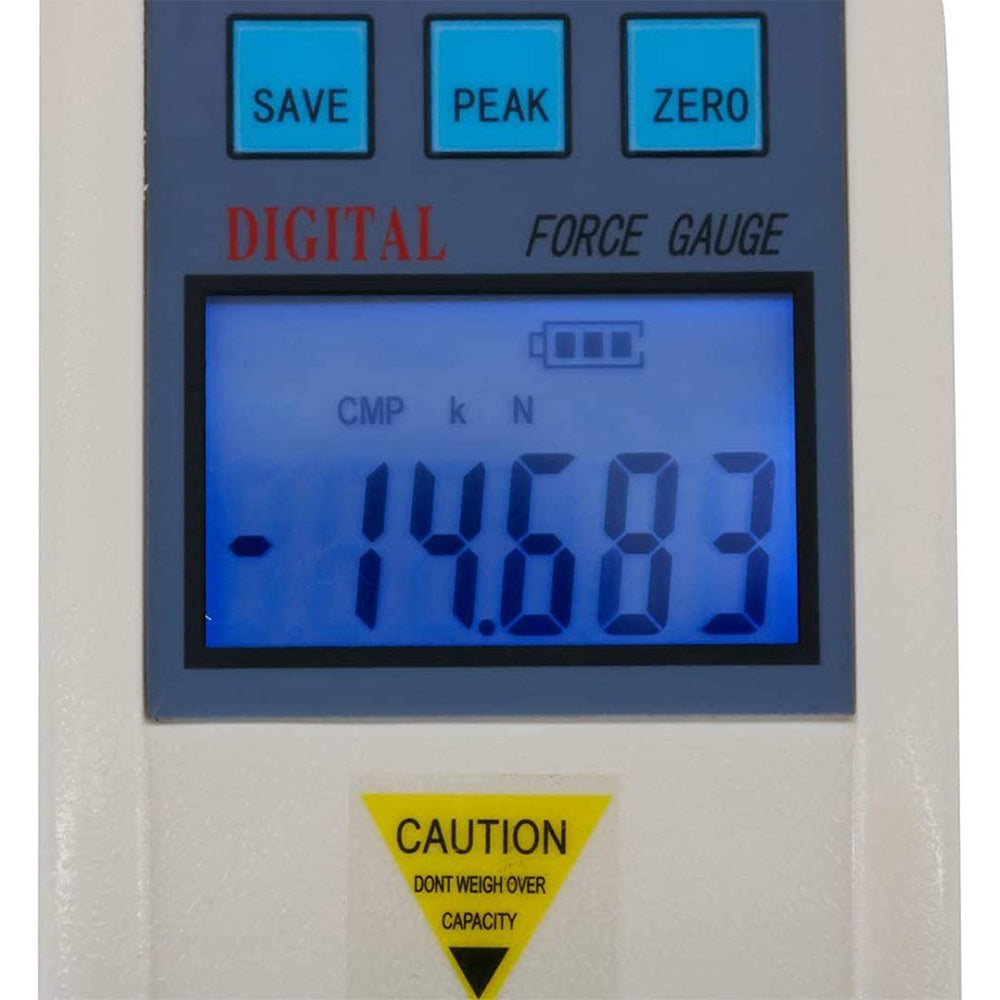

6 digits large screen display.
Setting function of gravity acceleration
Max. and min. and comparison value can be setted for statistic analysis.
Data storage function. 896 testing values can be stored.
Data output function. The data can be input into computer through data line for various analyses.
LCD overturn display
Automatic PEAK function
Automatic storage test value function
Negative phototropism function
Printer function:this function can print the stored data through computer by USB.
Synchronous test function
Measuring correction
Solve overload instruction
Specification:
Peak load value:50KN
Load division value:0.01KN 0.001Mg 0.001Klbs
Indication error: ±0.5% +/-1%
Unit: N / (KN), kg / (Mg or t), lb (KIb) N / (KN), kg / (Mg or t), lb (KIb)

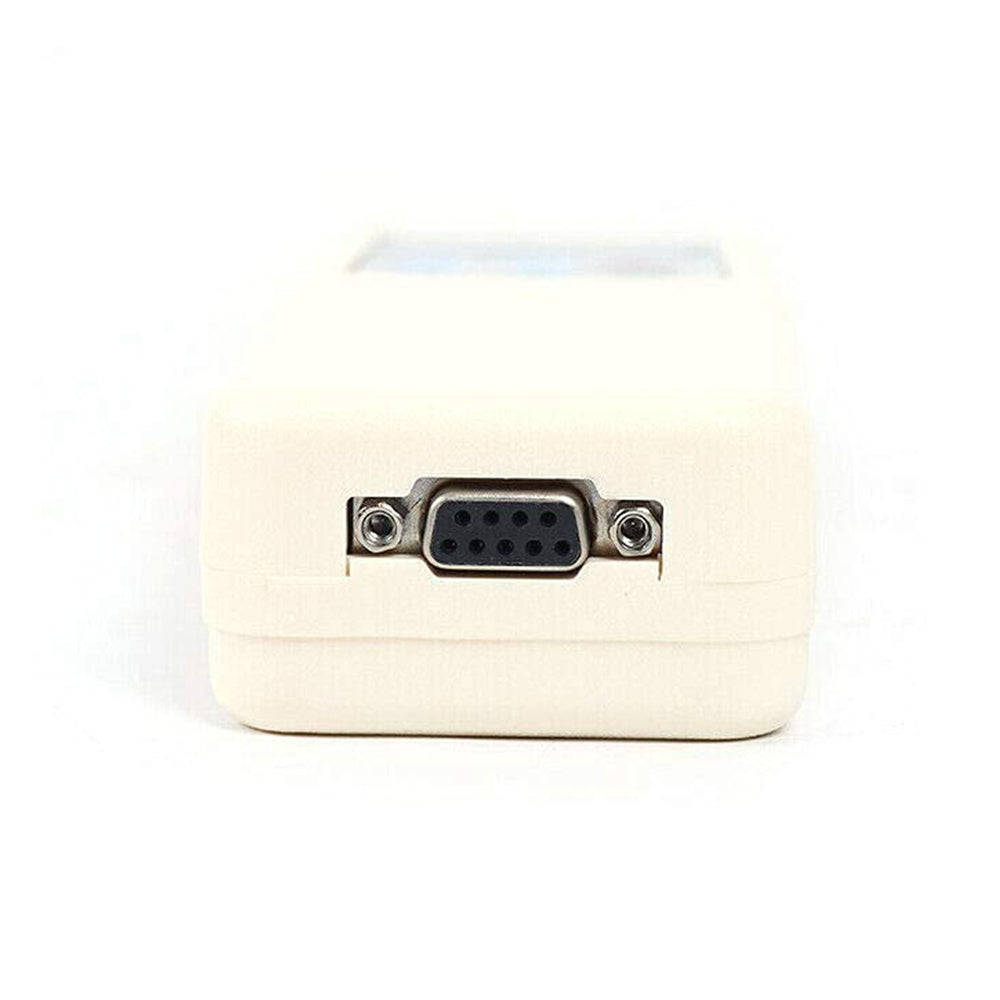

Data interface: RS232 nine-hole socket
Power :rechargeable batteries, charger(charging voltage 100V-240V)

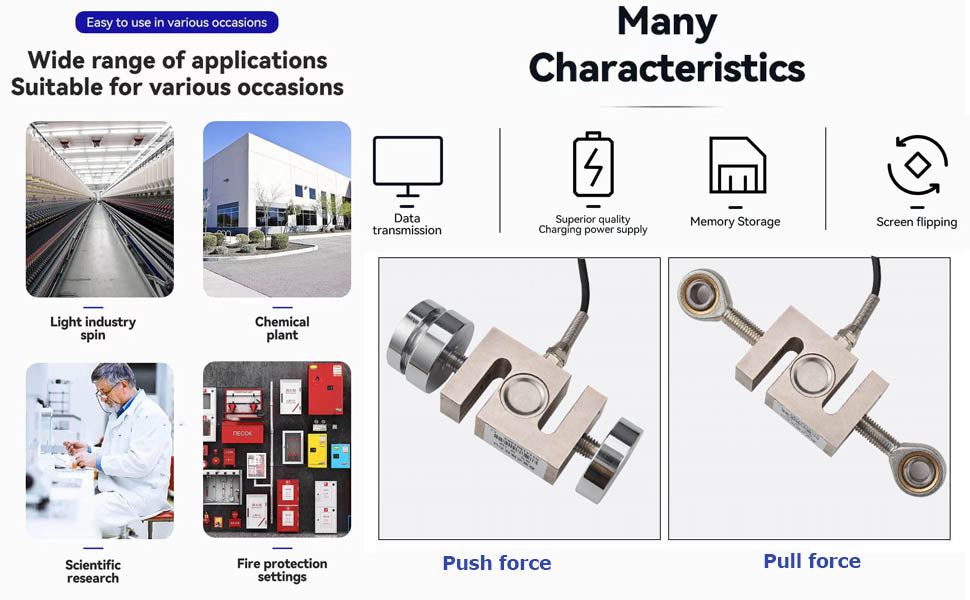

Sensor structureS-tye external sensor(standard), optioal Spoke type sensor S-tye external sensor(standard), optioal Spoke type sensor
Ambient temperature :5° C~35° C
Transport temperature:-10° C~60° C -10° C~60° C
Relative humidity: 15%~80%RH
Working conditions:No hypocenter and corrosive medium No hypocenter and corrosive medium
Gross weight: 6KG
Size :280* 200 *170 mm
