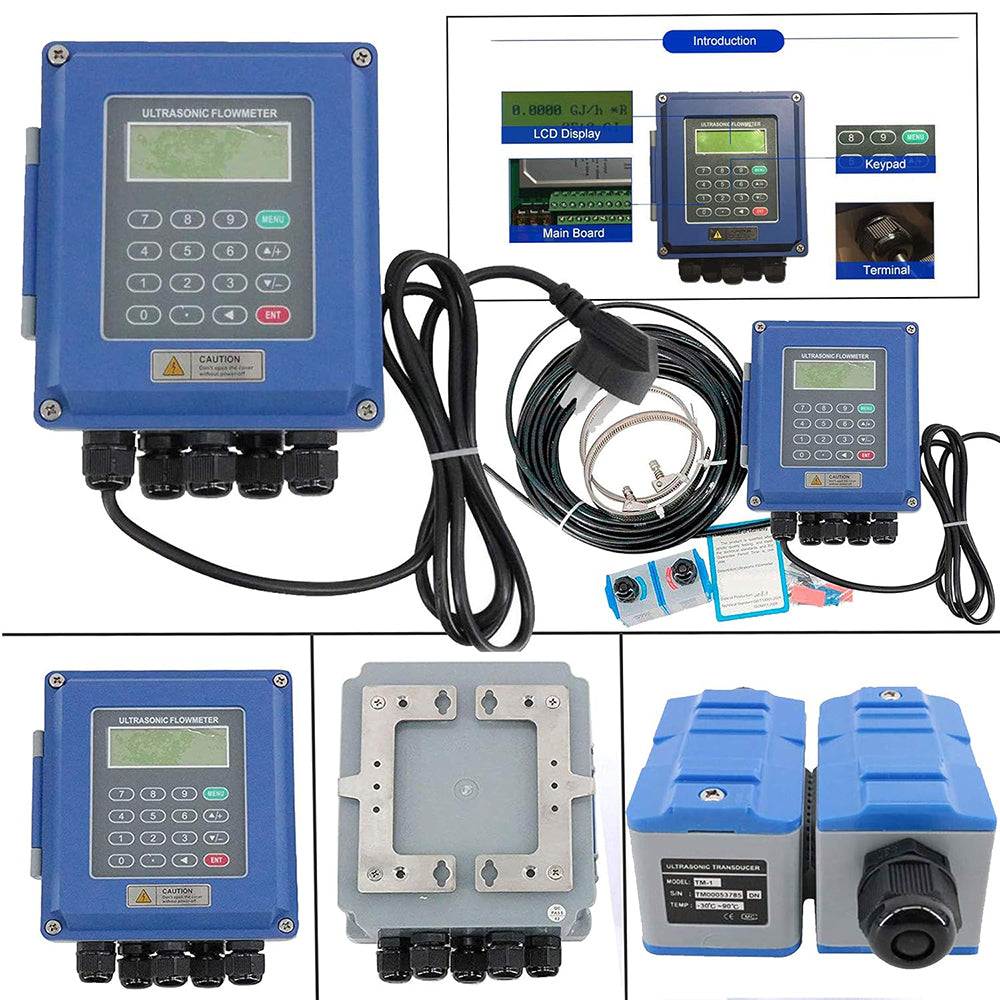

VTSYIQI Digital Ultrasonic Flow Meters Flowmeter DN50-700mm 1.97-27.56in With Medium Clamp-on Sensor IP67 Wide Measuring Range For Supporting Heat Measurement
VTSYIQI Digital Ultrasonic Flow Meters Flowmeter DN50-700mm 1.97-27.56in With Medium Clamp-on Sensor IP67 Wide Measuring Range For Supporting Heat Measurement
常规价格
$279.00 USD
常规价格
促销价
$279.00 USD
单价
/
单价
结账时计算的运费。
无法加载取货服务可用情况
Product Description
•Introduction of Ultrasonic flow meter----The liquid in the bottle can be replaced with petrolatum or butter. The effect is same . DHL or FEDEX is forbidden to carry liquid . UTF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.
•Feature---High Accuracy: 1% <br> Wide measuring range :Several types transducer for selection, pipe size from Dn50mm to Dn700mm <br> High Reliability:Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability. <br> Strong Anti-interference:Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
•Automatically record the following data-----1. The totalizer data of the last 512 days/128 months/10 years<br> 2. The time and corresponding flow rate of the last 6 4 times of power on and off events<br> 3. The working status of the last 32 days
•Support Heat Measurement-----Connect the temperature transducer ,can finish the heat/energy measurement<br> Support SD card Memory<br> Optional SD card
•Power Consumption--- 1.5W Dimension----132*150*85mm(convertor) Warranty 1 Year
Since the couplant is liquid, It's suggest you use Molybdenum Disulfide instead.

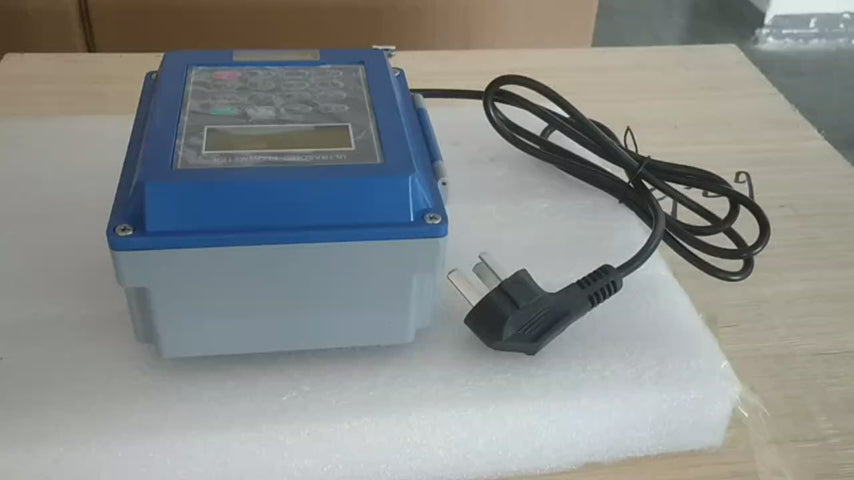

Convertor
Principle:Transit-time ultrasonic flowmeter
Accuracy:±1%
Display:2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish
Signal output:
1way 4-20mA output, electric resistance 0-1K, accuracy0.1%
1 way OCT pulse output(Pulse width-1000ms, default is 200ms))
1 way Relay output
Signal input:
3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level
Connect the temperature transducer P100, can finish the heat/energy measurement.
Data Interface:Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
Special Cable
Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m
Pipe Installation Condition
Pipe material:Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed
Pipe diameter:50-700mm
Straight pipe:Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.
Measuring Medium
Type of liquid:
Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc
Temperature:-30-90℃
Turbidity:No more than 10000ppm and less bubble
Flow rate:0-±7m/s
Temperature:Convertor; -20-60℃; Flow Transducer: -30-90℃
Humidity:Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
Working Environment
Temperature:Convertor; -20-60℃;

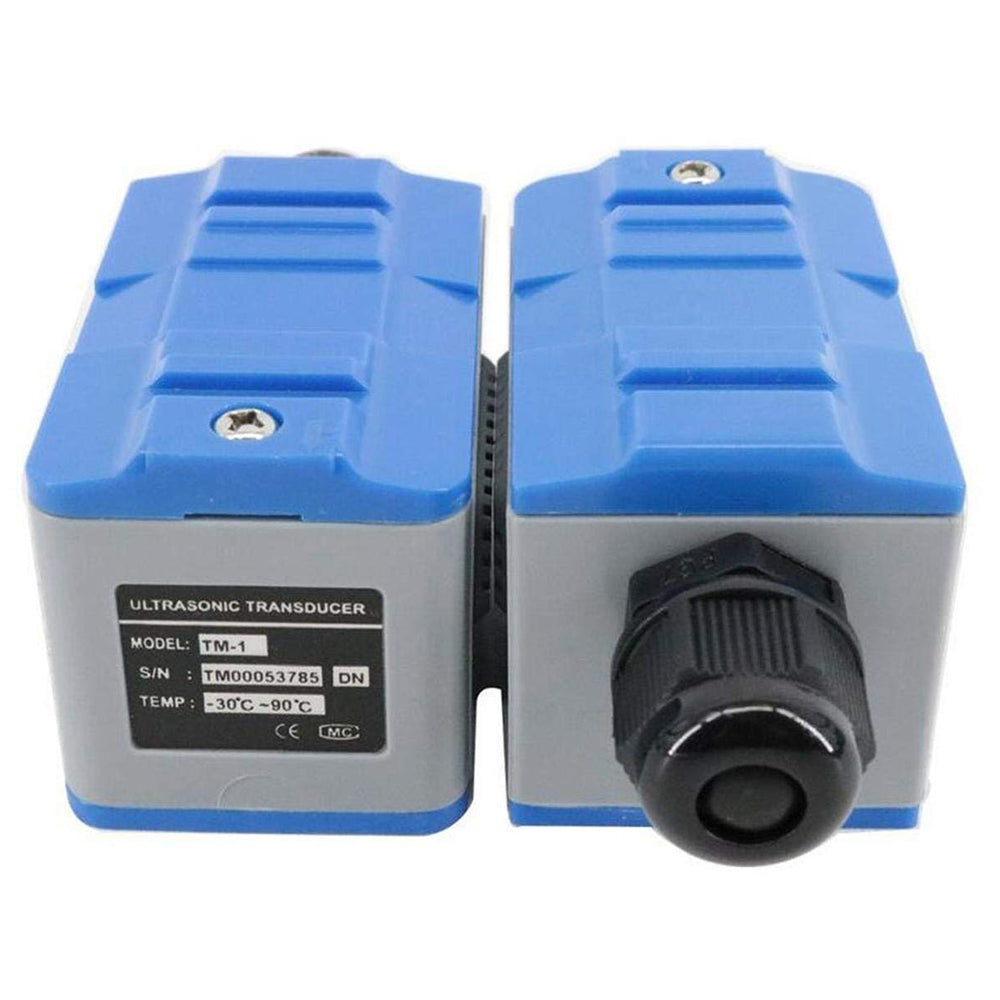

Flow Transducer: -30-90℃
Humidity:Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
Power Supply
DC8-36V or AC85-264V(Optional)
