VTSYIQI Ground Resistance Tester Digital Clamp On Ground Earth Resistance Meter Tester With Resistance Range 0.01 to 200Ω For Electric Power Telecommunications Meteorology Oil Field Architecture Industrial Electrical Equipment

Feature

★ Resistance Range:0.01-200Ω.Highest Resistance Accuracy:±1%±0.01Ω
★ Structural Feature：Clamp CT,and can measure the ground fault which can not be measured by traditional method.
★ Grounding and loop resistance measurement, more reliable quality.
★ Shifting：Automatic shifting.Auto Power-off：5 minutes after boot up.
★ Alarm sound and light function,Data memory:99 Sets

Description
ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.

Technical Specifications
Function：Ground resistance test, Loop resistance test
* Power Supply：6VDC 4 PCS of LR6 lkaline batteries
* Resistance Range:0.01-200Ω
* Resistance Resolution:0.001Ω
* Highest Resistance Accuracy:±1%±0.01Ω
* Data memory:99 Sets
* Alarm Threshold Setting Range:Resistance: 1-199Ω
* Alarm Sound and Light：“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. Interference Signal Recognition：“Beep-beep-beep” ton, NOISE symbol blinking
* Working Temperature and Humidity：-20℃-55℃;20%RH-90%RH

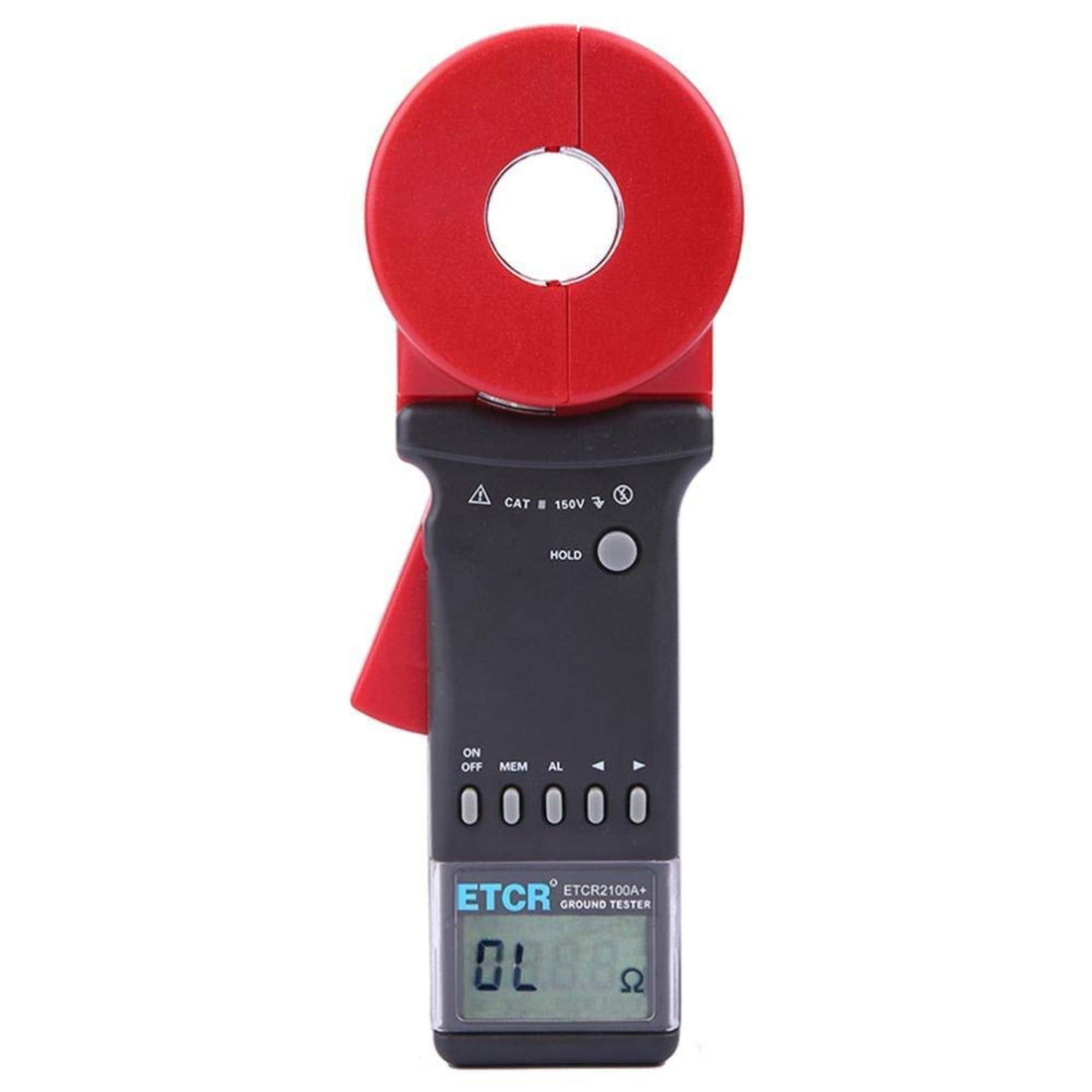

* LCD Screen：4 Digits LCD display, Screen L×W: 47mm×28.5mm

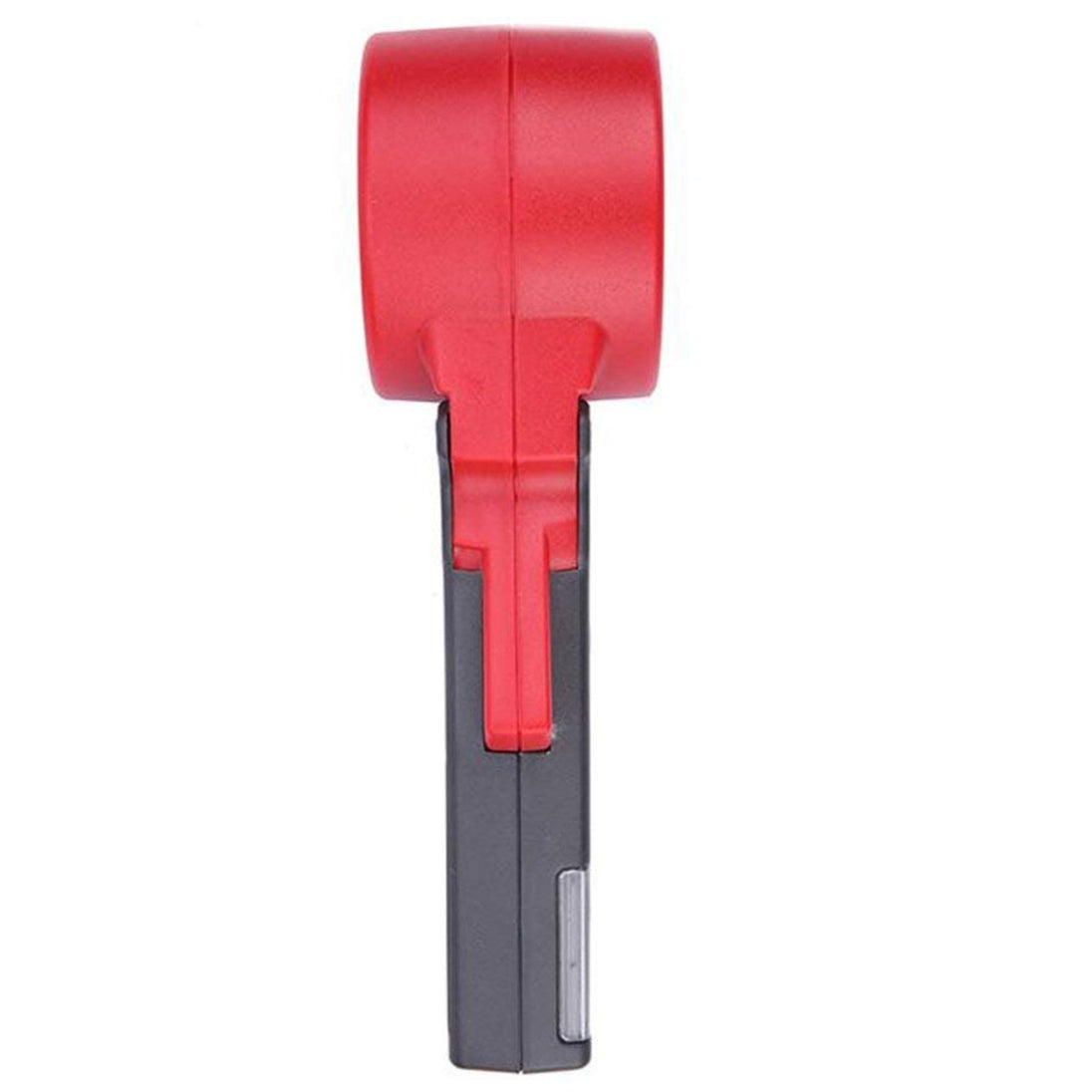

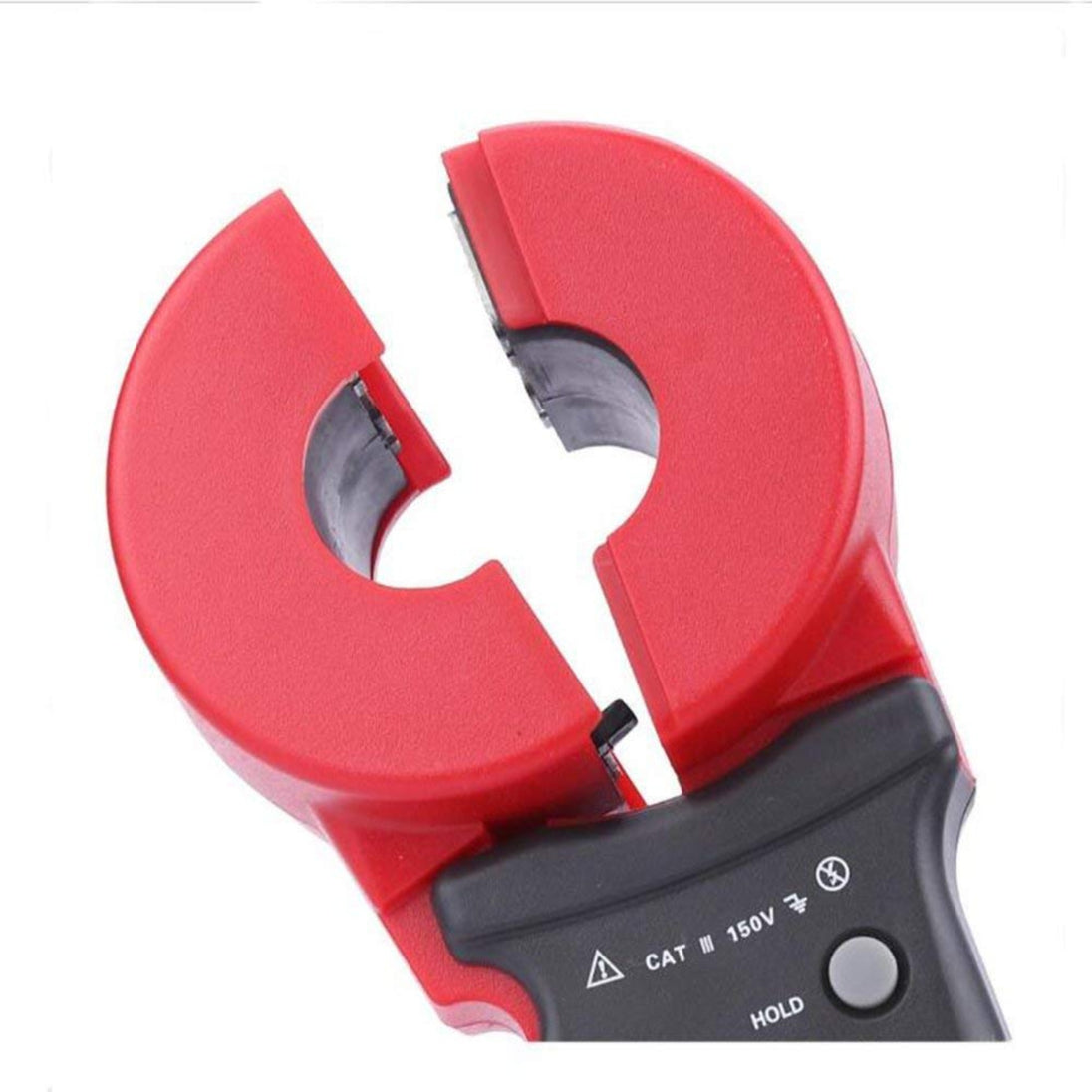

* Clamp Size：Φ32mm
* Clamp Opening Extent：32mm
* Tester Weight：1120g
* Clamp Dimension：L×W×T: 260mm×90mm×66mm
* Protection Level：Dual Insulation
* Structural Feature：Clamp CT
* Shifting：Automatic shifting
* External magnetic field：<40A/m, External electrical field：<1V/m
* Single measurement time：0.5 second
* Resistance measurement frequency：>1KHz
* Low Battery Indication：Low battery symbol displays when battery is lower then 5.3V

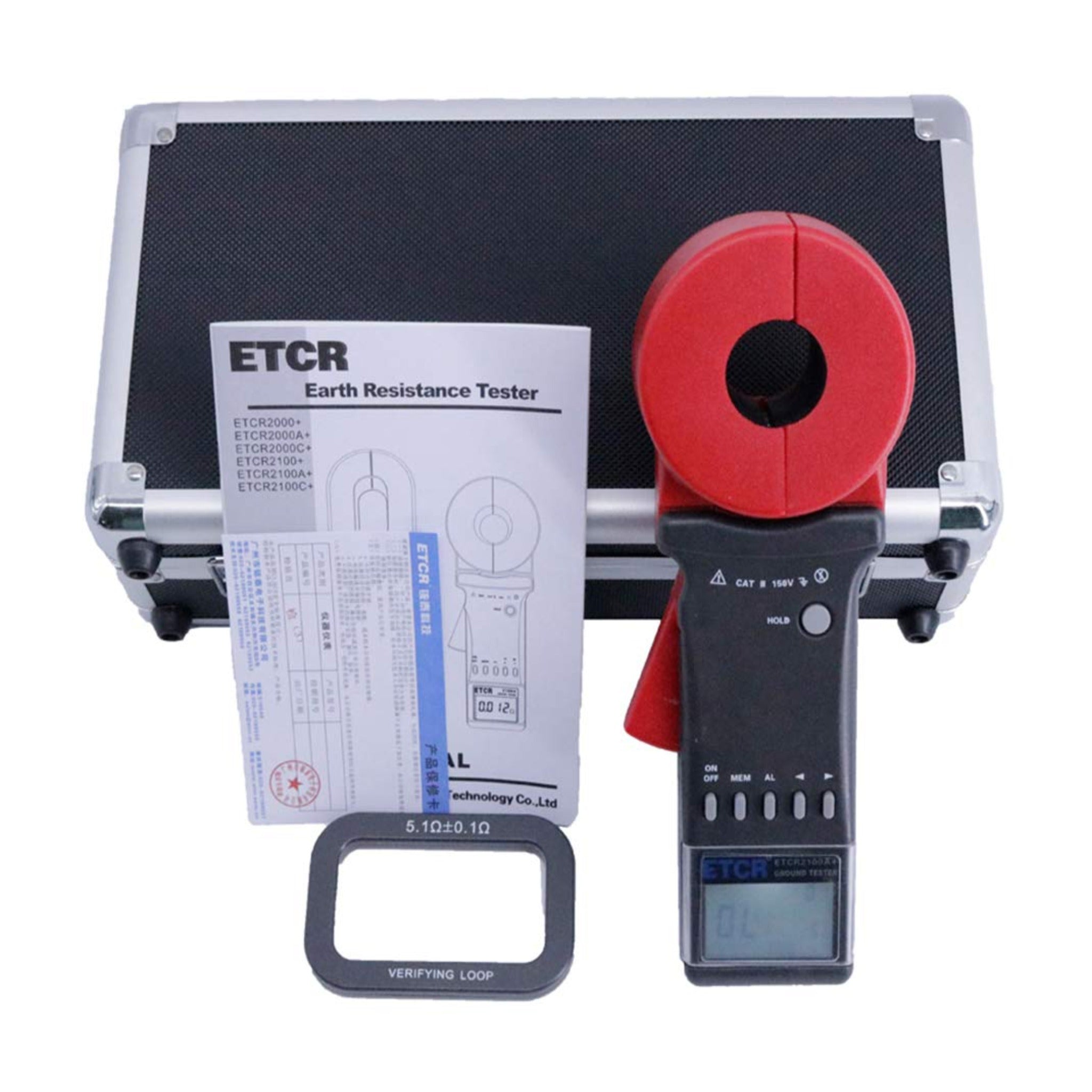

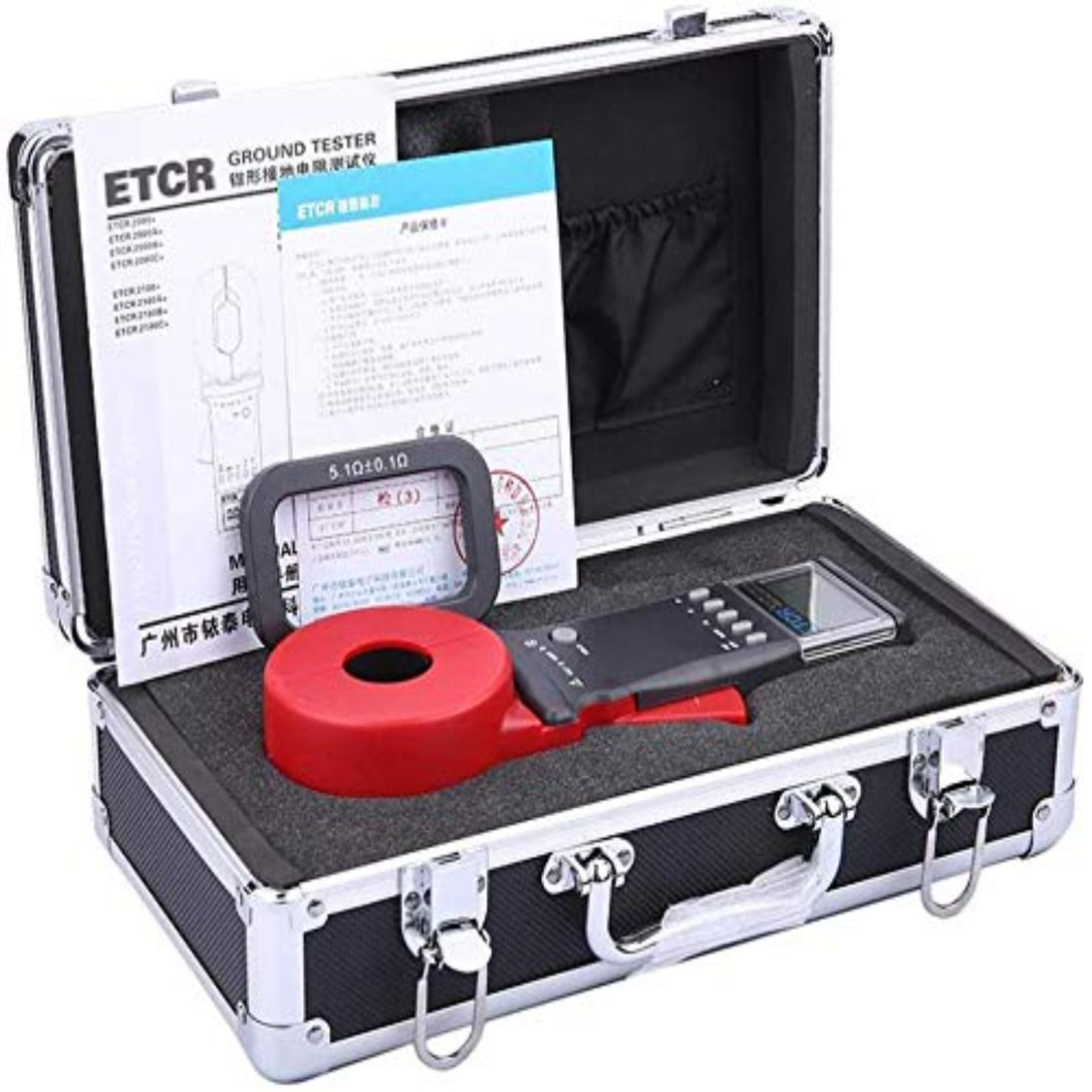

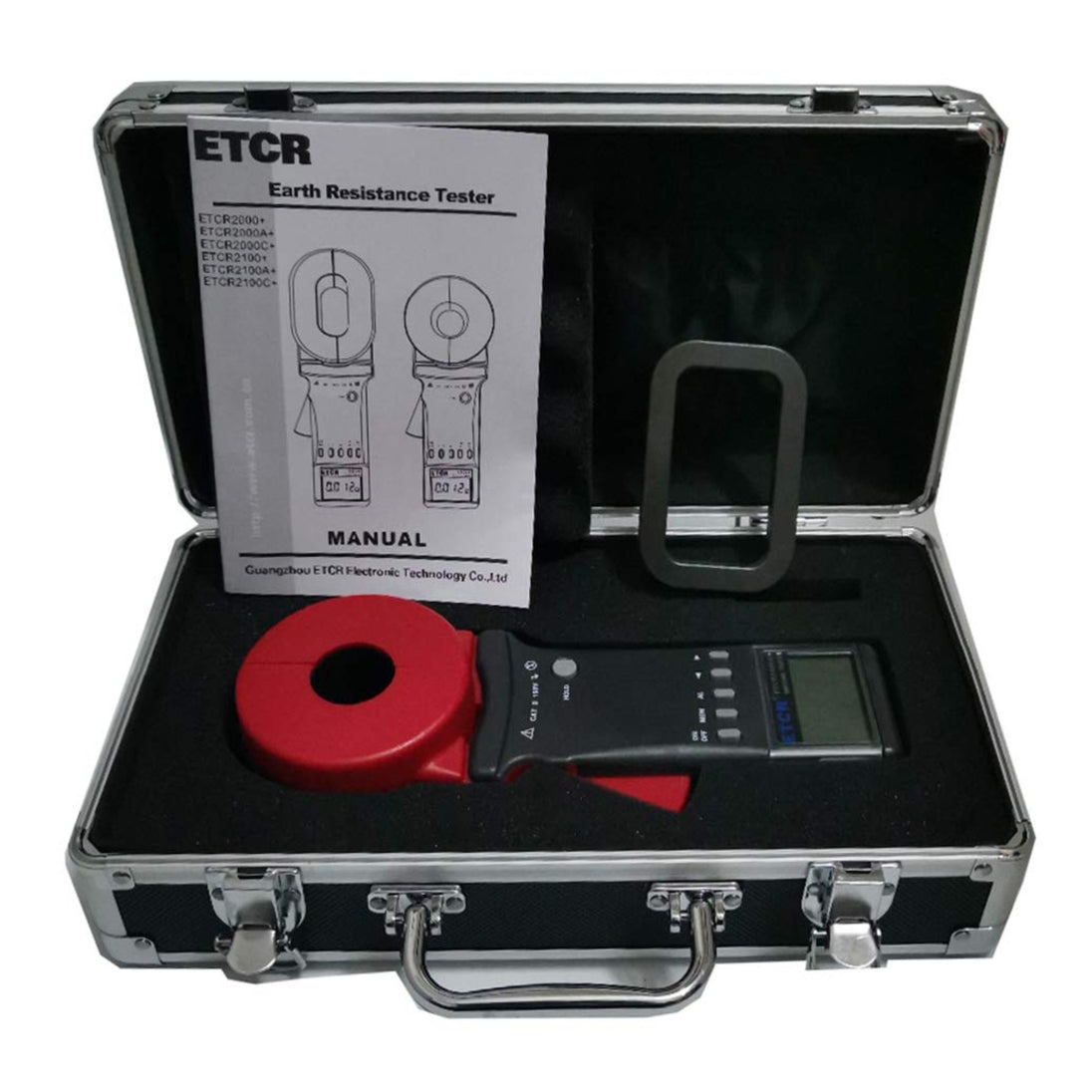

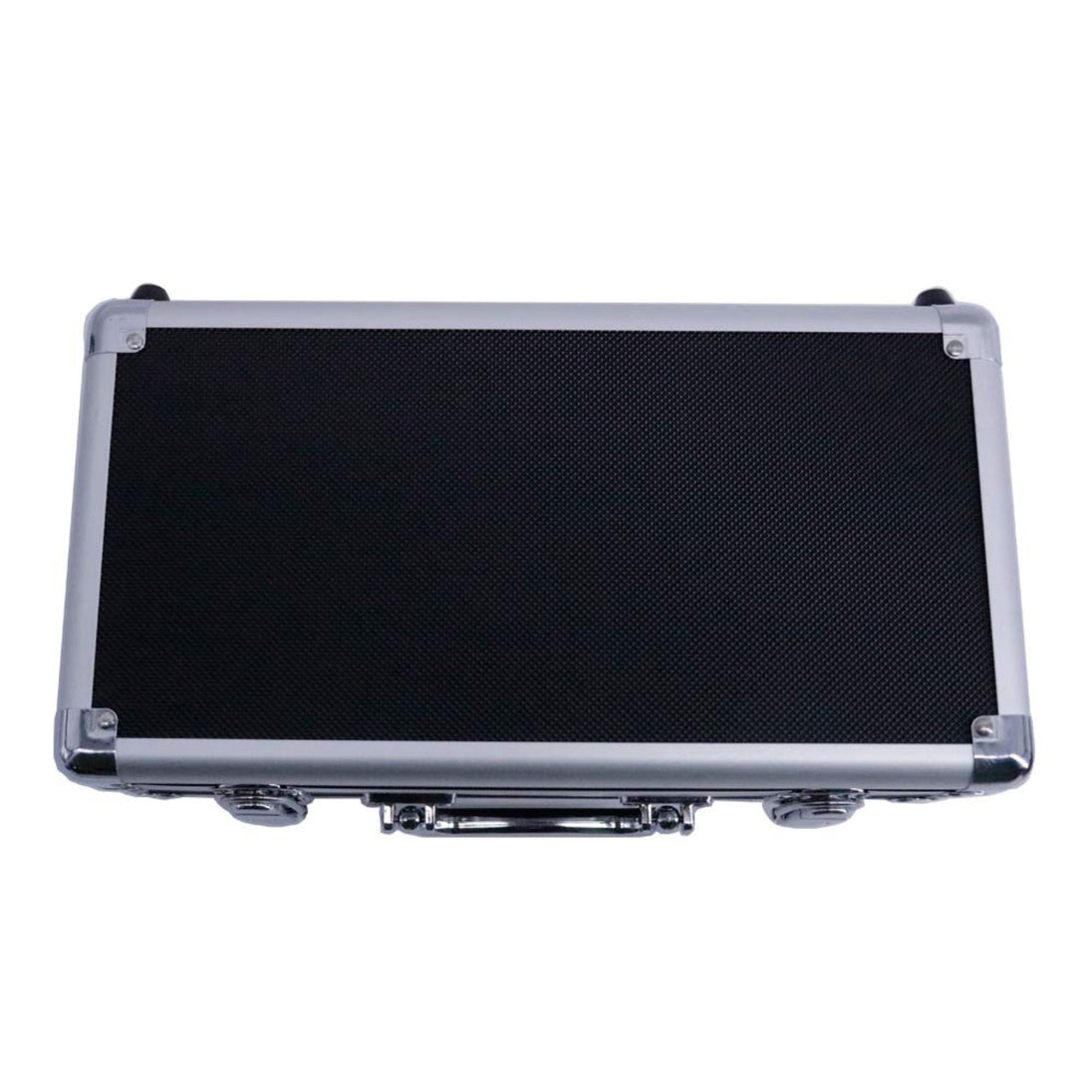

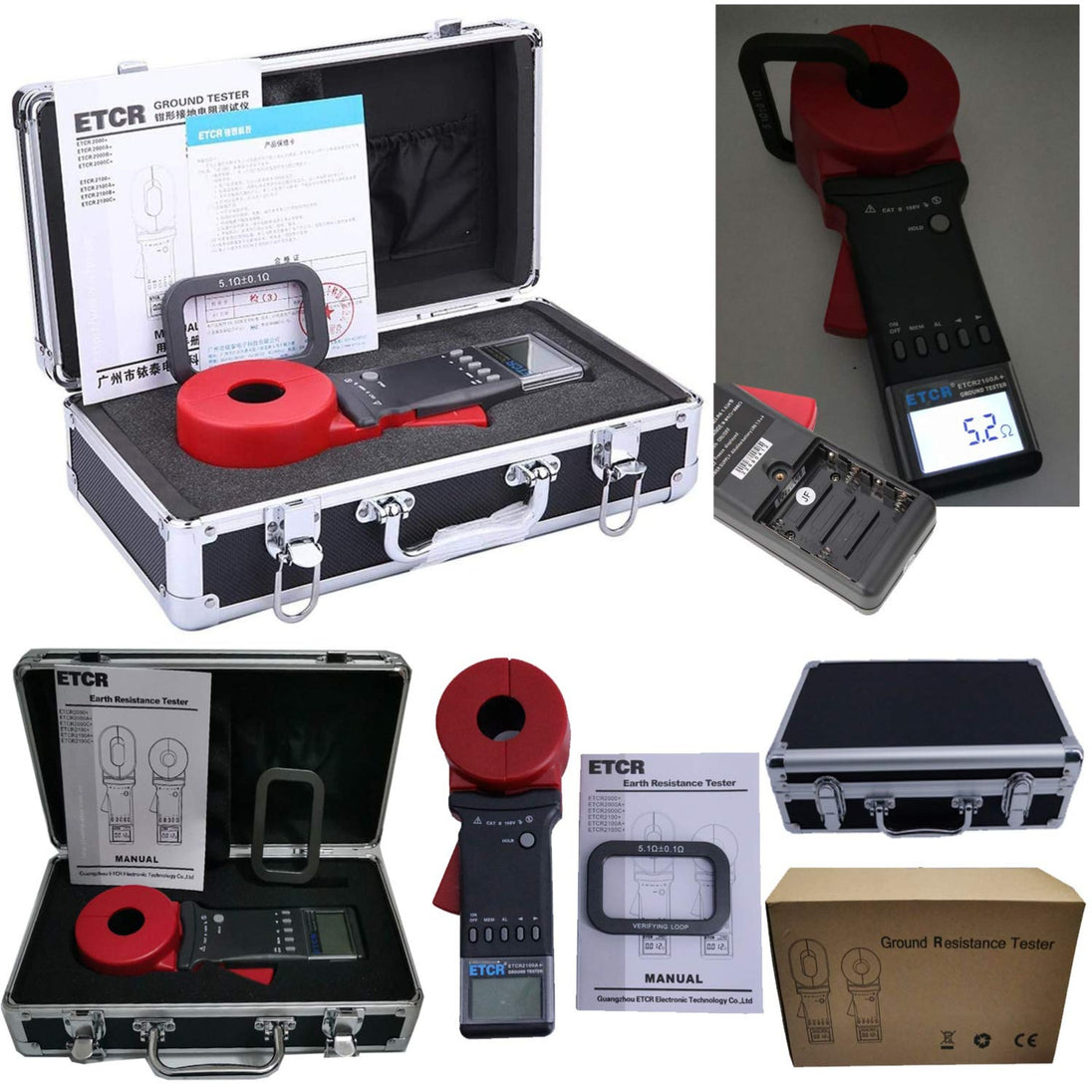

*Standard Accessories: Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece
