VTSYIQI Multi-Mode Ultrasonic Thickness Gauge with Probe N05/90 N07 HT5

The model MT190 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness )
Function & application
Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.
Technical Specifications
*Measuring range：0.65-600mm（Pulse-Echo mode),3-30mm (Echo-Echo mode)
*Resolution Accuracy：0.1/0.01mm
*Accuracy: ±（0.5%Thickness+0.01）mm
*Communication storage：USB(USB communication cable is Optional Accessories )
*Working time：100h (EL backlight off).
*Main unit weight：245g
*Dimensions：150×74×32 mm.
*Power supply: two AA size alkaline batteries（Battery not included in the package）
Working Conditions
*Operating Temperature: －20℃～＋50℃
*Storage Temperature：-30℃～＋70℃
*Relative Humidity ≤90％
*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

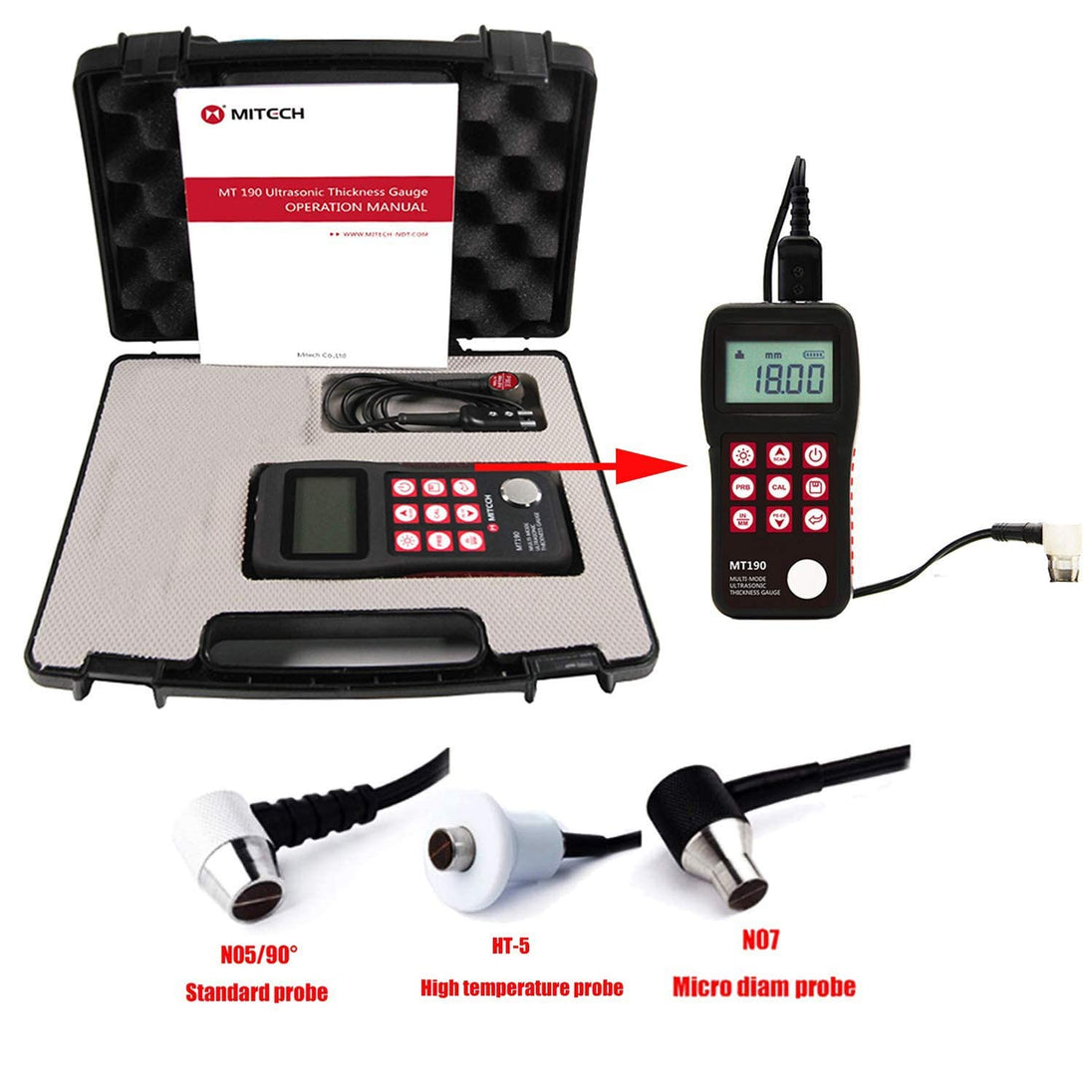

*Standard Accessories : Host, Narrow-pulse thickness probe P5EE, ABS instrument case, Attached files

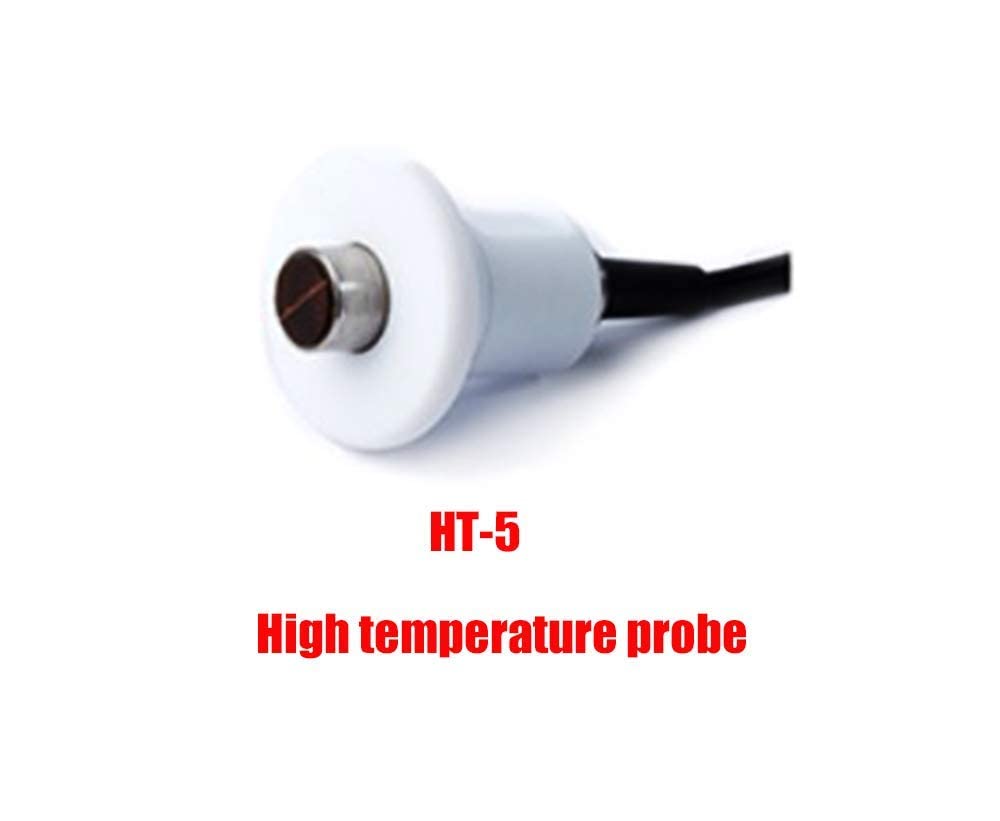

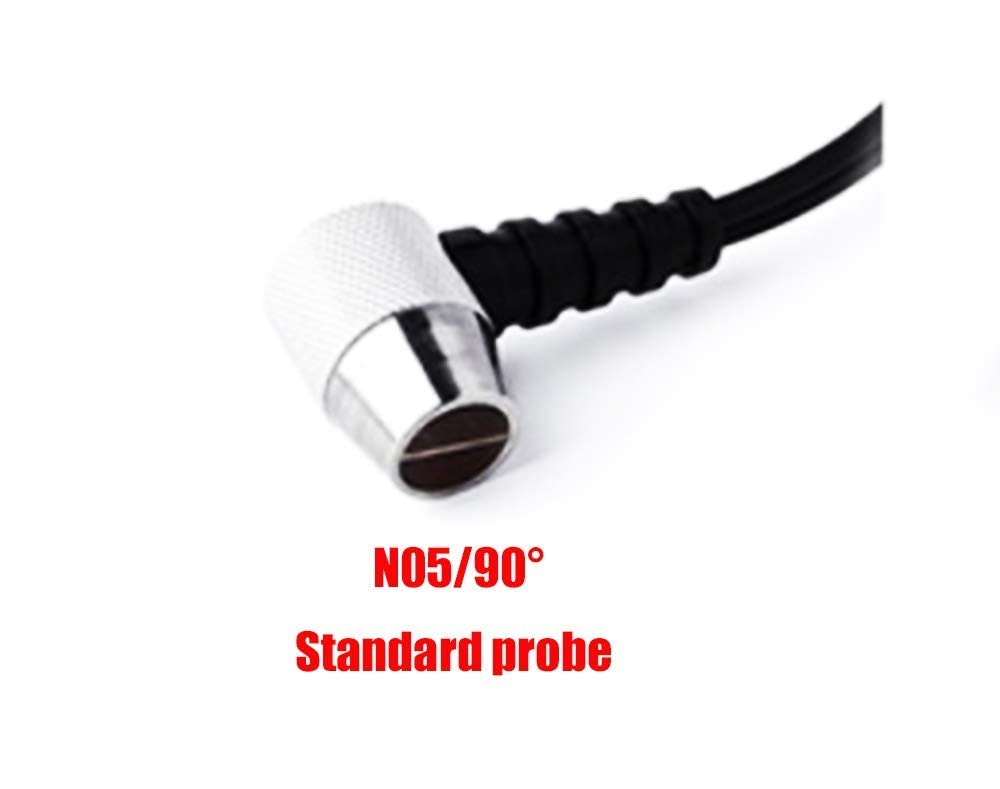

N05/90 N07 HT5
