VTSYIQI Pen Type Leeb Hardness Tester Meter with Range 170-960 HLD Multiple Hardness Scale OLED Display

VTSYIQI Pen Type Leeb Hardness Tester Meter with Range 170-960 HLD Multiple Hardness Scale OLED Display

$270.00 USD
$270.00 USD
销售额 售罄
结账时计算的运费。
  • *Measure the hardness scale HL、HV、HRA、HRC、HRB、HB、HV、HS.

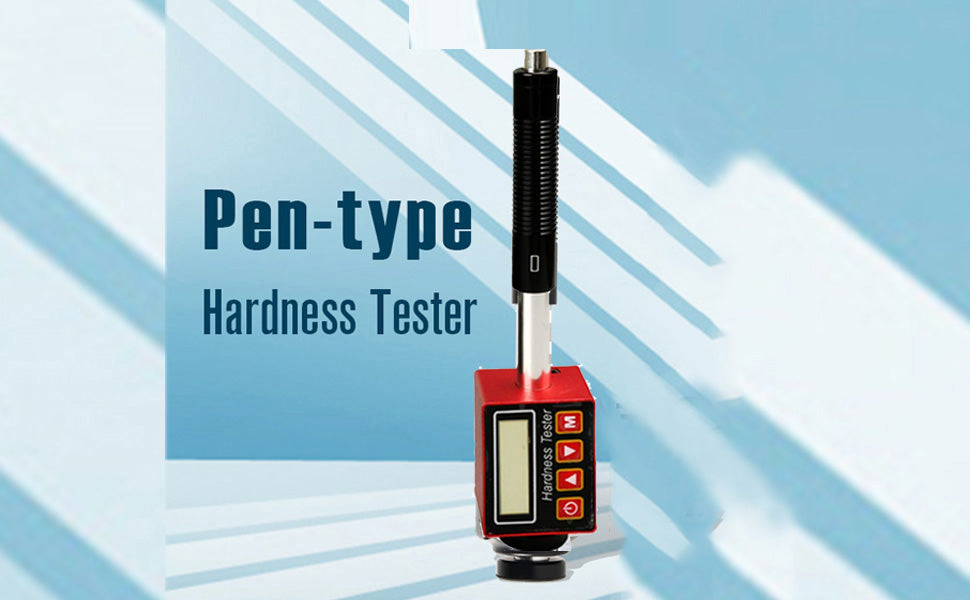

  • *Pen type design, easy operation, Self-expression with uniquecolors, show the unique personality.
  • *Massive capacity data storage-----The unprecedented mass storageleads the technology trend. It can save 270 group hardness measurementsdata, each group including average,hardness standard .
  • *Applicable Materials-----Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper(bronze)
  • *Application-----1)Bearings and other parts;2)Failure analysis of pressure vessel, steam turbine generator group and equipment;3)Heavy workpieces;4)Mechanical or permanent assembly installed;5)The test space is very narrow;6)The original record of formal requirements on test results;

Applicable materials

Steel and molten steel, steel alloy tool, stainless steel, gray cast iron, nodular cast iron, molten aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze)

Request

Bearings and other parts;

Failure analysis of the pressure container, steam and equipment turbine generator group;

Heavy work pieces;

Mechanical or permanent set installed; The test space is very narrow; The original record of formal requirements on the results of the tests;

Feathers：

Intelligent simple:

No key "fool" type operation, directly shows the most commonly used on the Leeb scale and Rockwell values.

Small and portable:

Small, portable instrument, integrated design without connecting cables, improves the reliability.

Industry highlights, OLED display:

Canclear display under direct sunlight, suitable for all kinds of lighting conditions.

Born colorful:

Self-expression with uniquecolors, show the unique personality.

Accurate Measurement

High precision of measurement circuit value error for ± 0.5%(HLD=800), value repeatability for 0.8%

Support for multiple hardness standard:

HL、HV、HRA、HRC、HRB、HB、HS

Technical Specifications

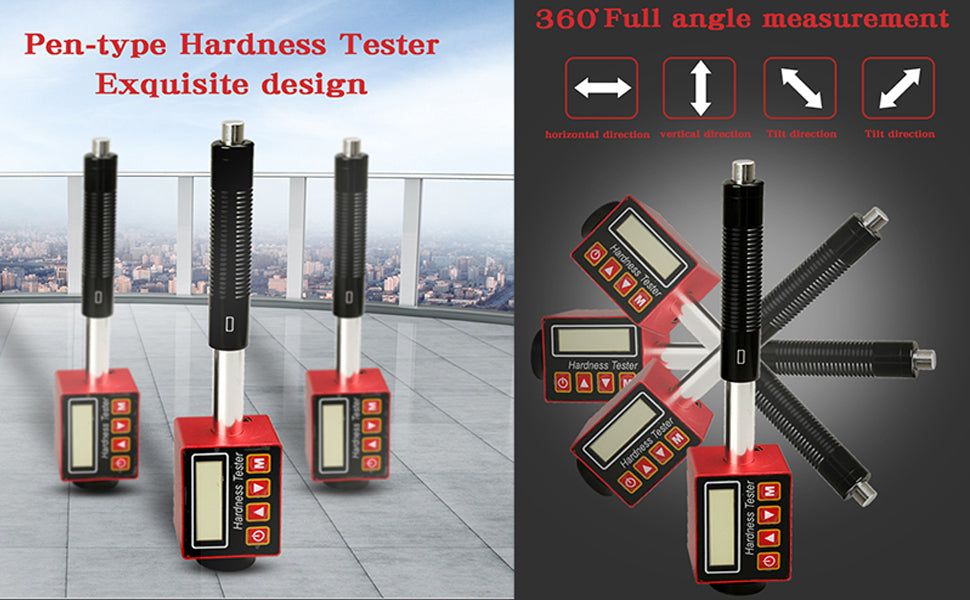

Testing direction:Highly accurate in any impact direction

Testing Range:(170-960)HLD,(17.9-69.5)HRC,,(19-683)HB,(80-1042)HV,(30.6-102.6)HS,(59.1-88)HRA,(13.5-101.7)HRB

Hardness Standards:HL、HV、HRA、HRC、HRB、HB、HV、HS

Accuracy:HLD：±0.5% (800HLD)

Repeatability Value:HLD：0.8% (800HLD)

Resolution:128×64 OLED display

Dimensions:148mm×40mm×30mm

Power Supply:Rechargeable lithium battery

Working Hours:About 10 hours

Operating temperature: 10-50 c;

Storage temperature: -30 ℃ -60 ℃;

Humidity: 90% max;

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1％
