VTSYIQI Portable Spectrophotometer Colorimeter Color Difference Tester Meter Capacitive Touch Screen Camera with D/8 8mm Aperture SCI SCE Mode USB Interface

VTSYIQI Portable Spectrophotometer Colorimeter Color Difference Tester Meter Capacitive Touch Screen Camera with D/8 8mm Aperture SCI SCE Mode USB Interface

$2,610.00 USD
$2,610.00 USD
销售额 售罄
结账时计算的运费。

  • Product Description

  • Application Industry--- Handheld spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
  • Description---YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management. Grating Spectrophotometer:4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
  • Certificate---Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, color spectrophotometer features only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
  • Features--- A.Perfect combination of beautiful appearance and the human body mechanics structural design; B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil C.Use long life and low power consumption combined LED light source D.Single 8mm aperture, support both SCI and SCE at the same time; E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
  • Features--- F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; G.USB port, widely useful; H.Super stain-resistant and stable standard white calibration plate; I.Large capacity storage space, over 20,000 measurement data; J.Two standard observer angles, K.Camera Locating Function, better position; l.PC software has a powerful function extension.

Product Description

Specification
Optical Geometry:Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size:48mm
Light Source:Combined LED Light
Spectrophotometric:ModeConcave Grating
Sensor:256 Image Element Double Array CMOS Image Sensor
Wavelength Range:400-700nm
Wavelength Interval:10nm
Semiband Width:10nm
Measured Reflectance Range:0-200%
Measuring Aperture:Single Aperture: 8mm/10mm
Specular Component:SCI&SCE
Color Space:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index:
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle:2°/10°
Illuminant:D65, A, C, D50
Displayed Data:Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time:2.6s
Repeatability:MAV/SCI: ΔE*≤0.06
Inter-instrument Error:MAV/SCI: ΔE*≤0.4
Measurement Mode:Single Measurement, Average Measurement
Locating Method:Camera View Finder Locating
Battery:Li-ion battery. 5000 measurements within 8 hours
Dimension:L*W*H=184*77*105mm
Weight:600g
Illuminant Life Span:5 years, more than 3 million times measurements
Display:3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port:USB
Data Storage:Standard 2000 Pcs, Sample 20000 Pcs
Language:English, Chinese
Operating Environment:0~40℃, 0~85%RH (no condensing), Altitude <2000m
Storage Environment:-20~50℃, 0~85%RH (no condensing)

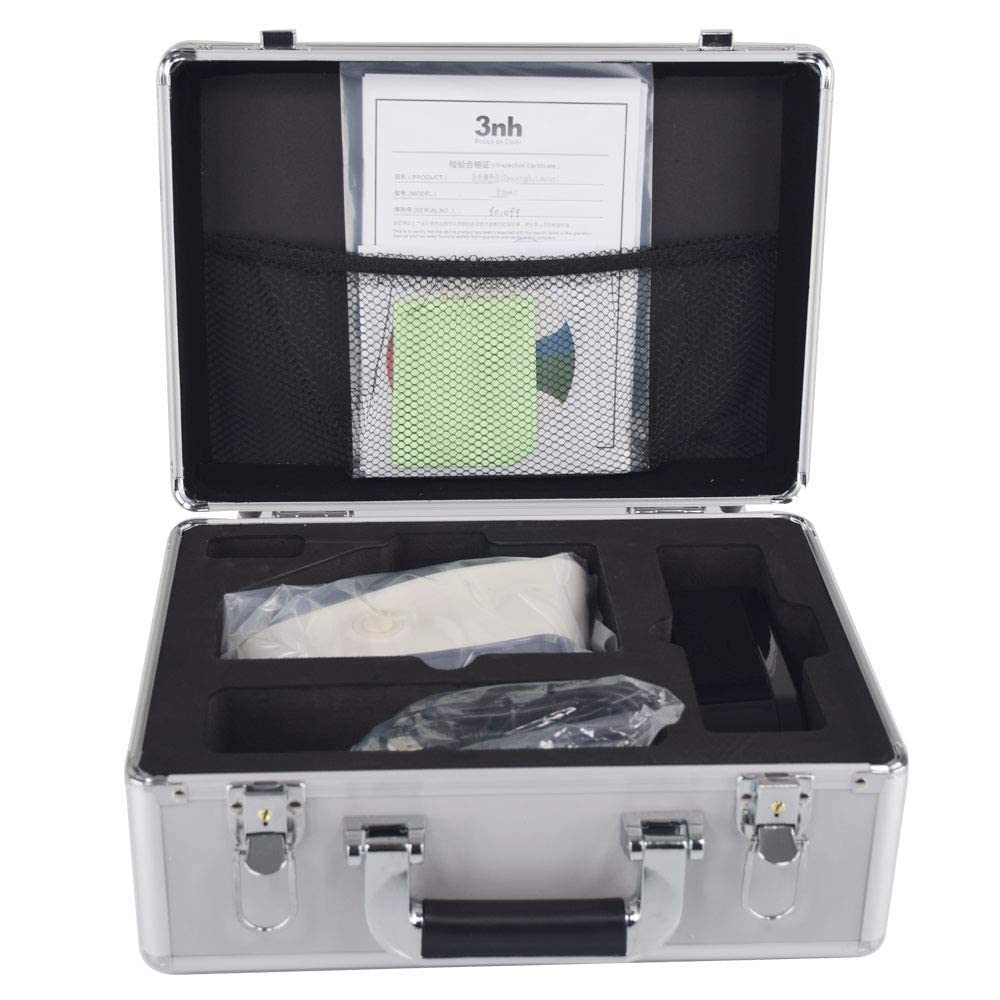

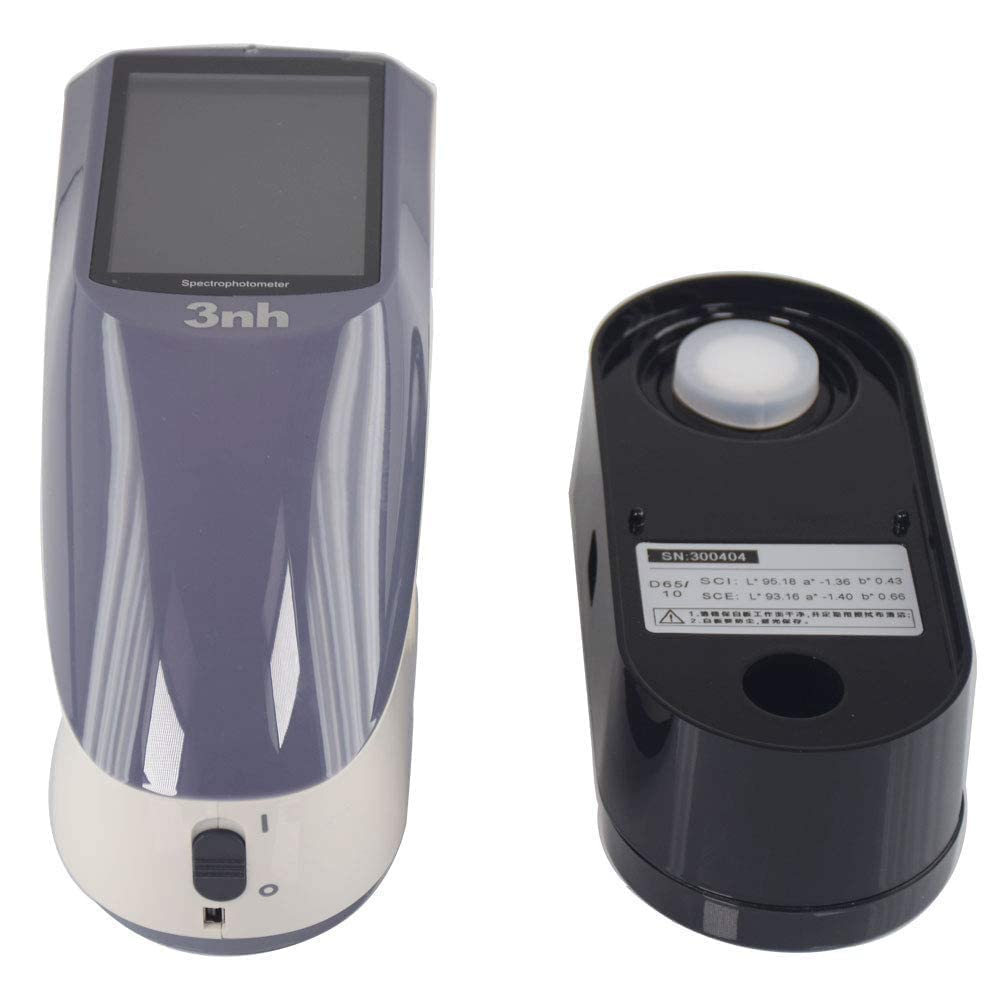

Standard Accessory:Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory:Micro Printer, Powder Test Box
