VTSYIQI Rebar Detector Integrated Rebar Scanner Rebar Locator Integrated Steel Bar Scanner with Range 1 to 120mm Concrete Protective Layer Tester LCD Display

Feature

◆ Testing the location, distribution, direction, and diameter of the rebar and the thickness of cover in concrete structure projects
◆ Inspecting and accepting concrete structural construction quality
◆ Evaluating the quality of construction,Establishing the location of rebar for drilling, cutting and coring operations
◆ Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors
◆ Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition

Brief Introduction

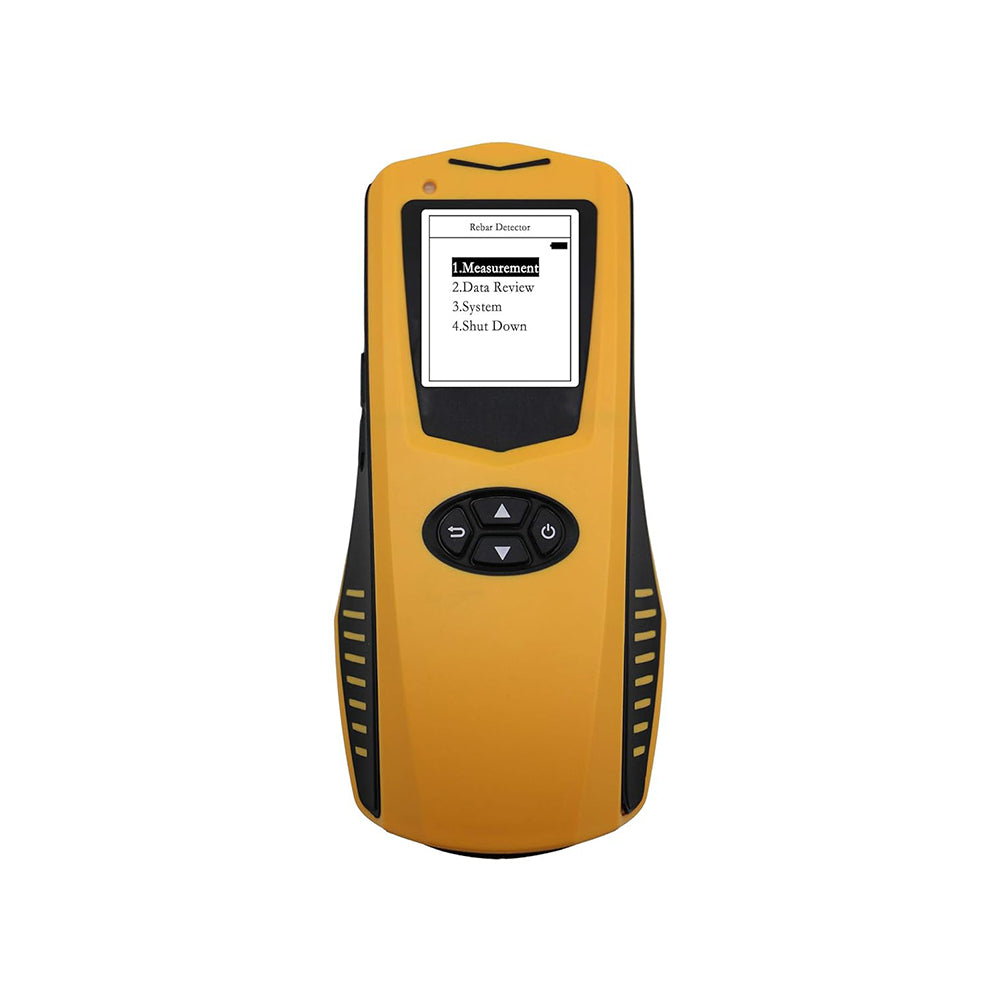

The first generation portable rebar integrated detector ZD322 uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model ZD322 is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. ZD322 series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls,columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts. The multiple coil structure design make it more accurate＆responsive and higher resolution.

Features

The high resolution LCD display: 128 x 128 pixels;

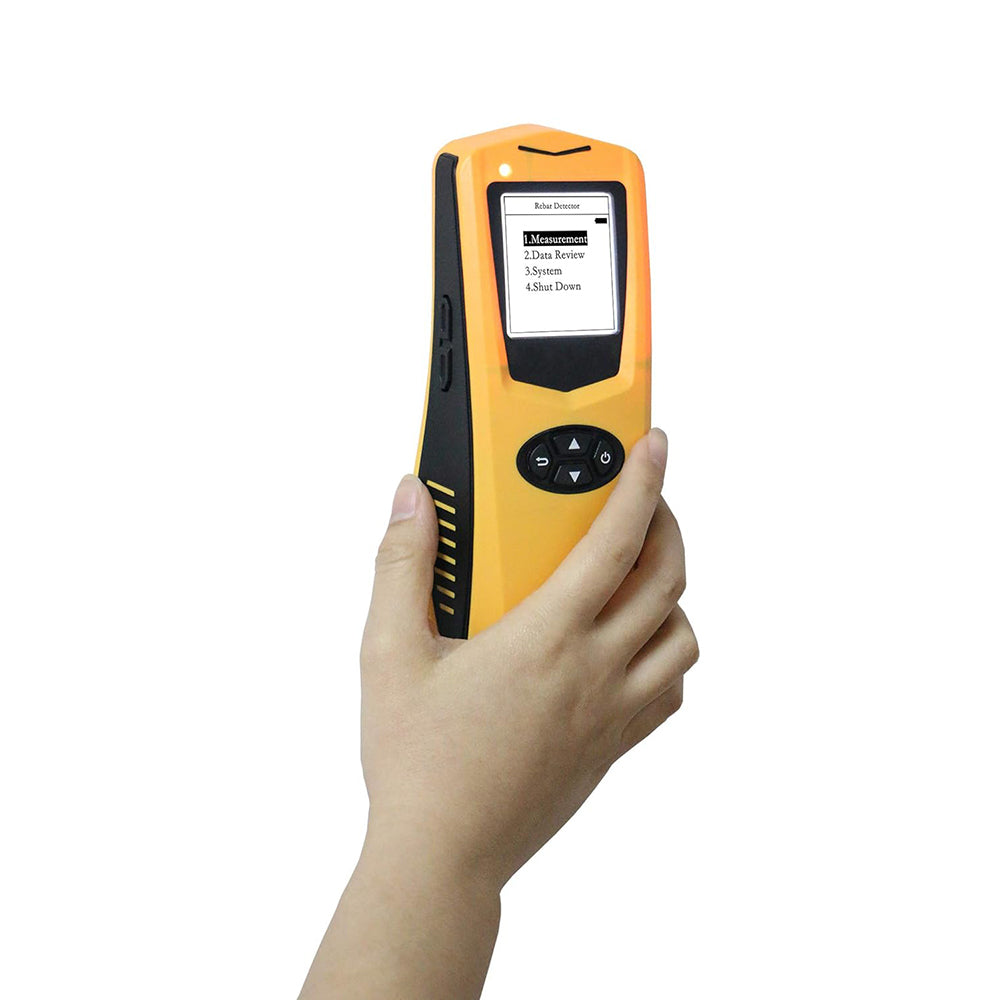

The intuitive operation and handheld ergonomic design with good durability;

Accurately detect the location of the rebar;

Help extend life of drill and avoid damage when drilling and coring;

The multi coil structure design with high speed, high precision and high resolution;

The built-in high capacity lithium battery, low power consumption, standby for no less than 20h.

Technical Specification

Diameter Measuring Range（mm）:Ф6～Ф50

Measuring Range（mm）: Location Range: 1～120

First Range: 1～60

Second Range: 30～120 Thickness Measuring Accuracy（mm）:

1～40---±1

41～60---±2

61～80---±3

81～100---±5

101～120---±8 Rebar Location Accuracy:

1～60---±3

61-120---±6 Diameter Measuring Modes:Optional

JGJ Measurement:Optional

Data Storage:Optional

Off Time:Automatic

Power Supply:Rechargeable Lithium Battery

Working Temperature:-10℃～+42℃

Size（mm）:170×78×38

Weight（kg）:0.28
