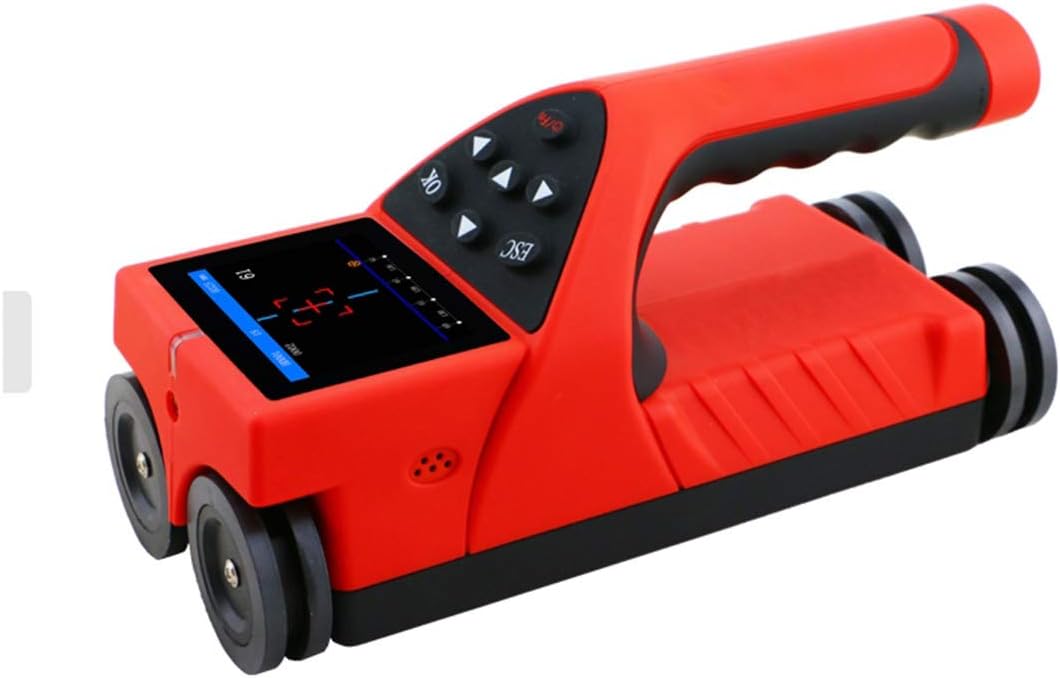

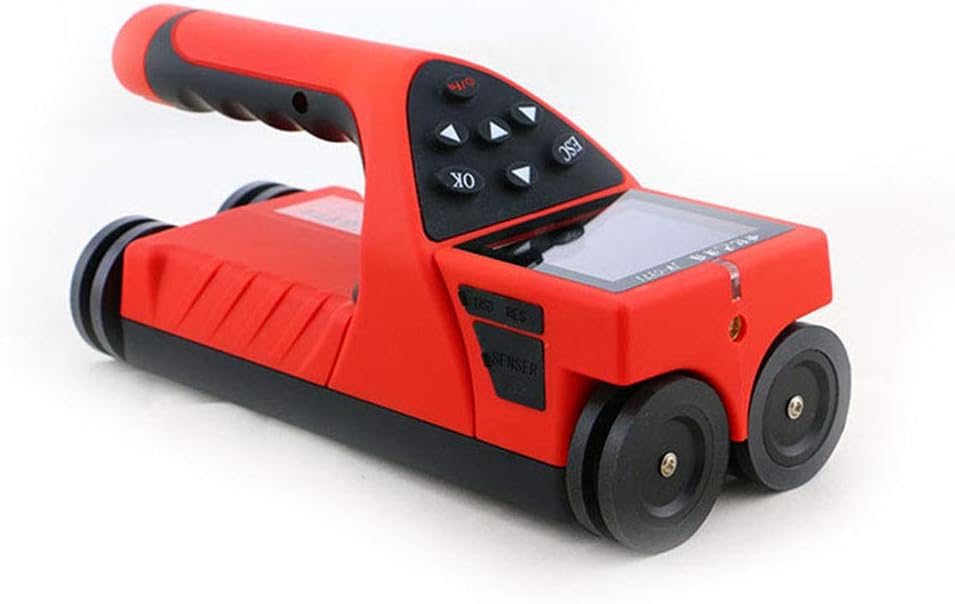

VTSYIQI Rebar Detector Rebar scanner Integrated Rebar Position Device JW-GY71 with Bar Diameter Application Range 6 to 50mm Rebar Scanner Integrated Steel Bar Scanner

VTSYIQI Rebar Detector Rebar scanner Integrated Rebar Position Device JW-GY71 with Bar Diameter Application Range 6 to 50mm Rebar Scanner Integrated Steel Bar Scanner

$2,146.00 USD
$2,146.00 USD
销售额 售罄
结账时计算的运费。
Features:
investigation depth could reach 180mm
Single comprehensive probe.
Peak scanning
Automatic identification of rebar positions
Laser positioning
Automatic reading spacing of bars
Machine software is complete.The report could be printed automatically connecting with computer
Grid scan of the rebar position
Profile scan of the rebar position
Technical Specification:
Bar diameter application range(mm):Φ6 - 50
Maximum permissible error of Bar diameter:≤±1
Cover thickness measuring range
The first measuring range (mm):6 - 90
The second measuring range (mm):7-180
The maximum error of cover thickness
The first measuring range (mm):6 - 59;The second measuring range (mm):7 - 79;Accuracy:≤±1
The first measuring range (mm):60 - 69;The second measuring range (mm):80 - 119;Accuracy:≤±2
The first measuring range (mm):70 -90;The second measuring range (mm):120 - 180;Accuracy:≤±4
Standard Delivery:
Main unit, Software*1
USB connecting cable*1
Power charger*1
Manual*1
Warranty card*1
Carry case*1
