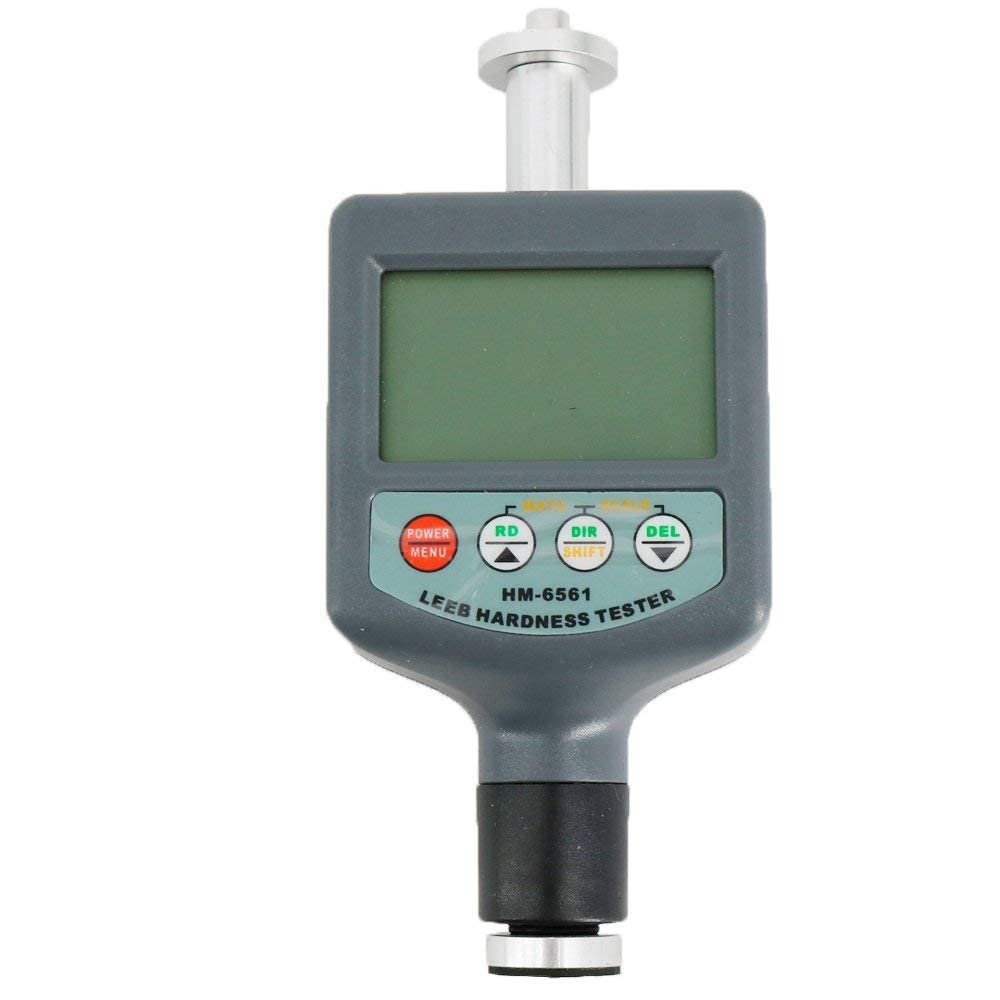

VTSYIQI Rebound Leeb Metal Hardness Tester Meter Gauge 200~900 HLD with Iron Block

VTSYIQI Rebound Leeb Metal Hardness Tester Meter Gauge 200~900 HLD with Iron Block

$360.00 USD
$360.00 USD
销售额 售罄
结账时计算的运费。

  • Product Description

  • * Palm size for narrow space. * Test at any angle, even upside down.
  • * Direct display of hardness scales HRB, HRC, HV, HB, HS,HL. * Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
  • * User recalibration function allowed. * Can communicate with PC computer for statistics and printing by the optional cable.
  • * Backlight display, suitable for low light environment. * Manual or automatic shut down.
  • * Low battery indication.

Product Description

Applications :
Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.
Standard Accessories :
1. Main Unit
2. Standard test block
3. Carrying Case(B09)
4. Operation manual
5. Small Support Ring
6. Cleaning brush
Optional Accessories:
1. Impact Body
2. Support Rings Set
3. USB, RS-232C data cable with software
4. Bluetooth data out put with software
Details:
Display 12.5 mm LCD with back light
Materials 9 different common materials
Measuring range 200 ~ 900 HLD
Accuracy Display error 0.8 %
Repeatability 0.80%
Conversion HL-HRC-HRB-HB-HV-HSD
Memory 50 data can be stored and re-readable
Impact device D Will handle, Weight: 75g
Storage temperature -30 ~ +60 C
Working Conditions Temperature: -10 ~ +50 C Humidity: 90 %
Power supply 2 x 1.5 V AAA size (UM-4) battery
Dimension 146 × 65 × 36 mm
Weight 130 g (not including batteries)Standard Accessories
Main Unit, Standard Test Block, Small Support Ring, Carrying Case (B09), Manual Book, Cleaning Brush，Probe Bluit-in.
RS-232C Data Cable with Software
