VTSYIQI Three Wire Earth Ground Resistance Tester Digital Grounding Resistance Tester Instruments with Range 0.01Ω to 3000Ω ±1.5% rdg±5dgt Accuracy 0.01Ω Resolution USB Interface Real Time Display for Power Distribution Lines Test

Feature:

Digital earth ground resistance tester, also known as the three-wire grounding resistance tester, grounding resistance meter, etc., is a commonly used meter for measuring grounding resistance. It adopts a large LCD gray-white screen backlight display and microprocessor technology to meet the requirements of two-wire and three-wire test resistance.

The digital grounding resistance tester is controlled by the microprocessor and can automatically detect the connection status of each interface and the interference voltage and interference frequency of the ground network, and has the function of testing the auxiliary grounding resistance value. At the same time store 500 sets of data, resistance measurement range: 0.01Ω ~ 3000Ω, grounding voltage range: 0.01 ~ 100.0V. Online monitoring data through monitoring software, USB data uploaded to PC and unique features such as intelligent alarm alert

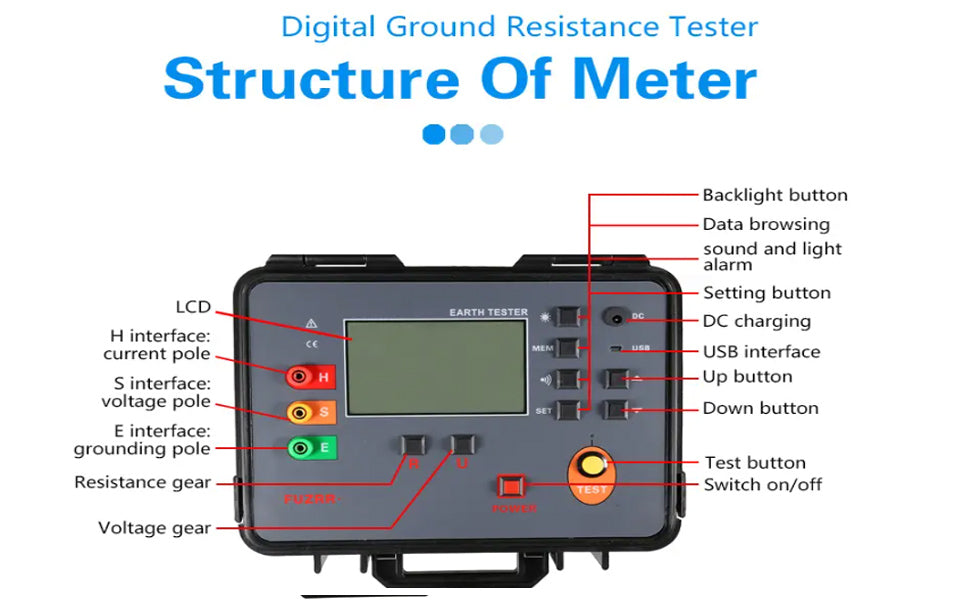

The digital grounding resistance tester consists of host, monitoring software, test line, USB cable, and grounding rod. It has the functions of reading, checking, saving, reporting and printing of historical data.

Suitable for telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. Instrument testing is precise, fast, simple, stable and reliable.

2, 3-wire grounding resistance, grounding voltage measurement. Automatic shift, USB interface, data upload function, alarm function, data storage 500 groups, grounding resistance range: 0.00Ω ~ 3000Ω, grounding voltage range: 0 ~ 100V

Specification:

Grounding Resistance Resolution : 0.01Ω

Grounding Voltage Range : 0.01~100.0V AC Accuracy ±1%rdg±3dgt

Grounding Voltage Resolution : 0.01V

Baseline conditions : 23℃±5℃,below 75%rh (Auxiliary ground resistance 100Ω ± 5%, voltage to ground <10V)

Function : Earth resistance measurement, ground voltage measurement, low value resistance measurement

Power : 8.4V lithium battery (built-in)

Backlight : Controllable gray screen backlight, suitable for use in dim places

measurement mode : Precise three-wire measurement, simple two-wire measurement

Measurement methods : Grounding resistance: rated current change pole method, test current > 20mA (sine wave), 128Hz;

: Ground Voltage: Average Rectification

Test frequency : 128Hz

Display mode : 4-bit large LCD display, gray screen backlight

Measurement instructions : LED flashing indicator during measurement, LCD countdown display

LCD size : 108mm×65mm

Instrument size : L/W/H:277.2mm×227.5mm×153mm

Test line length : 3 strips:red 15m,yellow10m,green 5m each one

Simple test line : 2strips:red 1.6m,green 1.6m each one

Auxiliary Grounding rod : 2PCS:φ10mm×200mm

Measure time : Ground voltage:about 2 times/sec; grounding resistance: about 5 seconds/time

Measurement times : 5000 times or more

Line voltage : Measuring grounding voltage : AC 600V or less

USB interface : With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

Communication Line : One USB communication line, 1.5m long

Data storage : 500 groups, flashing "FULL" symbol indicates that the memory is full

Data review : Data review function: "MR" symbol display

Overflow display : Over-range overflow function: "OL" symbol display

Alarm function : Alarm when the measured value exceeds the alarm setting value

Battery voltage : Real-time display of battery power, reminding timely charging when battery voltage is low

Power consumption :

Backlight:25mA Max

Standby: 25mA Max(Backlight off)

measuring:70mA Max(Backlight off)

Weight :

Test lines:861.5g(Include simple test line)

Auxiliary grounding rod: 425g(2)

Instrument bag: 271g

Working temperature and humidity : -10℃~40℃;below 80%rh

Storage temperature and humidity : -20℃~60℃;below 70%rh

Overload protection : Grounding resistance:AC 280V/3 seconds between E-H and E-S ports

Insulation resistance : 10MΩ以上(500V between circuit and housing)

Pressure resistance : AC 3700V/rms(between circuit and housing)

Electromagnetic properties : IEC61010-4-3,Wireless frequency electromagnetic field≤1V/m

Suitable for safety regulations : IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、Pollution level 2、CAT Ⅲ 300V
