VTSYIQI Ultrasonic Flow Meter Flowmeter Module Flow Meters With Clamp-on Small Transducer For Pipe Size DN25-100mm 0.98-3.93in
VTSYIQI Ultrasonic Flow Meter Flowmeter Module Flow Meters With Clamp-on Small Transducer For Pipe Size DN25-100mm 0.98-3.93in
无法加载取货服务可用情况
Feature:
•Since the couplant is liquid, It's suggest you use Molybdenum Disulfide instead.
•Velocity range:0~+/-10m/s, Bi-directional measurement
•Accuracy:"+/-1% Pipe size:DN25~DN100mm
•Stock :Yes Temperature:-30~90C
•Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Feature:
Accuracy:"+/-1%
Velocity range:0~+/-10m/s, Bi-directional measurement
Pipe size:DN15~DN100mm
Temperature:-30~90C
Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc.
Pipe material:Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

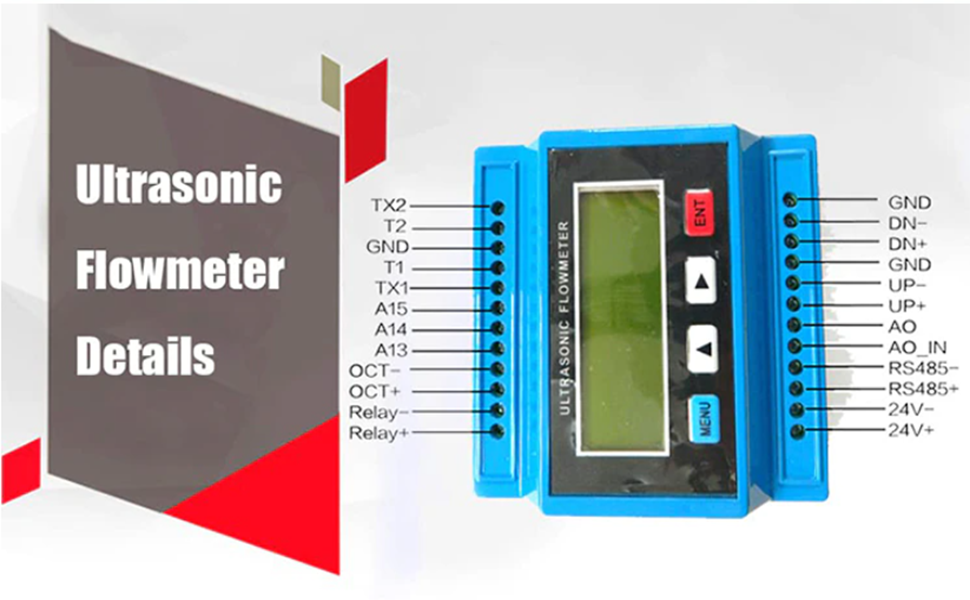

Signal output:
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal input:3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface:RS485, support MODBUS
Power supply:DC8~36V or AC85~264V

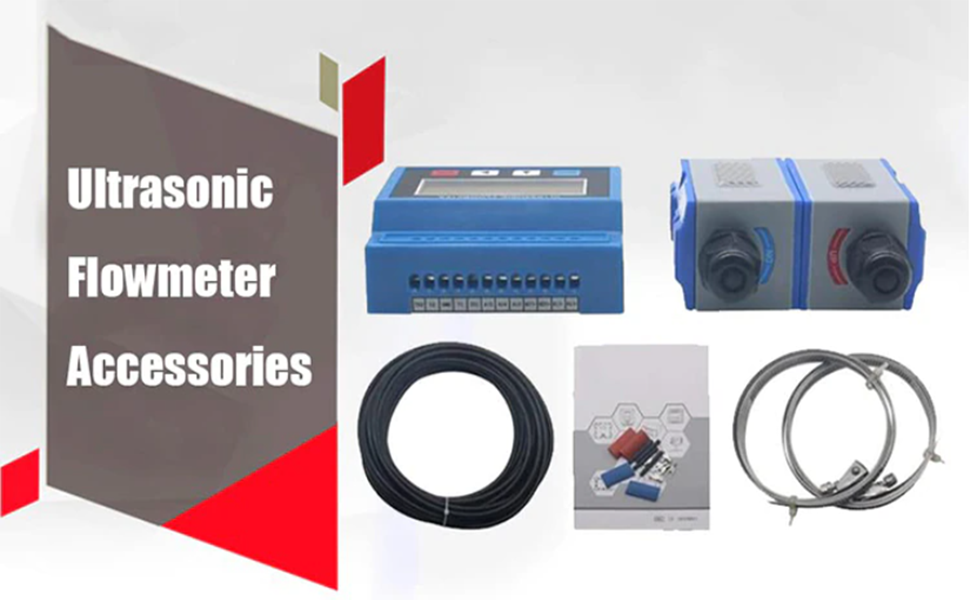

Standard Packing List:
host 1 piece

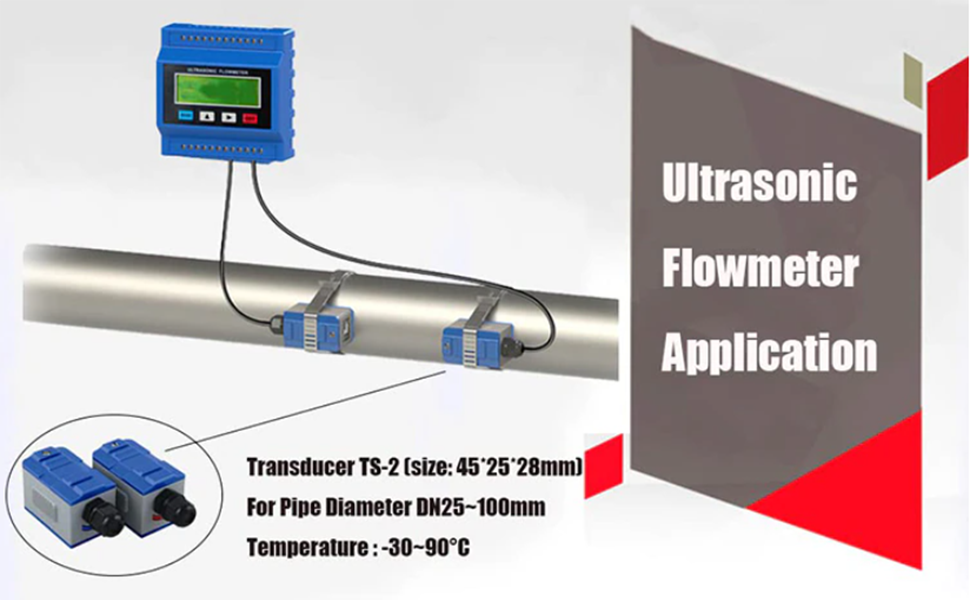

TS-2 Transducer 1 pair (Please select the appropriate one according to your pipe diameter and medium temperature)
Clamp Fixture 1 set
5m Transducer Cable 1 pair
Steel Belt 1 pair
English User Manual 1 piece
