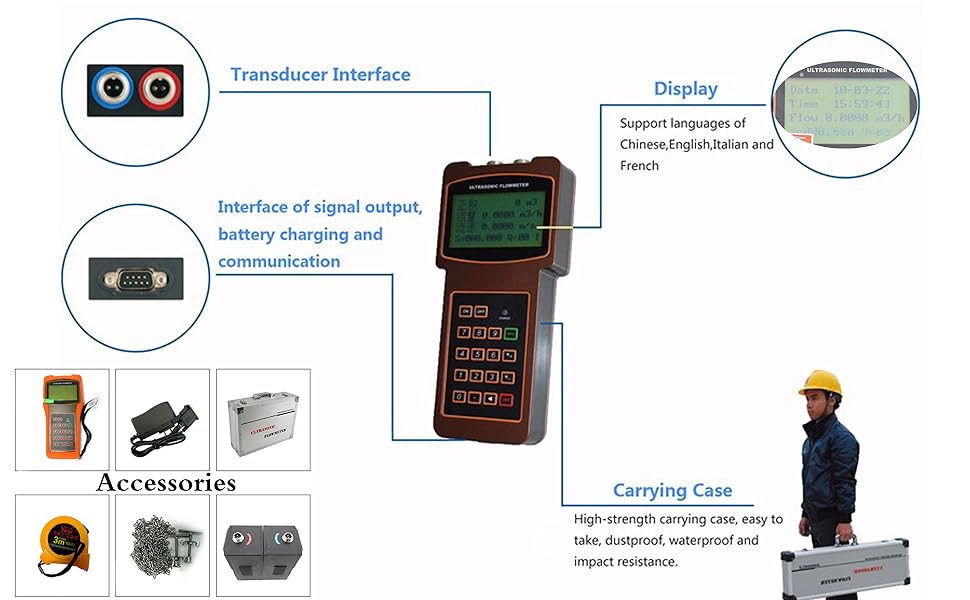

VTSYIQI Ultrasonic Flow Meter Liquid Flow Meter Detector Measurement With TM-1 Standard Medium Transducer DN50 to 700mm 1.97 to 27.56in

Data interface：

Insulate RS232 serial interface, upgrade the flew meter software by computer,support the MODBUS, etc.

Signal Output： 1 way OCT output

Special Cable ：

Twisted-pair cable, ;Select the RS232 communication.;

Generally, the standard is 5m*2, optional 10m*2

Pipe Condition ：

Pipe Material ：

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter ：DN 50---700mm

Straight length pipe：

Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.

Measuring Medium：

Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids

Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃

Turbidity： under 10000ppm and less bubble

Flow rate ：0--±10m/s

Flow Direction ：Measuring two (plus-minis) direction of flow rate

Working Environment：

Temperature：

Main Unit: -20--60℃

Flow transducer: -40--160℃;

Temperature transducer: according to the customer’s demands.

Humidity： Main Unit: 85% RH

Power Supply： AC 110V-240V
