VTSYIQI Waterproof Ultrasonic Flow Meter Flowmeter With High temperature Medium Bracket LCD Display For Pipe Diameter DN50 to 300mm Temperature-30 to 160 degree

Product Description

◆ High Accuracy measuring: Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%

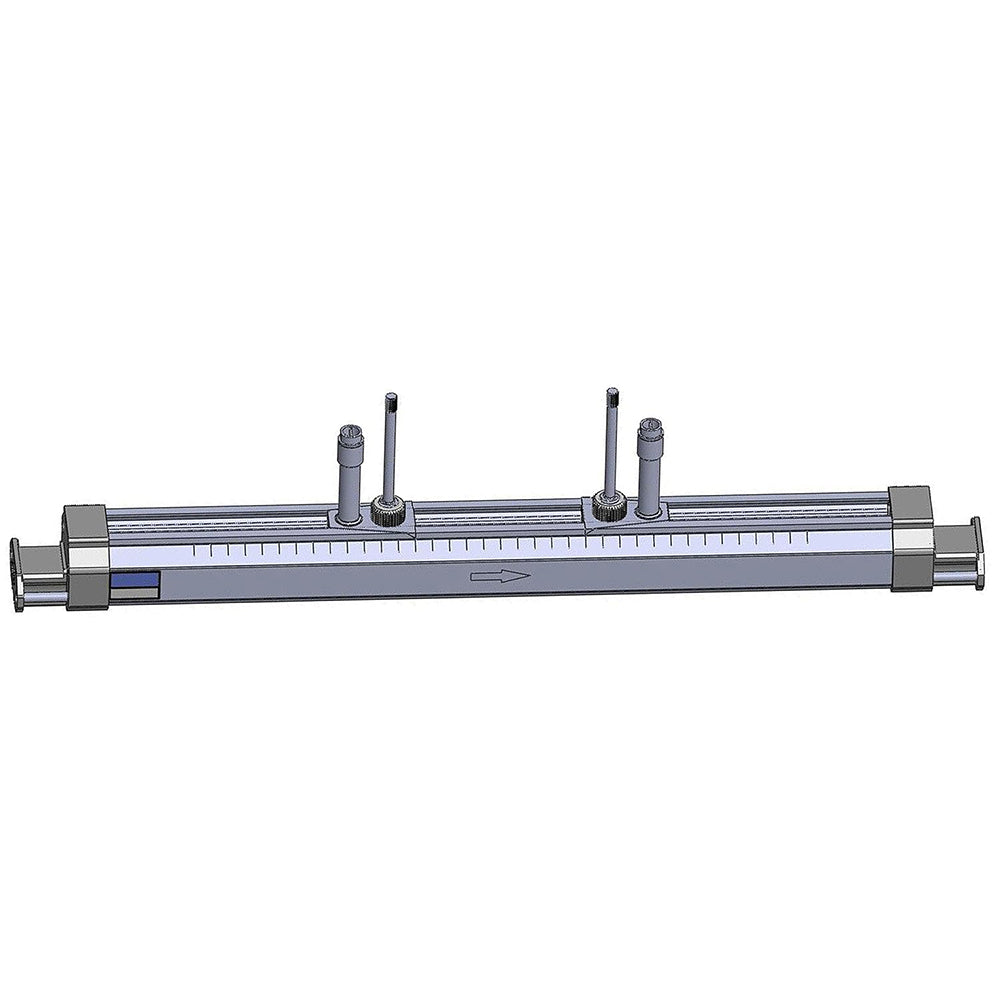

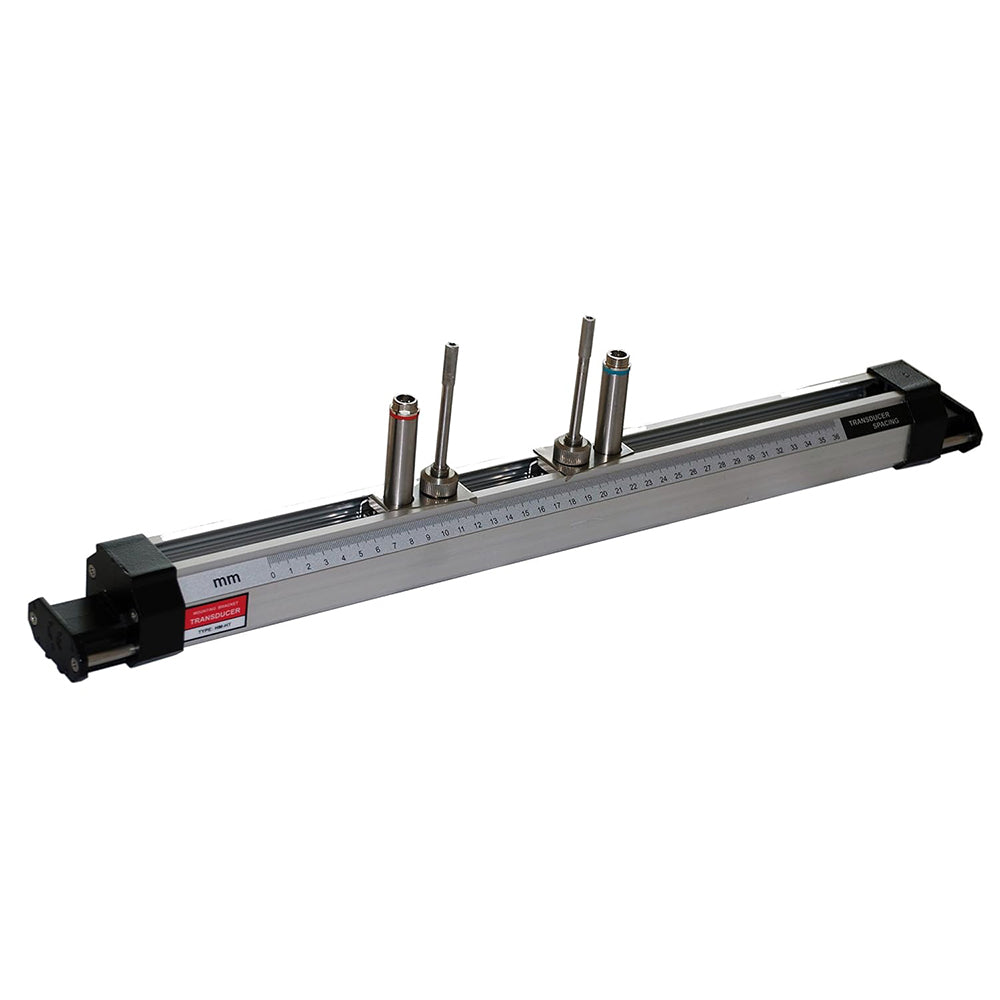

◆ for Pipe Diameter DN50 to 300mm; High Temperature : -30~160°C; also with HM-HT High Temperature Medium Bracket size: 568*59*110mm
◆Principle: transit-time ultrasonic flowmeter; Signal Output:1 way OCT output; Built-in data logger: Built-in 24K data logger, store over 2000 lines measuring data

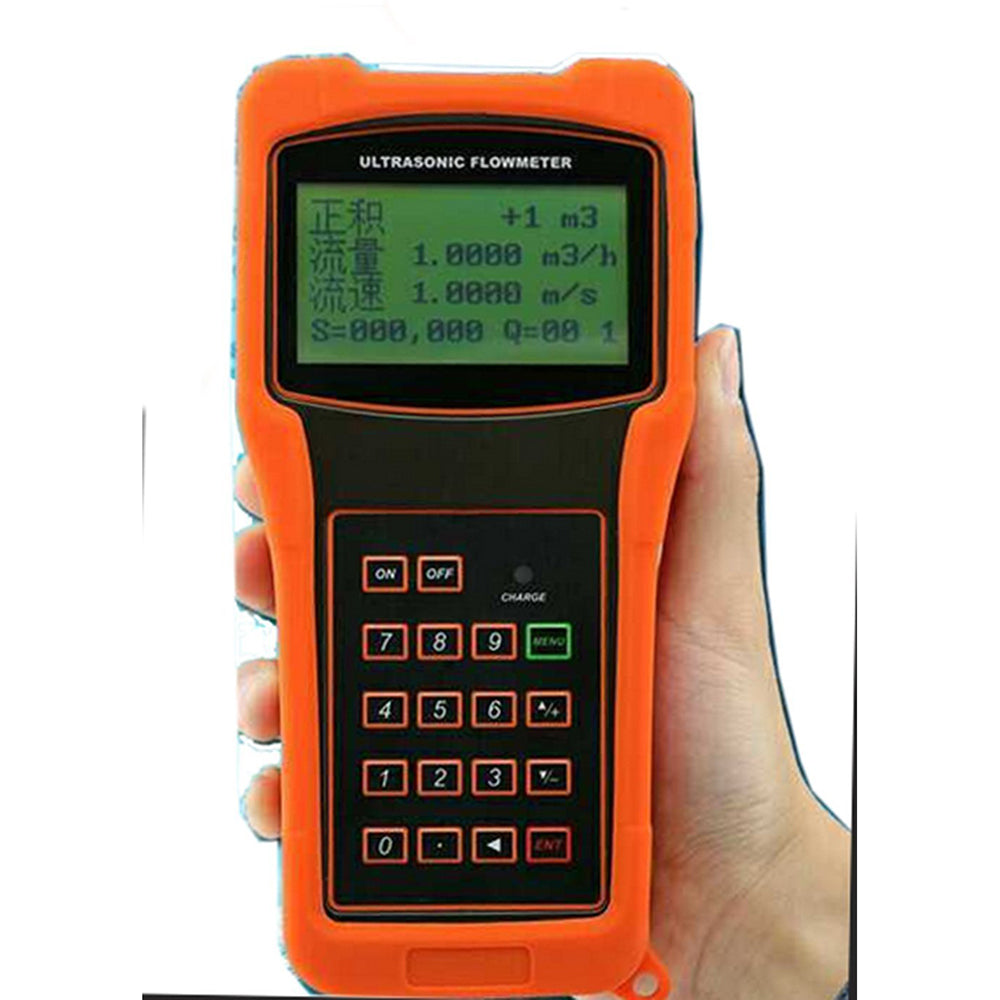

◆ Large LCD display: Display: 4 line x 16 character LCD with backlight; Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.

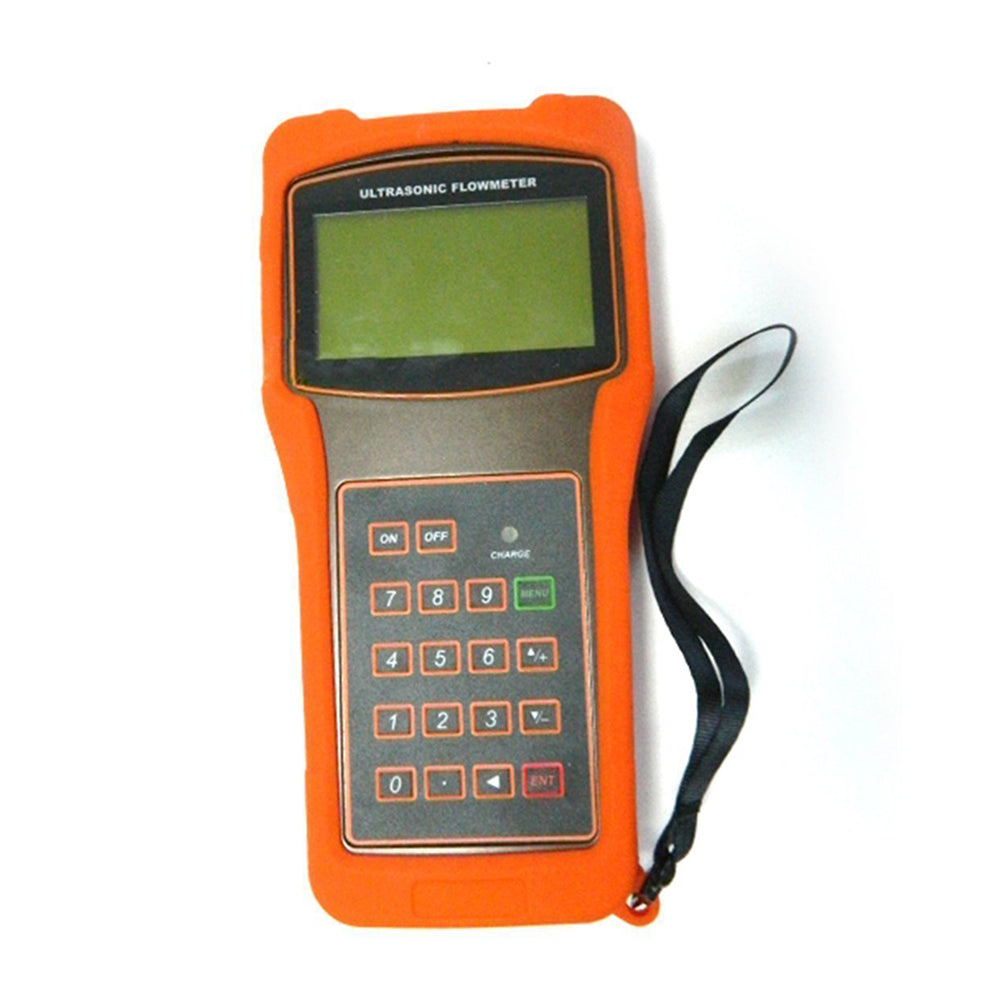

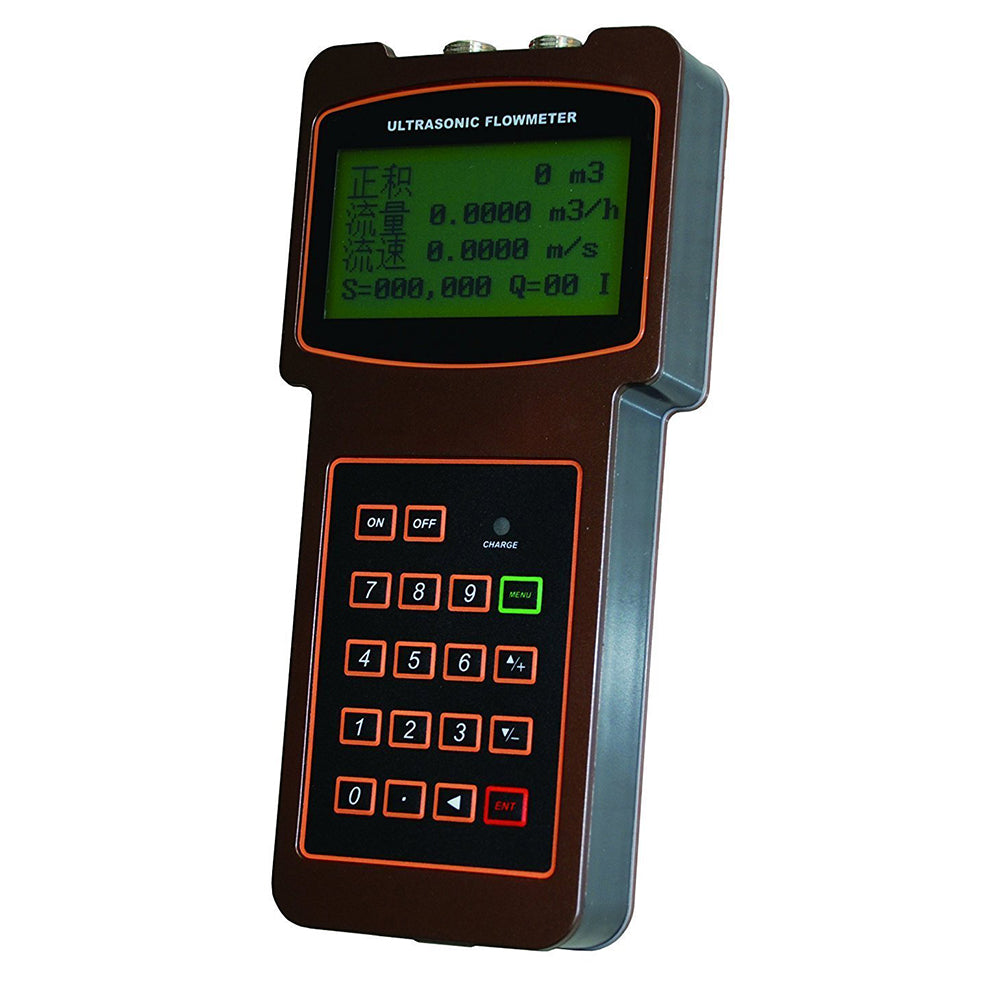

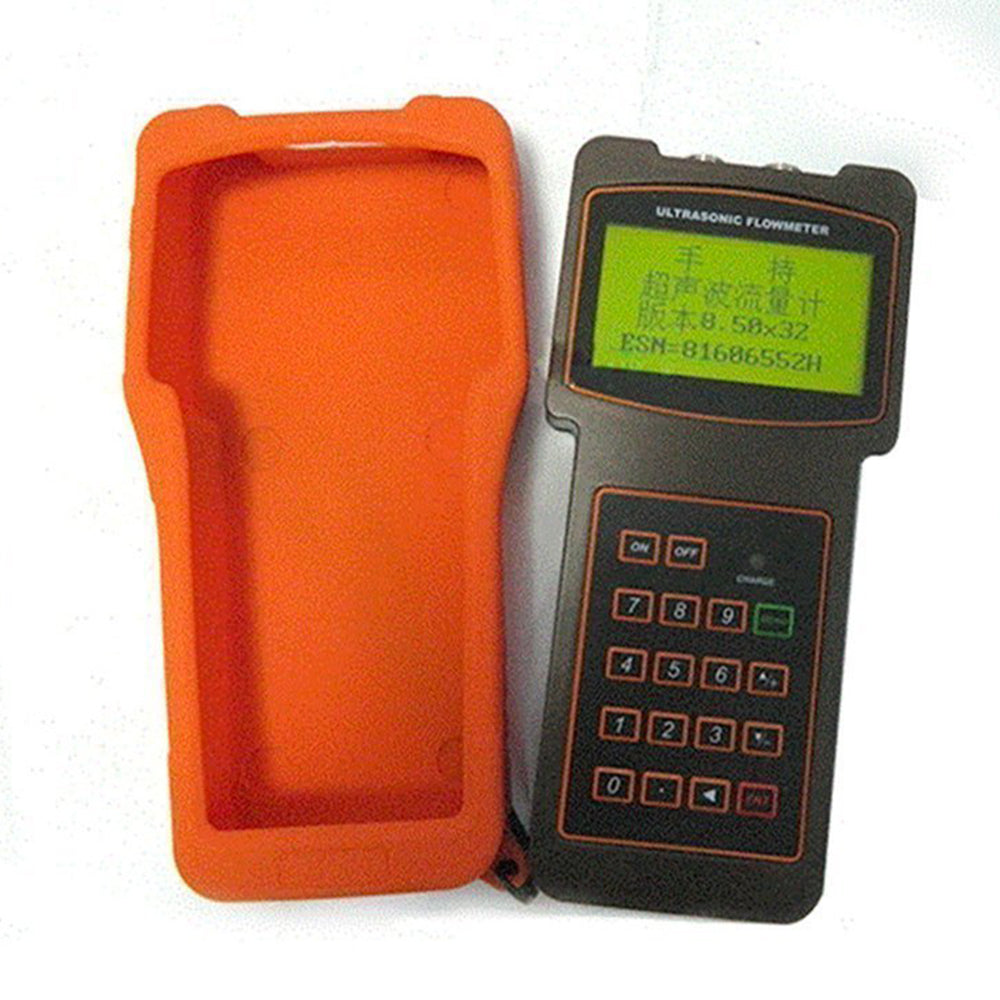

◆TUF-2000H hand-held ultrasonic flowmeter using external clamp type sensor measuring liquid flow. Installation process is very simple, more easy to operate. Especially suitable for flow balance test and flow monitoring.

Product Description
The manual is an electronic version. You can also download the manual directly in the detailed description.
This type TUF-2000H for Pipe Diameter DN50 to 300mm, Temperature : -30~160°C; also with HM-HT High Temperature Medium Bracket size: 568*59*110mm
If you want to know other types Transducer,Please contact us.

Technical Specifications
Main Unit:
Principle: transit-time ultrasonic flowmeter
Accuracy: Accuracy :over 1%-2%; Repeatability: over 0.2%
Display: 4 line x 16 character LCD with backlight
Dimension: 200*93*33cm: 390g
Operation: Support 16 key light touch keyboard and the Simulation keyboard software
Data interface: Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc.
Signal Output:1 way OCT output
Special Cable: Twisted-pair cable, ;Select the RS232 communication.; Generally, the standard is 5m*2, optional 10m*2
Pipe Condition:
Pipe Material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter: DN15~100mm
Straight length pipe: Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Measuring Medium:
Type of Liquid: Water ; Ultra-pure liquids; Solvents and other liquids
Temperature: Standard Transducer: High Temperature -30-160℃;
Turbidity: under 10000ppm and less bubble
Flow rate: 0--±10m/s
Flow Direction: Measuring two (plus-minis) direction of flow rate
Working Environment:Temperature: Main Unit: -20-60℃; Temperature transducer:High Temperature -30-160℃.
