VTSYIQI 3 Angles Spectrophotometer Multi-angle Colorimeter Triangulation Spectrophotometer with Measuring Range 0 to 500% Repeatability De≤0.05 for Automobile Coating Laser Paper Color Test

VTSYIQI 3 Angles Spectrophotometer Multi-angle Colorimeter Triangulation Spectrophotometer with Measuring Range 0 to 500% Repeatability De≤0.05 for Automobile Coating Laser Paper Color Test

Introduction:

1、The triangulation spectrophotometer is based on the spectroscopic technology platform,which is mainly used to measure the spectral data of samples, spectrogram, chromaticity value, chromaticity difference value, present qualified / unqualified, historical data, color simulation diagram, etc. Compact and light, highly accurate and easy to operate.

2、Triangulation spectrophotometer is widely used in automobile repair shop and paint
factory. It can not only simplify the color matching process, but also accurately find the paint formula.

3、The limited warranty period is the period of time (such as one year) since the purchase of this instrument. If your instrument needs service, please take it to your local sales department or contact us at www.hzcaipu.com for repair.

4、In order to avoid the accuracy of the instrument being affected, please do not disassemble the instrument without permission. If the instrument is damaged due to
dismantling the machine without permission or improper use, the user shall be responsible for it.

Feature:

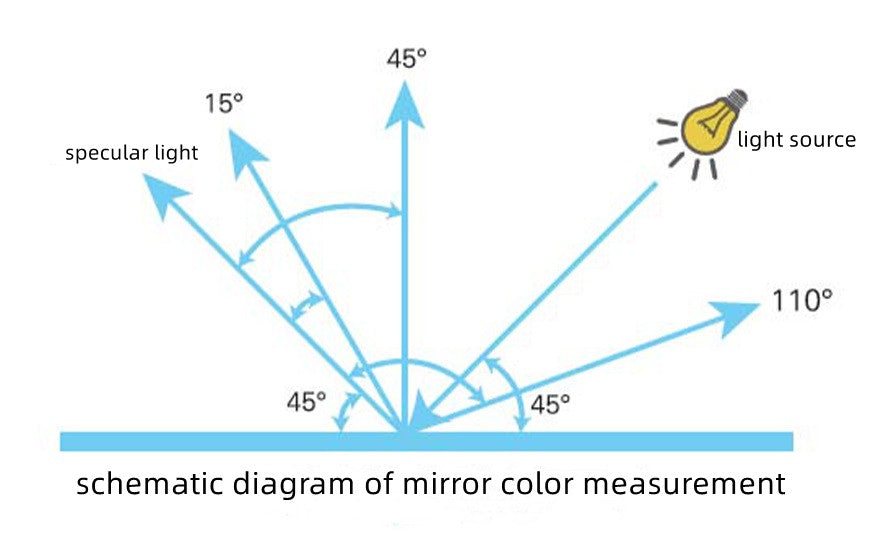

Illumination angle:45°

Measuring angle:Color angle：15°、45°、110°

Particle angle: integral sphere diffusion

Measurement parameters:Color parameters: L * a * b *, de * ab

Particle parameter: particle grade (g)

Spectral range:400-700nm

Spectral interval:10nm

Measuring range:0-500%

Resolving power:0.01%

Lighting source:LED

Measuring time:Less than 5 seconds.

Repeatability:De ≤ 0.05 (measure white board 30 times, interval 5 seconds)

Inter station error:De ≤ 0.5 (measure the average value of BCRA standard plate)

Measurement area:Diameter 17mm

Observation angle:2° and 10°

Lighting source:A、C、D50、D65、F2、F7、F11 & F12

Support language:Chinese, English, French, German, Russian

Industry standard:DIN 6175

Interface:USB, Bluetooth, WiFi optional

Parameter:About145*58*99mm

Weight:500g

Power Supply:3.7v/3000mah rechargeable lithium battery

Service temperature:0-40℃

Storage temperature:-20℃ - 50℃
