VTSYIQI Digital High Voltage Insulation Resistance Tester 15 kv Insulation Tester Meter with Rated Voltage 500V-15KV Insulation Range 0.01MΩ-50TΩ Resolution 0.01MΩ for Motor Test

VTSYIQI Digital High Voltage Insulation Resistance Tester 15 kv Insulation Tester Meter with Rated Voltage 500V-15KV Insulation Range 0.01MΩ-50TΩ Resolution 0.01MΩ for Motor Test

$1,440.00 USD
$1,440.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Digital High Voltage Insulation Resistance Tester 15 kv Insulation Tester Meter with Rated Voltage 500V-15KV Insulation Range 0.01MΩ-50TΩ Resolution 0.01MΩ for Motor Test

Feature:

Function---Insulation resistance tester, voltage test, DC current test, capacitance test Basic condition:23℃±5℃，below 75%rh Rated voltage:500V、1000V、2500V、5000V、10KV、15KV Insulation resistance range:0.01MΩ～50TΩ resolution：0.01MΩ

Test Voltage---Test Voltage(V):rated voltage×（1±10%） DC Voltage Range:0～1000V Resolution: 0.1VAC Voltage Range:0～750V Resolution: 0.1V DC Current:0.1nA～6mA Resolution: 0.1nA

Capacitance---Capacitance:10nF～50uFResolution: 10nF Output short-circuit Current:≥6mA@15KV Absorption Ratio and Polarization Index Measurement:Have Power Supply:12.6V rechargeable battery Backlight:Controllable gray screen backlight, suitable for use in dim places

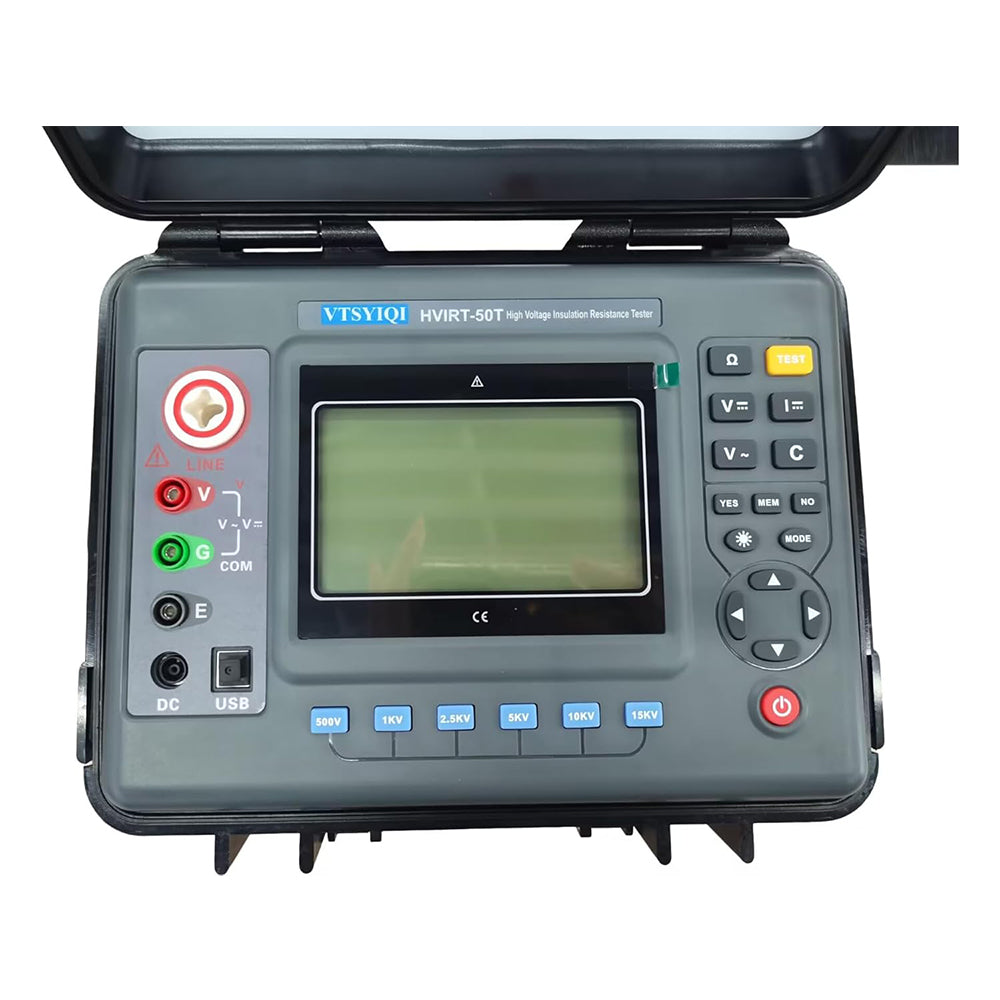

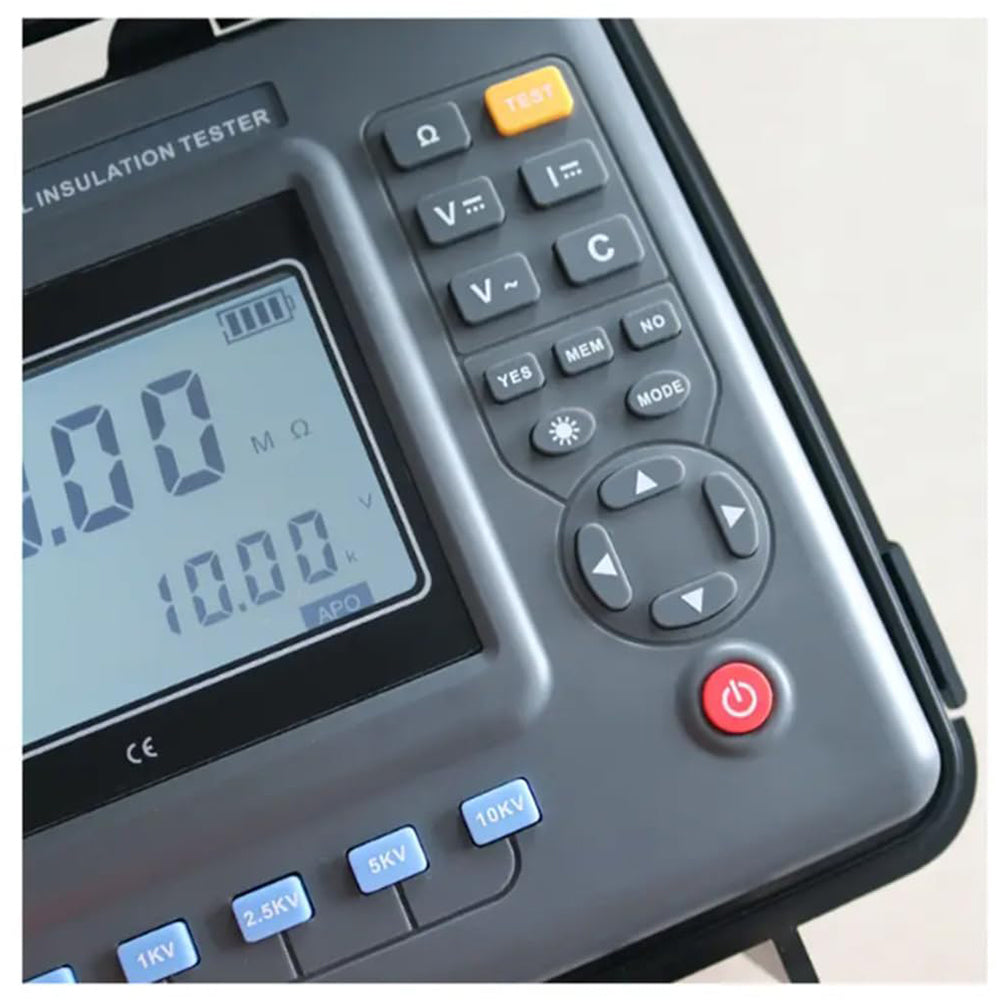

Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight LCD display size:108mm×65mm Instrument size:L/W/H：240mm×188mm×85mm USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

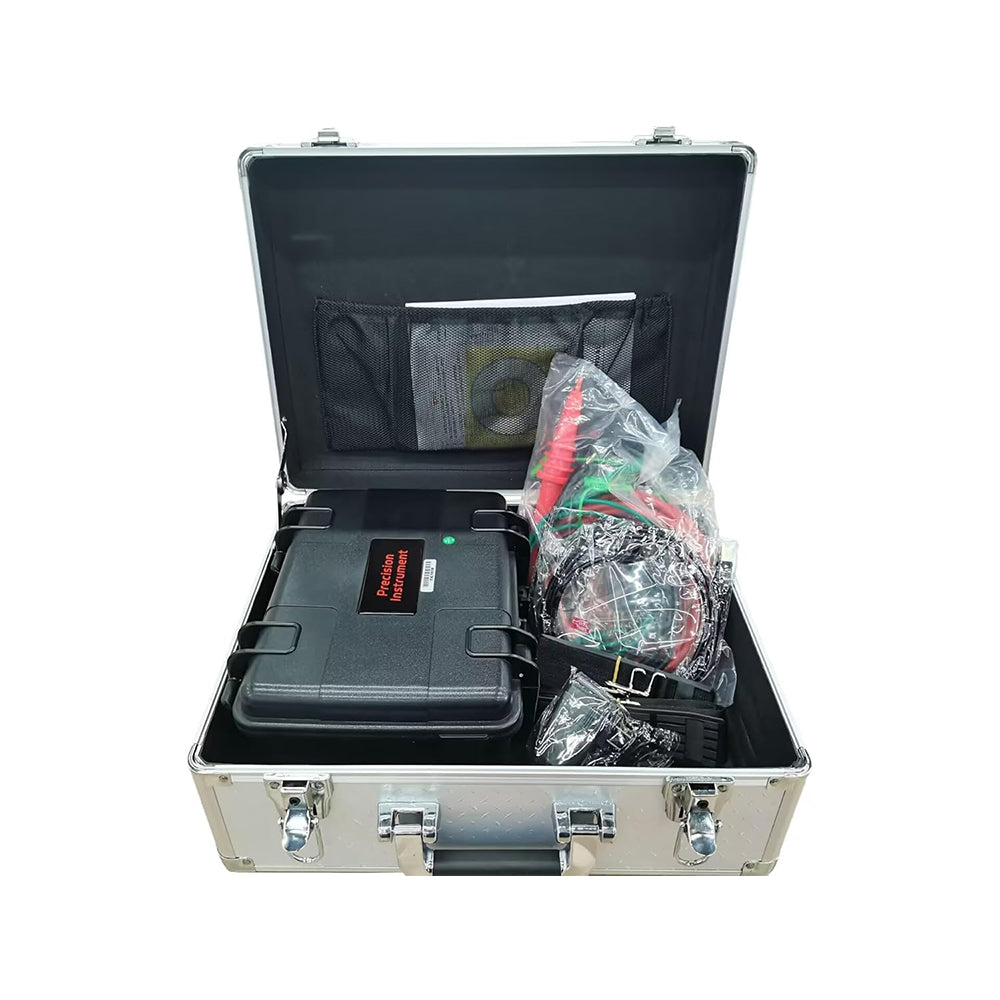

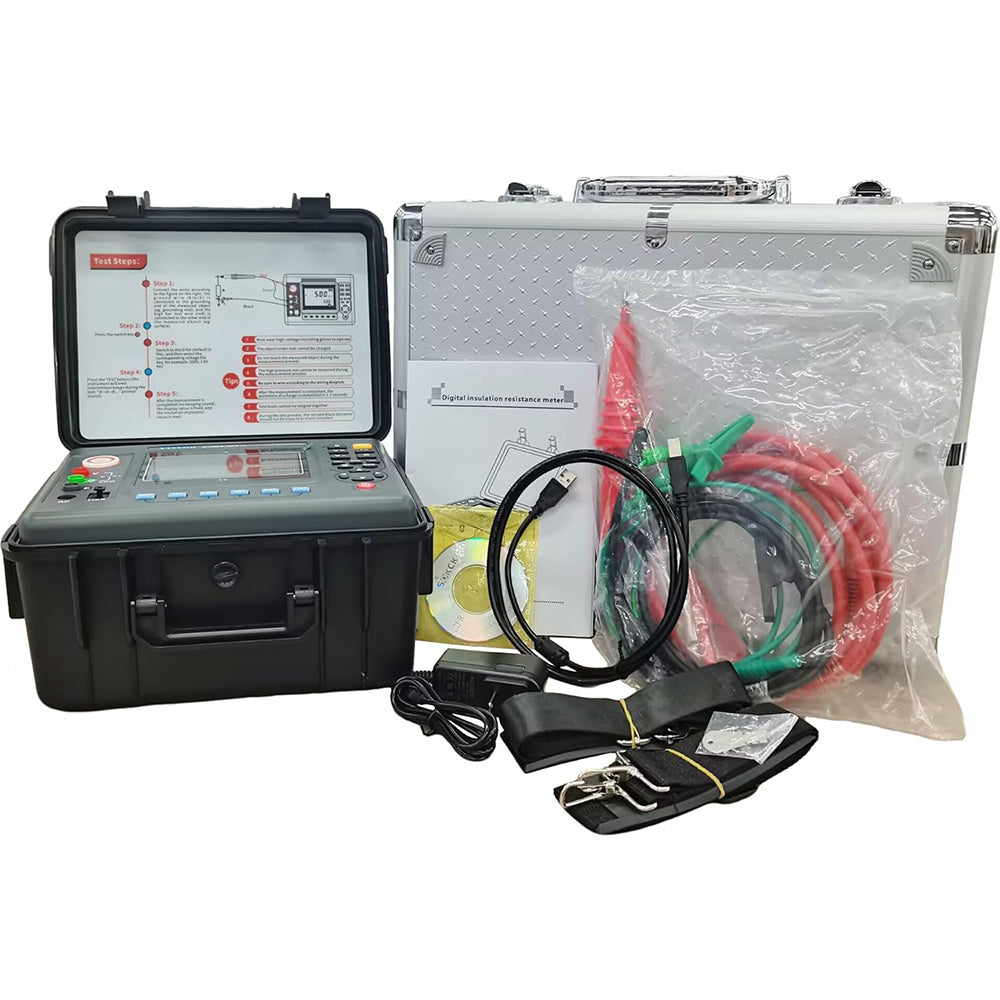

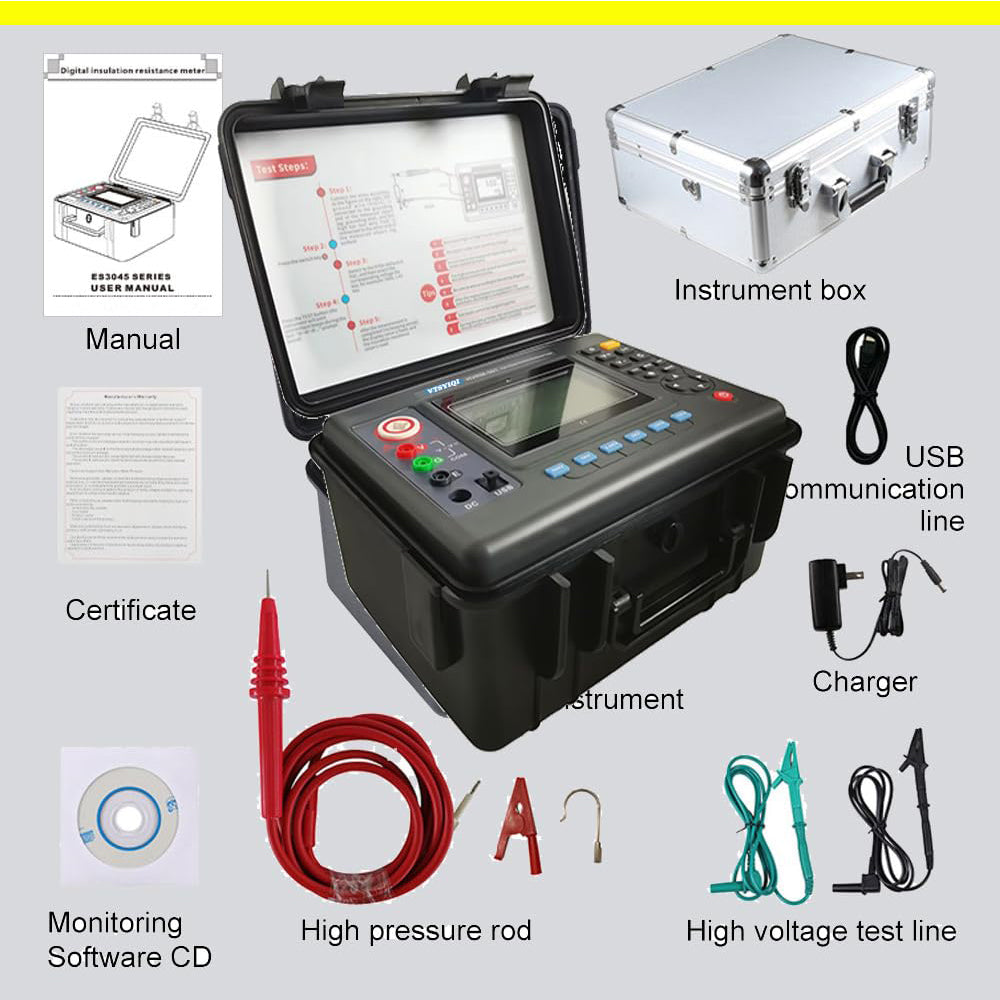

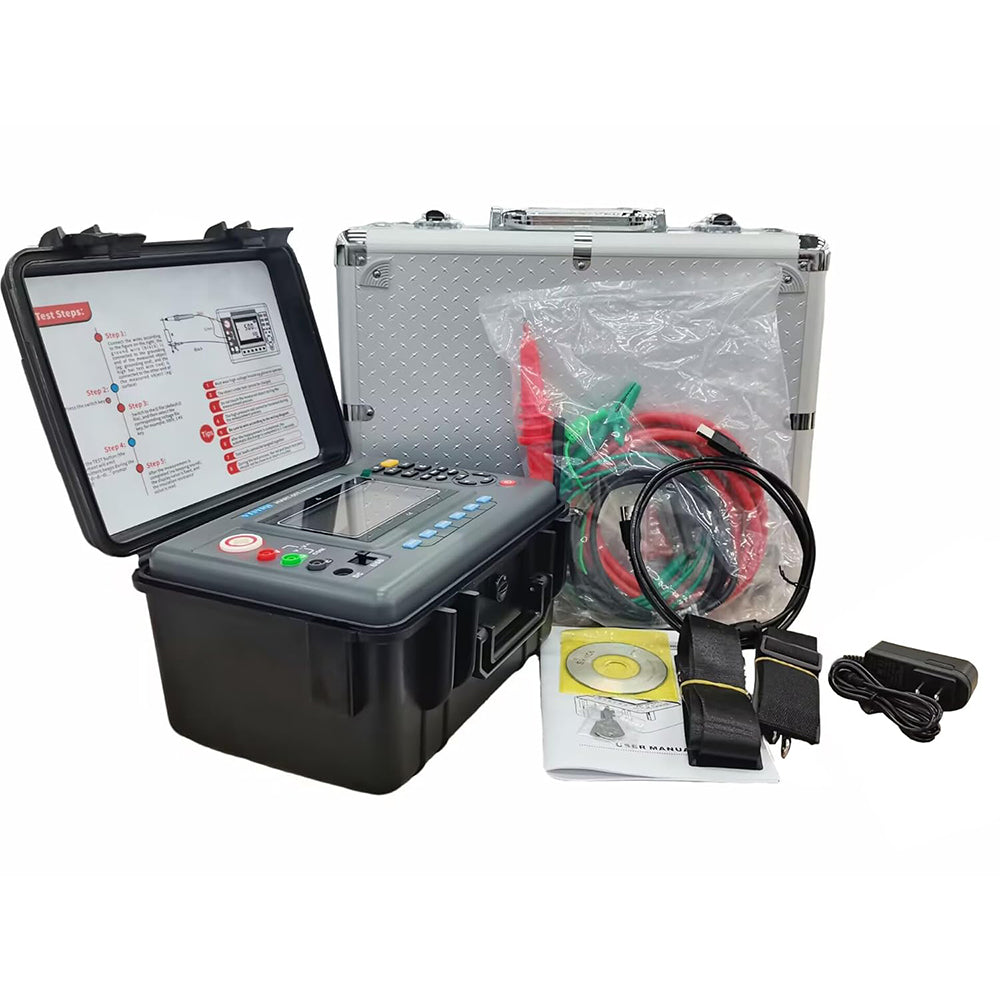

USB Connect---Communication Line:USB communication line 1PC Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol display

Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)

Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min

Working environment--Working Temperature and Humidity:－10℃～+50℃＜85%RH Storage Temperature and Humidity:－15℃～+55℃＜90%RH Suitable for Safety Regulations:IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grade 2、CAT Ⅲ 300V

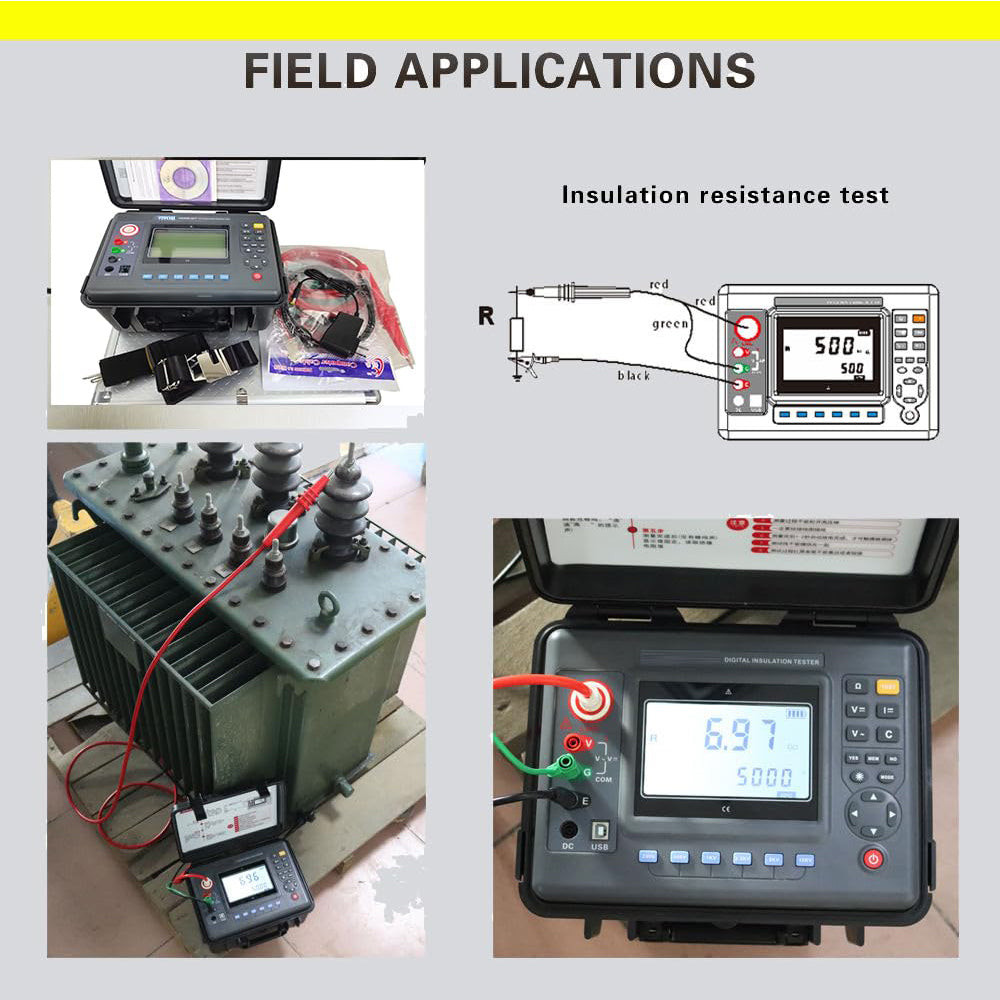

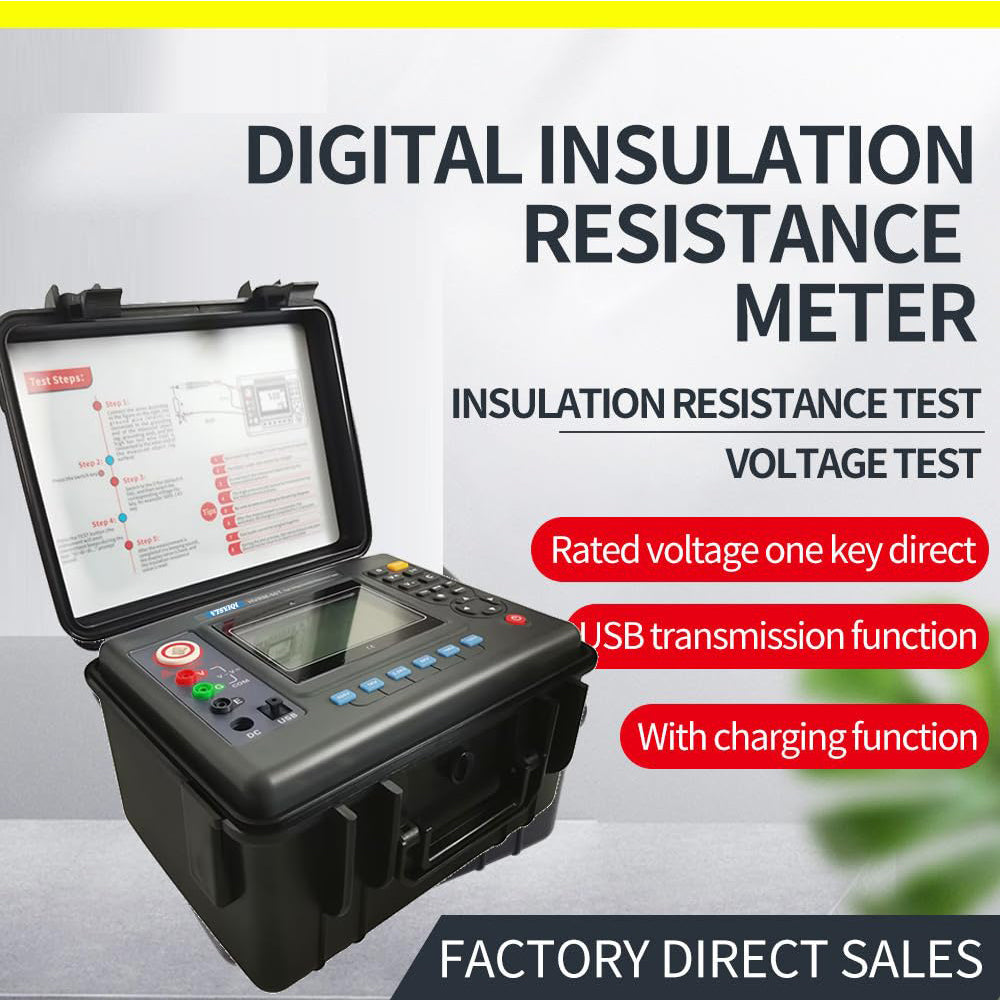

Application---Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.

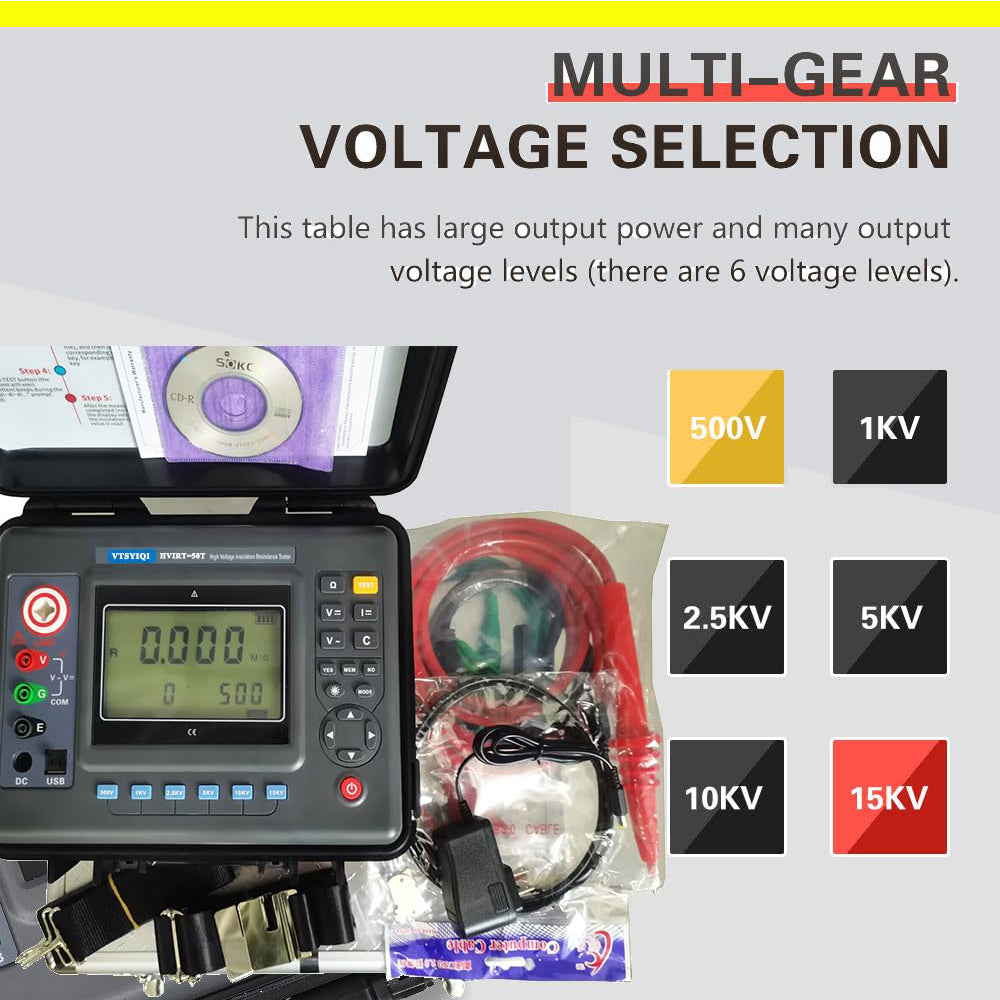

6 voltage levels---Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ～ 1000V, AC voltage measurement range is 0 ～ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.
