VTSYIQI Digital Portable Ultrasonic Flow Meter Flowmeters DN50~700mm 1.97-27.56in With Standard Medium Transducer For DN50-700mm pipe size
VTSYIQI Digital Portable Ultrasonic Flow Meter Flowmeters DN50~700mm 1.97-27.56in With Standard Medium Transducer For DN50-700mm pipe size
Regular price
$599.00 USD
Regular price
Sale price
$599.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
*This listing is for DN50-700mm pipe size, the water temperature is from -40-90 degree

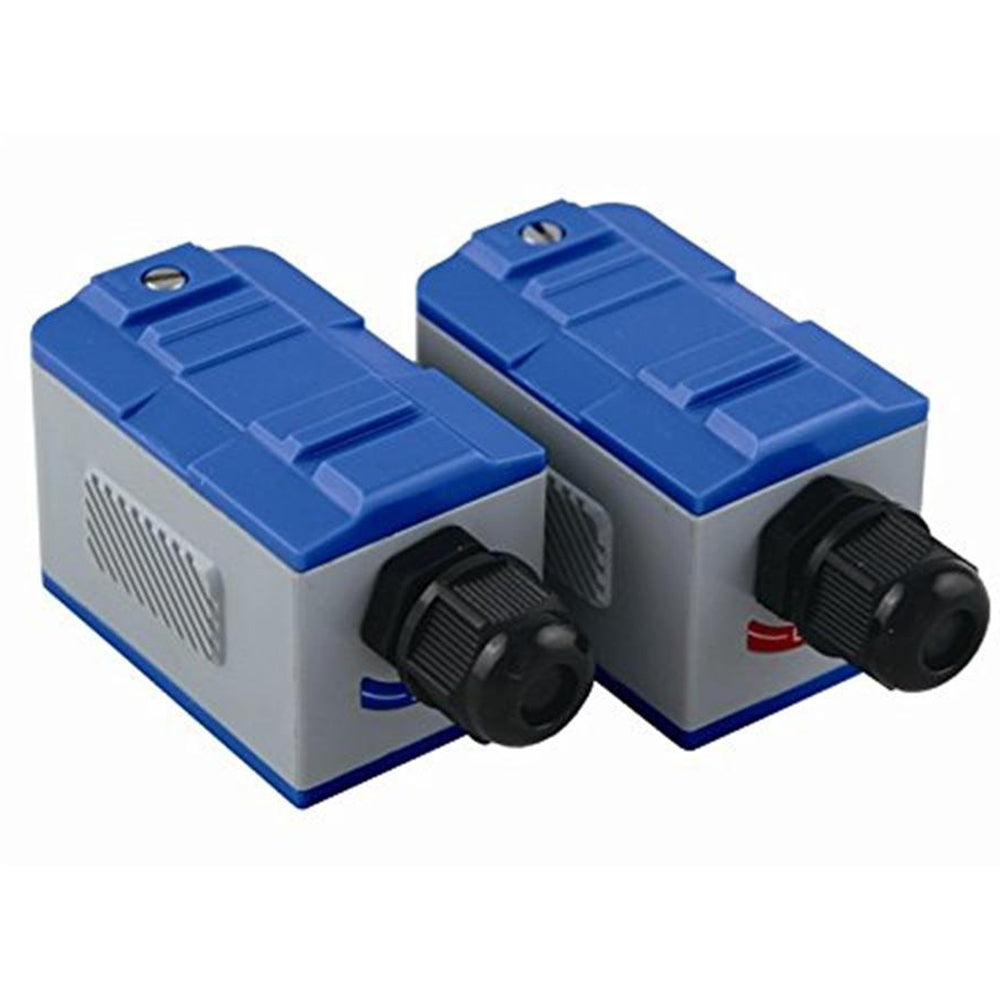

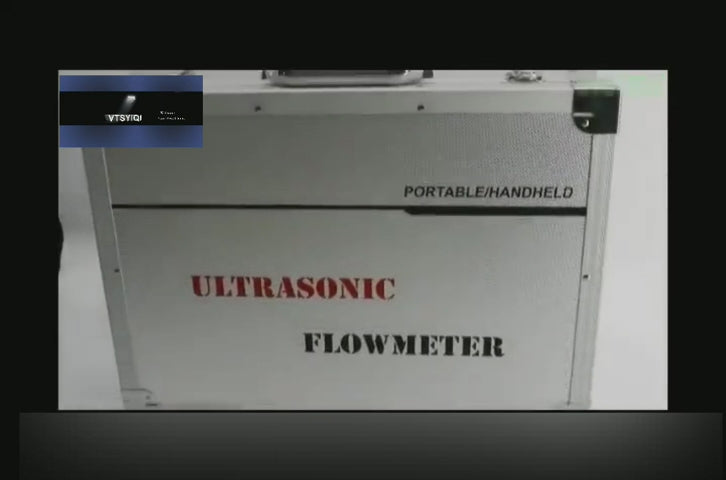

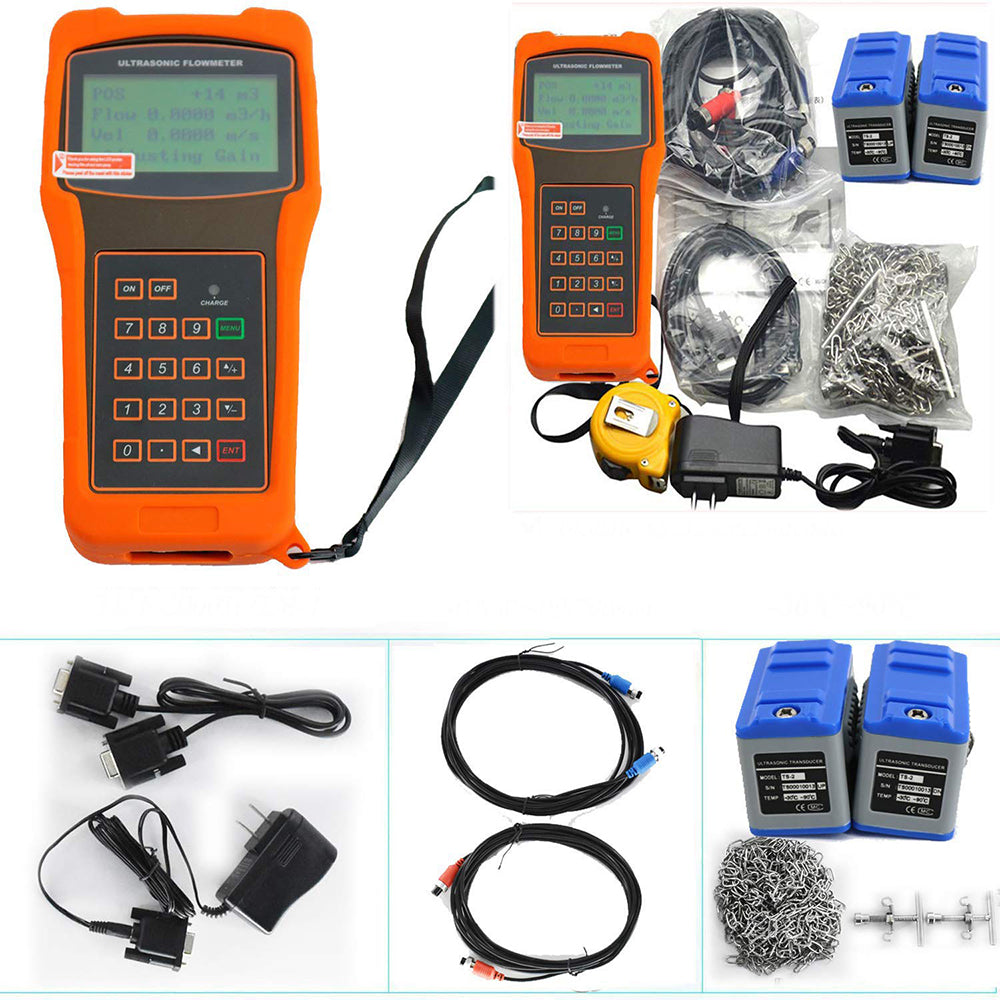

*It comes with one pair of TM-1 transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line
*The couping agent can not be sent to you because of air shipping regulation. Because it is like crystal liquid. You must use silica gel to replace. You must use it when you measure the flow rate. If you do not use the silica gel, it will have no signal
*If your pipe size is DN15-100MM, or DN300-6000mm, you can find this kind of clamp on transducer or bracket transducer in our store
*1. TS-2 type: DN15-100mm， -30-90℃2TM-1 type: DN50-700mm， -30-90℃3. TL-1 type: DN300-6000mm， -30-90℃
Notice :
The manual is an electronic version. You can also download the manual directly in the detailed description. For the meter TUF-2000H , we just ship you the type Transducer come with the meter .
Main Feature：
Items： Performance and Parameter
Main Unit：
Principle： transit-time ultrasonic flowmeter
Accuracy： Accuracy :over 1%-2%; Repeatability: over 0.2%

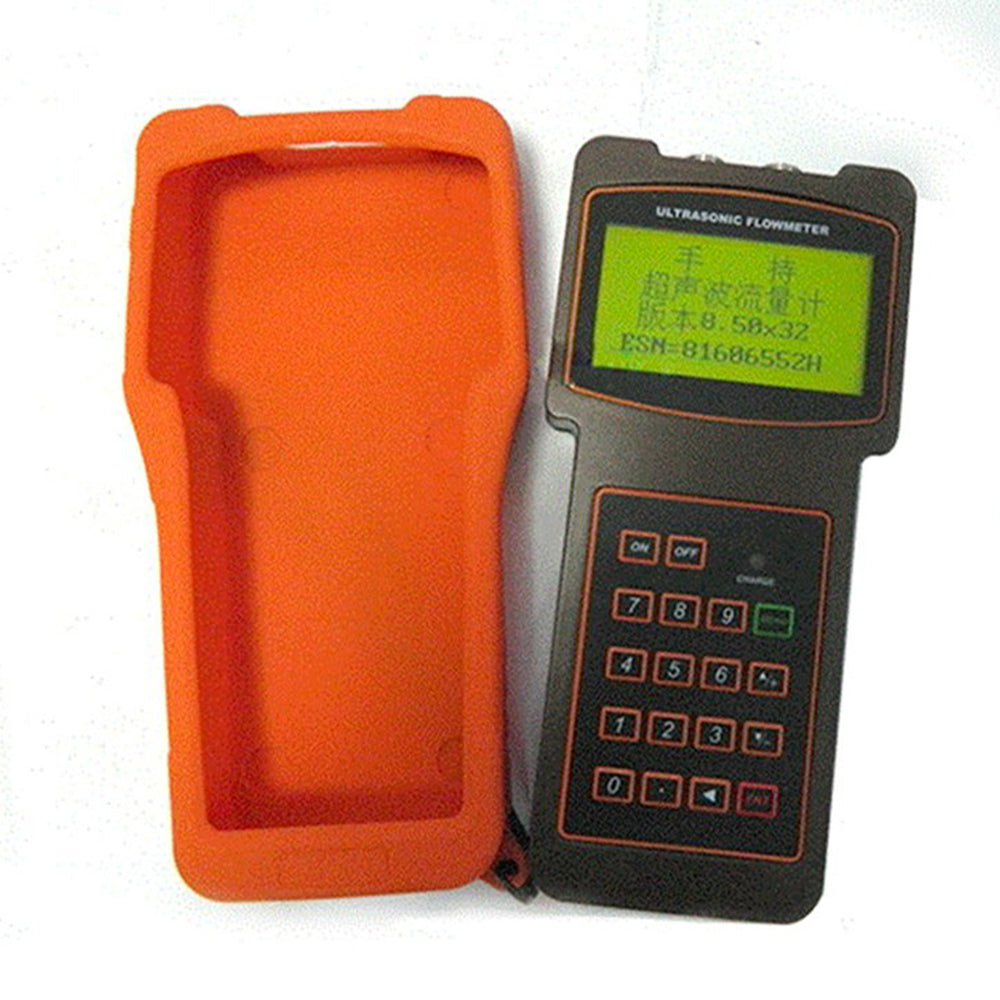

Display ：4 line x 16 character LCD with backlight
Dimension： 200*93*33cm: 390g
Operation： Support 16 key light touch keyboard and the Simulation keyboard software
Data interface：
Insulate RS232 serial interface, upgrade the flew meter software by computer,support the MODBUS, etc.
Signal Output： 1 way OCT output
Special Cable ：
Twisted-pair cable, ;Select the RS232 communication.;
Generally, the standard is 5m*2, optional 10m*2
Pipe Condition ：
Pipe Material ：
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter ：DN 50---700mm
Straight length pipe：
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Measuring Medium：
Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids
Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
Turbidity： under 10000ppm and less bubble
Flow rate ：0--±10m/s
Flow Direction ：Measuring two (plus-minis) direction of flow rate
Working Environment：
Temperature：
Main Unit: -20--60℃
Flow transducer: -40--160℃;
Temperature transducer: according to the customer’s demands.
Humidity： Main Unit: 85% RH
Power Supply： AC 110V-240V
