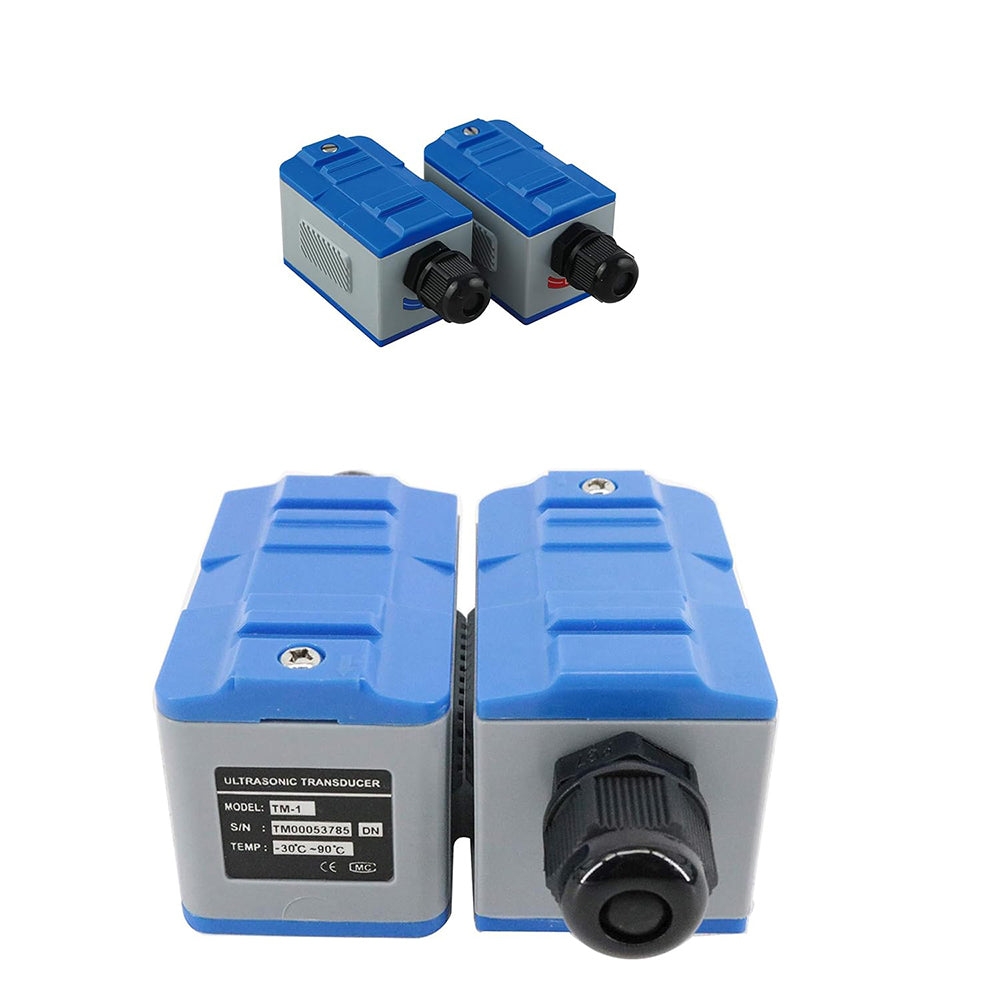

VTSYIQI Digital Ultrasonic Flow Meters Flowmeter DN25-700mm With Small Medium Clamp on Sensor SD Card

VTSYIQI Digital Ultrasonic Flow Meters Flowmeter DN25-700mm With Small Medium Clamp on Sensor SD Card

Regular price $363.00 USD
Regular price Sale price $363.00 USD
Sale Sold out
Shipping calculated at checkout.
•Introduction of Ultrasonic flow meter----The liquid in the bottle can be replaced with petrolatum or butter. The effect is same . DHL or FEDEX is forbidden to carry liquid . TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.
•Feature---High Accuracy: 1% <br> Wide measuring range :Several types transducer for selection, pipe size from Dn25mm to Dn700mm <br> High Reliability:Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability. <br> Strong Anti-interference:Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc. <br><br>
•Automatically record the following data-----1. The totalizer data of the last 512 days/128 months/10 years<br> 2. The time and corresponding flow rate of the last 6 4 times of power on and off events<br> 3. The working status of the last 32 days<br><br>
•Support Heat Measurement-----Connect the temperature transducer ,can finish the heat/energy measurement<br> Support SD card Memory<br> Optional SD card <br><br>
•Power Consumption--- 1.5W Dimension----132*150*85mm(convertor) Warranty 1 Year

SD card storage system included , easy to import data from SD card into computer .

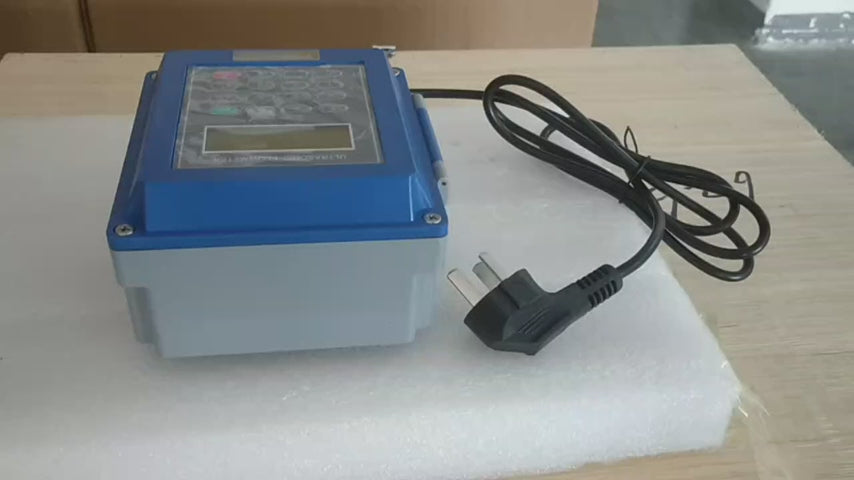

Convertor

Principle:Transit-time ultrasonic flowmeter

Accuracy:±1%

Display:2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

Signal output:

1way 4-20mA output, electric resistance 0-1K, accuracy0.1%

1 way OCT pulse output(Pulse width-1000ms, default is 200ms))

1 way Relay output

Signal input:

3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level Connect the temperature transducer P100, can finish the heat/energy measurement. Data Interface:Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.

Special Cable

Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m

Pipe Installation Condition

Pipe material:Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed

Pipe diameter:25-700mm

Straight pipe:Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.

Measuring Medium

Type of liquid:

Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc

Temperature:-30-90℃

Turbidity:No more than 10000ppm and less bubble

Flow rate:0-±7m/s

Temperature:Convertor; -20-60℃; Flow Transducer: -30-90℃

Humidity:Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m

Power Supply

DC8-36V or AC85-264V(Optional)

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1%
