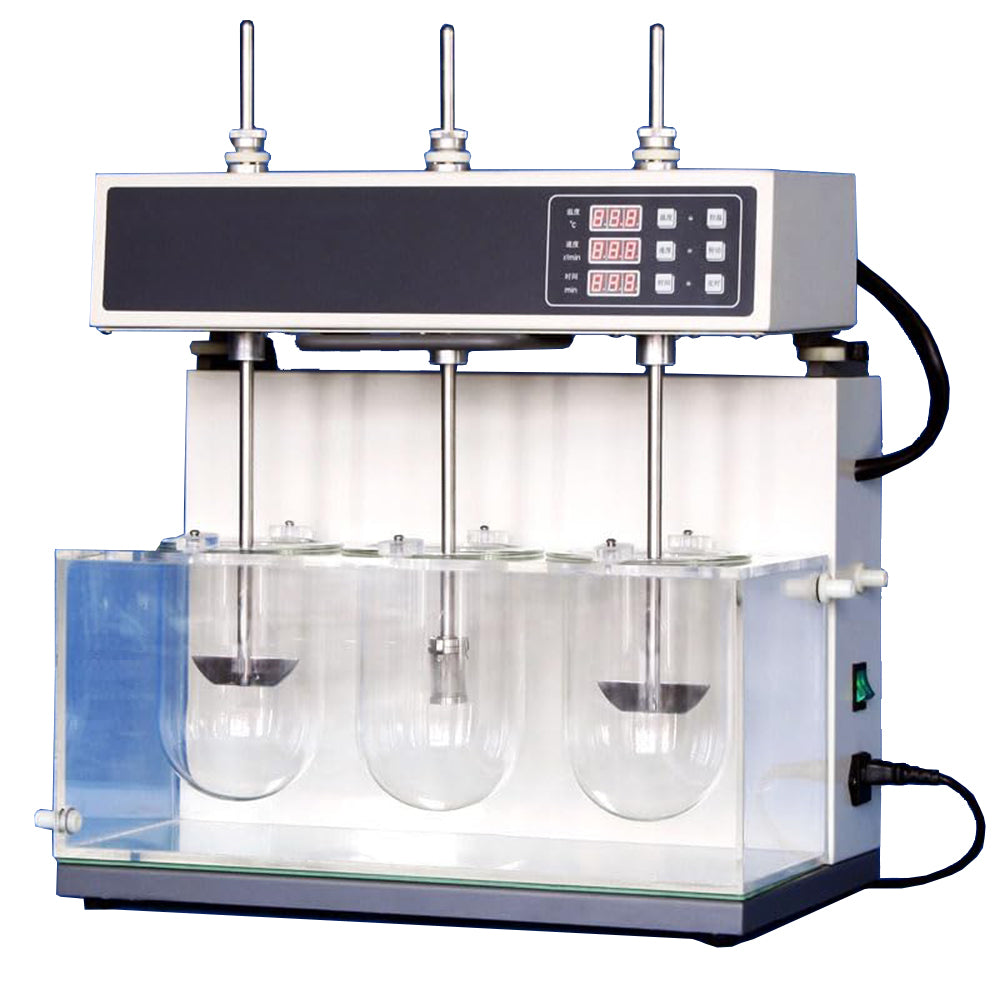

VTSYIQI Dissolution Tester Analyzer Tablet Dissolution Tester Dissolution Rate and Degree Detector with Speed Range 20 to 200 RPM Accuracy ±2 rev/min

Feature
● Three cups and three levers, one single row.
●The head section is manually turned over, smooth and flexible.
●The turning blue and paddle bar etc. are made of imported SUS316L stainless steel.
●Adopting magnetic water pump circulating water flow even heat system, the water bath temperature is even.
●Automatic intelligent control of three parameters: temperature, speed and time.

Introduction

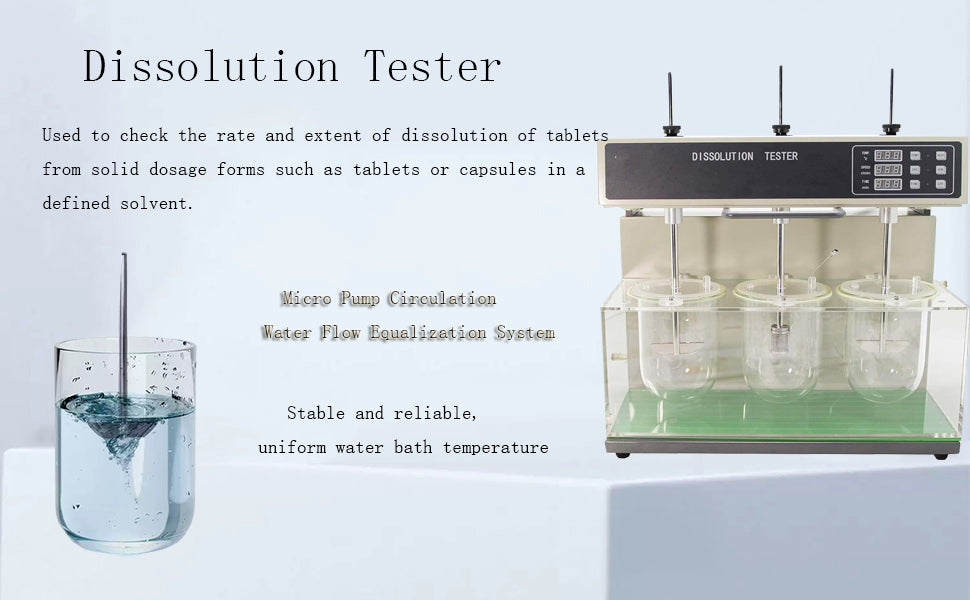

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Features
● Three cups and three levers, one single row.
●The head section is manually turned over, smooth and flexible.
●The turning blue and paddle bar etc. are made of imported SUS316L stainless steel.
●Adopting magnetic water pump circulating water flow even heat system, the water bath temperature is even.
●Automatic intelligent control of three parameters: temperature, speed and time.
●The parameters can be preset at will; the preset value and the real time value are displayed in time division.
●Automation, automatic detection, automatic diagnosis and automatic alarm.

Technical specifications
●Speed range: (20-200) rpm
●Speeding accuracy: ±2rpm
●Temperature control range: (room temperature ~ 45.0)℃
●Temperature control accuracy: ±0.3℃
●Timing range: (5～900)min (6 points)
●Timing accuracy: ±0.3%
●Basket swing range: ±1mm
●Paddle oscillation range: ±0.5mm
●Eccentricity of rotating shaft: ±2.0mm
●Power of electric heater: 500W
●Continuous working time: more than 24 hours
●Power supply : 220V/50Hz/600W or 110V/60Hz/600W
●Power : 600W
●Dimensions: (46×30×48)cm3
●Weight : 35kg
