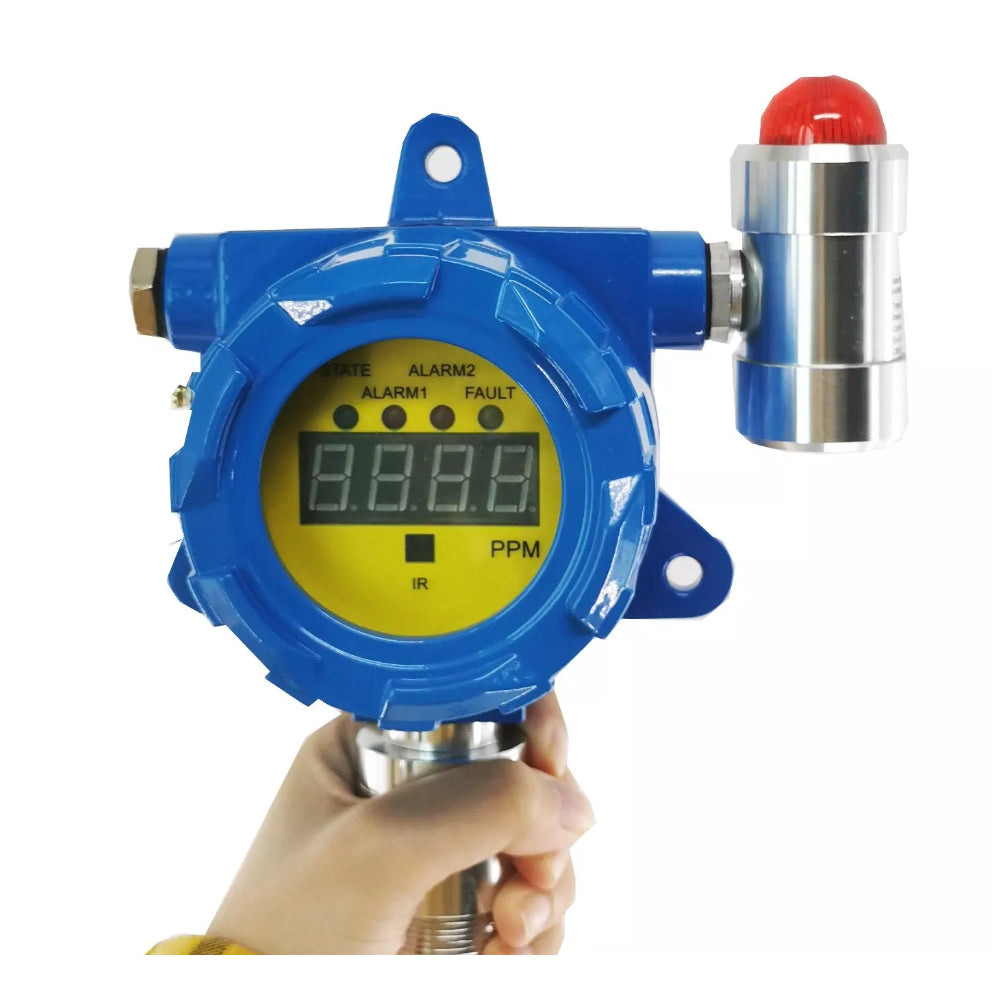

VTSYIQI Fixed Ethylene Oxide Detector ETO Gas Leak Detector with Measuring Range 0 to 100ppm Resolution 1ppm L-Alarm 10ppm H-Alarm 20ppm Aluminum Wall-Mounted

VTSYIQI Fixed Ethylene Oxide Detector ETO Gas Leak Detector with Measuring Range 0 to 100ppm Resolution 1ppm L-Alarm 10ppm H-Alarm 20ppm Aluminum Wall-Mounted

About this item

Test gas: Ethylene Oxide C2H4O

Range: 0-100ppm; Resolution:1/0.1ppm

L-alarm:20ppm ; H-alarm:50ppm

Output current:4-20mA

It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.

Overview:

It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.

This product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc. It adopts industrial-grade sensor, the instrument shell is designed with explosion-proof structure, 4-20mA standard signal or directly into the DOS system, and can be widely used in metallurgy, petroleum, chemical, municipal and other industries, and is in the leading level of similar products in China. The housing adopts die-casting aluminum shell with explosion-proof structure design, the groove design of the upper cover can lock the housing, the front side of the sensor is designed with downward structure to ensure good contact between the sensor and the gas, and the inlet port adopts explosion-proof waterproof connector.

Features:

Range:0-100ppm

Resolution:1/0.1ppm

L-alarm:20ppm; H-alarm:50ppm

Product type:Fixed gas detector/transmitter

Response time:<30S

Power supply:DC24V±10%

Working temperature:-10℃～55℃

Output current:4-20mA

Working humidity:0-95%RH (Non-condensing)

Contact output:Free contact output, max power 1kW

Single input:4~20mA and RS485

Installation method:Wall-mounted

Shell material:Aluminum
