VTSYIQI High Voltage Insulation Meter Digital 5KV Insulation Resistance Tester Dectector with Range 0.01MΩ-10TΩ Rated Voltage 100V 250V 500V 1000V 2500V 5000V 500 Groups Data Storage

VTSYIQI High Voltage Insulation Meter Digital 5KV Insulation Resistance Tester Dectector with Range 0.01MΩ-10TΩ Rated Voltage 100V 250V 500V 1000V 2500V 5000V 500 Groups Data Storage

Faeature:

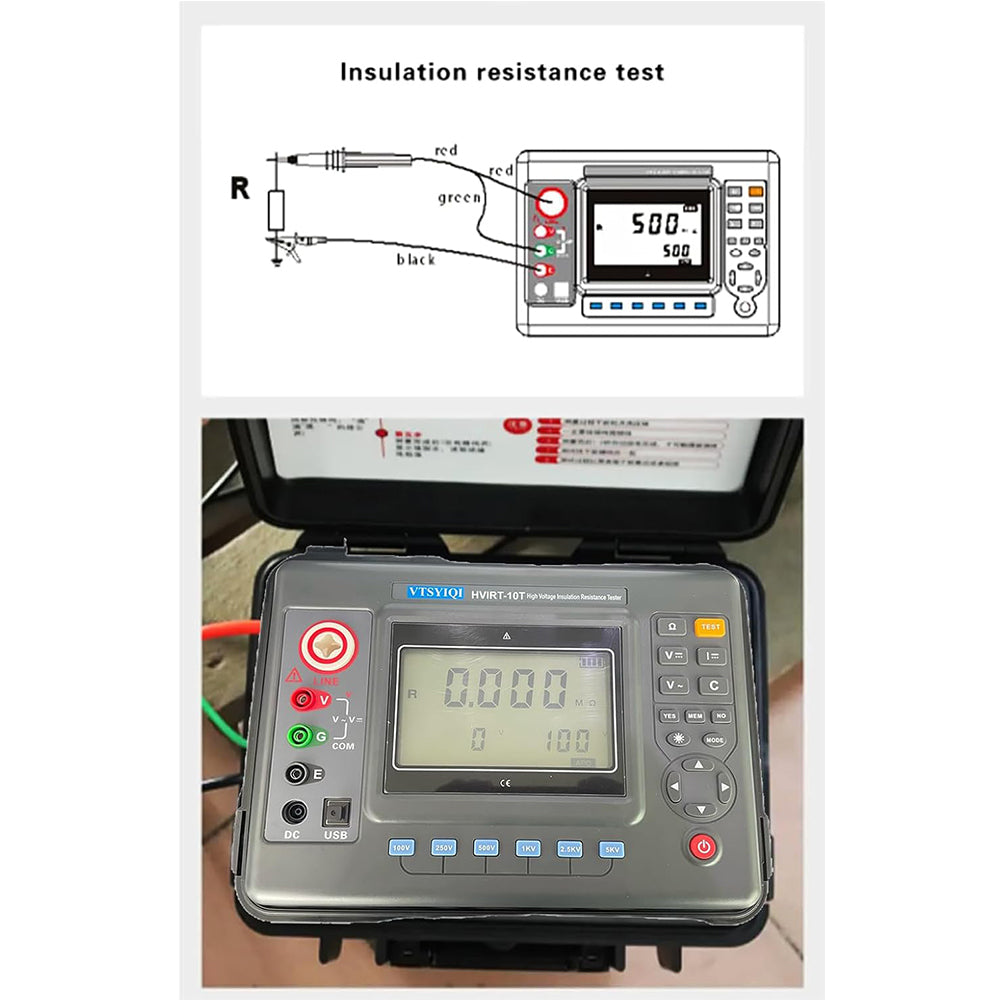

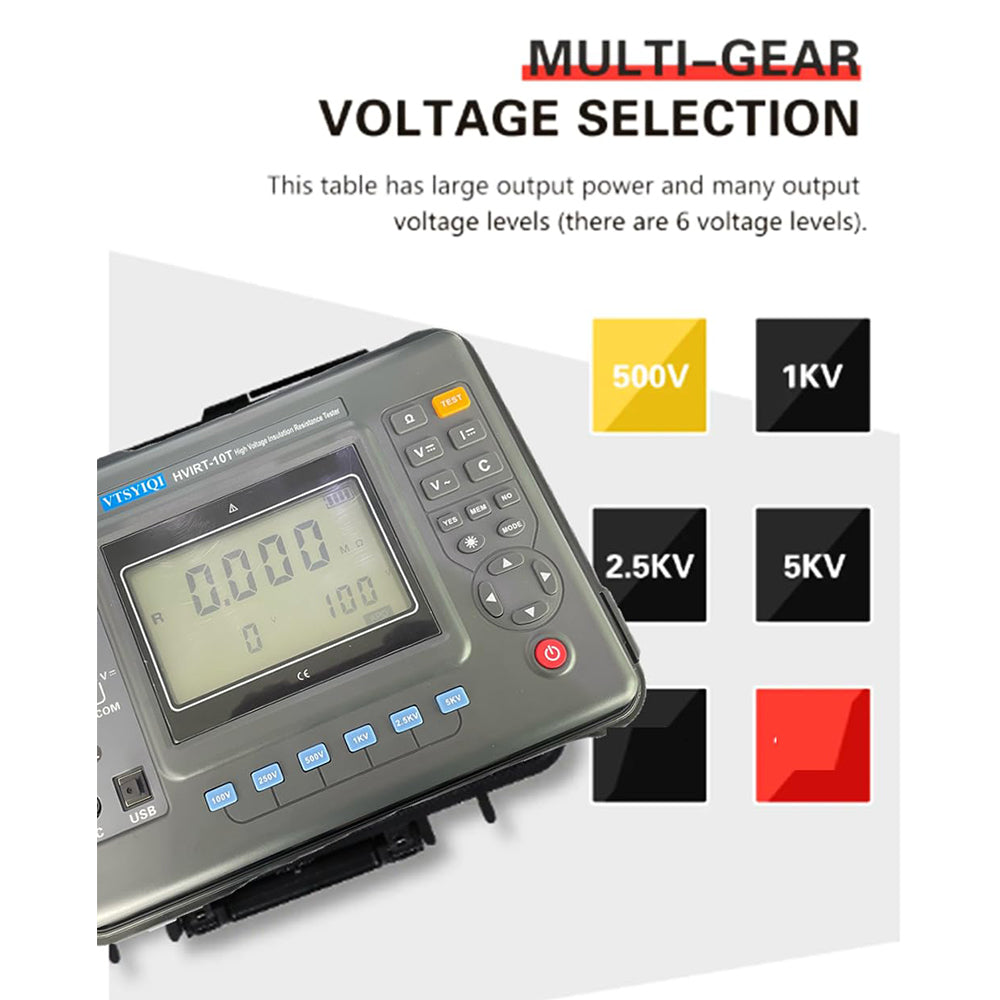

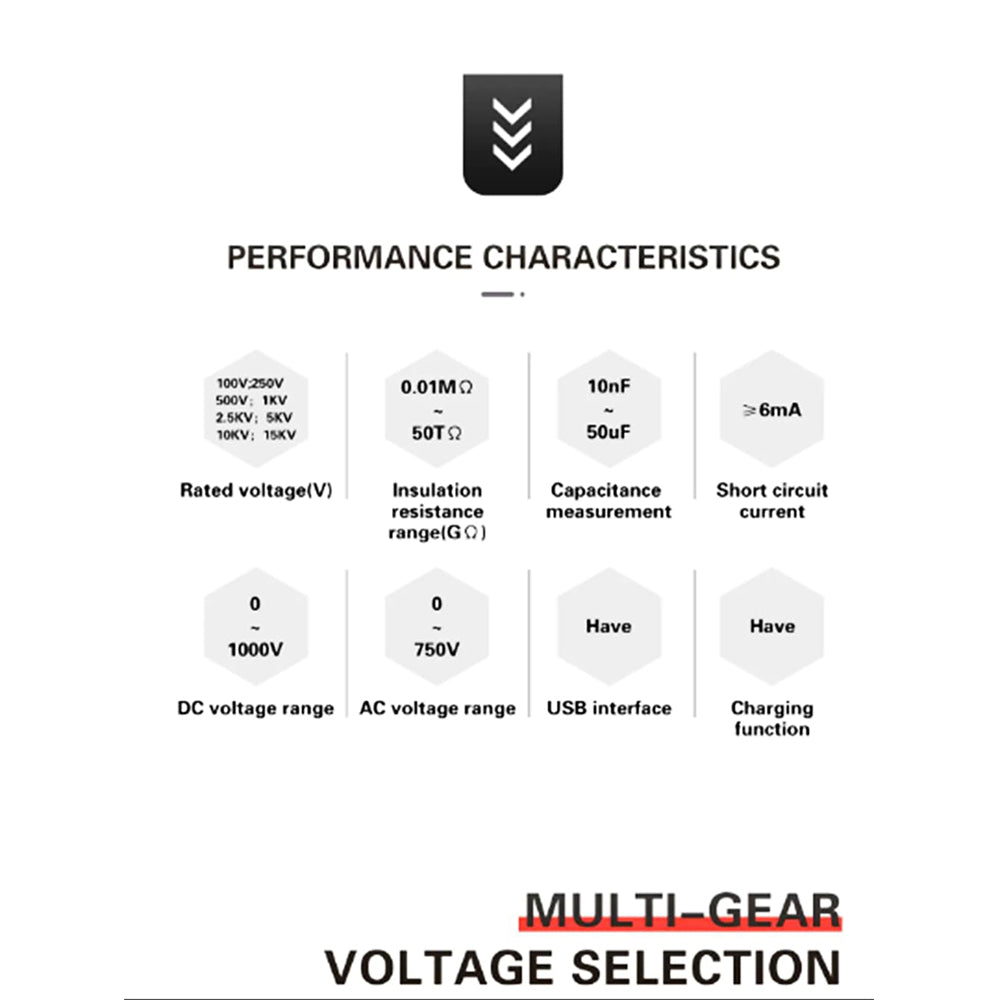

Function---Insulation resistance tester, voltage test, DC current test, capacitance test Basic condition:23℃±5℃，below 75%rh Rated voltage:100V、250V、500V、1000V、2500V、5000V Insulation resistance range:0.01MΩ～10TΩ resolution：0.01MΩ

Test Voltage---Test Voltage(V):rated voltage×（1±10%） DC Voltage Range:0～1000V Resolution: 0.1VAC Voltage Range:0～750V Resolution: 0.1V DC Current:0.1nA～6mA Resolution: 0.1nA

Capacitance---Capacitance:10nF～50uFResolution: 10nF Output short-circuit Current:≥6mA@15KV Absorption Ratio and Polarization Index Measurement:Have Power Supply:12.6V rechargeable battery Backlight:Controllable gray screen backlight, suitable for use in dim places

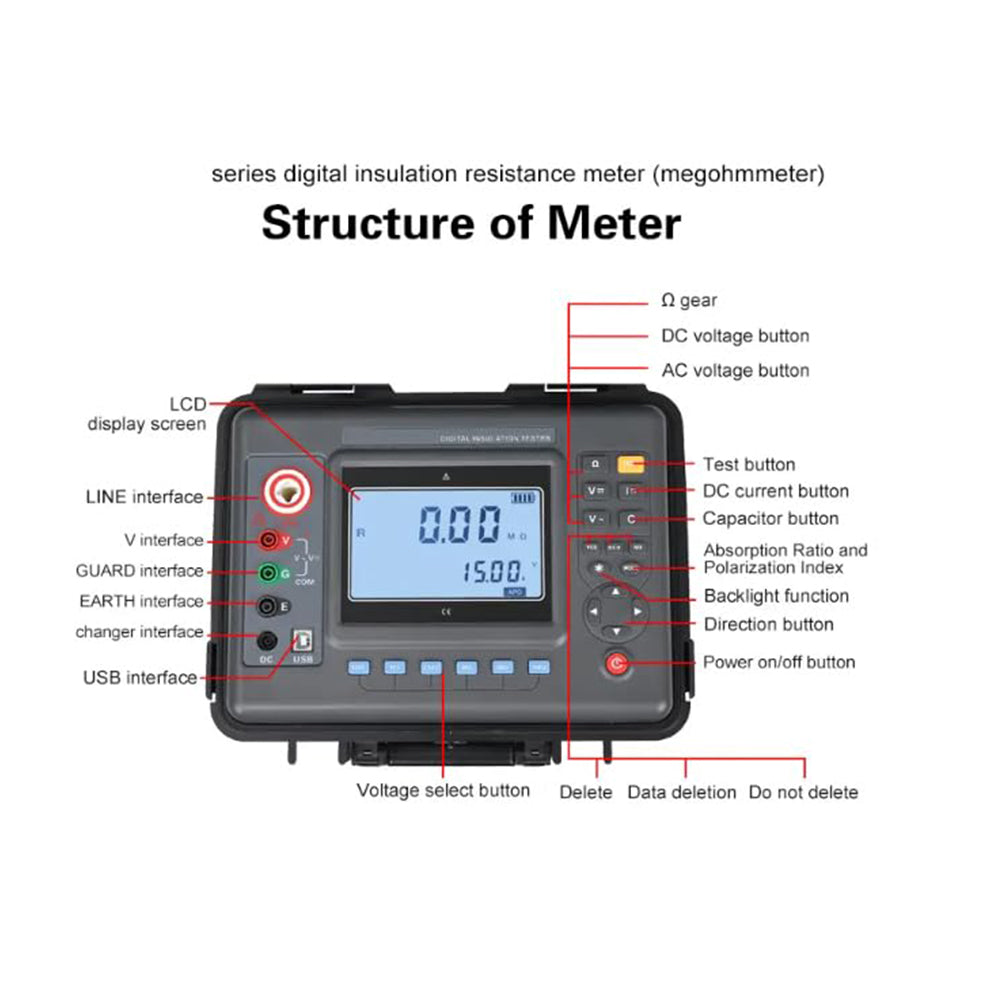

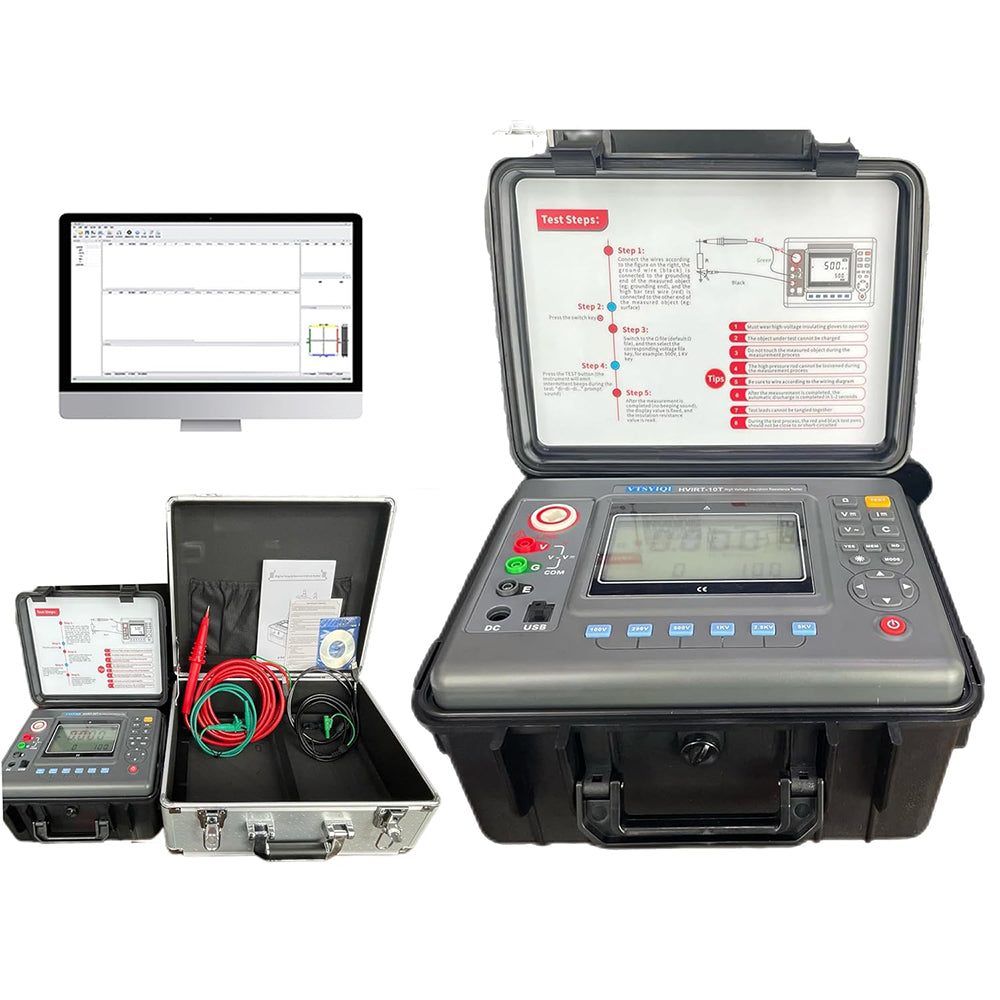

Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight LCD display size:108mm×65mm Instrument size:L/W/H：240mm×188mm×85mm USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

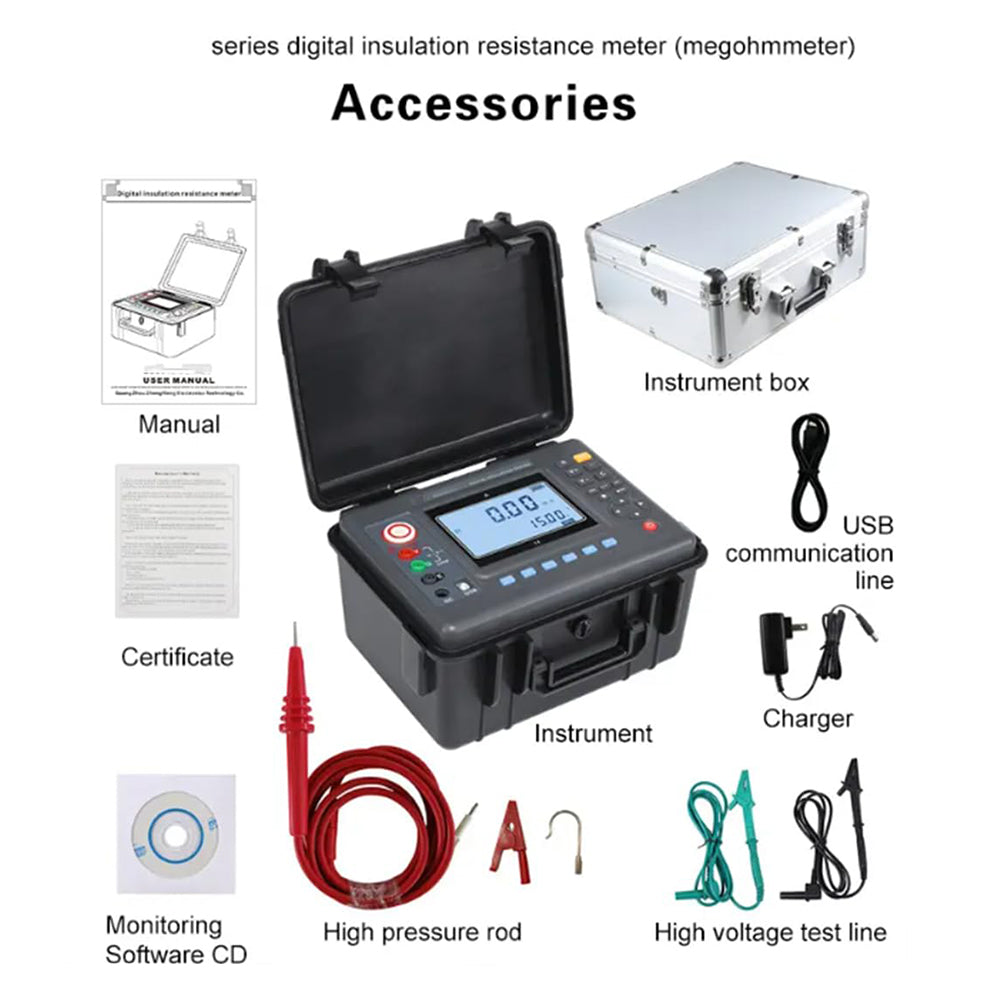

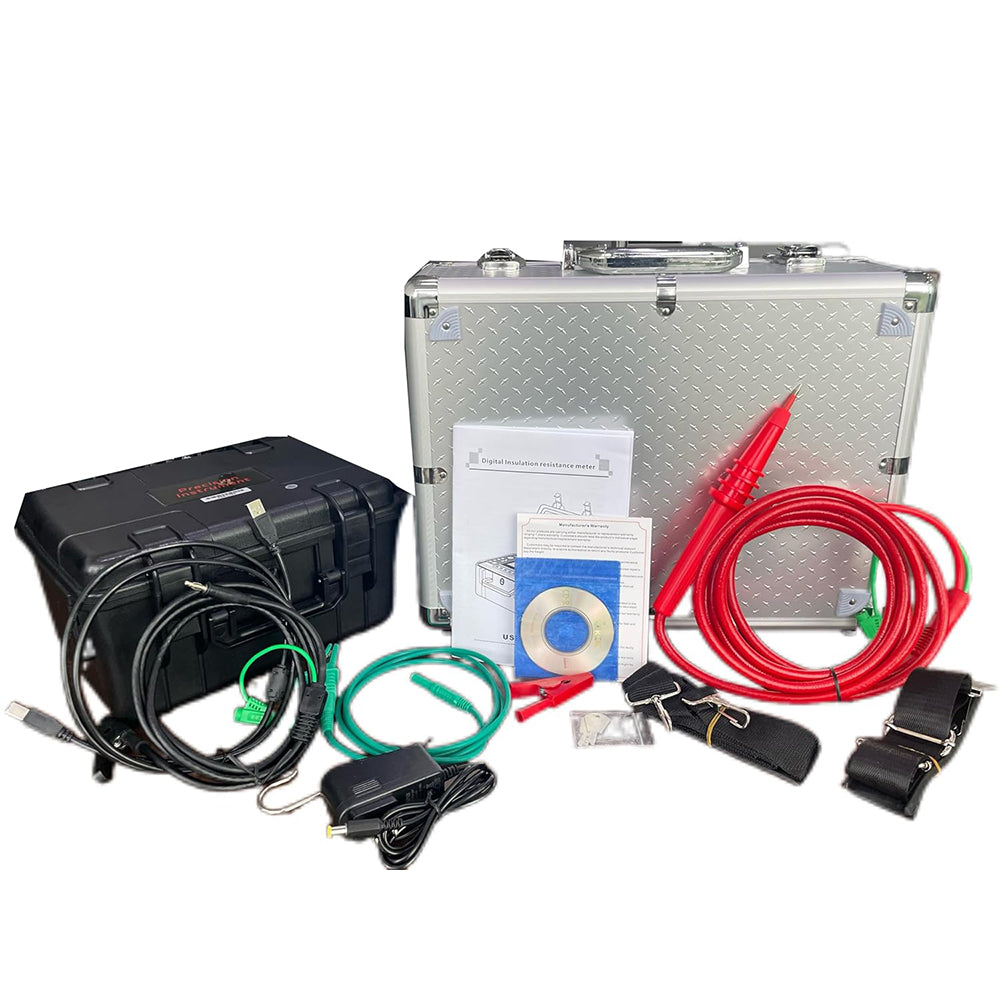

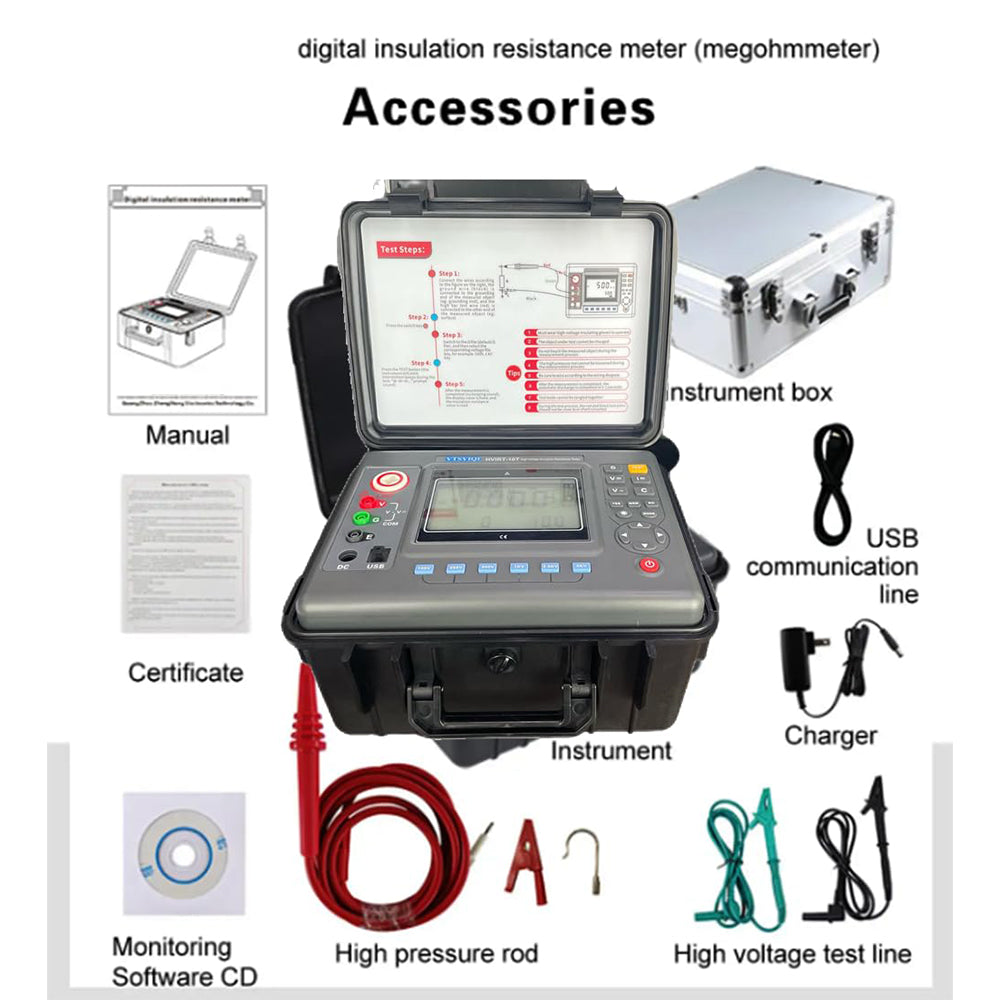

USB Connect---Communication Line:USB communication line 1PC Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol display

Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)

Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min
