VTSYIQI High Voltage Insulation Resistance Tester 10KV Insulation Resistance Meter Kit with Insulation Resistance Range 0.5MΩ to 5TΩ for Cable Motor Generator Testing

VTSYIQI High Voltage Insulation Resistance Tester 10KV Insulation Resistance Meter Kit with Insulation Resistance Range 0.5MΩ to 5TΩ for Cable Motor Generator Testing

Feature

Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment.
Insulation Resistance Range：0.5MΩ～5TΩ
Rated Voltage：250v~10Kv（6 gears）
Output Shout Circuit Current：≥5mA Voltage monitor function, Test timer function , Automatic discharge function
Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR);Ramp Test Mode (RAMP); filtered resistance test (FR); Voltage measurement(V); capacity measurement（uF）; current measurement（nA）


Insulation Resistance Tester Kit 5 Teraohms Resistance 10kV Voltage

Specification

Function : Insulation resistance measurement (IR); polarization index measurement (PI) ;Dielectric Absorption Ratio Test（DAR)；Ramp Test

Mode（RAMP）；filtered resistance test（10S、20S、30S、40S 4 options)；Voltage measurement(V); capacity measurement（uF); current

measurement（nA）

Power Supply : Rechargeable lithium battery pack 5.2Ah

Rated Voltage : 250V，500V，1KV，2.5KV，,5KV, 10KV

Output Voltage Accuracy : （5%～10%）±10V

Insulation Resistance Range : 0.5MΩ～5TΩ

Output Short Circuit Current : >5mA

Polarization Index Test : Yes

Dielectric Absorption Ratio Test : Yes

Ramp Test Mode : Test at 10% of the preset voltage until the peset voltage

Filtered Resistance Test Mode : 10S、20S、30S、40S

Voltage Measurement : Range: AC/DC 0V～1000V；Accuracy: ± 5%rdg ± 3V ；

Capacitance Measurement : Range: 10nF～25uF；Accuracy: ± 10%rdg ± 10 nF ；

Leackage Current Measurement : Range：0.01nA～7.00mA；Accuracy: ± 5%± 0.5 nA ;

Voltage Monitor : Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator.

Test Time : Automatic record test time, time range: 0s~9999s

Storage Function : Automatically store the test data with test date and time, total of 1000 groups

Upload Function : Upload the stored data to computer with USB communication cable.

Battery Power Display : With battery power display, when battery voltage low will remind to replace the battery

Automatic Shutdown : After 15 minutes start up will shut down automatically without any operation

Meter Dimension : 280mm×260mm×160mm

Weight : 4400g

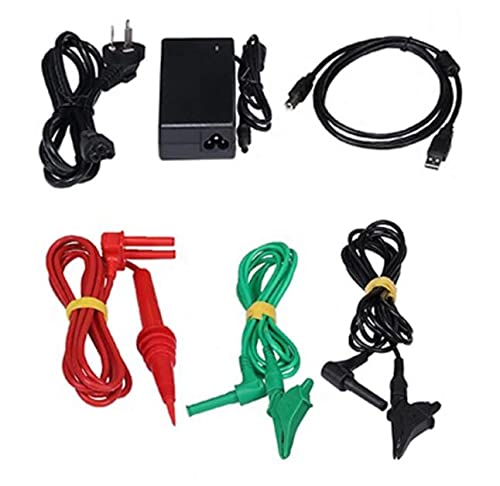

Test Wire : Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS

Protection Level : Close the case IP65, open the case IP40

Withstand Voltage : 3mA AC 50Hz

Working Temperature and Humidity : -20℃～50℃；80%rh

Storage Temperature and Humidity : -25℃～65℃；80%rh

Insulation Resistance : 50MΩ（1000v）（between the test circuit and shell）

Withstand Voltage : AC 3Kv 50Hz 1min（between the test circuit and shell）

Suitable Safety Standard : IEC61010-1，IEC61326-1
