VTSYIQI Insulation Resistance Meter Digital Insulation Resistance Tester with Insulation Resistance Range 0.10MΩ-100.0GΩ Rated Voltage 250-2500V for Insulation Resistance Test

VTSYIQI Insulation Resistance Meter Digital Insulation Resistance Tester with Insulation Resistance Range 0.10MΩ-100.0GΩ Rated Voltage 250-2500V for Insulation Resistance Test

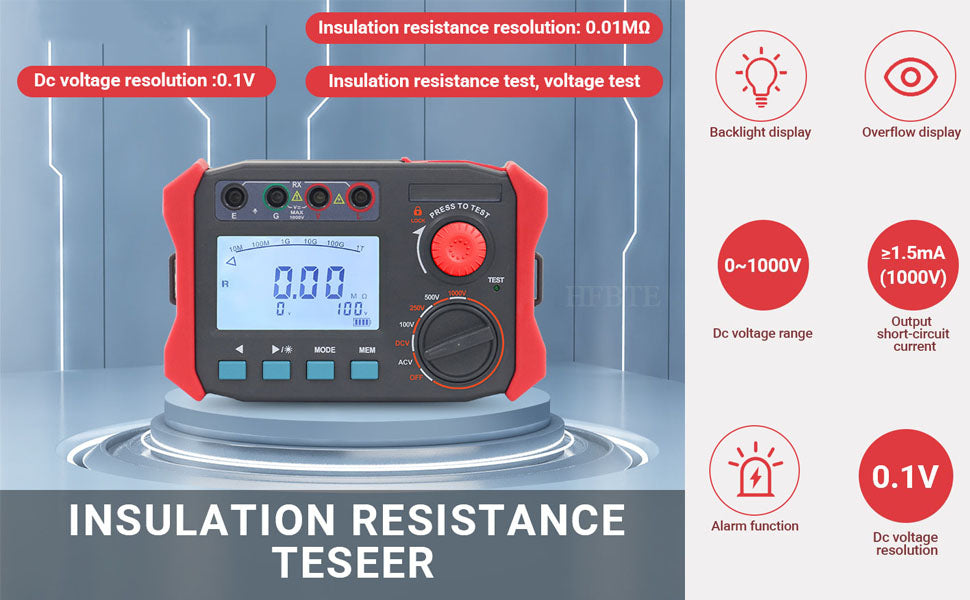

Feature:

(1) {Function}--------Insulation resistance test, and voltage test

(2) {Rated voltage}--------250～2500V

(3) {Insulation resistance range}--------0.10MΩ-100.0GΩ ; resolution：0.01MΩ

(4) {Alarm function}--------Send an alarm prompt when the measured value exceeds the alarm set point

(5) {Data Storage}--------500 groups, "FULL" symbol indicates that storage is full

Introduction：

This instrument has LCD large screen grey backlight display, data storage, data access, and other functions.

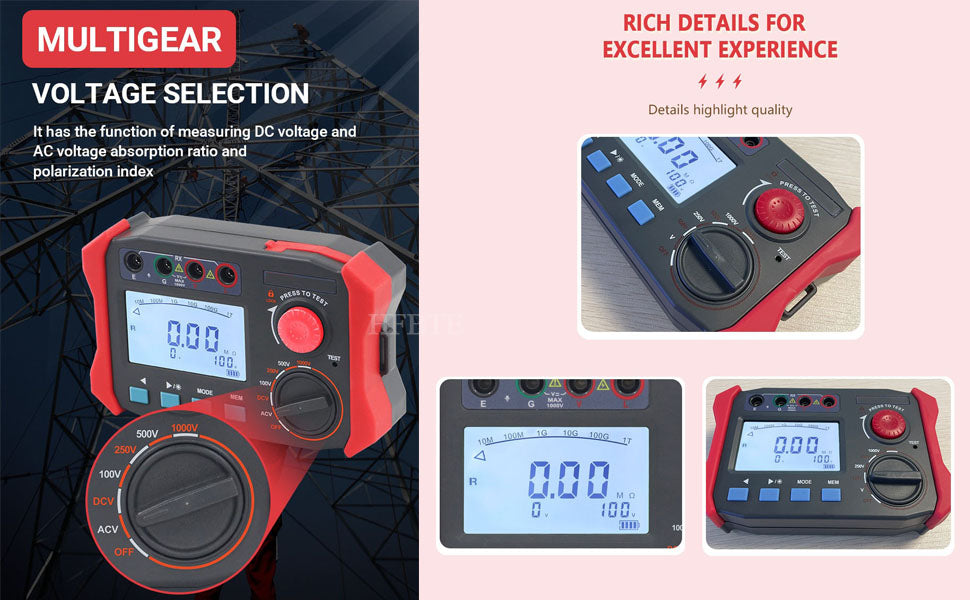

At the same time, it also has the function of measuring DC voltage and AC voltage absorption ratio and polarization index.

The machine is beautiful and high-grade, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.

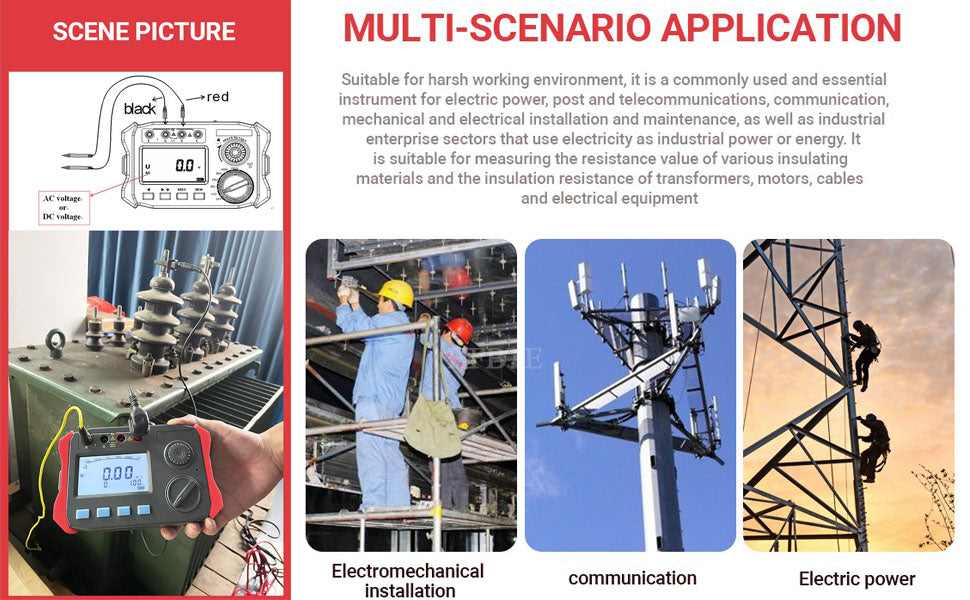

This instrument also has a shock-proof, dust-proof, moisture-proof structure, adapt to the harsh working environment, is the electric power, post and telecommunications, communication, mechanical and electrical installation and maintenance and the use of electricity as industrial power or energy industrial enterprise sector commonly used and essential instrument.

It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

This digital insulation resistance meter is composed of medium and large scale integrated circuit.

The output power of this table is large, and the output voltage levels are many.

The DC voltage ranges from 2.0 V to 1000V, and the AC voltage ranges from 2.0 V to 750V.

Technical specifications：

Function：Insulation resistance test, voltage test

Baseline conditions：23℃±5℃, below 75%rh

Rated voltage (V)：250-2500V

Measuring voltage (V)：Rated voltage × (1±10%)

Insulation resistance range：0.10MΩ-100.0GΩ

Insulation resistance resolution：0.01MΩ

DC voltage range：2.0～1000V

DC voltage resolution：0.1V

AC voltage range：2.0～750V

AC voltage resolution：0.1V

Output short circuit current：≥ 1.5mA ( 10 00V)

Absorption ratio and polarization index measurements：Have

Power supply：1.5V ( AA ) alkaline batteries 8 pieces（Batteries are not included during the shipment.）

Backlight：Controllable gray and white screen backlight, suitable for use in dark places

Auto off：Instrument shut down after 15 minutes without operation

Display mode：4-digit super large LCD display, gray and white screen backlight

LCD display size：73 mm x 43 mm

Meter size：175mm (L)× 112mm (W)× 53mm (H)

Test line：High voltage test line red 1 meter, black 1 meter

USB interface：With USB interface, data reading, save record data

Data storage：500 groups, flashing "FULL" symbol means storage is full

Data review：Data query function: "MEM"symbol display

Overflow display：Over-range overflow function:"OL"symbol display

Power consumption：Standby time: 18mA Max (backlight off)；Power on backlight: 43mA Max；Measurement: 326mA Max (with backlight on )

Quality：1230g (including battery)

Battery voltage：The battery voltage is insufficient, and the low battery symbol " " is displayed

Insulation resistance：≥50MΩ (1000V)

withstand voltage：AC3kV/50Hz 1min

Operating Temperature and Humidity：-10℃～+50℃＜85%RH

Storage Temperature and Humidity：-15℃～+55℃＜90%RH

Suitable for safety regulations：IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
