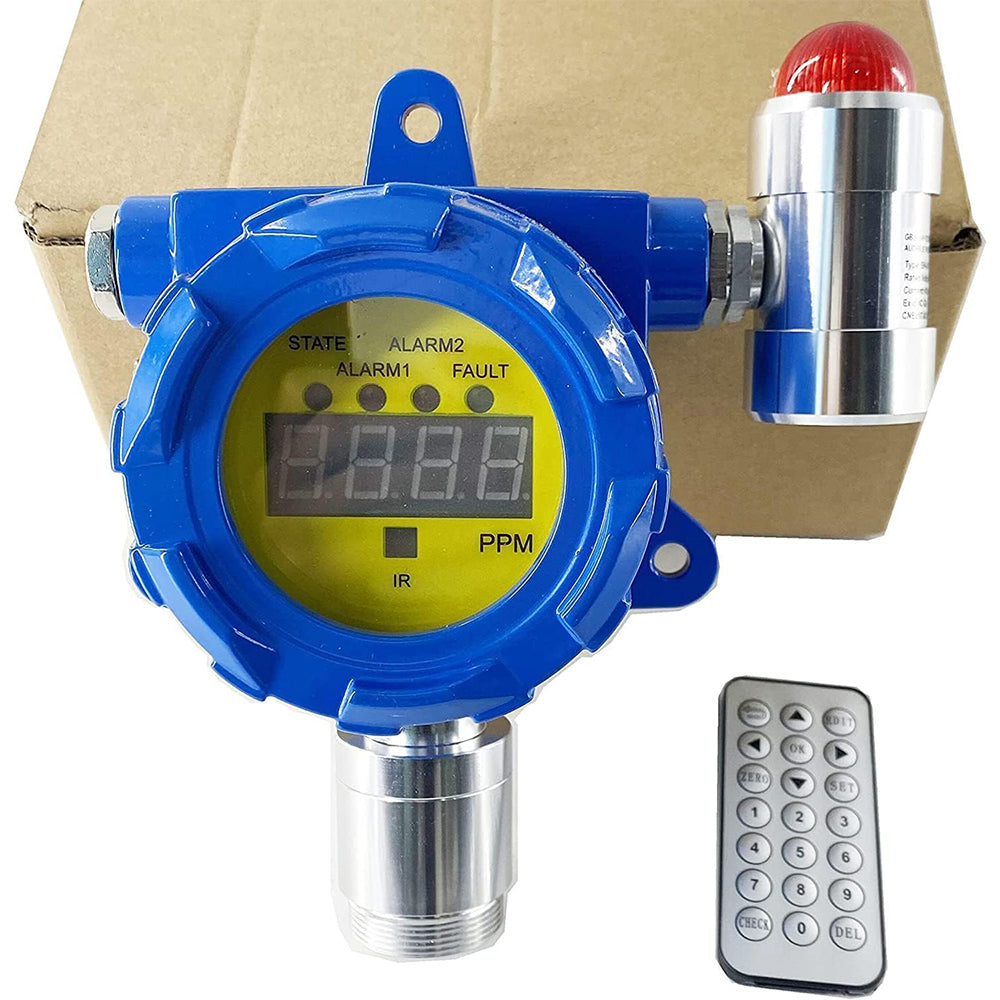

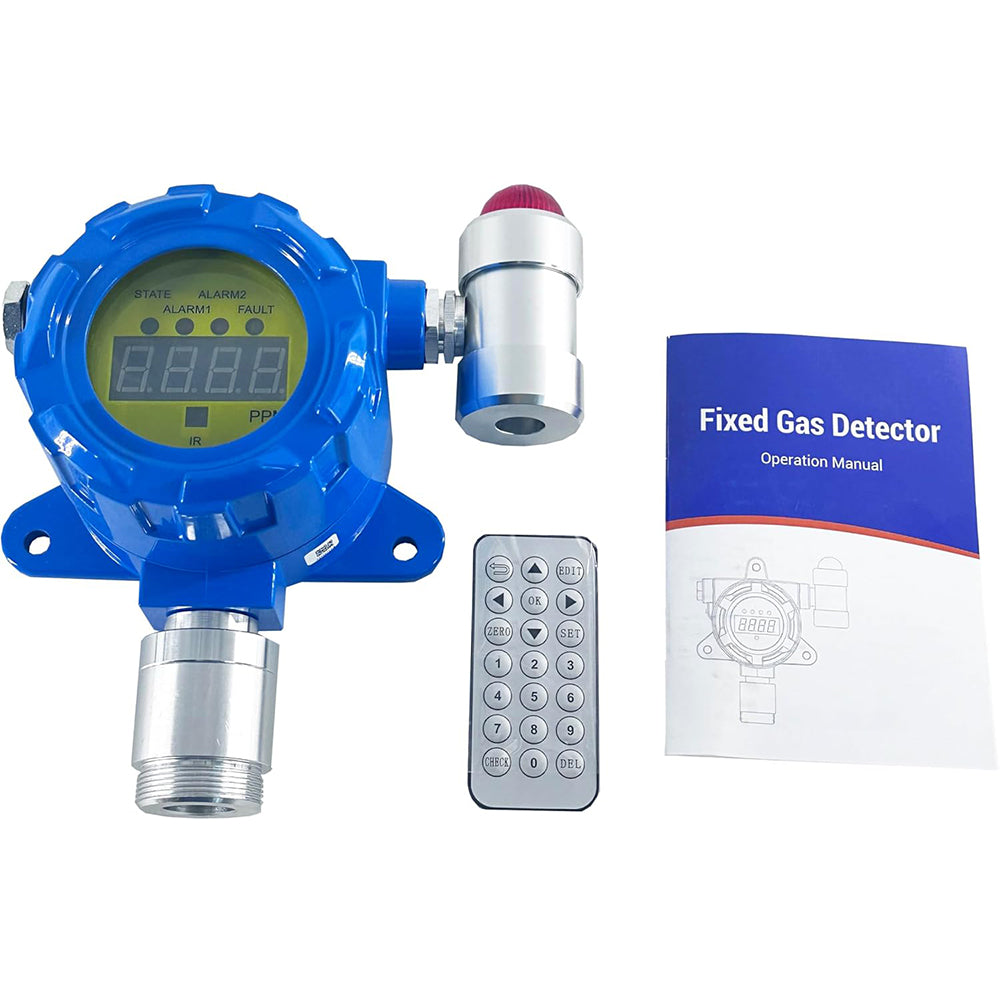

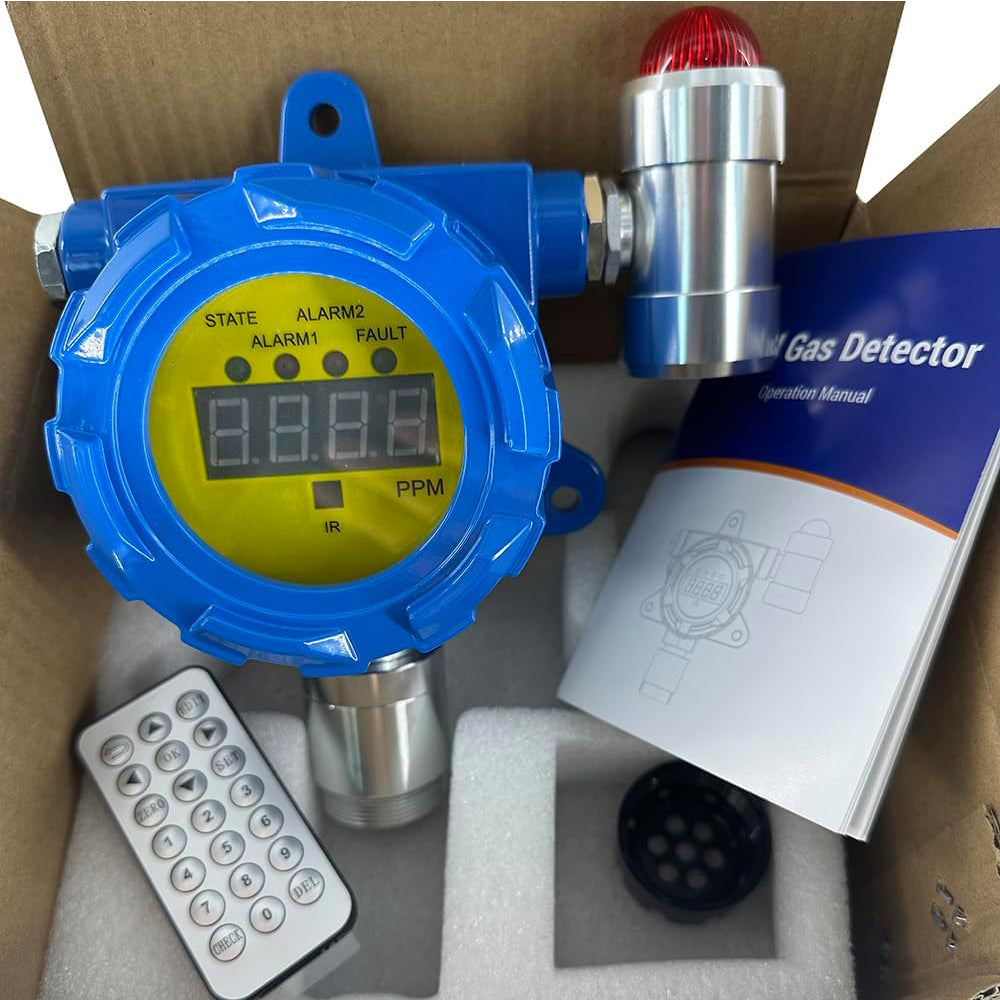

VTSYIQI Nitrogen Dioxide Detector Fixed NO2 Leak Detector with Wall-mounted Installation Method Measuring Range from 0 to 20ppm L-alarm 5ppm H-alarm 10ppm for Painting Plant and Metallurgical Industry Gas Test

VTSYIQI Nitrogen Dioxide Detector Fixed NO2 Leak Detector with Wall-mounted Installation Method Measuring Range from 0 to 20ppm L-alarm 5ppm H-alarm 10ppm for Painting Plant and Metallurgical Industry Gas Test

Introduction:

fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Specification:

Product type:fixed gas detector/transmitter

Explosion proof grade:Exd ⅡC T6 Gb

Response time:≦30S

Power supply:DC24V±10%

Working temperature:-20℃～50℃

Output current:4-20mA

Working humidity:0-95%RH

Contact output:Free contact output, max power 1kW

Single input:4~20mA and RS485

Installation method:Wall-mounted

Shell material:Aluminum

Dimensions:190x150x95mm（L×W×H）

Model:NO2

Range:0-20ppm

Resolution:0.1ppm

L-alarm:5ppm

H-alarm:10ppm
