VTSYIQI Portable Cl2 Gas Detector CL2 Leak Detector with Measuring Range 0 to 20ppm Resolution 0.1ppm L-Alarm: 5ppm H-Alarm 10ppm Die-cast Aluminum Shell Flameproof Structure

 VTSYIQI Portable Cl2 Gas Detector CL2 Leak Detector with Measuring Range 0 to 20ppm Resolution 0.1ppm L-Alarm: 5ppm H-Alarm 10ppm Die-cast Aluminum Shell Flameproof Structure

About this item：

Test gas:Chlorine gas

Measuring Range :0 to 20ppm ;Resolution :0.1ppm ;L-Alarm: 5ppm ;H-Alarm :10ppm

Die-cast Aluminum Shell Flameproof Structure;

Industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design;

Advantages of stable signal, high precision, rapid response, long life, short polarization time.

Introduction:

Fixed gas detector is a new type of gas detector developed and produced by the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will give an audible and visual alarm, and promptly take measures to prevent the explosion and poisoning accidents, thus ensuring the safety of life and property.

The product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc. It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system, which can be widely used. In the metallurgical, petroleum, chemical, municipal and other industries, it is at the leading level of similar products in China.

The outer casing is made of die-cast aluminum shell with flameproof structure. The groove of the upper cover is designed to lock the casing. The front of the sensor is designed as a downward structure to ensure good contact between the sensor and the gas. The inlet is made of explosion-proof waterproof joint.

Specifications:

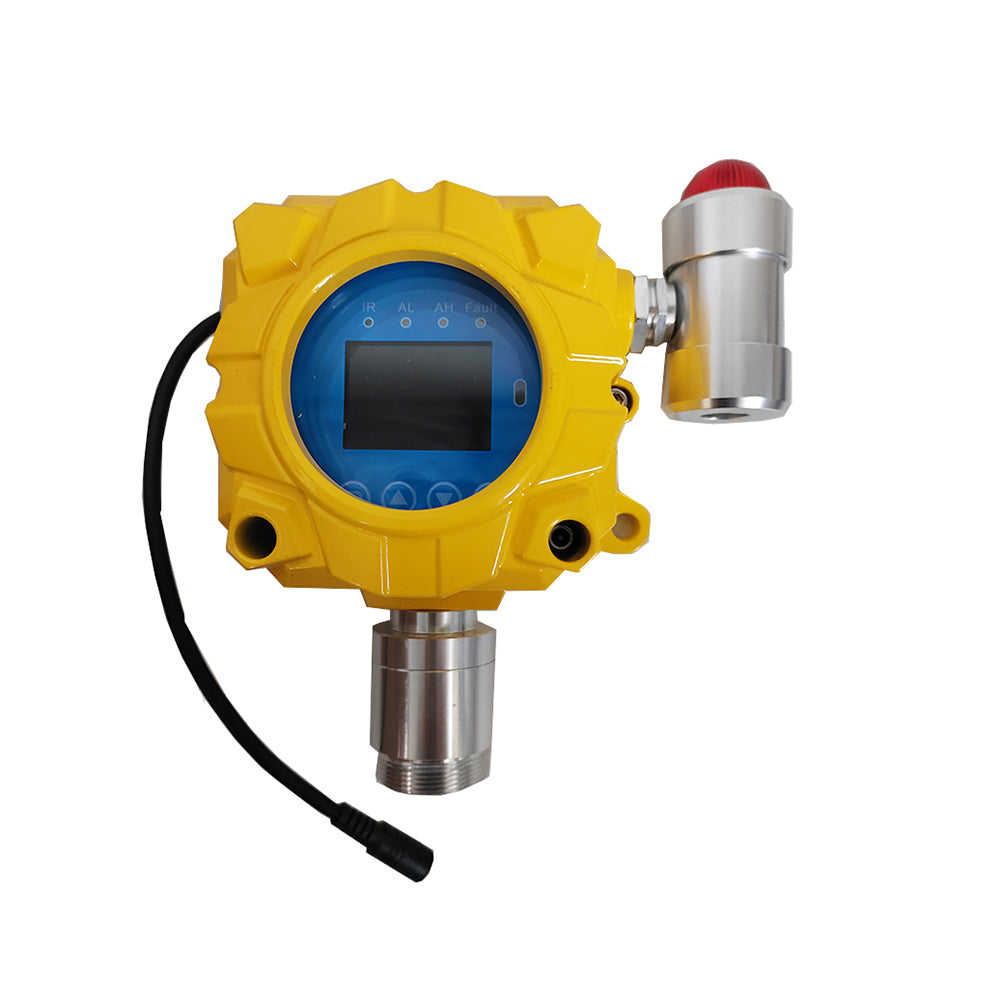

Product Name:Remote Control Fixed Gas Detector

Explosion proof grade:Exd ⅡC T6 Gb

Response time:<30S

Power supply:DC24V±15%

Working temperature:-20℃~50℃

Output current:4-20mA

Working humidity:0-95%RH (no dew)

Contact output:Free contact output, max power 1kW

Single input:4~20mA and RS485

Installation method:Wall-mounted

Shell material:Aluminum

Dimensions:190*150*95mm(L*W*H)

Model:CL2

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm

H-alarm:10ppm
