VTSYIQI Portable Color Meter Digital Spectrometer Portable Spectrophotometer with Display Accuracy 0.01 Measure Aperture Φ11mm Φ6mm Φ3mm ▽11mm ▽6mm ▽3mm Reflectivity Resolution 0.01% for PlasticPaint Printing and Dyeing Test

VTSYIQI Portable Color Meter Digital Spectrometer Portable Spectrophotometer with Display Accuracy 0.01 Measure Aperture Φ11mm Φ6mm Φ3mm ▽11mm ▽6mm ▽3mm Reflectivity Resolution 0.01% for PlasticPaint Printing and Dyeing Test

Introduction:

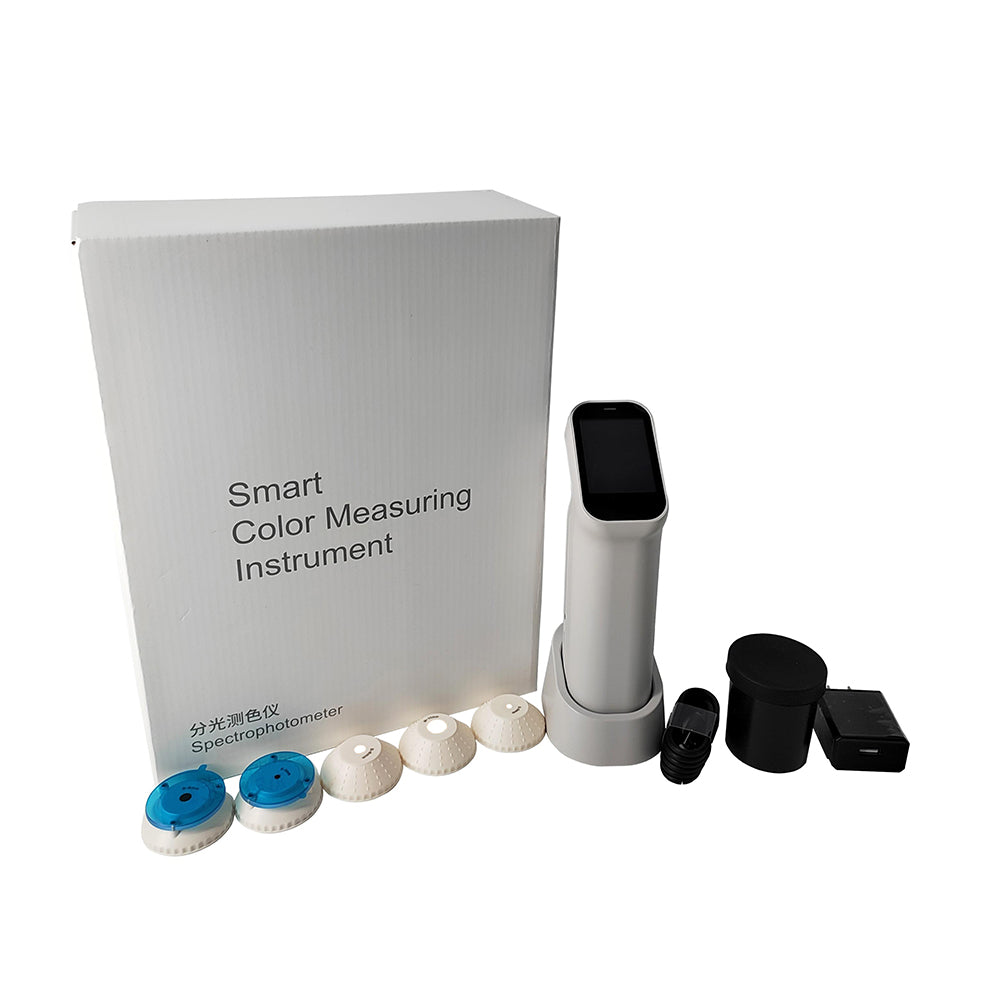

Our colorimeter is a stable and reliable color difference measuring instrument. DS-220 colorimeter repeatability dE * ab ≤ 0.03, including 3 apertures (11mm/6mm/3mm), UV light source, camera viewfinder, fully functional; It can also connect with mobile apps, WeChat mini programs, and computer management software for color measurement work.

Feature:

Product model: DS-220

Measurement structure: D/8, SCI

Measurement repeatability: Δ E * ab ≤ 0.03

Display accuracy: 0.01

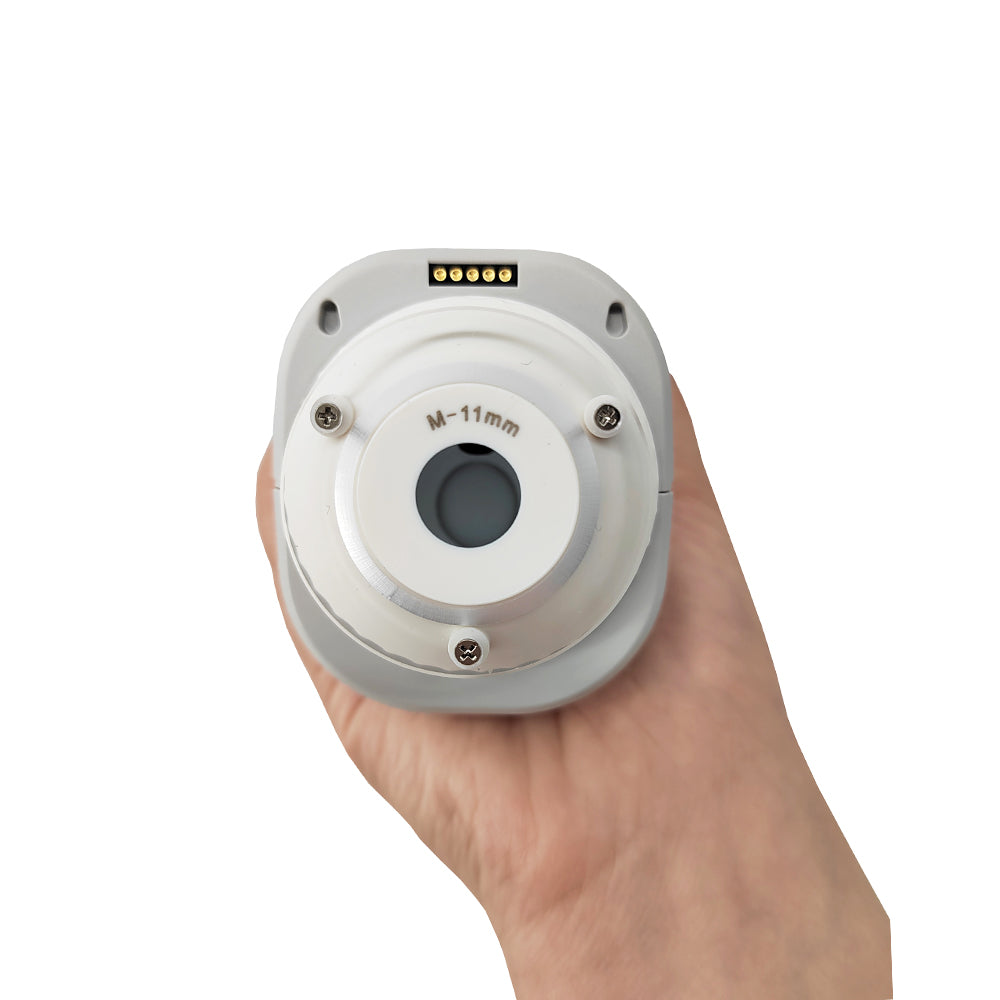

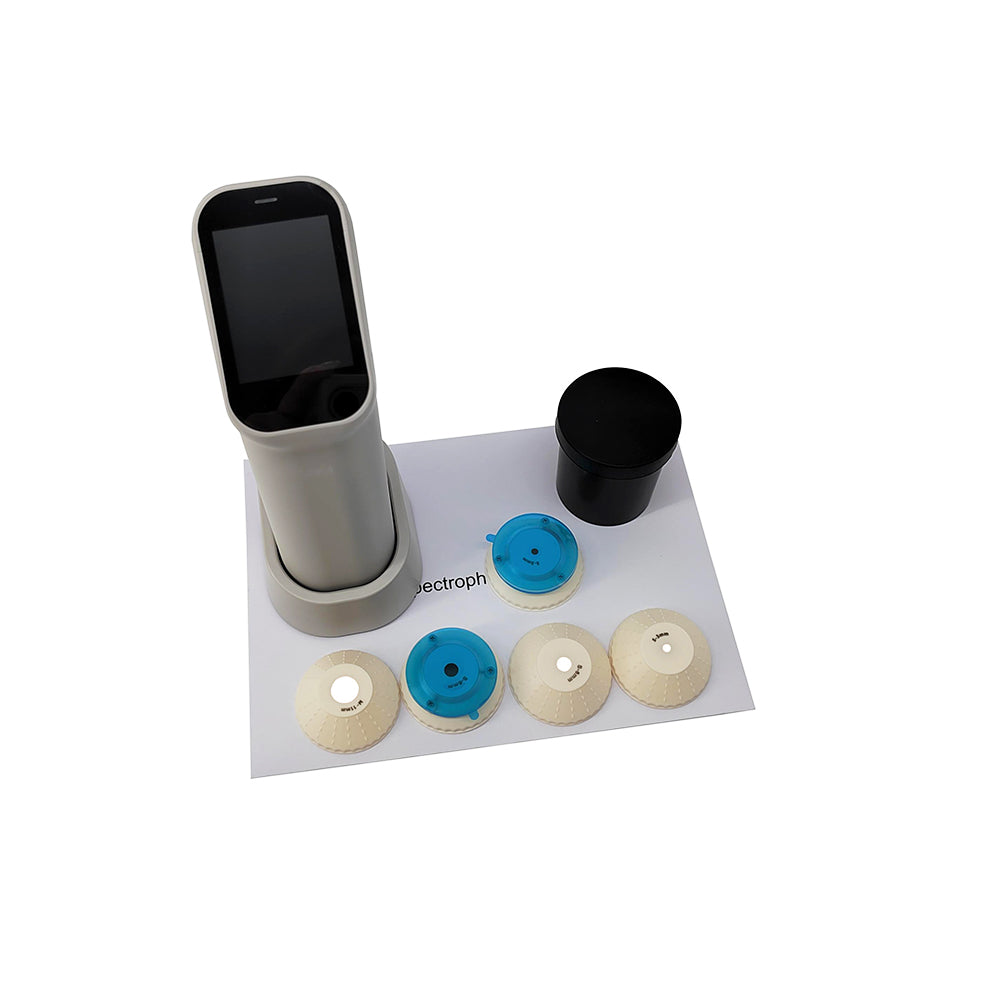

Measuring caliber: 6 types of stable and agile:
Φ11mm，Φ6mm，Φ3mm
▽11mm，▽6mm，▽3mm

Measurement indicators: Spectral reflectance, CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, Color difference (Δ E * ab, ΔE*cmc,ΔE*94,ΔE*00), Whiteness (ASTM E313-00, ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,
Taube Berger Stensby), Yellowth (ASTM D1925, ASTM E313-00,ASTM E313-73), Blackness (My, dM),
Stain fastness, color fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), heterochromatic index Milm, Munsell, hiding power, strength (dye strength, coloring power)

Light source conditions: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Lighting source: Full band balanced LED light source+UV

Measurement and observation method: camera framing and positioning

Calibration: Intelligent automatic calibration

Software support: Android, iOS, Windows, WeChat Mini Program

Accuracy guarantee: Ensure that the first level measurement is qualified
Field of view: 2 °, 10 °

Integral sphere diameter: 40mm

Compliant with standard: CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectral analysis method: Nano integrated spectroscopy device

Sensor: Dual 16 groups of silicon photodiode array

Wavelength interval: 10nm

Wavelength range: 400-700nm

Reflectance measurement range: 0-200%

Reflectivity resolution: 0.01%

Measurement method: single measurement, average measurement (2-99 times)

Measurement time: approximately 1 second

Interface: USB, Bluetooth

Screen: IPS full-color screen, 2.4 inches

Battery capacity: capable of continuous measurement 8000 times on a single charge, 3.7V/3000mAh

Light source lifespan: 10 years and 1 million cycles

Language: Simplified Chinese, English

Storage: Instrument: 100 standard samples and 10000 test samples; Massive storage of APP
