VTSYIQI Portable Handheld Colorimeter Color Meter 8mm Caliber 45°/0° Color Matcher
VTSYIQI Portable Handheld Colorimeter Color Meter 8mm Caliber 45°/0° Color Matcher
-
Product Description
- ★ Button & menu operation. Easy to understand. Reasonable price
- ★Commonly used of two measurement modes: Lab&Lch, easy to switch measurement
- ★Automatically displays the bias degree of the color difference about sample and standard sample
- ★Practical of the average measurement mode, uneven surface also can measure
- ★ The color quality management software can analysis,exchange the color-difference and data
Product Description
Introduction:
According to international CIE1931,1976 and other relevant standards and national standards.The JZ-300 is a new economic and practical general colorimeter, We introduce the latest imported LED light source and sensor, it has stable, durable, the characteristics of the economy. The interface we design the menu type, because it is simple and easy to understand. Our JZ-300 is not only widely used on Quality department about the color difference, but also used on the school teaching, scientific research, color design.
Application:
Injection colors matched and quality control in production process
Color-difference detection and color-difference control or printing process
The color-difference analysis of spray paint and electroplate surface
Color-difference of different area of the metal treating surface
Color quality inspection of batch products outdoors
On-line monitoring of color difference in production process
Specification
Lighting/light system::"45/0"
Measuringaperture::Ø8mm
Display model::L*a*b*、L*C*H*、∆E*ab、∆(L*a*b*)、∆(L*C*H*)
Operating language::Simplified Chinese or English
Measurement model::Single model, Average model
Observe illuminant::D65
Standard illuminant::10°
Repeatability::
Within △E*ab:0.1 standard deviation
( When the white calibration plates is measured 30 times, and averaged)
Measurement spaceing:About 2 seconds
Power source::4 AA-size battery or AC adapter
Operating temperature::0-40℃(32-104℉);Relative humidity 85% or less
Size(WxHxD):110 ×60 ×190mm
Weight:310g(Without batteries)

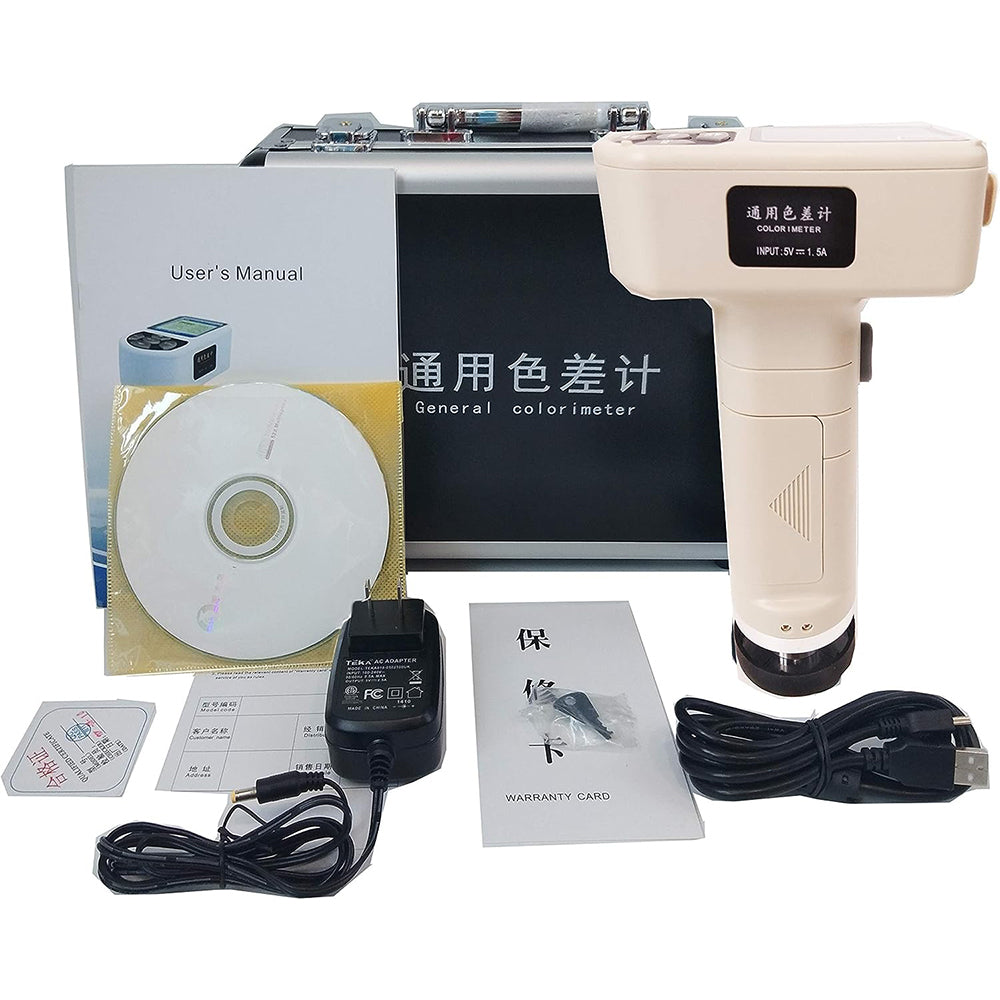

Standard Accessories:Plastic packing, protection cap, AC adapter, Software, USB cable, stainless steel box
Optional accessories :Micro-printer
