VTSYIQI Portable Large Screen Leeb Hardness Durometer Tester Metal Hardness Tester

VTSYIQI Portable Large Screen Leeb Hardness Durometer Tester Metal Hardness Tester

$270.00 USD
$270.00 USD
Sale Sold out
Shipping calculated at checkout.

  • Product Description

  • Compact plastic case，suitable for use under poor working conditions. Test at any angle, even upside down.
  • Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
  • Large screen (segment LCD), showing all functions and parameters. With EL background light.
  • Large capacity memory could store 500 groups information. Software calibration function.
  • Datapro Software to connect with PC via RS232 port. Micro printer support

Product Description

Technical Specifications:
Measuring range：
(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
Measuring direction：360°（↓↖↗↘↙→←↑）
Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
Display: segment LCD
Data memory: max. 500 groups（relative to impact times 32～1）
Working voltage: 3V（2 AA size alkaline battery）
Continuous working period: about 100 hours（With backlight off）
Communication interface: RS232

Main Application:
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

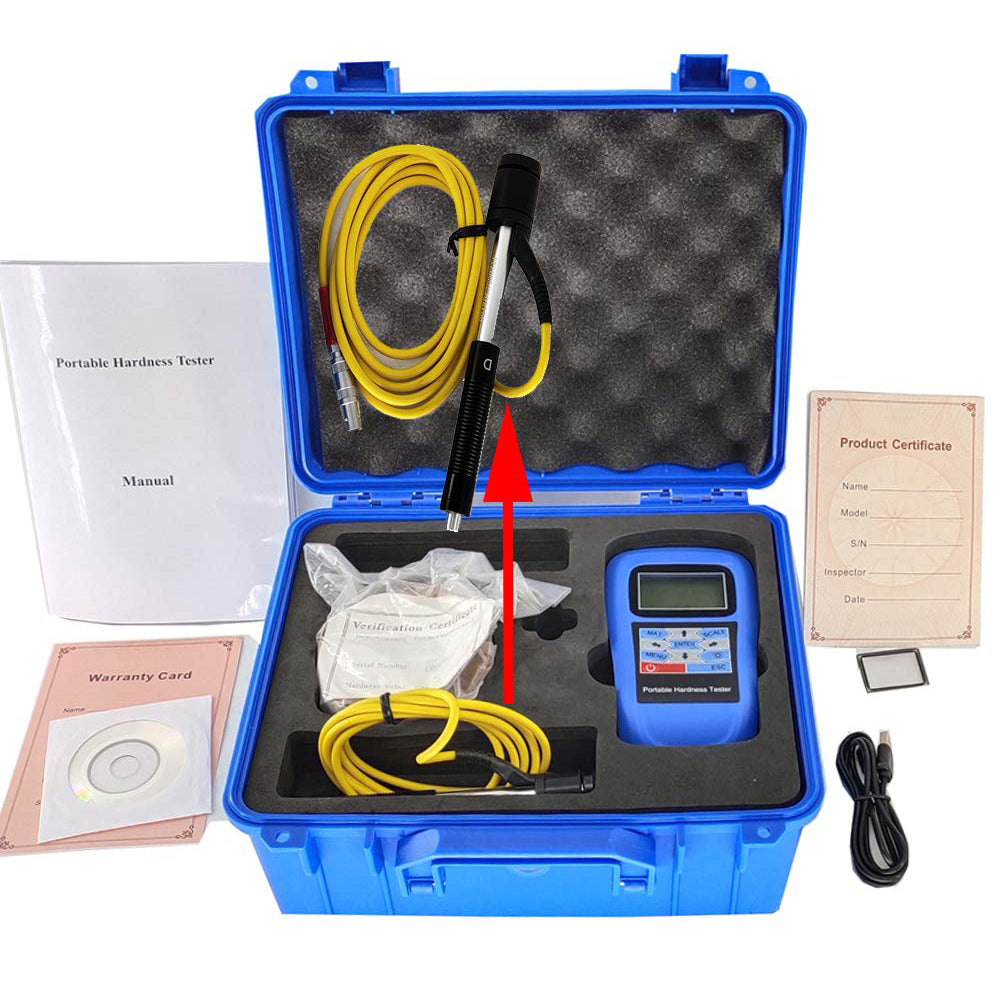

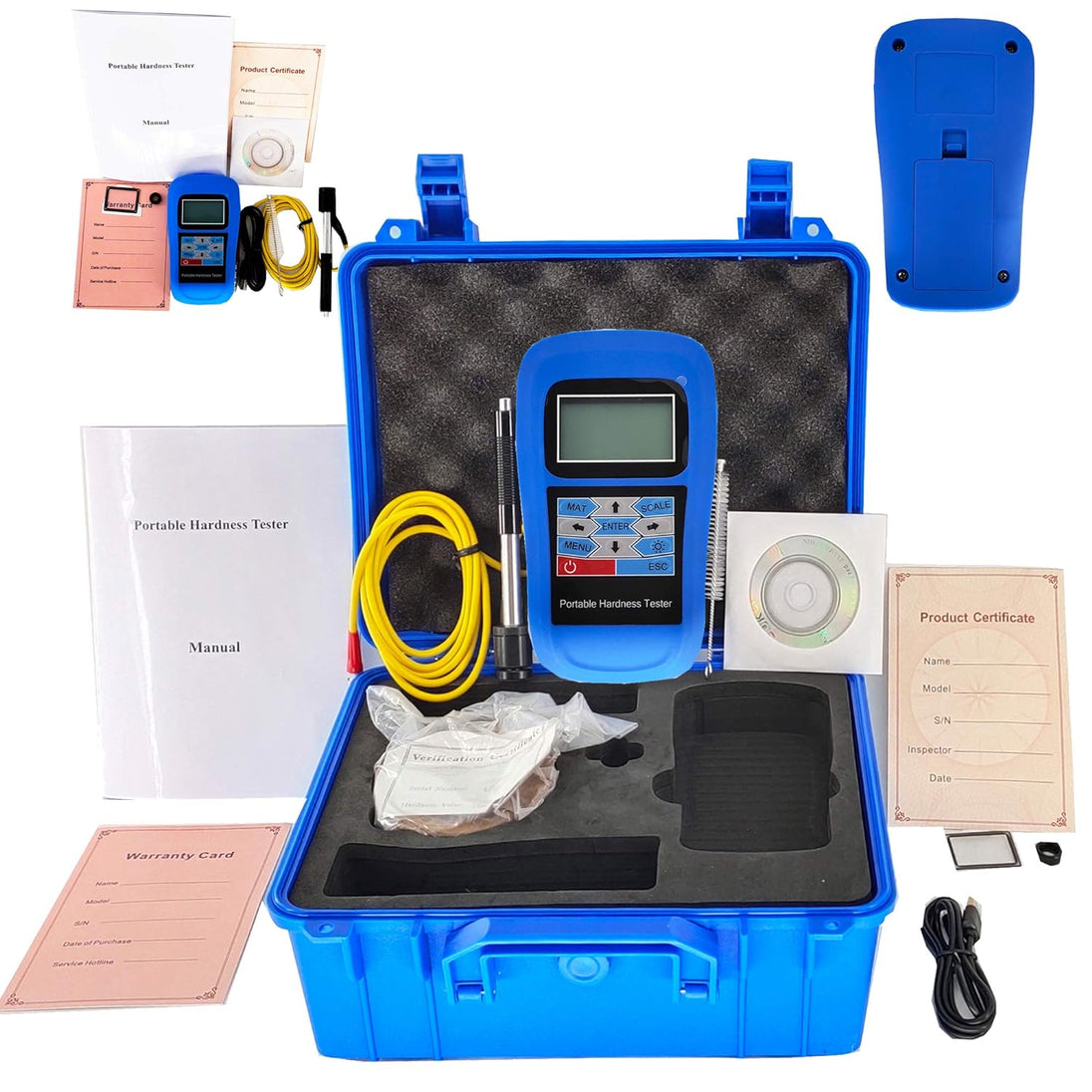

Configuration:
No. Item Quantity Remarks
Standard Configuration 1 Main unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1 5 Small support ring 1 6 Manual 1
7 Instrument package case 1

Optional Configuration
9 Cleaning brush (II) 1 For use with G type impact device
10 Other type of impact devices and support rings Refer to Table 3 and Table 4 in the appendix.
11 DataPro software 1
12 Communication cable 1
13 Micro Printer 1
14 Print cable 1
