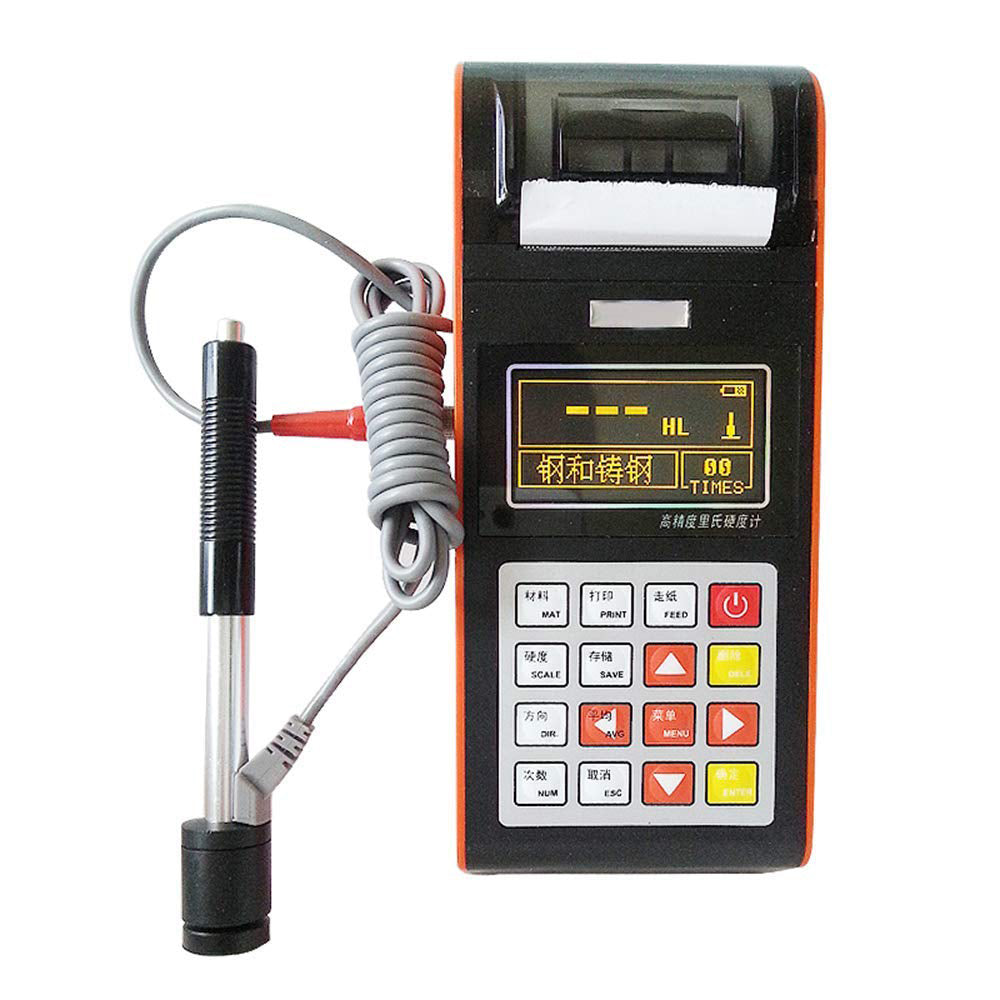

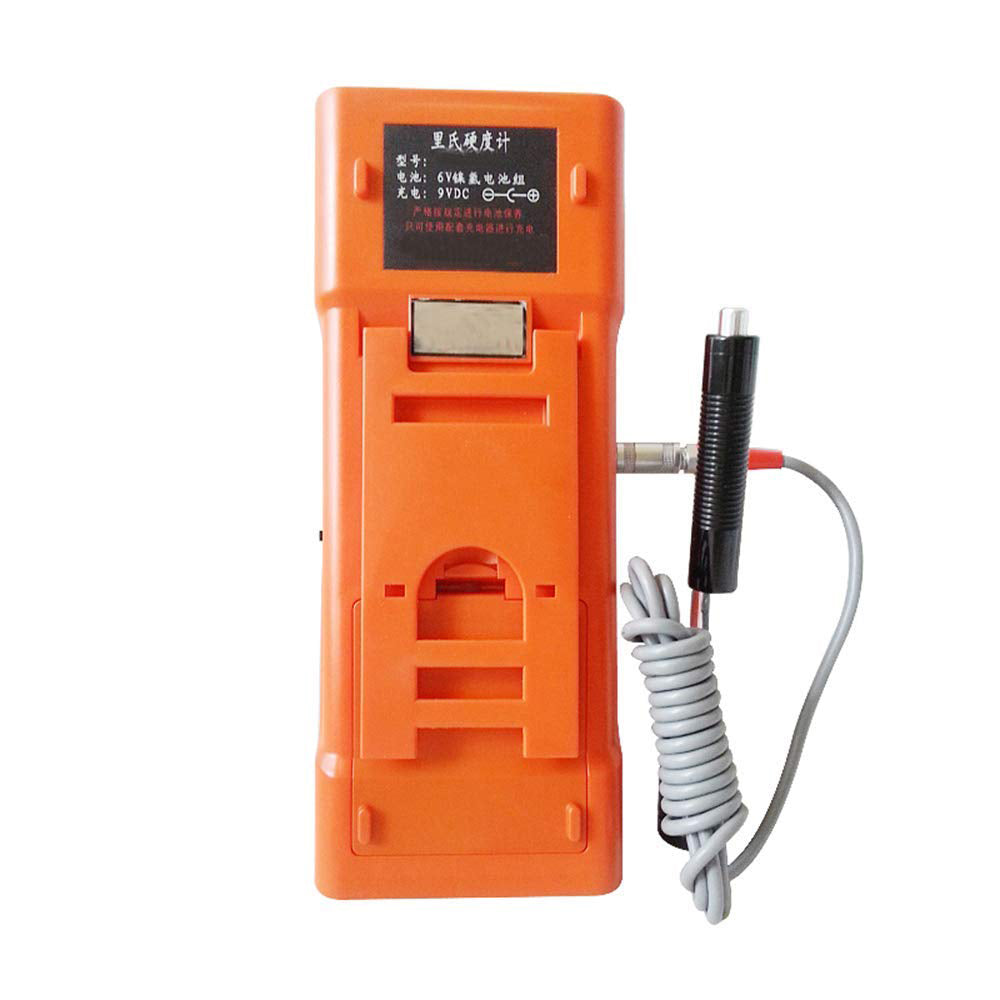

VTSYIQI Portable Leeb Hardness Tester Meter Gauge with Built in Printer for Metal Steel

VTSYIQI Portable Leeb Hardness Tester Meter Gauge with Built in Printer for Metal Steel

$405.00 USD
$405.00 USD
Sale Sold out
Shipping calculated at checkout.

  • Product Description

  • ★LCD Backlight display of 128×64 matrix is used.
  • ★Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).
  • ★Test values software calibration function.
  • ★Max 600 groups（impact times:32～1）of data can be stored at internal non volatile data storage.
  • ★Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system can identify the type of impact device automatically.

Product Description

Features:
1.Using the D high precision impact device
2.With USB2.0 interface, multiple communication modes are adopted to meet customized requirements of various users.
3.Equipped with a data processing software, through the USB interface, can exchange data with computer printing and parameter setting
4.Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
5.Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
6.Printer be separated from main unit and copies of testing results can be printed as required.
7.Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
8.Failure analysis of pressure vessel, steam turbo-generator set and other equipment.
Specifications:
Measuring Range:HLD(170-960) (170-960)HLD，(19-651)HB，(13-100)HRB，(17-68.5)HRC，(59-85)HRA，(80-976)HV、（30~110）HS
Impact Directions:Up,down,horizontal,slanting up,slanting down
Measuring materials:Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Hardness scales:HL, HB, HRB, HRC, HRA, HV,HS.
Display:128*64 digital matrix LCD
Memory:600group(32 every group)
Work voltage:3V( 2 AA alkaline batteries)
Dimensions:125mm*71mm*27mm
Continuous working period:200 hours (with backlight off)
