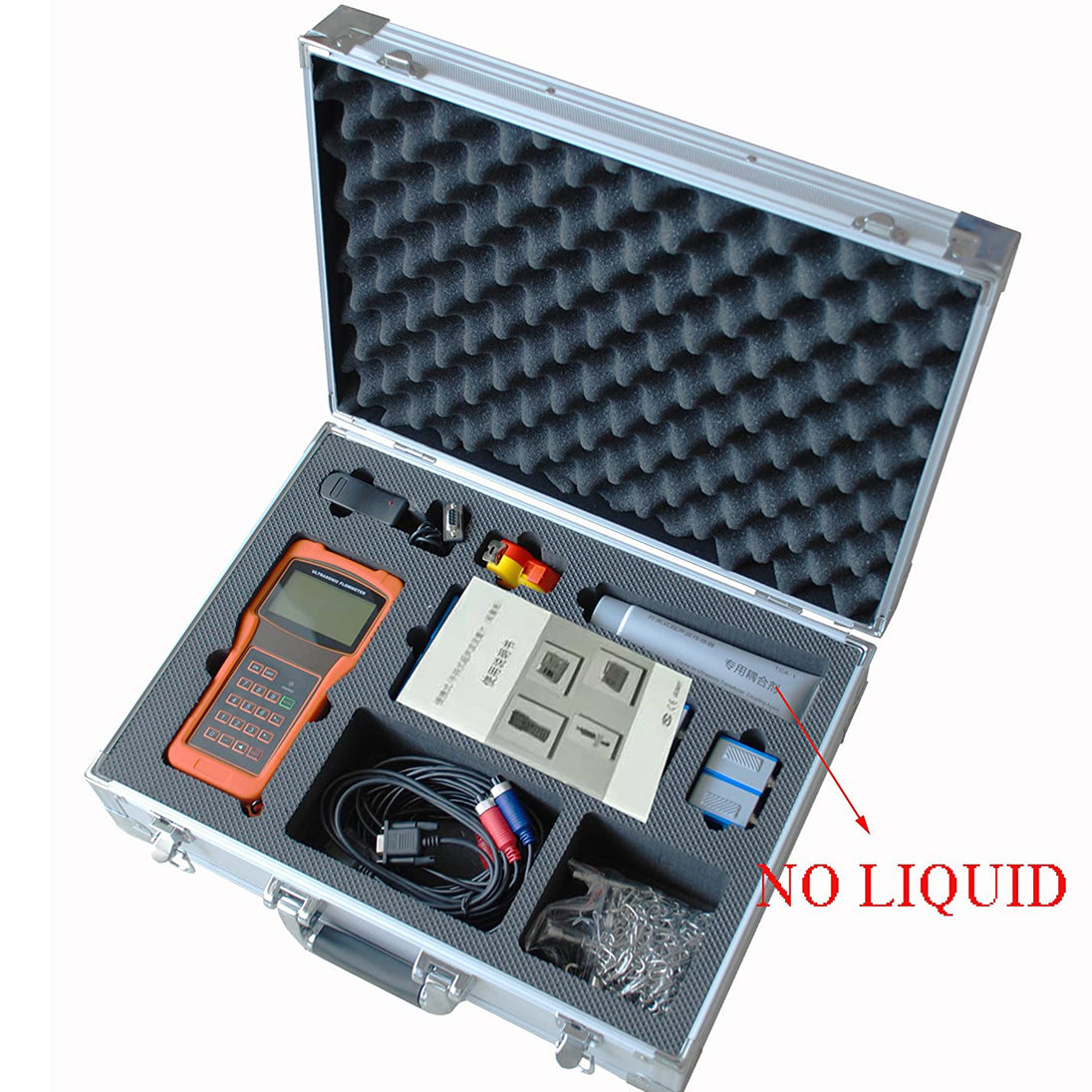

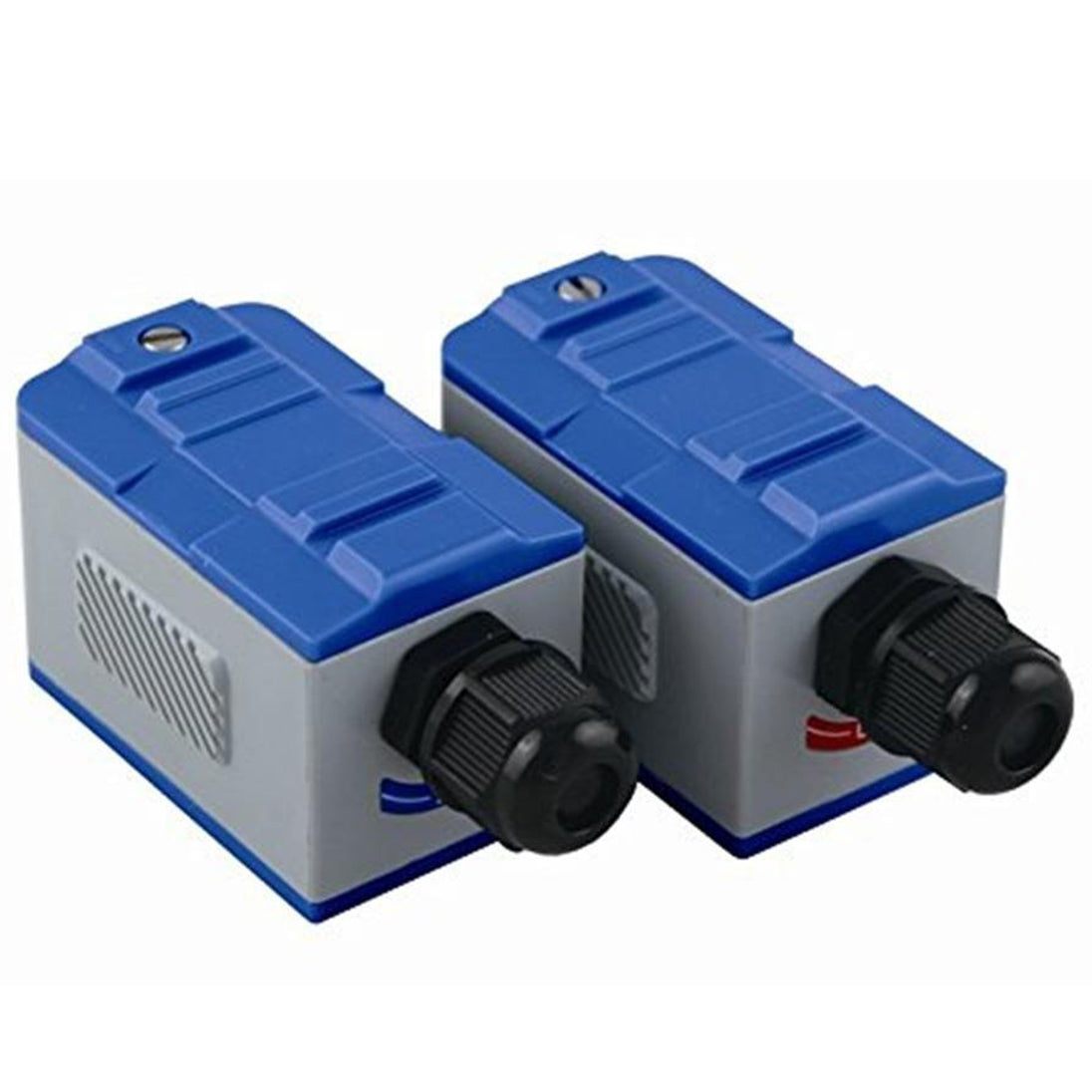

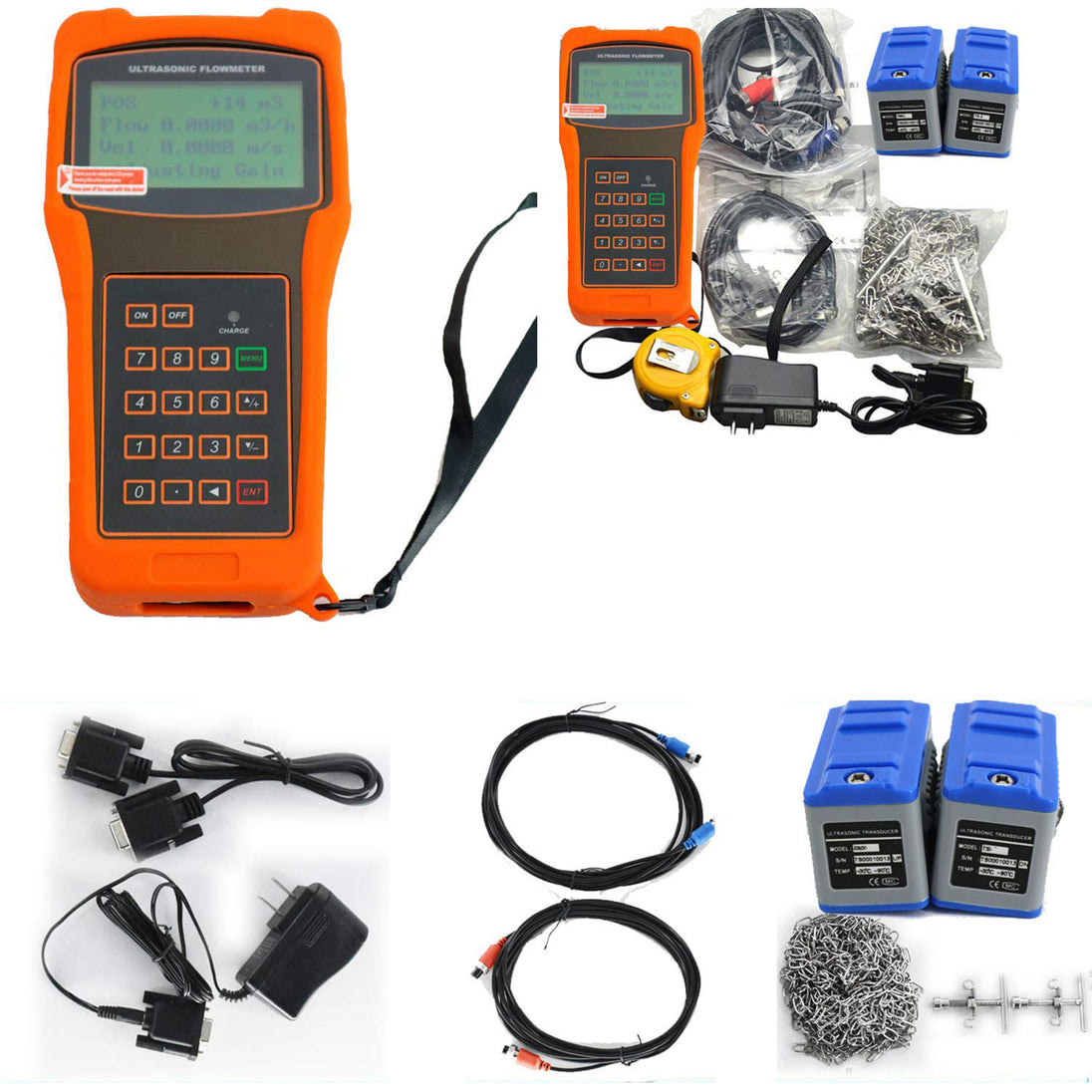

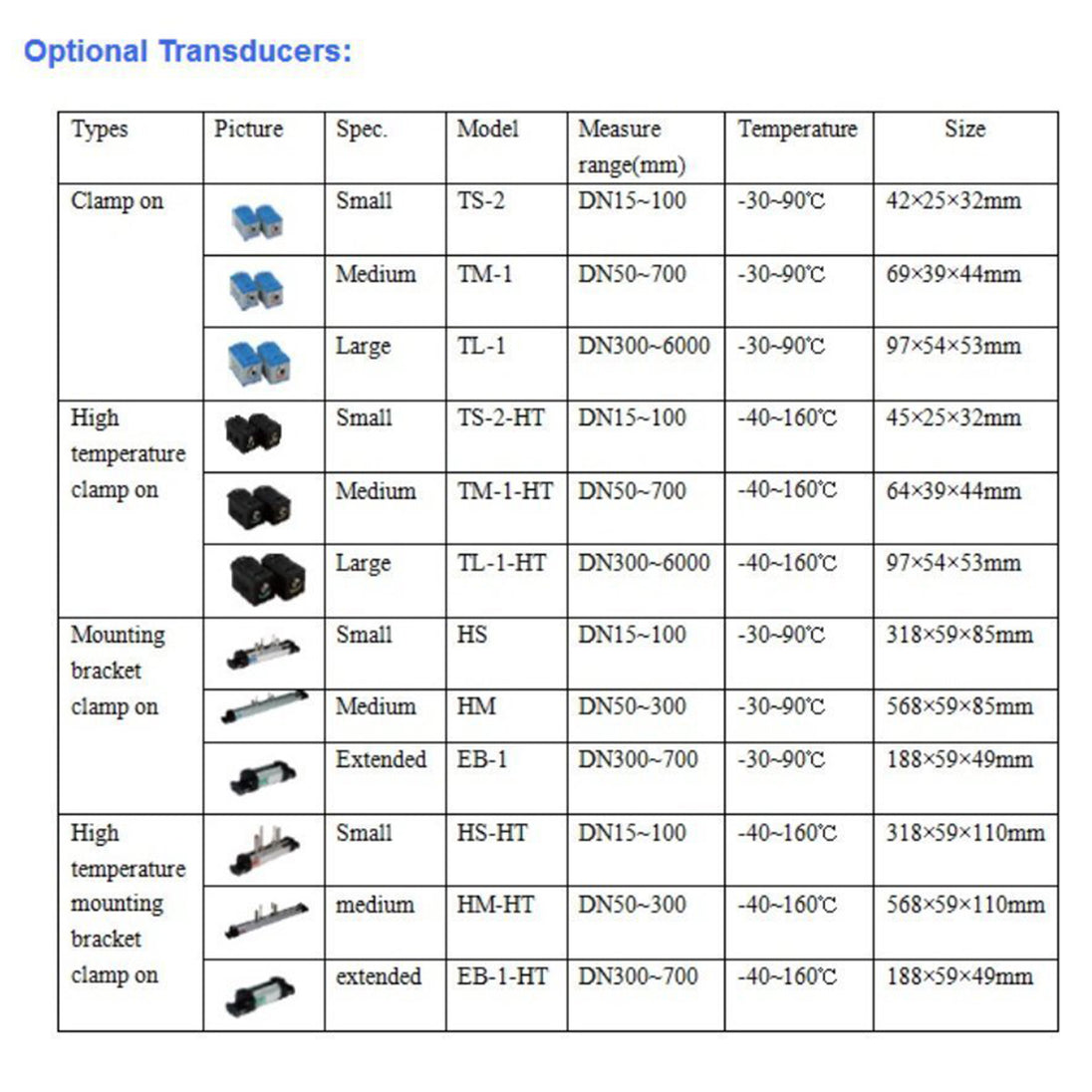

VTSYIQI Portable Ultrasonic Flow Meter Digital Liquid Flow Meter With TL-1 Transducer Measuring Range DN300 to 6000mm 11.8 to 236.22in

VTSYIQI Portable Ultrasonic Flow Meter Digital Liquid Flow Meter With TL-1 Transducer Measuring Range DN300 to 6000mm 11.8 to 236.22in

Regular price $908.00 USD
Regular price Sale price $908.00 USD
Sale Sold out
Shipping calculated at checkout.
Feature
Items: Performance and Parameter

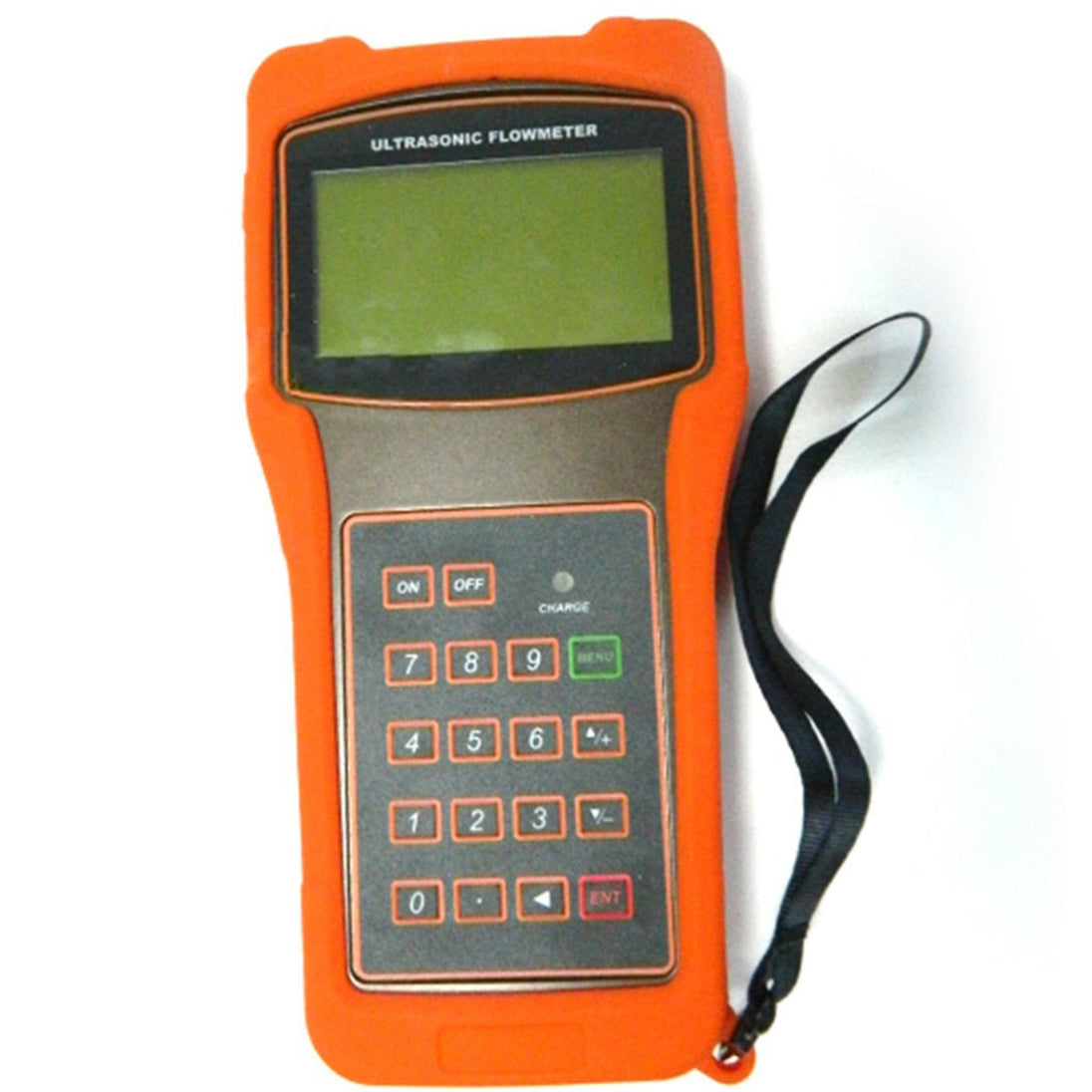

Main Unit:
Principle: transit-time ultrasonic flowmeter
Accuracy: Accuracy :over 1%-2%; Repeatability: over 0.2%

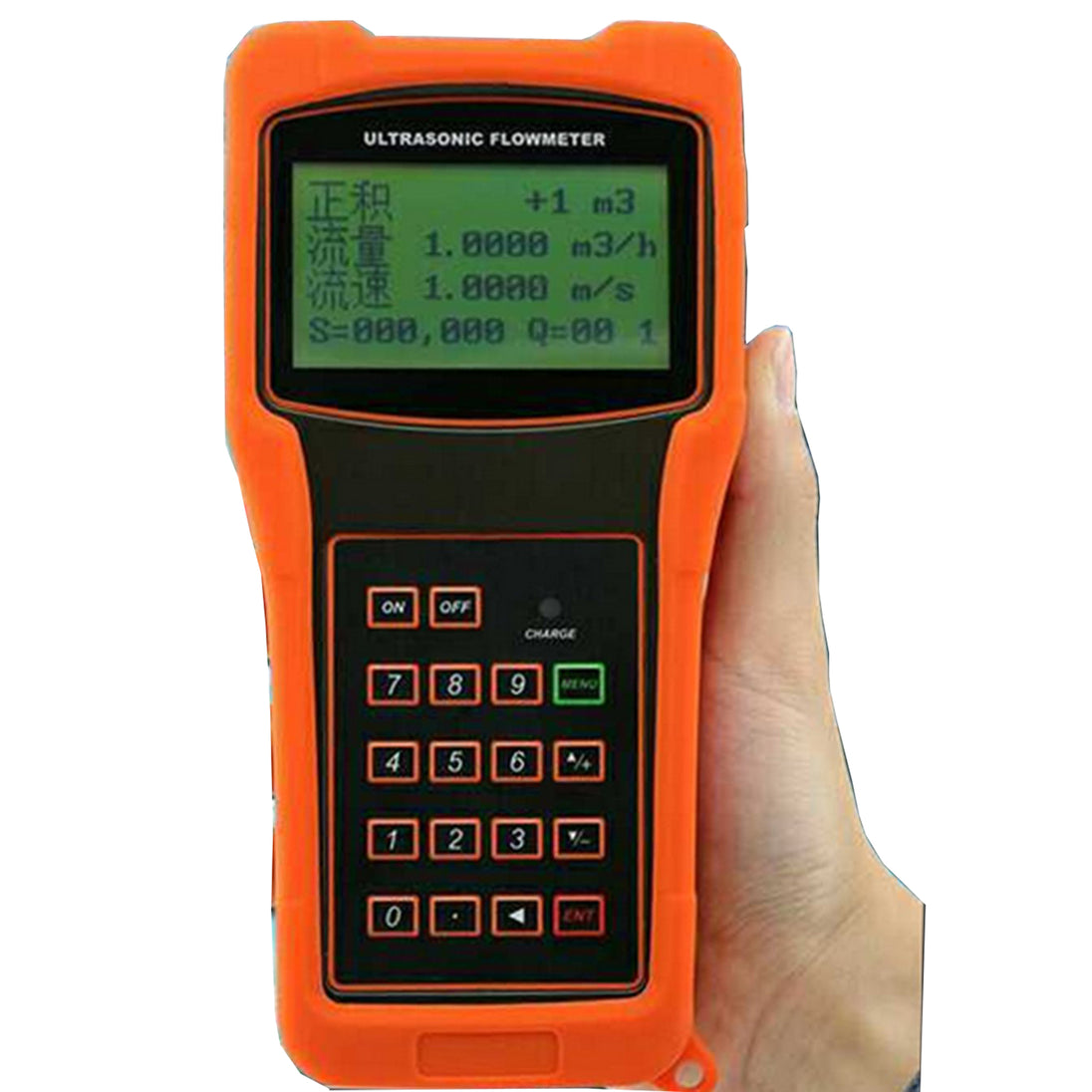

Display :4 line x 16 character LCD with backlight
Dimension: 200*93*33cm:   390g
Operation: Support 16 key light touch keyboard and the Simulation keyboard software
Data interface:
Insulate RS232 serial interface, upgrade the flew meter software by computer,
support the MODBUS, etc.
Signal Output: 1 way OCT output
Special Cable :
Twisted-pair cable, ;Select the RS232 communication.;
Generally, the standard is 5m*2, optional 10m*2
Pipe Condition :
Pipe Material :
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass
 steel product, liner is allowed.
Pipe Diameter :DN 300---6000mm
Straight length pipe:
Transducer installation should be satisfied: upstream10D, downstream 5D,
30D from the pump.
Measuring Medium:
Type of Liquid :Water ; Ultra-pure liquids; Solvents and other liquids
Temperature: Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
Turbidity: under 10000ppm and less bubble
Flow rate :0--±10m/s
Flow Direction :Measuring two (plus-minis) direction of flow rate
Working Environment:
Temperature:
Main Unit: -20--60℃
Flow transducer: -40--160℃;
   Temperature transducer: according to the customer’s demands.
Humidity: Main Unit: 85% RH
Power Supply: AC  110V-240V
