Features:

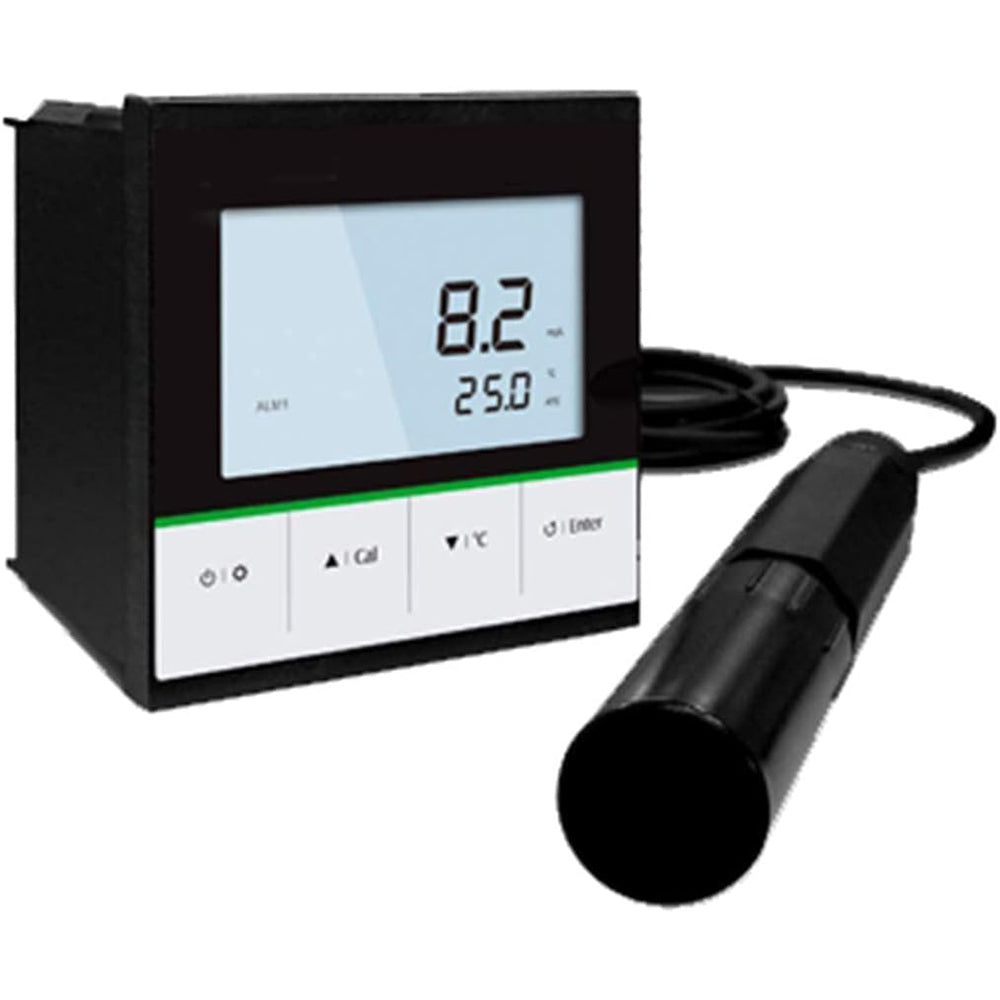

• Economical online dissolved oxygen controller is equipped with a polarographic electrode.

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations ensure the accurate DO measurement.

• Automatic temperature compensation eliminates the measurement error.

• Setup menu allows setting the number of calibration points, measurement unit, alarm limits, hysteresis value, 4 to 20mA output, etc. • Reset function automatically resumes all settings back to the factory defaults.

Dissolved Oxygen :

Range : 0.0~20.0mg/L

Accuracy : ±0.5mg/L

Resolution : 0.1mg/L

% Saturation of Oxygen :

Range : 0.0~200.0%

Accuracy : ±2.0%

Resolution : 0.10%

Communication :

Signal Output : 4~20mA

Load : Max. 500Ω

Low or High Alarm : 0.00~20.00mg/L, selectable

Communication Interface : RS485

Connection Terminals : Detachable screw terminals

General :

Calibration Points : 1 or 2 points

Temperature Compensation : 0~40°C, 32~104°F, automatic

Pressure Correction : 60.0~112.5kPa, 450~850mmHg

Salinity Correction : 0~35g/L

Environmental Conditions : Ambient temperature < 60°C, relative humidity < 80%

Power : DC24V

Dimensions : 96(L)×96(W)×75(H)mm

Weight : 350g
