VTSYIQI Rebar Detector NDT Concrete Rebar Locator with USB Interface Range Ф6mm-Ф50mm Rebar Error ±4 for Reinforcement Detector Position Determination LCD Screen Lithium Battery

VTSYIQI Rebar Detector NDT Concrete Rebar Locator with USB Interface Range Ф6mm-Ф50mm Rebar Error ±4 for Reinforcement Detector Position Determination LCD Screen Lithium Battery

Feature:

(1)Rebar scanner Applicable range:Ф6mm~Ф50mm

(2)Rebar locator Maximum allowederror:±1 rebar standard

(3)Rebar detector For Measuring concrete protective layer thickness (protective layer thickness can be calibrated)；Positioning of reinforcement；Estimated rebar diameter；Test rebar spacing, display rebar grid layout (plans and sections)

(4)NDT Rebar Scanner Concrete rebar scanner Power Supply: Built-in chargeable lithium battery,power supply time up to 50 hours

(5)Brightness adjustment, according to the external environment lighting degree, backlight brightness level selection, eight gear adjustable

(6)Multi-Function Concrete Rebar Detector Rebar finder Data can be exported from a USB flash drive

Product features:

Measuring concrete protective layer thickness (protective layer thickness can be calibrated)

Positioning of reinforcement

Estimated rebar diameter

Test rebar spacing, display rebar grid layout (plans and sections)

Technical features:

1, the operating system is fully upgraded, the full-color LCD screen, the protective layer thickness and spacing data are displayed on the same screen in real time, greatly improving the detection speed and accuracy

2, full color LCD screen, silicone dust button, more comfortable on-site operation

3, environmental calibration, can improve the real reliability of the test data

4, brightness adjustment, according to the external environment lighting degree, backlight brightness level selection, eight gear adjustable

5, theme selection, can improve the impact of outdoor lighting on screen visibility

Specification:

1. rebar spacing error ±1mm, can display rebar grid distribution diagram (plan and profile);

2. Protective layer thickness measurement (nominal) range:

The first range (nominal) range: 6mm ~ 90mm

The second range (nominal) range: 7mm ~ 200mm;

3. Protective layer thickness calibration range: 0 ~ ±50 mm;

4.Rebar diameter measurement (nominal) range: diameter of 6 ~ 50mm;

5.The maximum allowable error of the measurement value of the steel protective layer thickness:

Maximum allowable error（mm）:≤±1----≤±2----≤±4

Protective layer thickness First measuring range(mm):6～59----60～69----70～90

Protective layer thickness Second measuring range(mm):7～79----80～119----120～200

6. The maximum allowable error range of the rebar diameter measurement value: ±1

7. Working environment:

Operating temperature: -10℃ ~ +50℃

Relative humidity: ≤ 90%RH

8. Other requirements:

The air does not contain c-o-r-r-o-s-i-v-e gases;

No strong electromagnetic interference;

Avoid large vibration and impact of the instrument;

9. Power supply: built-in rechargeable lithium battery, power supply time up to 50 hours

10. Host volume: 219mm×56mm×139mm

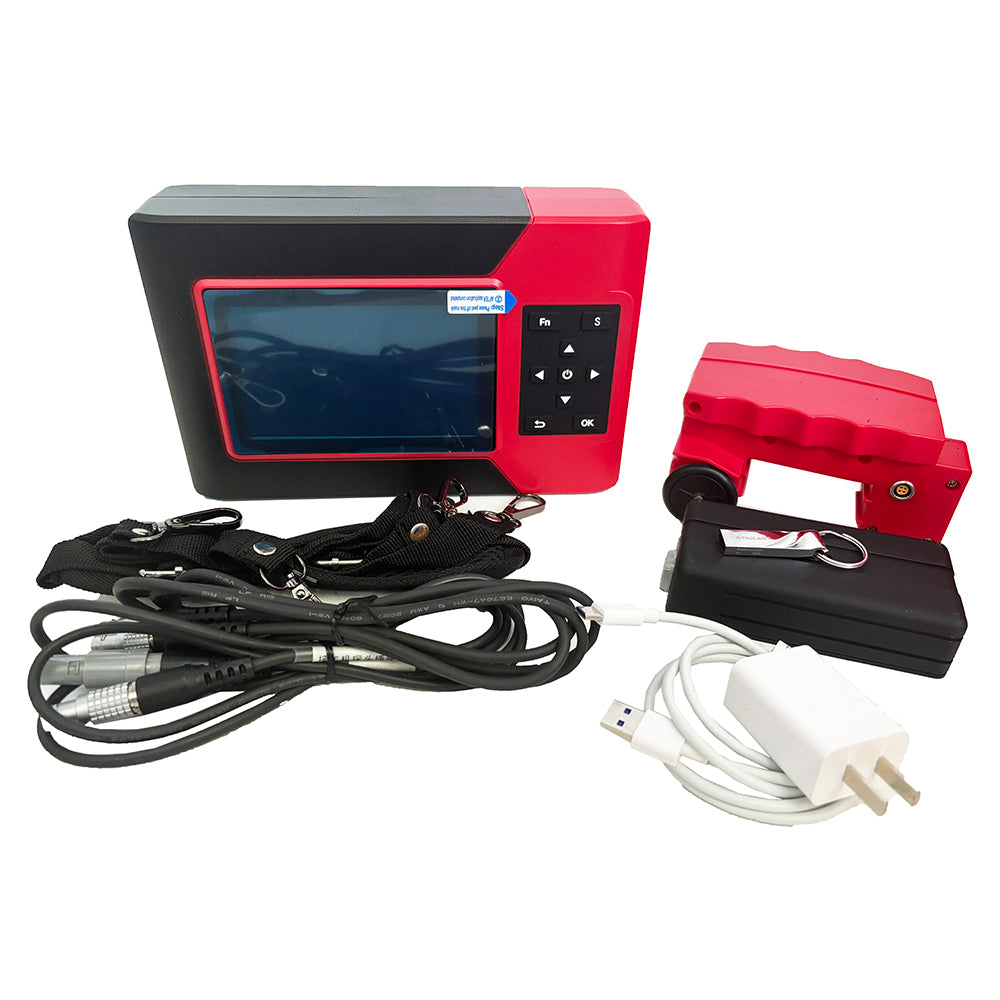

Standard accessories：host, probe, connection line, scanning car, data transmission line, charger, software CD
