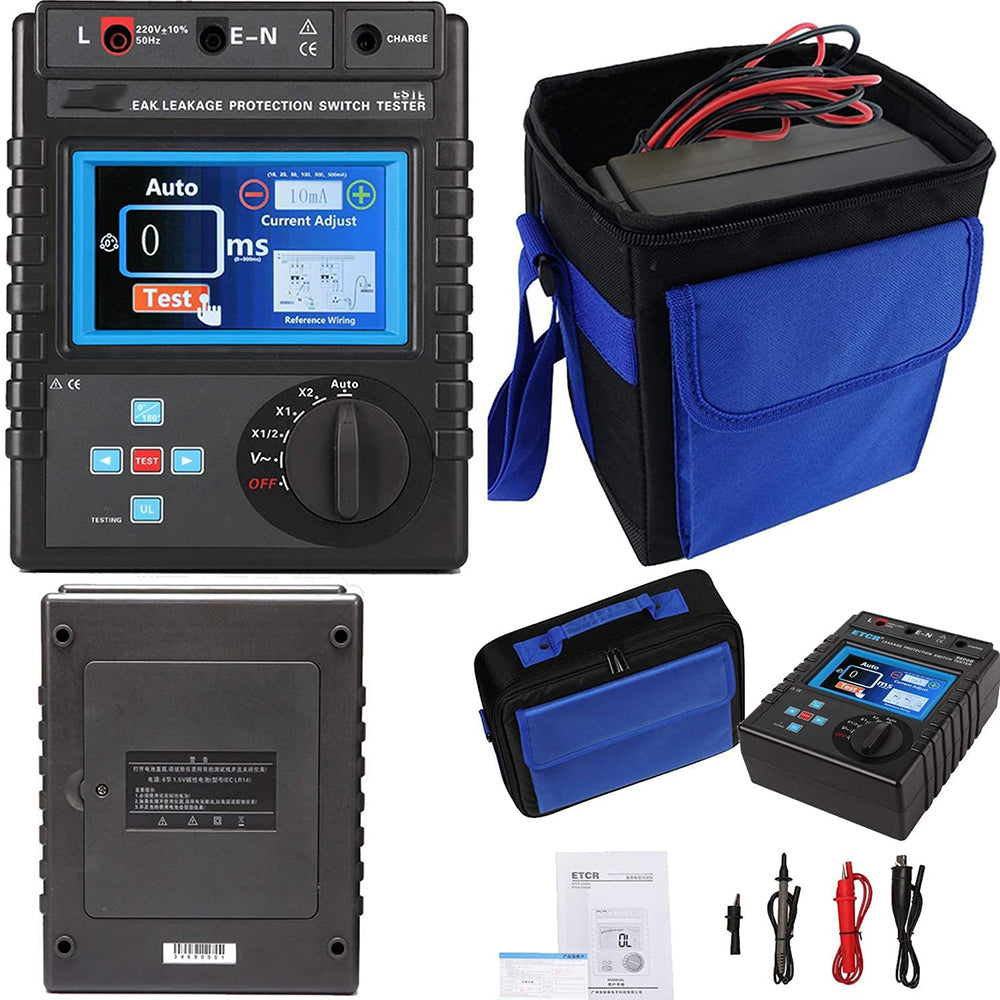

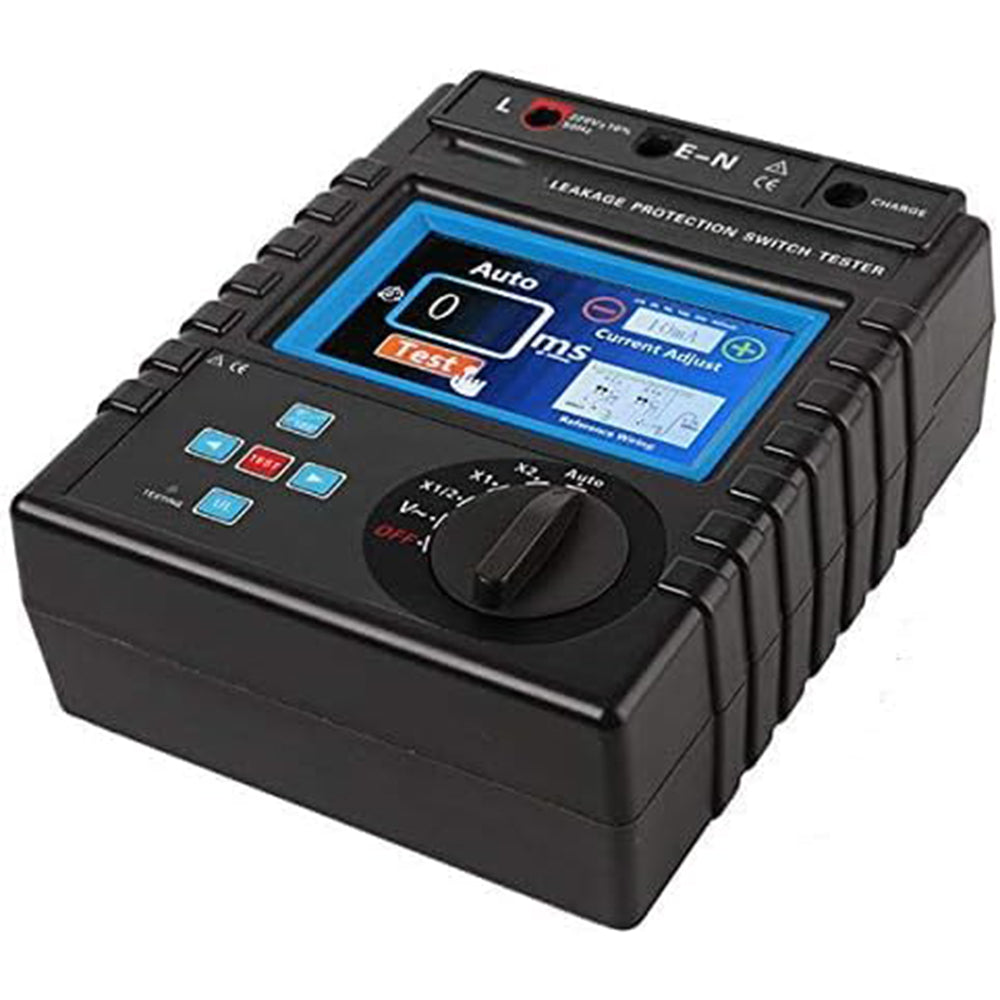

About this item

• Measuring leakage action time, range: 0ms~999ms
• Test leakage current, range: 5mA～1000mA
• Line AC voltage, range: 0~600V
• Line voltage: AC 600V or less, under the test of relay protection switch; AC 250V or less
• LCD: 7-inch TFT color touch screen with built-in wiring diagram

FEATURE:

Electricity Source: 7.4V rechargeable lithium battery (full 8.4V)

Test line voltage: AC 600V or less, under the relay protection switch test; AC 250V or less

Rated voltage: AC 220V

Leakage current range: (5, 10, 15, 20, 30, 40, 50, 60, 100, 150, 200, 250, 300, 500, 600, 1000) mA

AC voltage range: 0～600V

Leakage action time range: 0～999ms

Leakage operation time accuracy: 5%rgt±3%dgt

Gear current accuracy: ±10%rgt±5dgt

Gear voltage accuracy: ±2rgt%±3dgt

Failure information indication: LCD displays "999" timeout indication, the rated operating current gear may be tested too small or the leakage protector is faulty

Test line length: 1.8m

Test mode: manual or automatic

Display mode: LCD: 7-inch TFT color touch screen

Instrument size: 215mm×178mm×83mm

Battery voltage: When the battery voltage drops to 7.0V, it prompts that the battery voltage is low, please charge in time. The measured data at this time is also accurate.

Working current: 365mA Max

Working temperature and humidity: -10℃～40℃; below 80%rh

Storage temperature and humidity: -10℃～60℃; below 70%rh

Insulation withstand voltage: 100MΩ or more, AC2kV/rms (between case and screw)

Suitable for safety regulations: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ (600V) IEC61326 (EMC standard)
