VTSYIQI Lab Spectrophotometers Digital Spectrometer with Measurement Repeatability dE*ab≤0.02 Measurement Caliber Φ11mm Φ10mm Φ6mm Φ5mm Φ3mm 1*3mm ▽11mm ▽10mm ▽6mm ▽5mm ▽3mm ▽1*3mm Reflectivity Resolution 0.01% for Plastics and Textile Color Test

VTSYIQI Lab Spectrophotometers Digital Spectrometer with Measurement Repeatability dE*ab≤0.02 Measurement Caliber Φ11mm Φ10mm Φ6mm Φ5mm Φ3mm 1*3mm ▽11mm ▽10mm ▽6mm ▽5mm ▽3mm ▽1*3mm Reflectivity Resolution 0.01% for Plastics and Textile Color Test

Introduction:

In order to facilitate users in measuring samples of different sizes, the DS-700C-3 spectrophotometer/spectrophotometer supports 12 calibers for customers to use. The stable type is Φ 11mm+Φ 10mm+Φ 6mm+Φ 5mm+Φ 3mm+Φ 1 * 3mm, and the flexible type is ▽ 11mm+▽ 10mm+▽ 6mm+▽ 5mm+▽ 3mm+▽ 1 * 3mm, which can be flexibly applied to various usage and testing conditions.

Feature:

Measurement structure: 45/0

Measurement repeatability: dE * ab ≤ 0.02

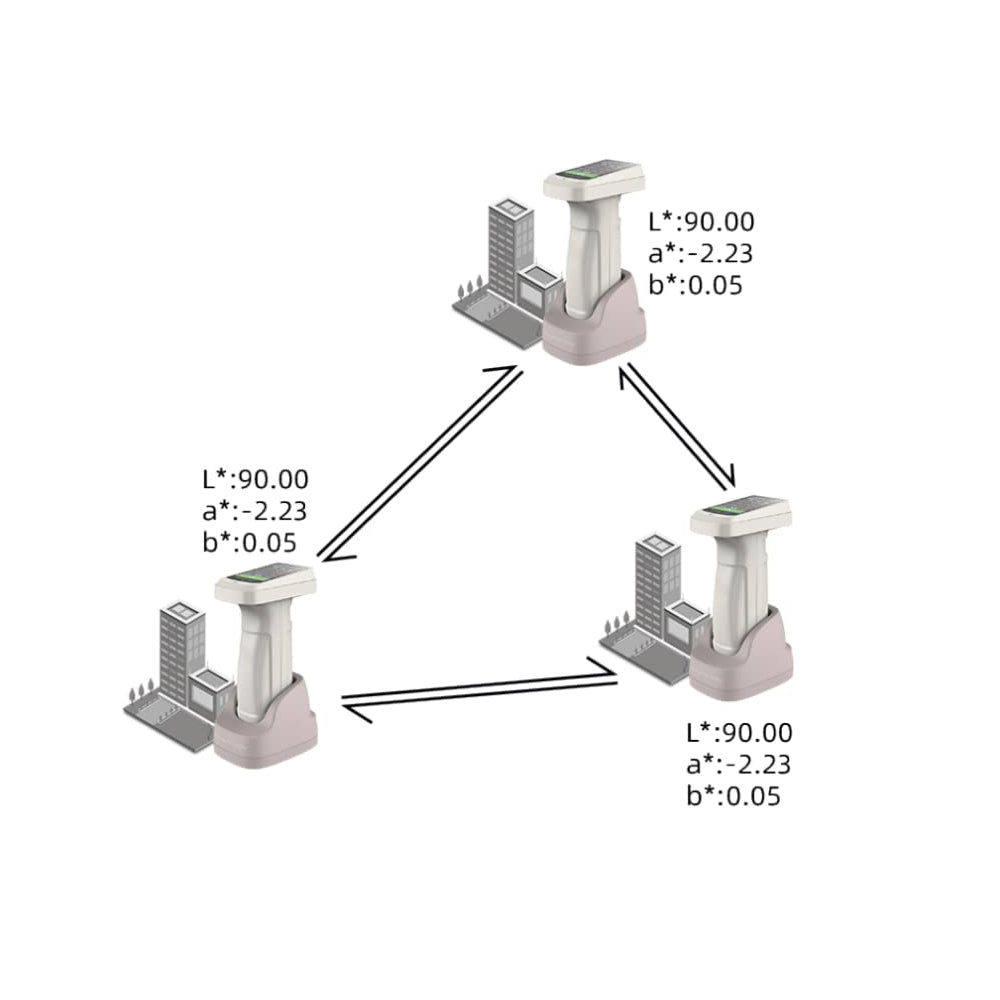

Inter station difference: dE * ab ≤ 0.2

Display accuracy: 0.01

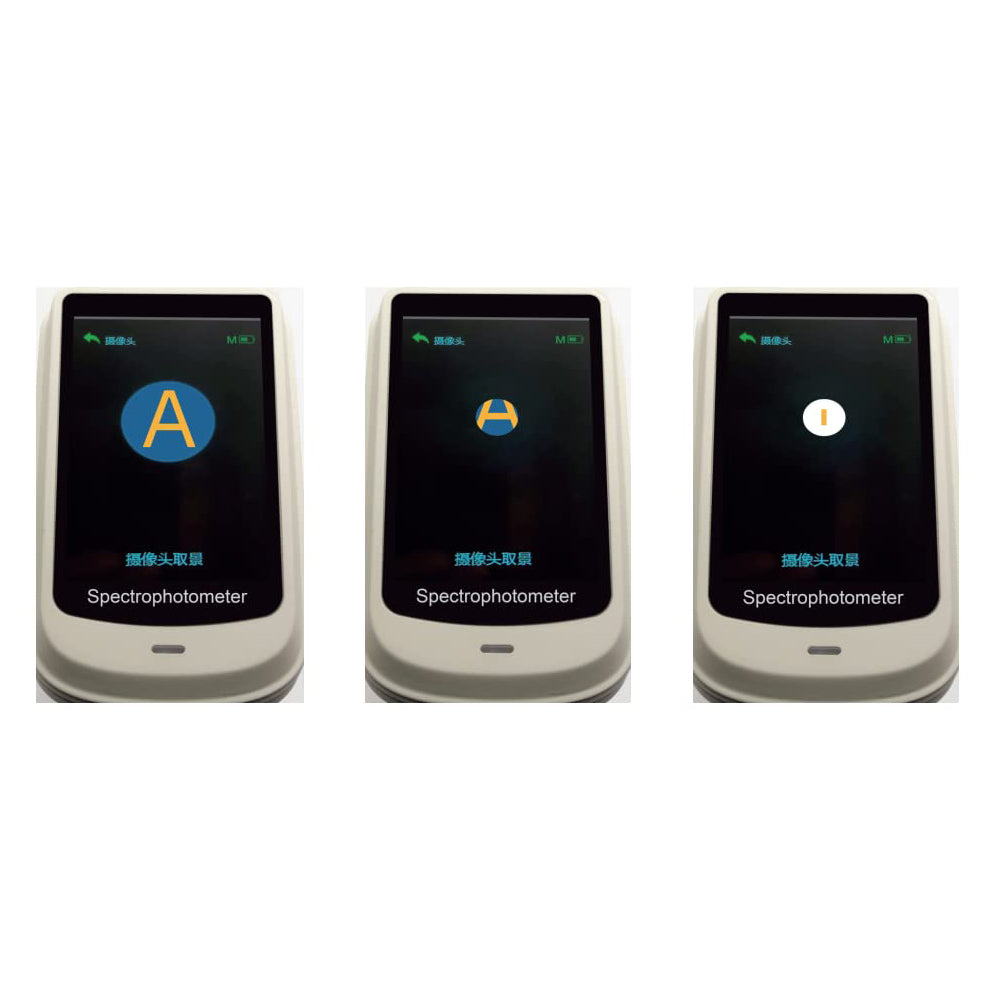

Measuring caliber: 12 in total for stable and flexible types: Φ 11mm, Φ10mm，Φ6mm，Φ5mm，Φ3mm，1*3mm
▽11mm，▽10mm，▽6mm，▽5mm，▽3mm，▽1*3mm

Measurement indicators: Spectral reflectance, CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, Color difference (Δ E * ab, ΔE*cmc,ΔE*94,ΔE*00),
Whiteness (ASTM E313-00, ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter, Taube Berger Stensby),
Yellowth (ASTM D1925, ASTM E313-00,ASTM E313-73),
Blackness (My, dM), color fastness, color fastness, Tint (ASTM E313-00),
Color density CMYK (A, T, E, M), heterochromatic index Milm, Munsell, hiding power, strength (dye intensity, coloring power)

Printing quality indicators:
Color Density CMYK (A, T, E, M), Dot Area, Dot Area Increase, Overprint Rate, Printing Contrast, Grayscale, Tone Error

Light source conditions: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2

Lighting source: Full band balanced LED light source+UV

Field of view: 2 °, 10 °

Compliant with standard: CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectral splitting method: grating

Sensor: Dual column high-precision CMOS array sensor

Wavelength interval: 10nm

Wavelength range: 400-700nm

Reflectance measurement range: 0-200%

Reflectivity resolution: 0.01%

Measurement observation method: visual inspection

Calibration: Intelligent automatic calibration

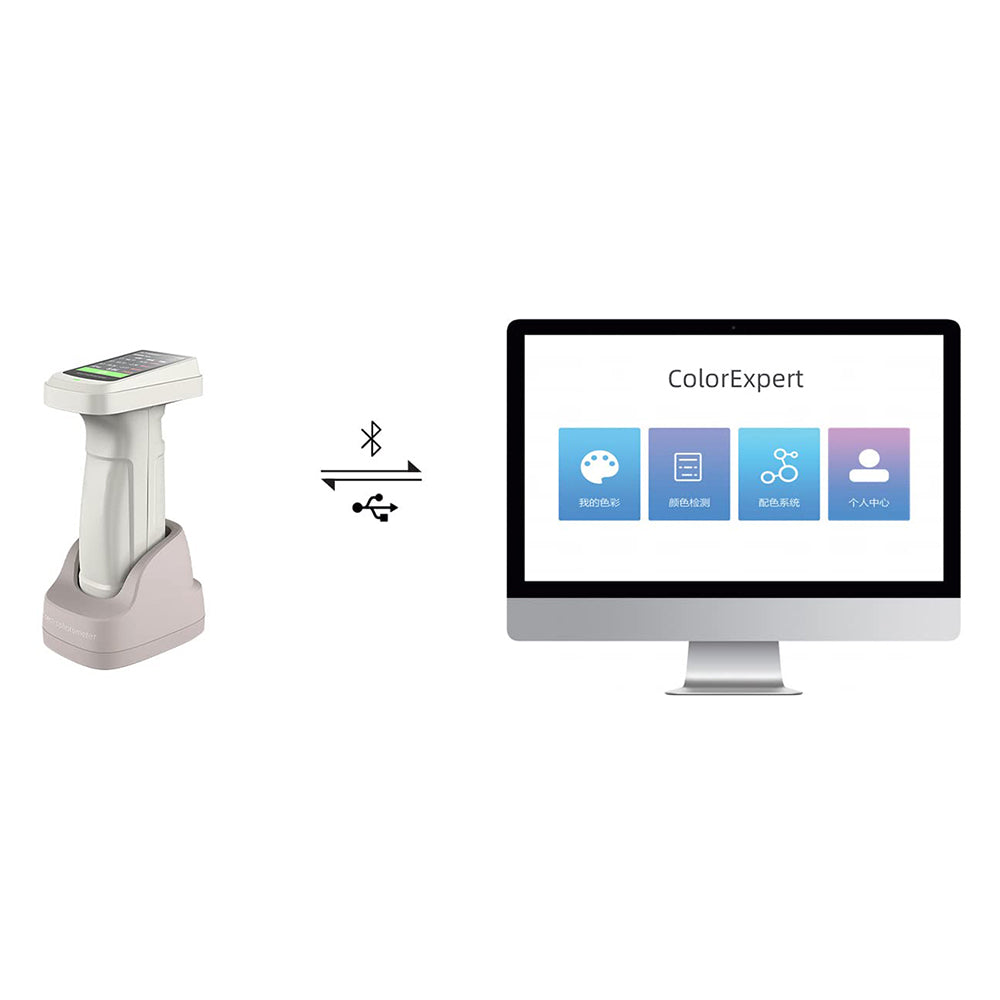

Software support: Android, iOS, Windows, WeChat Mini Program

Accuracy guarantee: Ensure that the first level measurement is qualified

Measurement time: approximately 1 second

Interface: USB, Bluetooth

Screen: Full color screen, 3.5 inches

Battery capacity: capable of continuous measurement 8000 times on a single charge, 7.2V/3000mAh

Light source lifespan: 10 years and 1 million cycles

Language: Simplified Chinese, English

Storage: Instrument: 100 standard samples and 10000 test samples; APP: Massive storage
