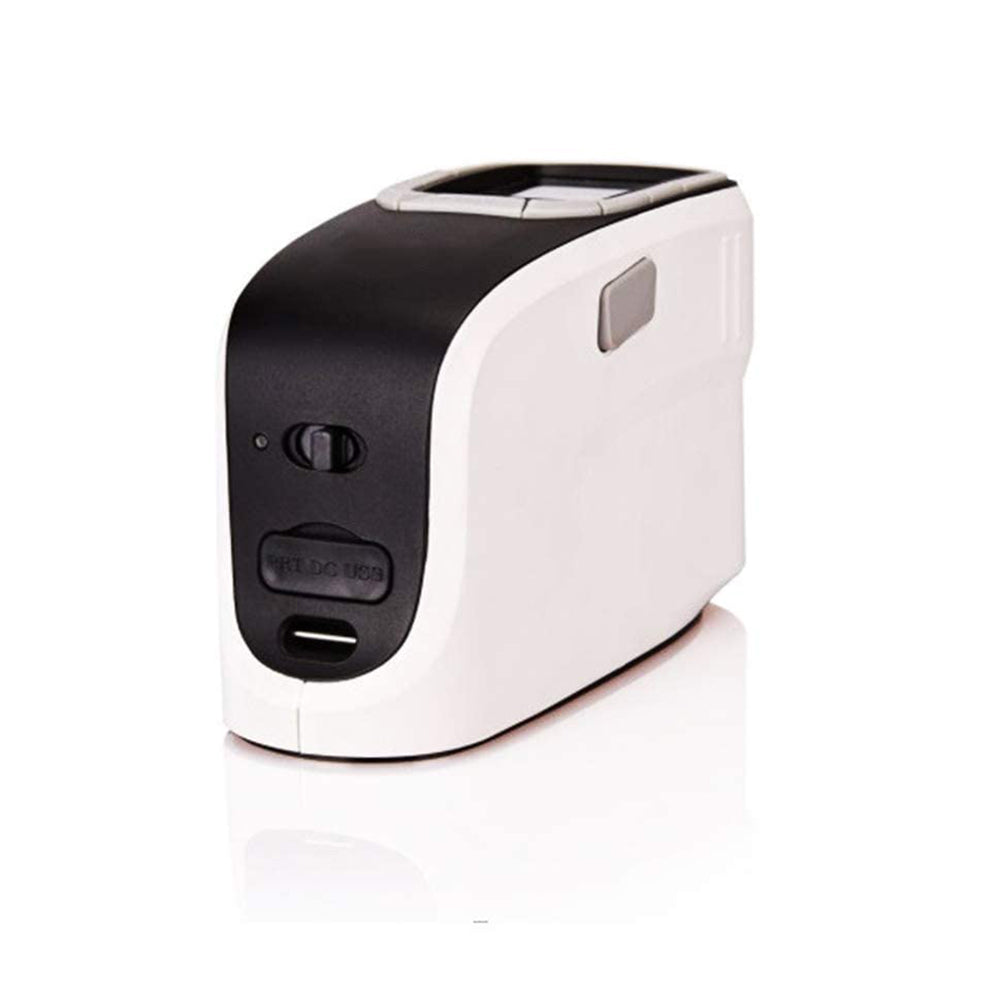

VTSYIQI Portable Spectrophotometer with ΔEab 0.2 d/8 SCI SCE Colorimeter Color Matching Multiple Light Sources

• Product Description

• The professional horizontal design does not contain any moving parts, which avoids the jitter of the instrument during hand-held operation and makes the test more precise.
• USB transfers data, PC software performs host computer operation, making your color control more free.
• Large storage space: 100 sets of standard samples can be stored, and 200 test records can be stored under each standard.
• Simultaneous SCI and SCE measurements can be performed and SCI /SCE data can be displayed via the LCD panel.
• The color spectrum spectrophotometer adopts the internationally applicable D/8 condition, which is suitable for quality control of various industries such as color matching and coatings, textiles, plastics, food, building materials and other industries.

Specification

Model: CS-580 (Test caliber : Type A: 10mm)

Measurement conditions:

Observer angle: 2°/10°

Illumination: d/8 (scattered light source, 8 degree observation angle), SCI (including specular reflection component) / SCE (excluding specular reflection component) synchronous measurement function. (in accordance with CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standard)

Integrating sphere : Φ40mm, Avian-D full diffuse reflective surface coating

Lighting source: CLEDs (full-band balanced Led light source)

Sensor : Dual optical path array sensor

Wavelength range: 400-700nm

Wavelength interval : 10nm

Half bandwidth: 5nm

Measuring range: 0-200%

Resolution : 0.01%

Measuring light source: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30.DLF, NBF, TL83, TL84 .U35 Display: Spectrogram/data, sample chromaticity value, color difference value, pass/fail result, color deviation, display measurement area, historical data color simulation, manual input of standard sample, generation test report

Interval: about 2 seconds

Measurement time: 2 seconds

Color space : CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, reflectivity

Color difference formula: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00

Repeatability:

Spectral reflectance: standard deviation within 0.08%

Storage data : 20000 test data

Operating environment : 0-45 ° C, relative humidity 80% or lower (at 35 ° C), no gas condensation

Storage environment: -25°C to 55°C, relative humidity 80% or lower (at 35°C), no condensation

Standard accessories : power adapter, lithium battery, manual, color management software, driver software, manual electronic version, color management tutorial, data cable, black and white calibration tube, protective cover, carrying case, electronic color card, measurement report Optional accessories : Powder former, micro printer
