VTSYIQI Portable Waterproof Fixed Ultrasonic Flow Meter Flowmeter Integrated Type Ultrasonic Flowmeter With Clamp-on High Temperature Small Transducer For Pipe Size DN25 to 100mm

Product Description

◆The TUF-2000F ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation
◆This type TUF-2000F comes with High Temperature Clamp-on Transducer TS-2-HT Standard small Clip(size: 45*25*28mm) for Pipe Diameter DN25~100mm, High Temperature : -30~160°C
◆Linearity: 0.5%, Repeatability: 0.2%, Accuracy:±1%; Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability
◆Output: Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1k. Accuracy 0.1%.; OCT output: Frequency signal (1~9999HZ); Relay output: over 20 source signal (no signal, reverse flow etc.); RS485 serial port

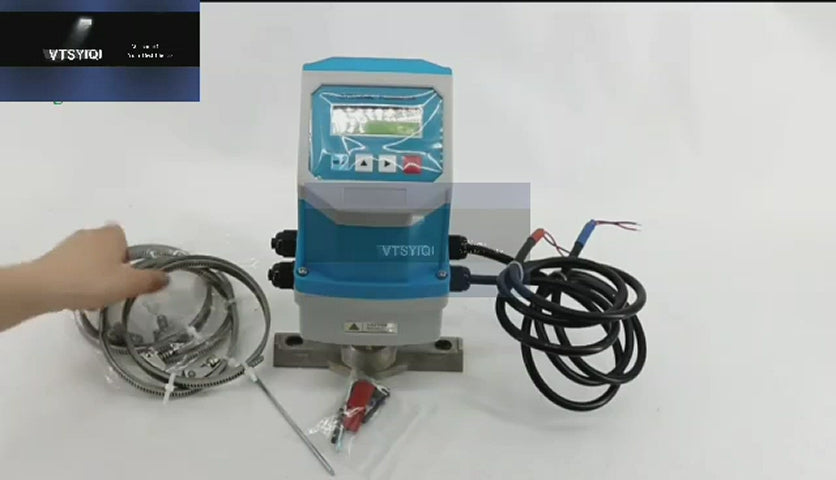

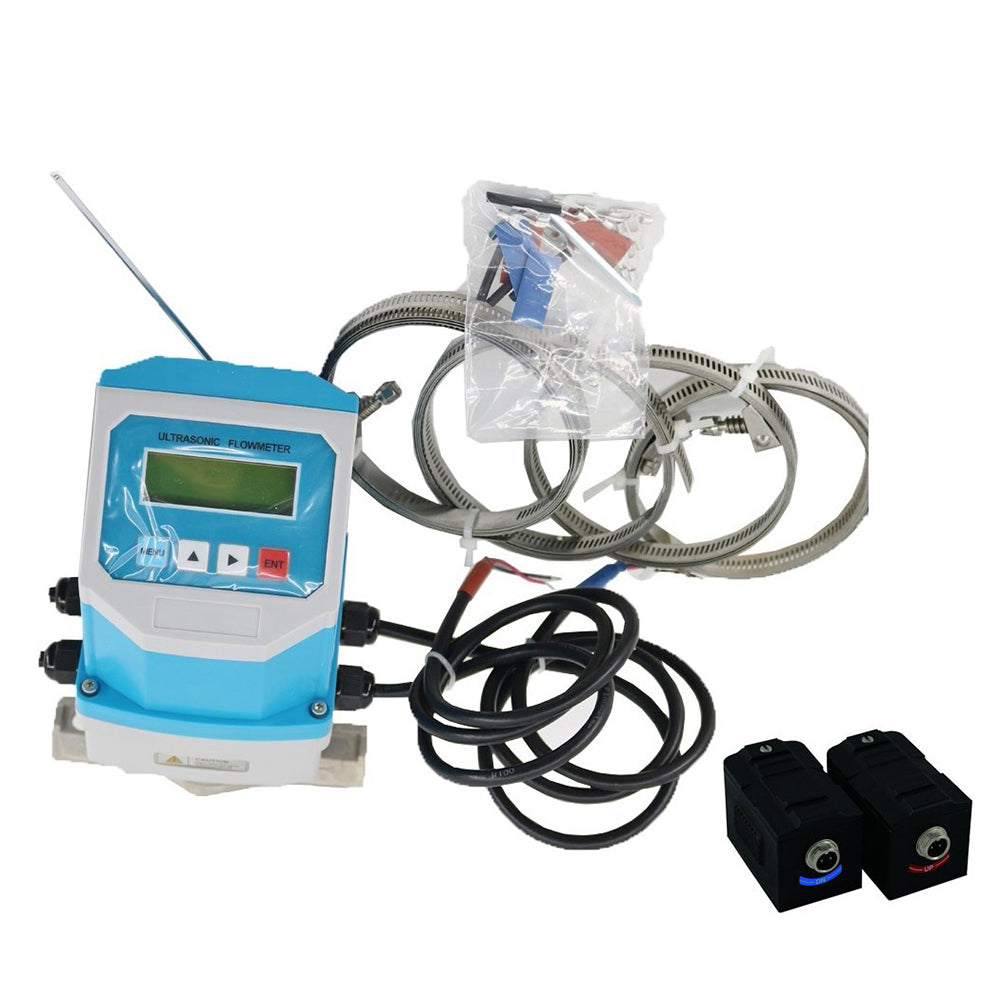

◆ The ultrasonic flowmeter consists of a host and an external clamp sensor. Only need to paste the external clamp sensor on the surface of the pipeline to complete the flow measurement of various liquids. Compared with the traditional flowmeter, it does not need to cut off the flow and it is convenient and quick to install. It truly realizes the non-destructive installation

Product Description
The manual is an electronic version. You can also download the manual directly in the detailed description.

This type TUF-2000F comes with High Temperature Clamp-on Transducer TS-2-HT Standard small Clip(size: 45*25*28mm) for Pipe Diameter DN25~100mm, High Temperature : -30~160°C
If you want to know other types Transducer,Please contact us. (Other types of Transducer parameters please see the upper picture)
Main unit
* Accuracy: Better than ±1%
* Repeatability: Better than 0.2%
* Principle: Transit-time measuring principle
* Measurement Period: 500ms
* Display: LCD with backlight display
Output:
* Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1k. Accuracy 0.1%.
* OCT output: Frequency signal (1~9999HZ)
* Relay output: over 20 source signal (no signal, reverse flow etc.)
* RS485 serial port
Input:
* Three analogue input
* Three-wire PT100 resistor input (optional)
* Other functions: Automatically record the totaliser data of the last 64 days / 64 months / 5 years;
* The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation

* Pipe Material: Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
* Straight pipe section: In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)
* Liquid Types: Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid
* Turbidity: Less than 10000ppm, with a little bubble
* Environment Temperature: Main Unit: -30˚C - 80˚C; Humidity,Main Unit: 85% RH;
* Power Supply: DC8-36V or AC85-264V
* Power Consumption: Less than 1.5W
